- SKU
- KBGBAAA8A620U05
- Barcode
- 4719331855512
- Model
- A620M H
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD A620
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 133 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 6400 MHz
- Max memory size
- 96
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- Graphics
- 1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
- Sound card
- Realtek audio codec High quality sound 2/4/5.1/7.1-channel * Audio jack functionality can be changed via audio software. To configure 7.1 channel audio, go to your audio software to set up the sound.
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

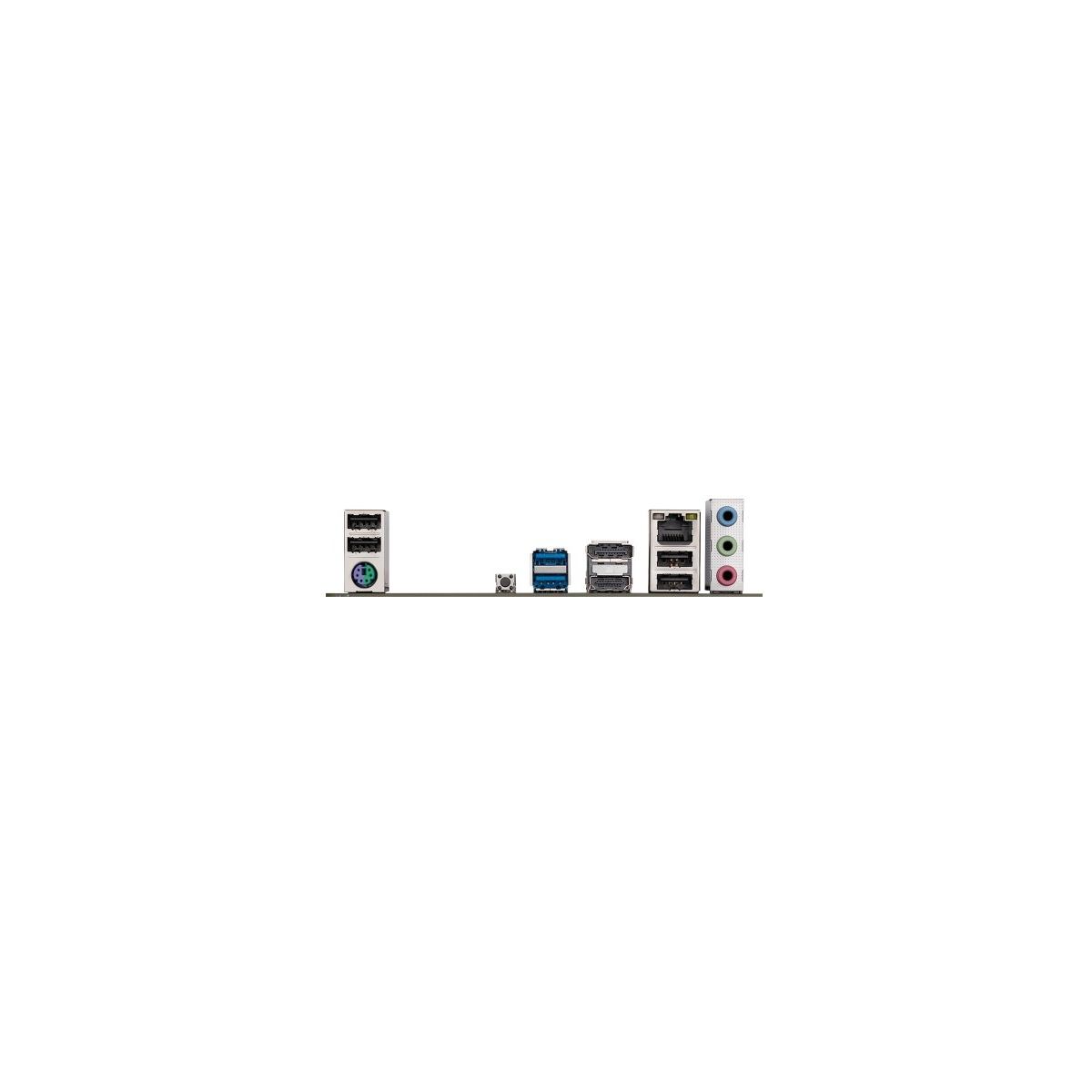

- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x RJ-45
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x Q-Flash Plus button
- External connectors
- 2 x USB 3.0
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x System panel header
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 23 x 22.5cm
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Other information
- Voltage detection Temperature detection Fan speed detection Cooling water flow rate detection Fan failure warning * Whether fan speed control is supported depends on the installed fan.
- Designation
- CE+WEEE
