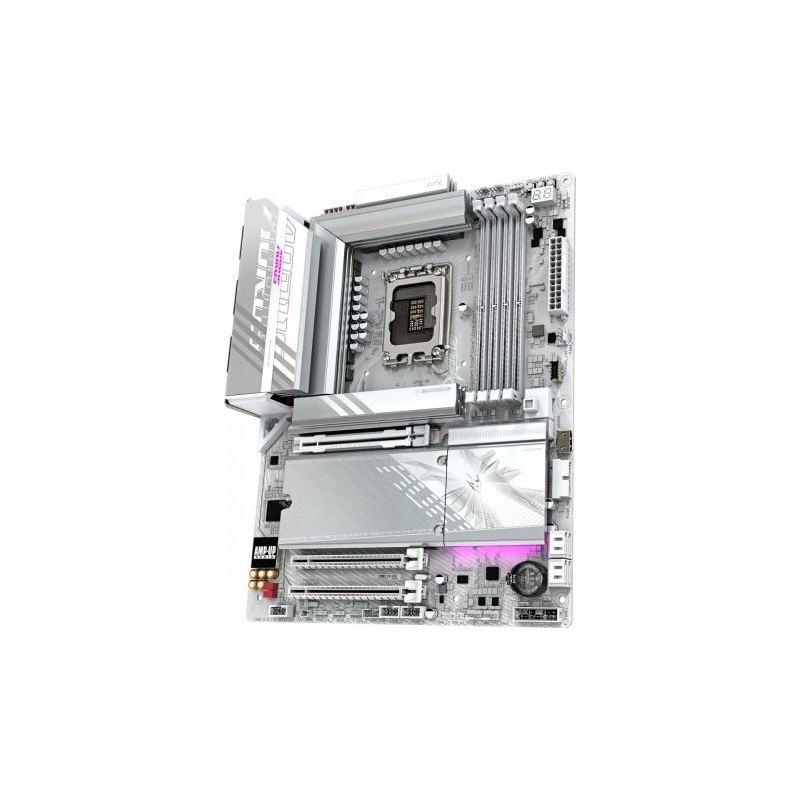

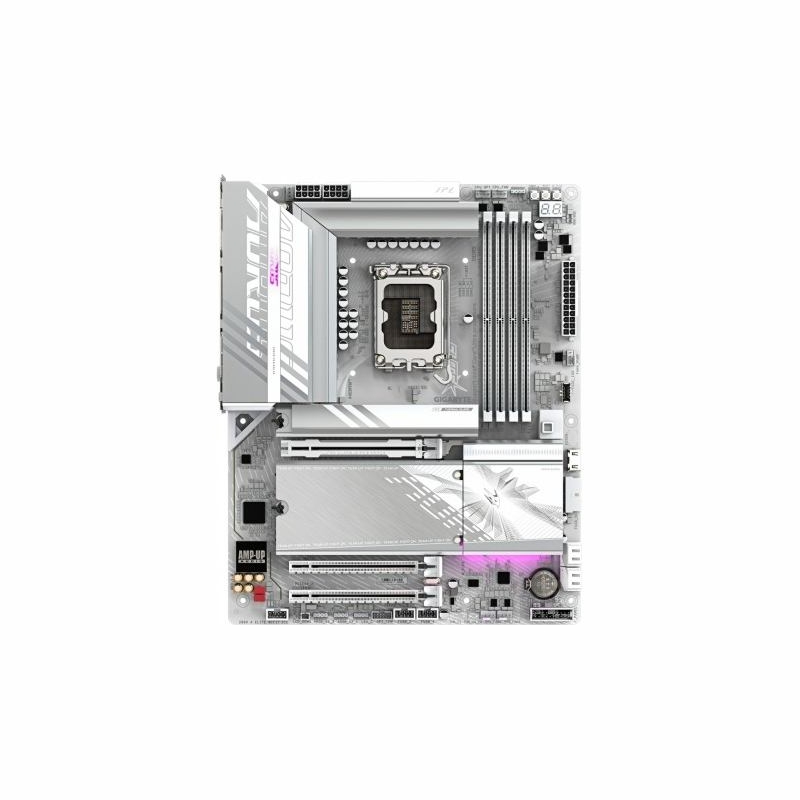

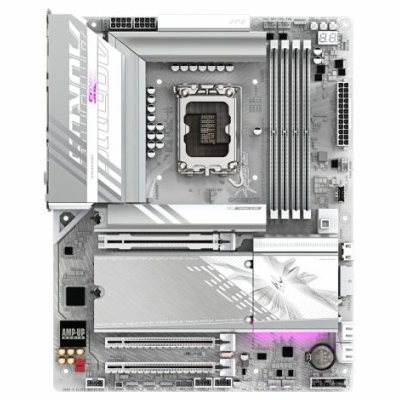

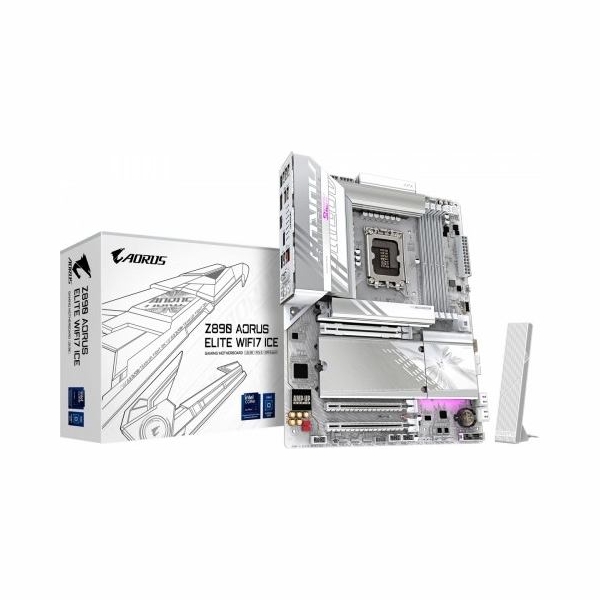

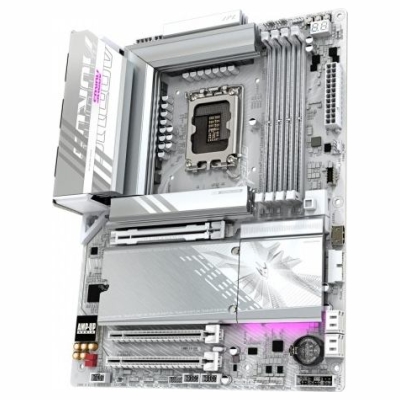

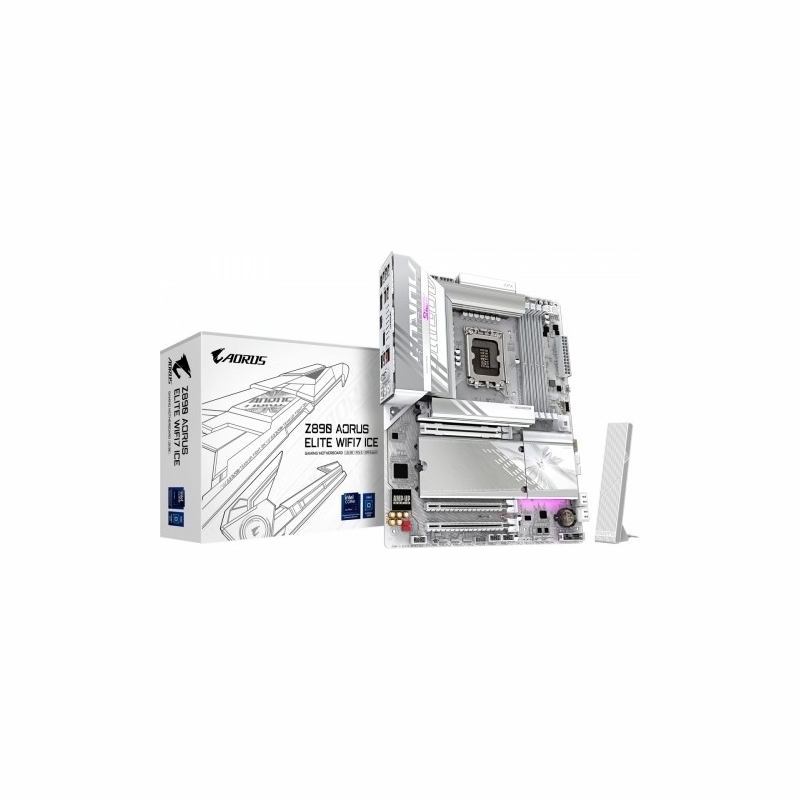

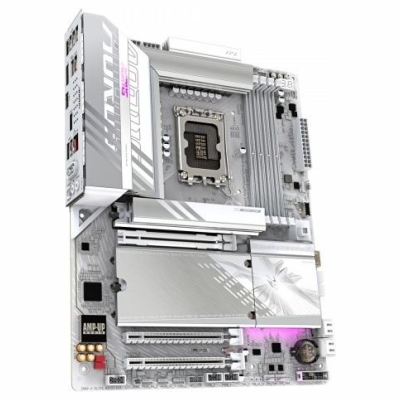

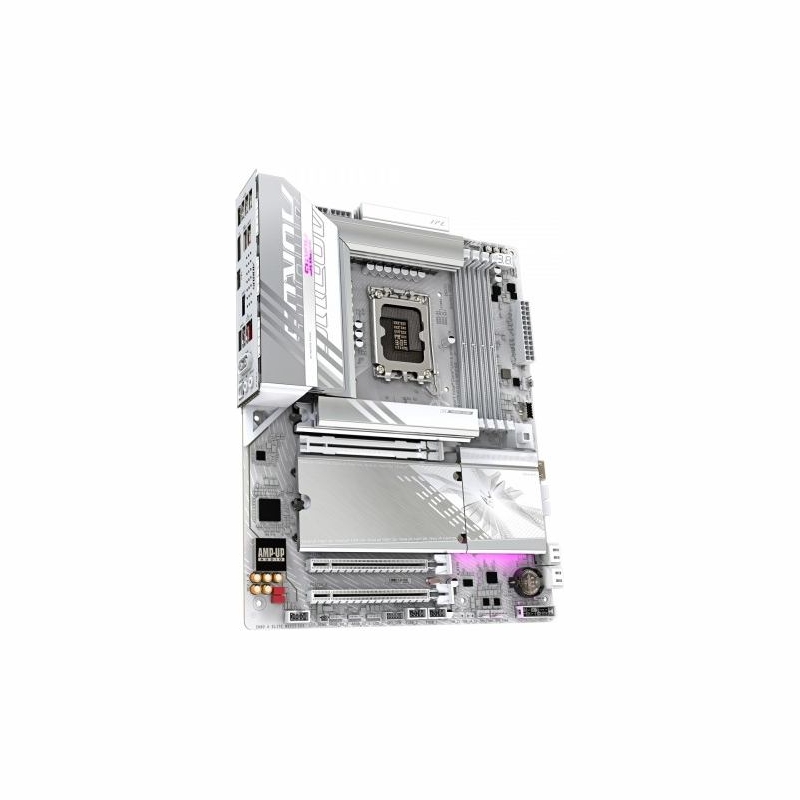

Gigabyte Motherboard Z890 A ELITE WF7 ICE
Gigabyte Motherboard Z890 A ELITE WF7 ICE
Gigabyte Motherboard Z890 A ELITE WF7 ICE
Gigabyte Motherboard Z890 A ELITE WF7 ICE
Gigabyte Motherboard Z890 A ELITE WF7 ICE
    Gigabyte Motherboard Z890 A ELITE WF7 ICE
    Gigabyte Motherboard Z890 A ELITE WF7 ICE
    Gigabyte Motherboard Z890 A ELITE WF7 ICE
    Gigabyte Motherboard Z890 A ELITE WF7 ICE
    Gigabyte Motherboard Z890 A ELITE WF7 ICE

Gigabyte Motherboard Z890 A ELITE WF7 ICE

€314.49
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAIIFZ890A06
Barcode
4719331865221
Model
Z890 A ELITE WF7 ICE
CPU socket
LGA1851
Processor family
Intel Core Ultra
Integrated CPU
Yes
Chipset manufacturer
Intel
Chipset type
Intel Z890 Express Chipset
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
6600 MHz
Memory bus frequency
6400 MHz
Memory bus frequency
5600 MHz
Memory bus frequency
6800 MHz
Memory bus frequency
7000 MHz
Memory bus frequency
7200 MHz
Memory bus frequency
7400 MHz
Memory bus frequency
7600 MHz
Memory bus frequency
7800 MHz
Memory bus frequency
7900 MHz
Memory bus frequency
7950 MHz
Memory bus frequency
8000 MHz
Memory bus frequency
8200 MHz
Memory bus frequency
8266 MHz
Memory bus frequency
8400 MHz
Memory bus frequency
8600 MHz
Memory bus frequency
8800 MHz
Memory bus frequency
6000 MHz
Memory bus frequency
5800 MHz
Memory bus frequency
6200 MHz
Memory bus frequency
8933 MHz
Memory bus frequency
9066 MHz
Memory bus frequency
9200 MHz
Max memory size
256
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
2 x PCIe 4.0 x 4
Expansion slots
2 x M.2
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
Expansion SlotsCPU:- 1 PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, you must install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 speed (PCIEX4_1, PCIEX4_2)Storage InterfaceCPU:- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M-key, Type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M-key, Type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 Connector (Socket 3, M Key, Type 22110/2280 SATA and PCIe 4.0 x4 SSD Support) (M2M_SB)- 4 x SATA 6Gb/s ConnectorsSupports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD Storage DevicesSupports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA Storage Devices
Sound card
Realtek ALC1220 CODEC* The line-out jack on the rear panel supports DSD audio.High-Resolution Audio2/4/5.1/7.1-channel* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.S/PDIF output support
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports 11be 160MHz wireless standard (Actual data transfer rate may vary depending on environment and equipment.)
USB ports at back panel
10
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

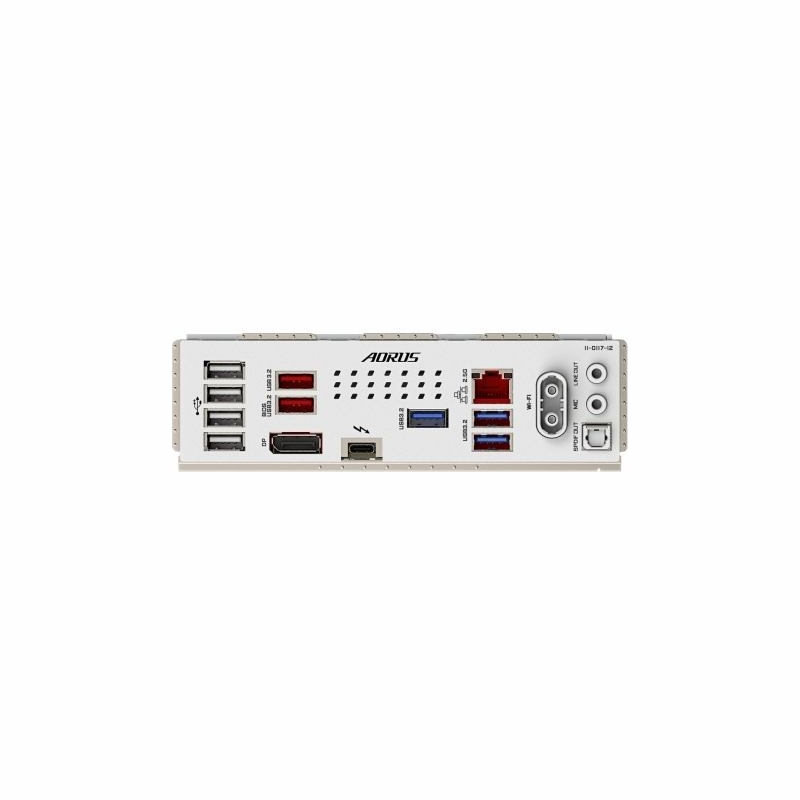

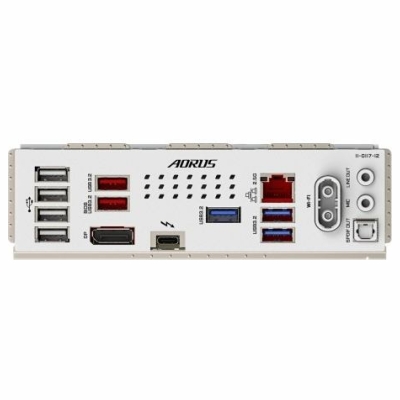

External connectors
4 x USB 2.0
External connectors
1 x Thunderbolt 4
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x DisplayPort
External connectors
1 x S/PDIF
External connectors
2 x SMA
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Reset button
Onboard connectors
1 x Power button
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Designation
CE+WEEE
Z890 A ELITE WF7 ICE
20 Items

Specific References

EAN13
4719331865221
MPN
Z890 A ELITE WF7 ICE
New
