4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600 / 8400 Series processors) Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) Supports RAID 0, RAID 1 and RAID 10* for M.2 NVMe storage devices
Graphics
1x HDMI Support HDMITM 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz
Sound card
Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
1x Realtek 8126 5G LAN Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM

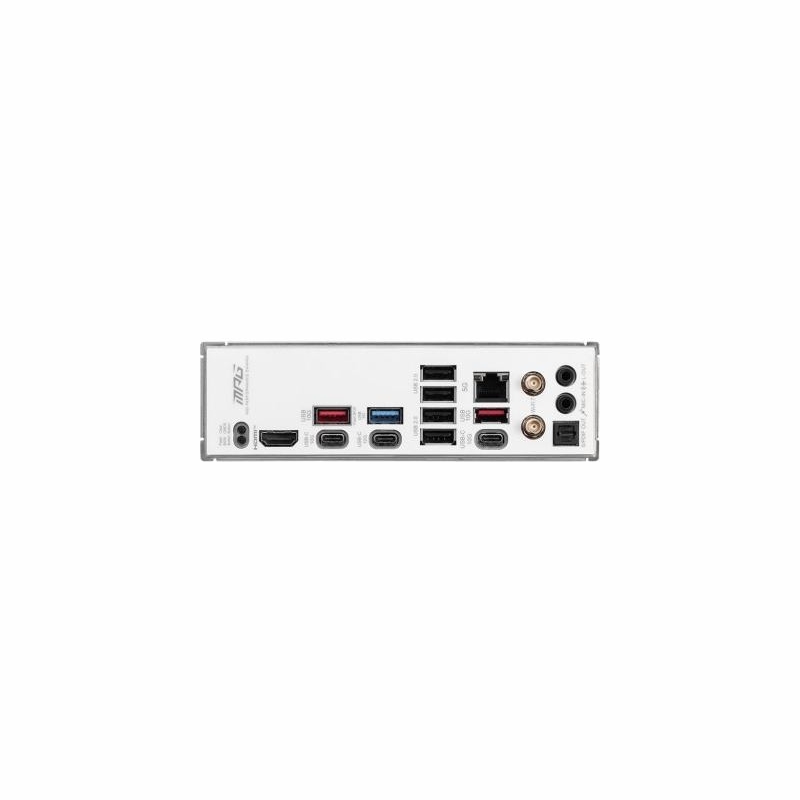

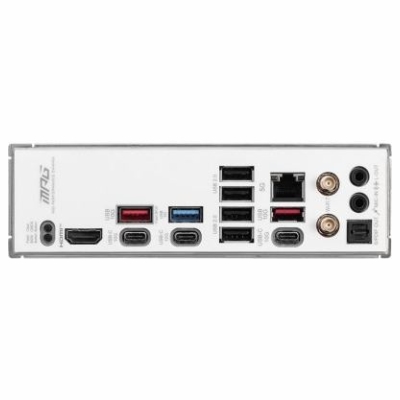

USB ports at back panel
10
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
