CPU: 1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 type 25110/2280 SSDs) (M2C_CPU) 2 x M.2 connectors (Socket 3, M key, support for PCIe 5.0 x4/x2 SSDs type 22110/2280) (M2A_CPU/M2B_CPU) 1 x M.2 connector (Socket 3, M key, support for 2280 PCIe 4.0 x4/x2 SSDs) (M2D_CPU) Processor + chipset: 8 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
Sound card
Realtek ALC4080 codec (back panel audio) DTS:X Ultra support High quality sound 2-channel Realtek ALC897 codec (front panel audio)
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
Marvell AQtion AQC113C 10GbE LAN Chip (10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s) (LAN1) Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) (LAN) Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for the 11be 320 MHz wireless standard
USB ports at back panel
10
USB ports on motherboard
4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
5
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

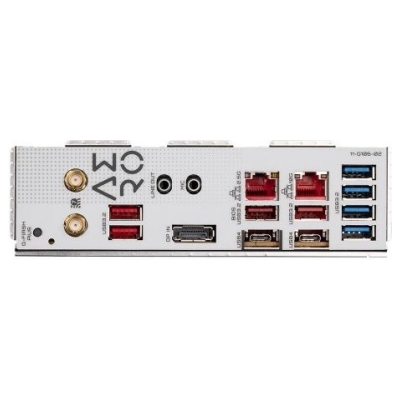

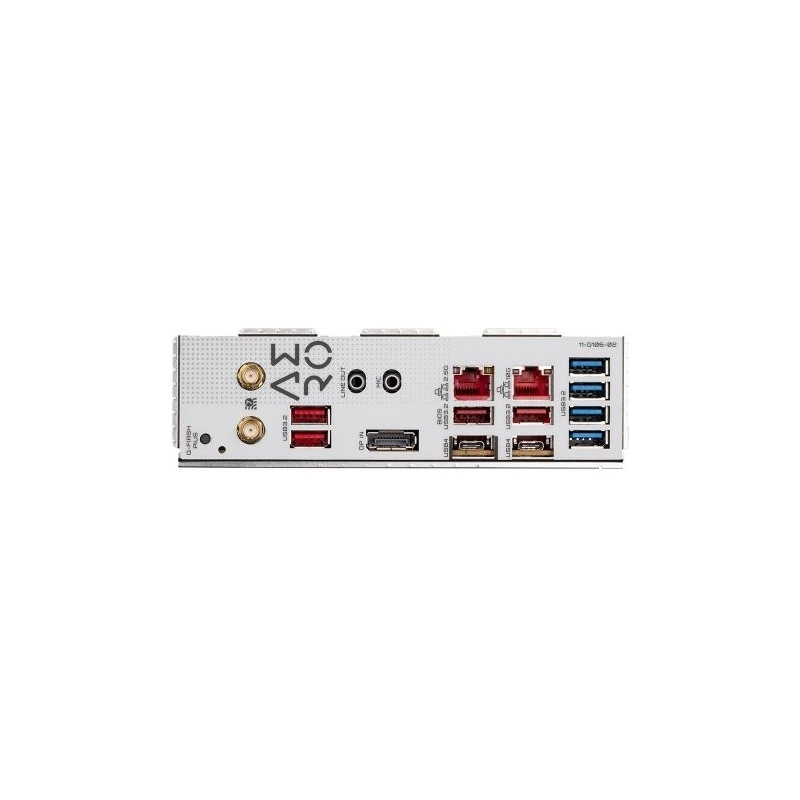

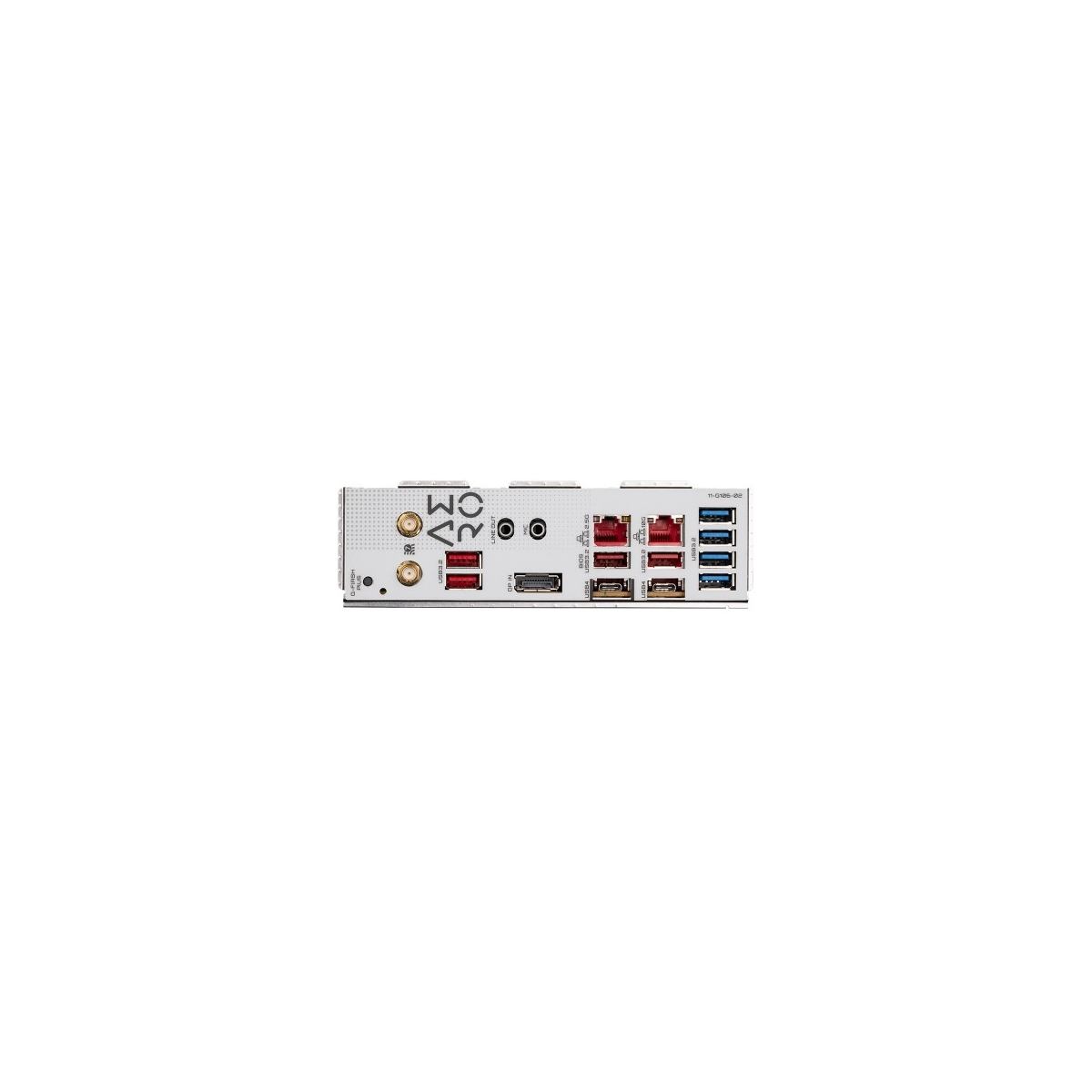

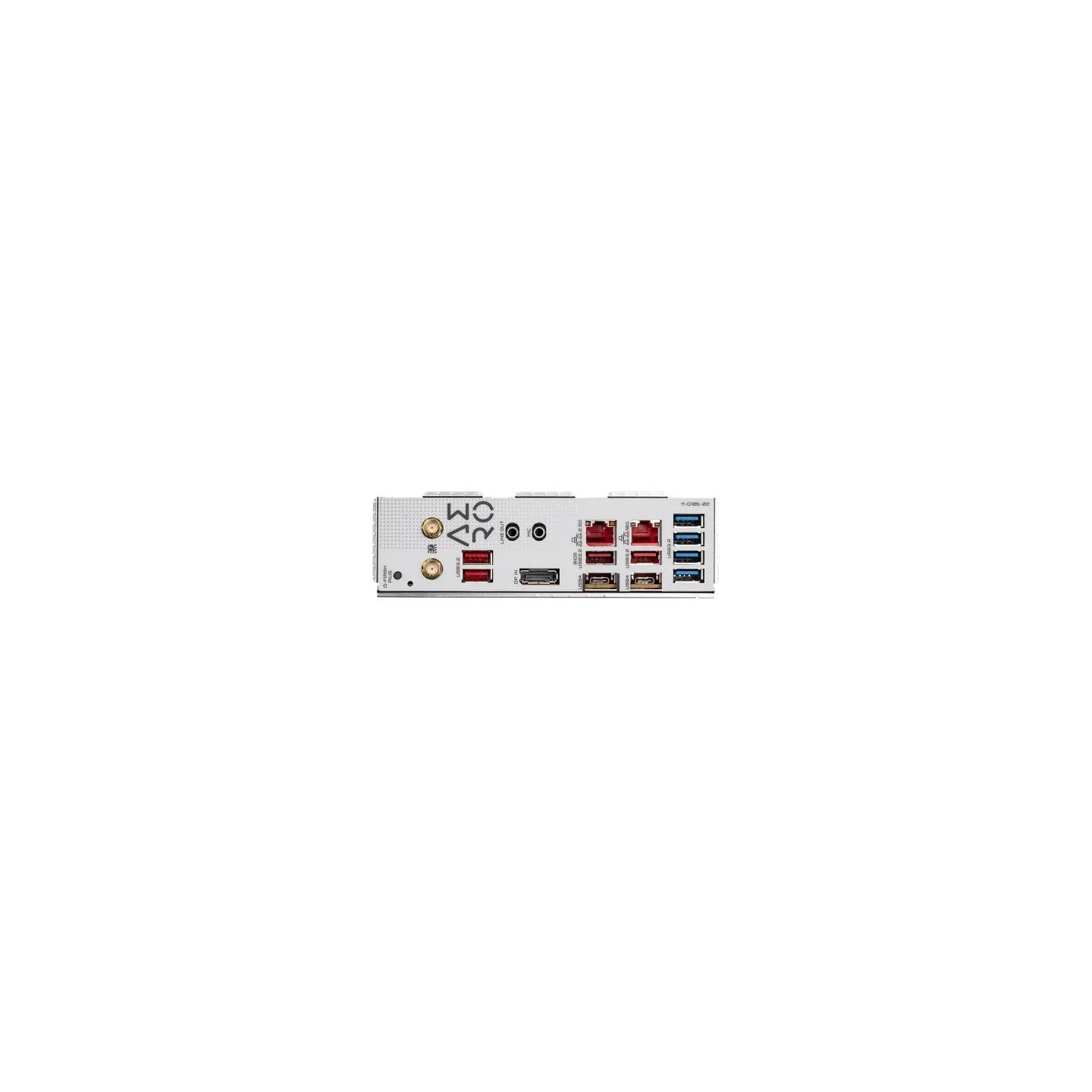

External connectors
1 x MIC
External connectors
2 x SMA
External connectors
1 x Q-Flash Plus button
External connectors
2 x USB4 Type-C
External connectors
2 x RJ-45
External connectors
4 x USB 3.0
External connectors
1 x Line In
External connectors
1 x DisplayPort
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Reset button
Onboard connectors
2 x temperature sensor
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
8 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x TPM header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x USB C
BIOS
Flash memory 1 x 256 Mbit Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
E-ATX
Dimensions
30.5 x 26.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
