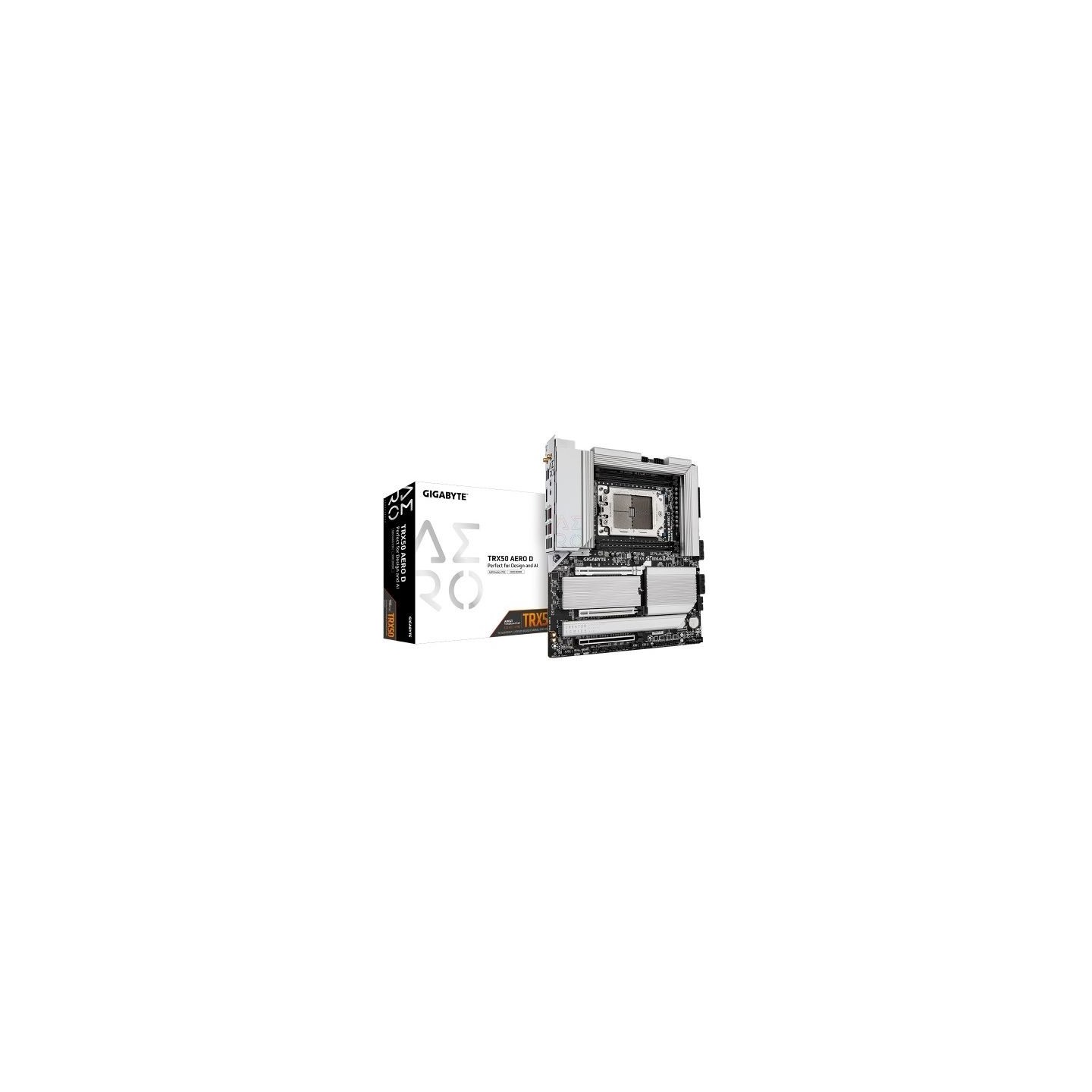

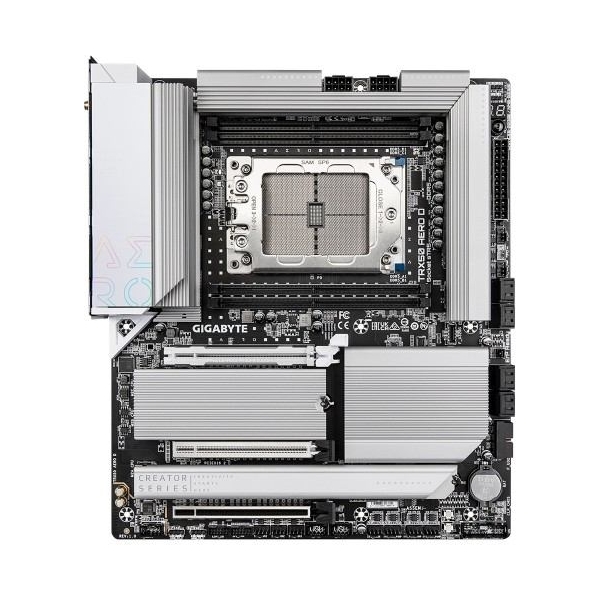

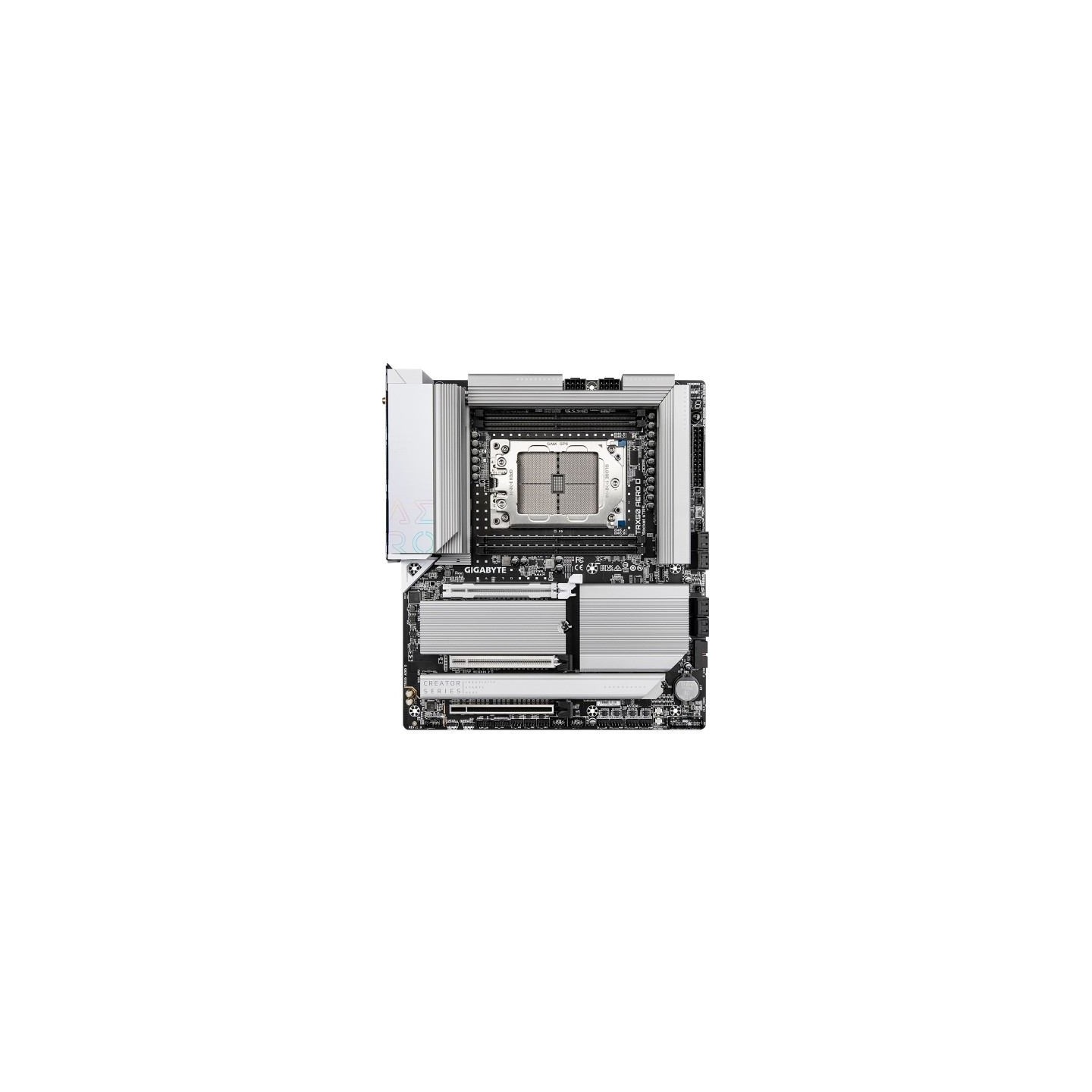

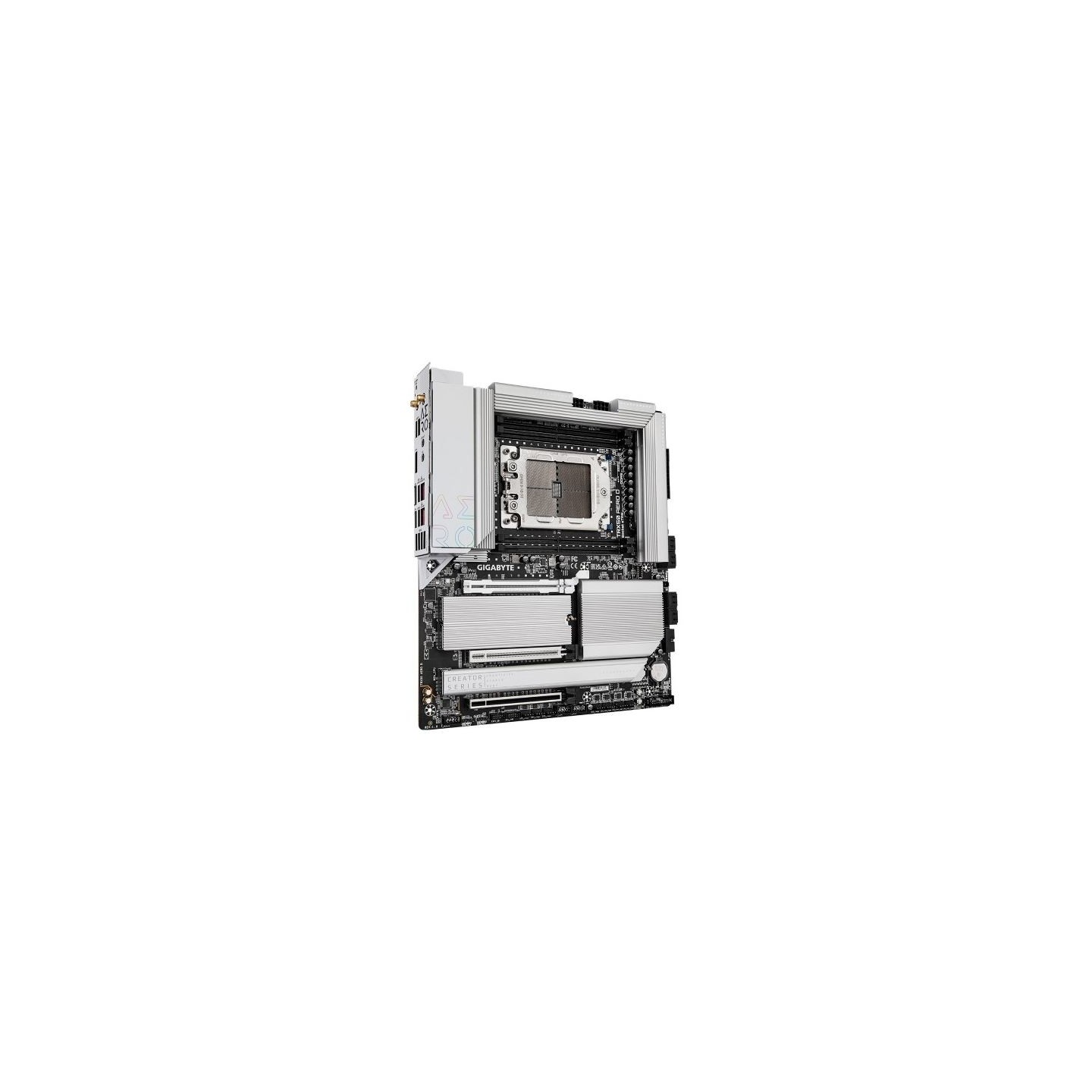

Gigabyte TRX50 AERO D sTR5 4DDR5 HDMI USB/4M.2 eATX
Out-of-Stock
Price:
€771.22
Tax included
Out-of-Stock
Share on
- SKU
- KBGBAAT5TRX5E01
- Barcode
- 4719331859480
- Model
- TRX50 Aero D
- CPU socket
- Socket sTR5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD TRX50
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 4400 MHz
- Max memory size
- 1
- Expansion slots
- 3 x PCIe x 16
- Expansion slots
- 2 x PCIe 5.0 x16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 8
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x M.2 connector (Socket 3, M key, supports PCIe 5.0 x4/x2 type 25110/2280 SSDs) (M2C_CPU) 2 x M.2 connectors (Socket 3, M key, support for PCIe 5.0 x4/x2 SSDs type 22110/2280) (M2A_CPU/M2B_CPU) 1 x M.2 connector (Socket 3, M key, support for 2280 PCIe 4.0 x4/x2 SSDs) (M2D_CPU) Processor + chipset: 8 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
- Sound card
- Realtek ALC4080 codec (back panel audio) DTS:X Ultra support High quality sound 2-channel Realtek ALC897 codec (front panel audio)
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- Marvell AQtion AQC113C 10GbE LAN Chip (10Gb/s/5Gb/s/2.5Gb/s/1Gb/s/100Mb/s) (LAN1) Realtek 2.5GbE LAN (2.5 Gb/s/1 Gb/s/100 Mb/s) (LAN) Qualcomm Wi-Fi 7 QCNCM865 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands Bluetooth 5.3 Support for the 11be 320 MHz wireless standard
- USB ports at back panel
- 10
- USB ports on motherboard
- 4
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

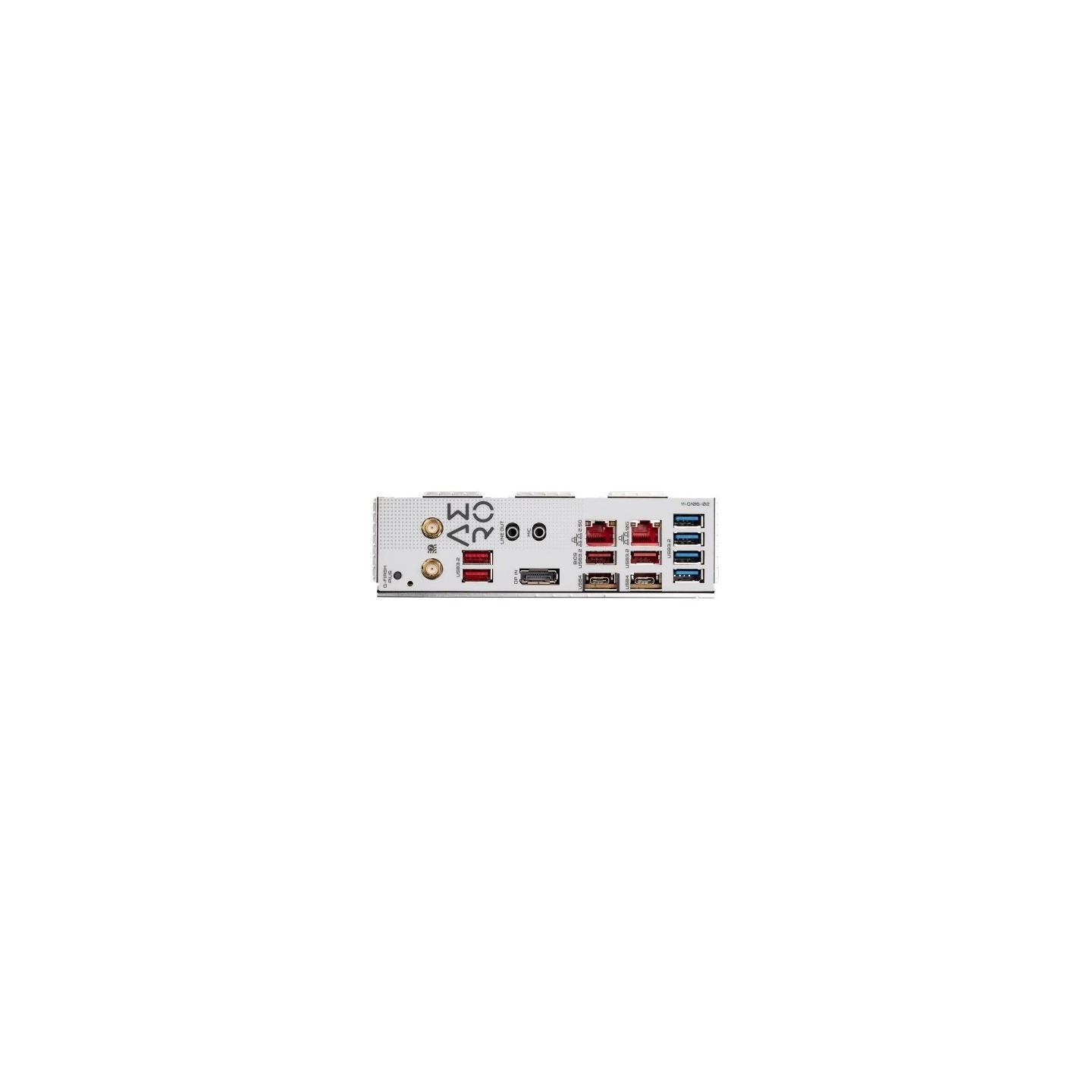

- External connectors
- 1 x MIC
- External connectors
- 2 x SMA
- External connectors
- 1 x Q-Flash Plus button
- External connectors
- 2 x USB4 Type-C
- External connectors
- 2 x RJ-45
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x Line In
- External connectors
- 1 x DisplayPort
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 2 x temperature sensor
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 4 x M.2
- Onboard connectors
- 8 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- BIOS
- Flash memory 1 x 256 Mbit Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- E-ATX
- Dimensions
- 30.5 x 26.4 cm
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
