1 x PCI Express x16 (PCIEX16) slot, integrated in the processor: AMD Ryzen 7000 Series processors support PCIe 4.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x4 mode * The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, make sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and operating at x1 (PCIEX1_1/2) Storage Interface 1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M-key, 25110/2580 SSDs: AMD Ryzen 7000 Series processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated with the processor, supporting Socket 3, M-key, 25110/2580 SSDs: AMD Ryzen 7000 Series processors support PCIe 4.0 x4/x2 SSDs AMD Processors Ryzen 8000 Series-Phoenix 1 supports PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x2 SSDs 1 x M.2 (M2C_SB) connector, integrated into the chipset, supports Socket 3, M-key, Type 25110/2580 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors Supports RAID 0, RAID 1, and RAID 10 for NVMe SSD storage devices Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor with AMD Radeon graphics support: 1 x DisplayPort supporting a maximum resolution of 3840x2160 at 144 Hz * Support for DisplayPort version 1.4 and HDR. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz * Support for HDMI version 2.1 and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on CPU support.)
Sound card
Audio CODEC Realtek High-quality audio 2/4/5.1/7.1-channel * You can change the audio jack functionality through your audio software. To configure 7.1-channel audio, go to your audio software for audio settings.
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
Bluetooth
USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

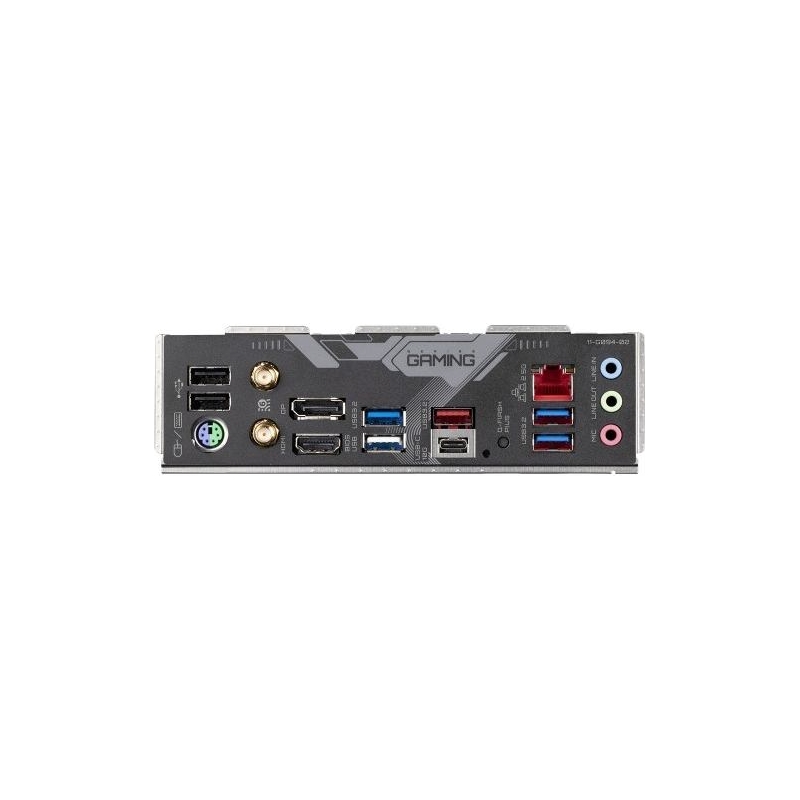

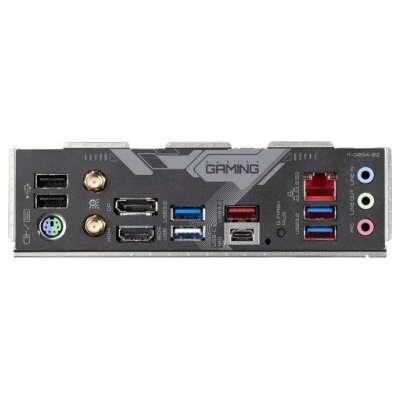

External connectors
1 x USB 3.1 Type-C
External connectors
3 x USB 3.0
External connectors
1 x Q-Flash Plus button
External connectors
1 x RJ-45
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x DisplayPort
External connectors
2 x SMA
External connectors
3 x USB 2.0
External connectors
1 x USB 3.1
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x Addressable LED
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x USB C
Onboard connectors
1 x S/PDIF Out header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 8pin 12V power
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
3 x M.2
Onboard connectors
2 x RGB LED Strip
Onboard connectors
1 x Reset button
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Norton Internet Security (OEM version) LAN bandwidth management software
