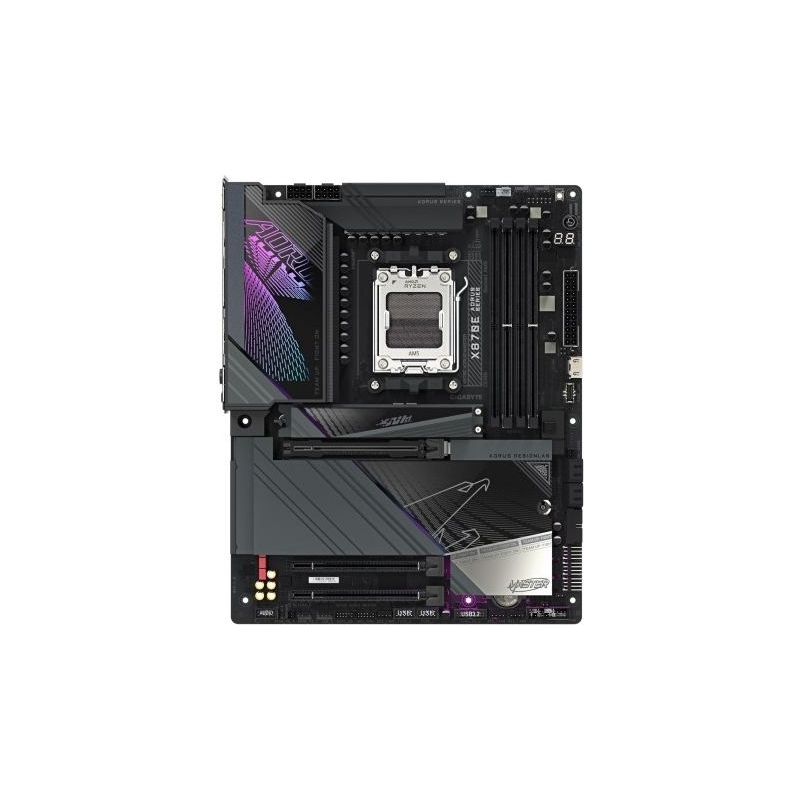

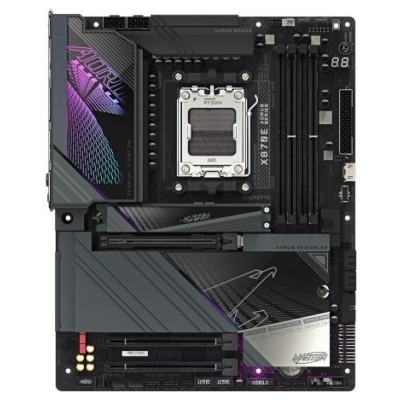

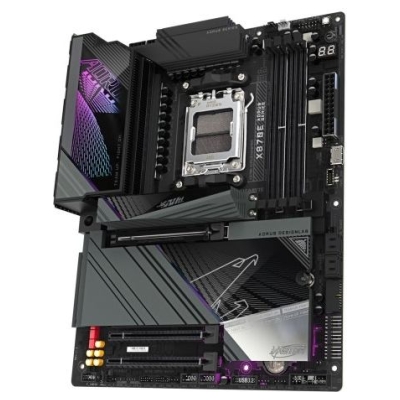

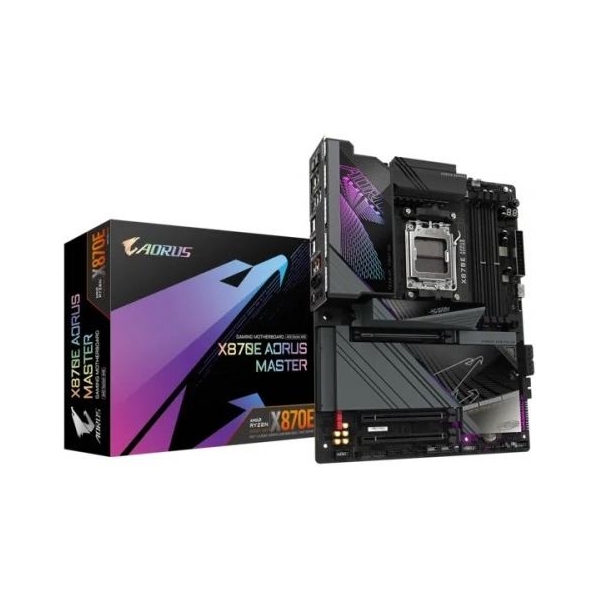

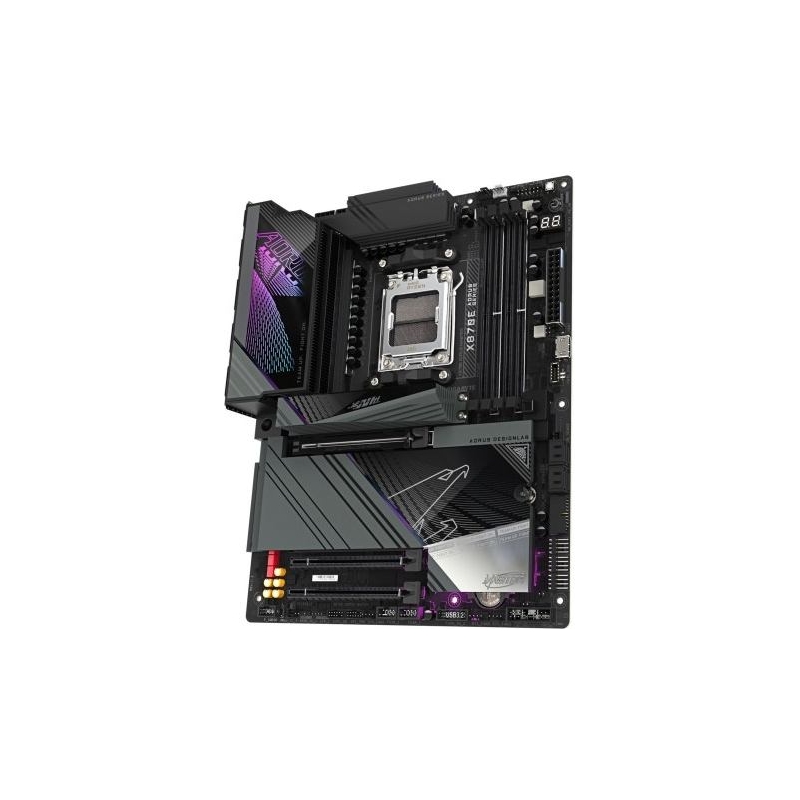

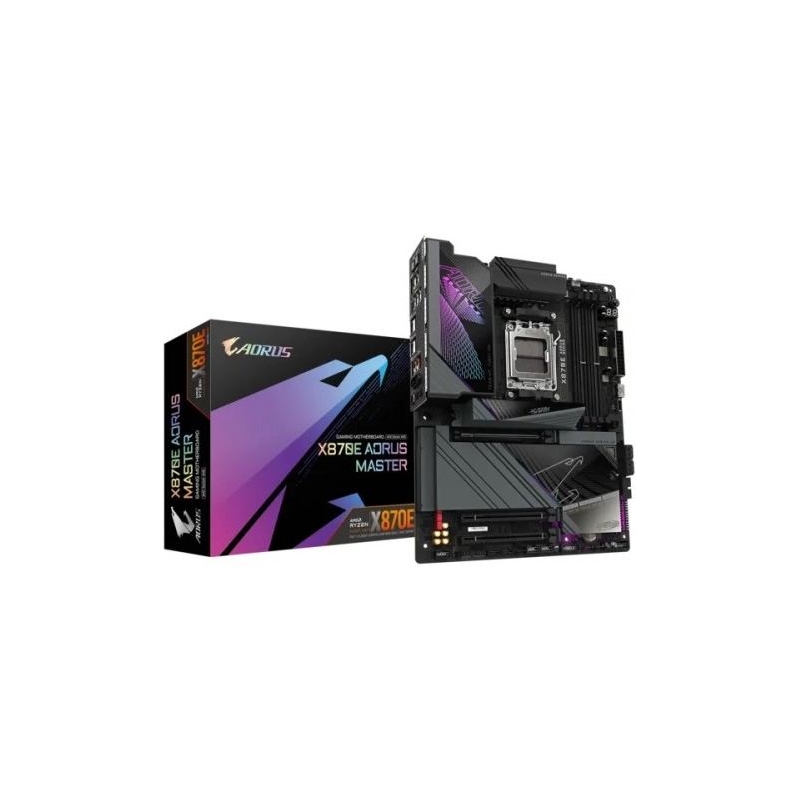

Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX

Gigabyte Motherboard X870E AORUS MASTER AM5 4DDR5 HDMI/USB-C ATX

€572.43
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAAA8X870A03
Barcode
4719331864354
Model
X870E Aorus MASTER
CPU socket
Socket AM5
Processor family
AMD Ryzen
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD X870E
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
8200 MHz
Memory bus frequency
8000 MHz
Memory bus frequency
7800 MHz
Memory bus frequency
7600 MHz
Memory bus frequency
6400 MHz
Memory bus frequency
6000 MHz
Memory bus frequency
6600 MHz
Memory bus frequency
6666 MHz
Memory bus frequency
6800 MHz
Memory bus frequency
7000 MHz
Memory bus frequency
7200 MHz
Memory bus frequency
4800 MHz
Memory bus frequency
5200 MHz
Memory bus frequency
5600 MHz
Memory bus frequency
6200 MHz
Memory bus frequency
4400 MHz
Max memory size
256
Expansion slots
1 x PCIe 4.0 x 16
Expansion slots
1 x PCIe 3.0 x 16
Expansion slots
1 x PCIe x 16
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs * The M2B_CPU and M2C_CPU connectors become unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors
Graphics
Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz - Support for DisplayPort 1.4 version and HDR. Integrated Graphics Processor - AMD Radeon Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
Sound card
Realtek ALC1220 codec Support for DTS:X Ultra Support High Definition Audio 2/4/5.1/7.1-channel output Support S/PDIF Out
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
LAN: Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) Wireless: 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11be 320MHz wireless standard
USB ports at back panel
12
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
7
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x Przycisk Clear CMOS
External connectors
1 x Q-Flash Plus button
External connectors
2 x USB4 Type-C
External connectors
2 x SMA
External connectors
4 x USB 3.0
External connectors
1 x HDMI
External connectors
1 x Line Out (front)
External connectors
1 x MIC (front)
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 3.1
External connectors
2 x USB 2.0
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x Noise detection header
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Power button
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x Voltage measurement module
Onboard connectors
2 x temperature sensor
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
4 x USB 3.0
Onboard connectors
2 x 4pin case fan liquid cooling
Onboard connectors
1 x 8pin 12V power
Onboard connectors
4 x Adresowalna dioda LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM) LAN bandwidth management software
Designation
CE+WEEE
X870E AORUS MASTER
7 Items

Specific References

EAN13
4719331864354
MPN
X870E AORUS MASTER
New
