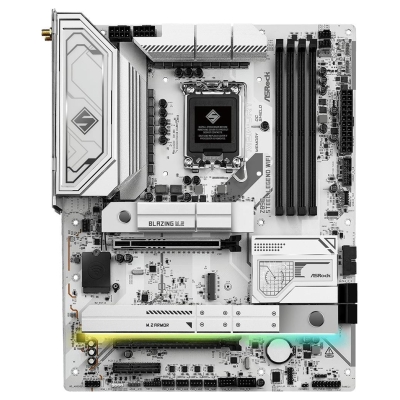

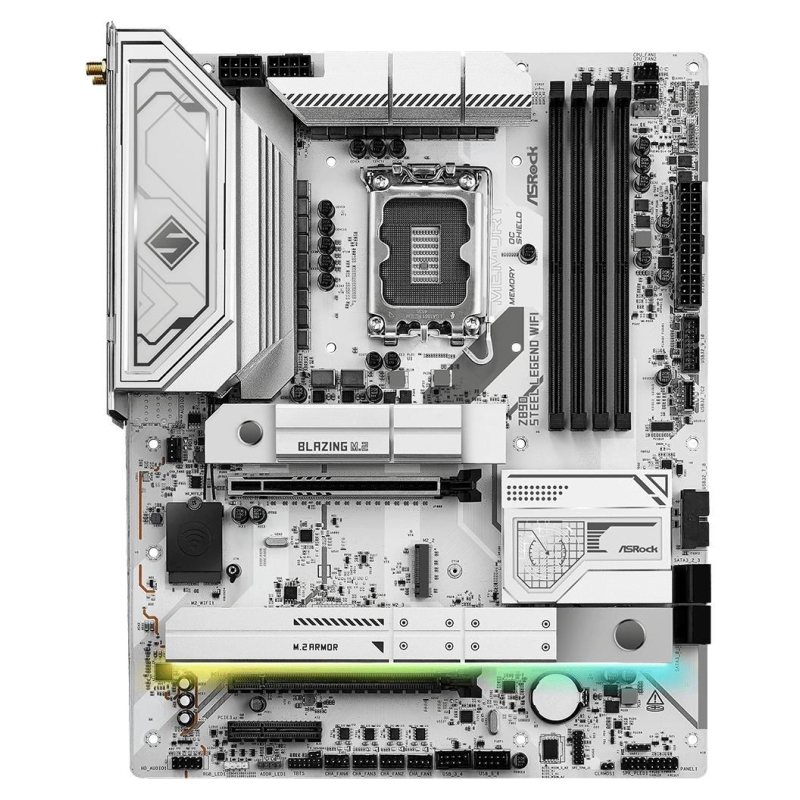

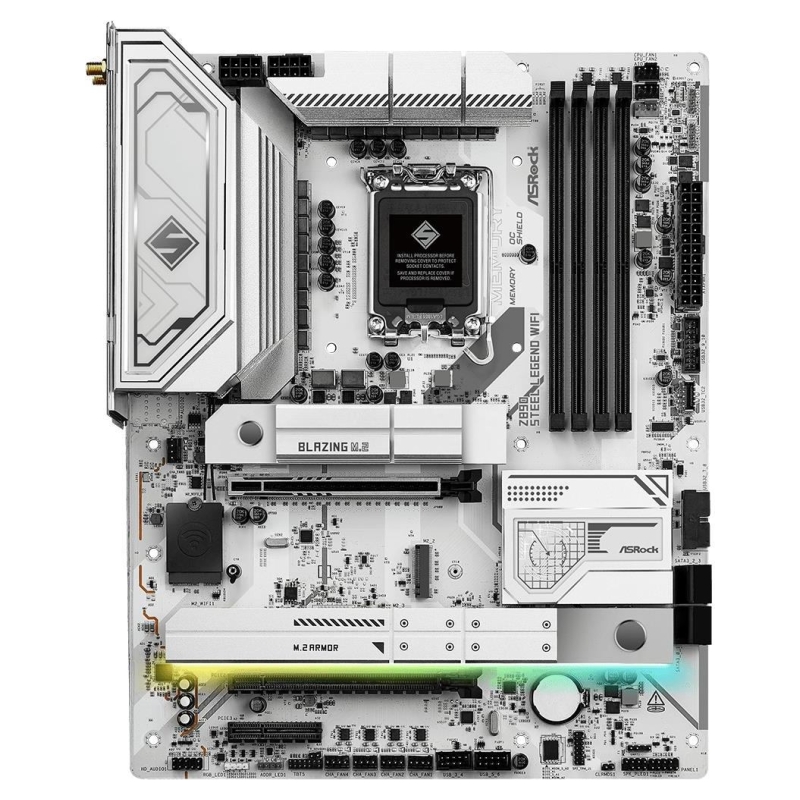

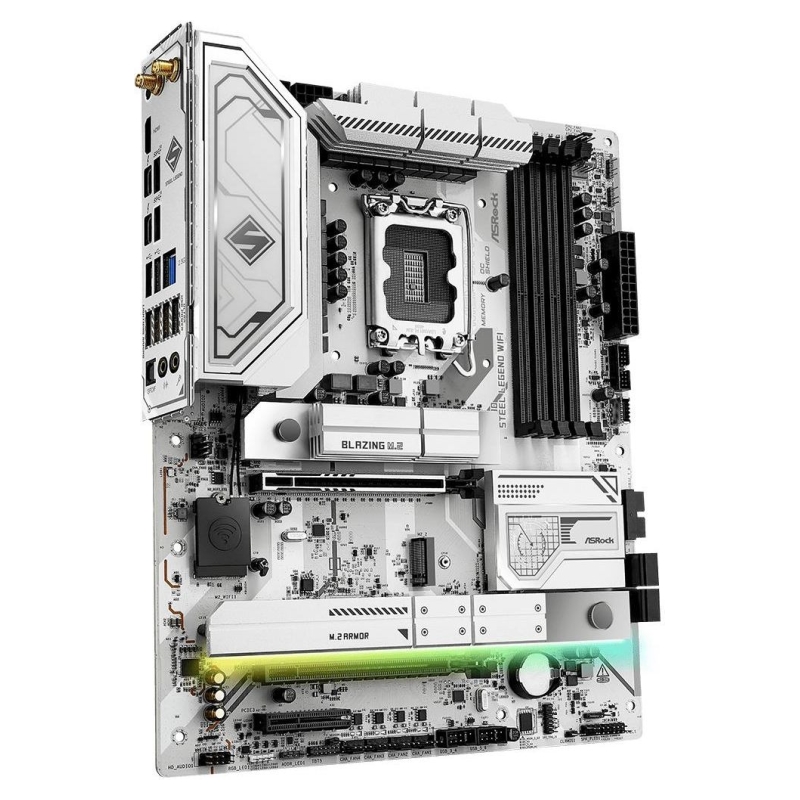

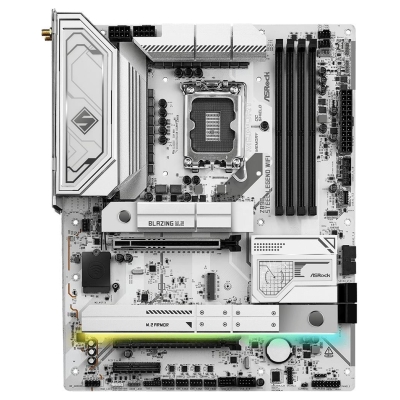

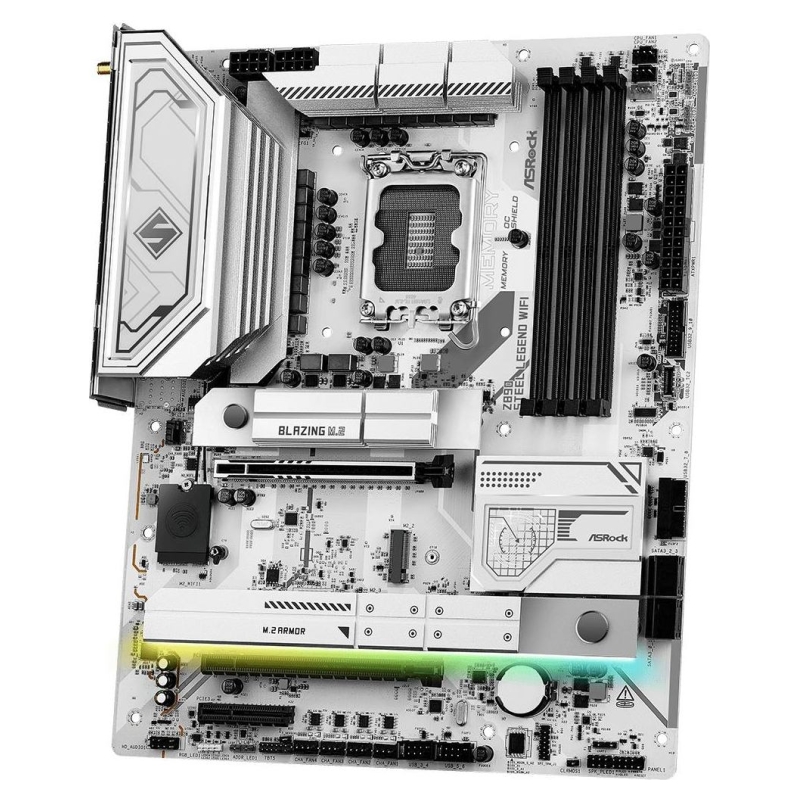

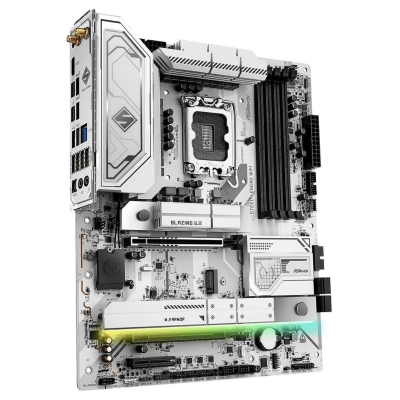

Asrock Motherboard Z890 STEEL LEGEND WIFI ATX
- Write a review
€305.90
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRIIFZ890A06
- Barcode
- 4710483947520
- Model
- Z890 STEEL LEGEND WIFI
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z890
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 9066 MHz
- Max memory size
- 256
- Expansion slots
- 1 x M.2
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU:- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors
- Graphics
- Intel Xe LPG Graphics Architecture 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- Sound card
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) Impedance Sensing on Rear Out port Individual PCB Layers for R/L Audio Channel Nahimic Audio
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- LAN 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz* frequency band Supports 320MHz channel bandwidth with 6GHz* frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
- USB ports at back panel
- 10
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 8
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 5
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

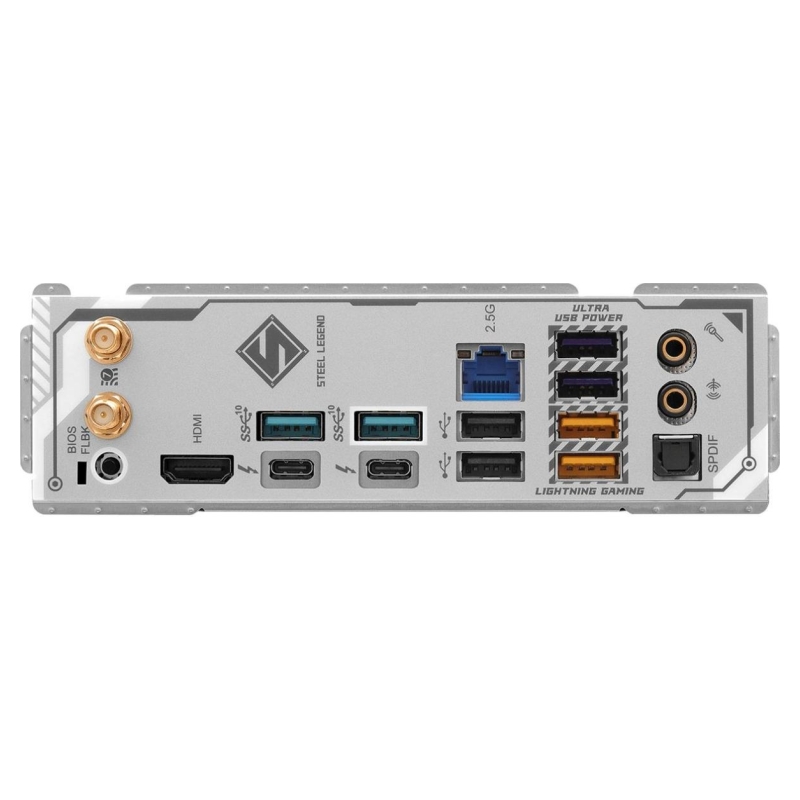

- External connectors
- 1 x MIC
- External connectors
- 2 x Thunderbolt 4
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x S/PDIF
- External connectors
- 2 x USB 2.0
- External connectors
- 4 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x RJ-45
- External connectors
- 2 x SMA
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 5 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x Power led header
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x Thermistor Cable Header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm

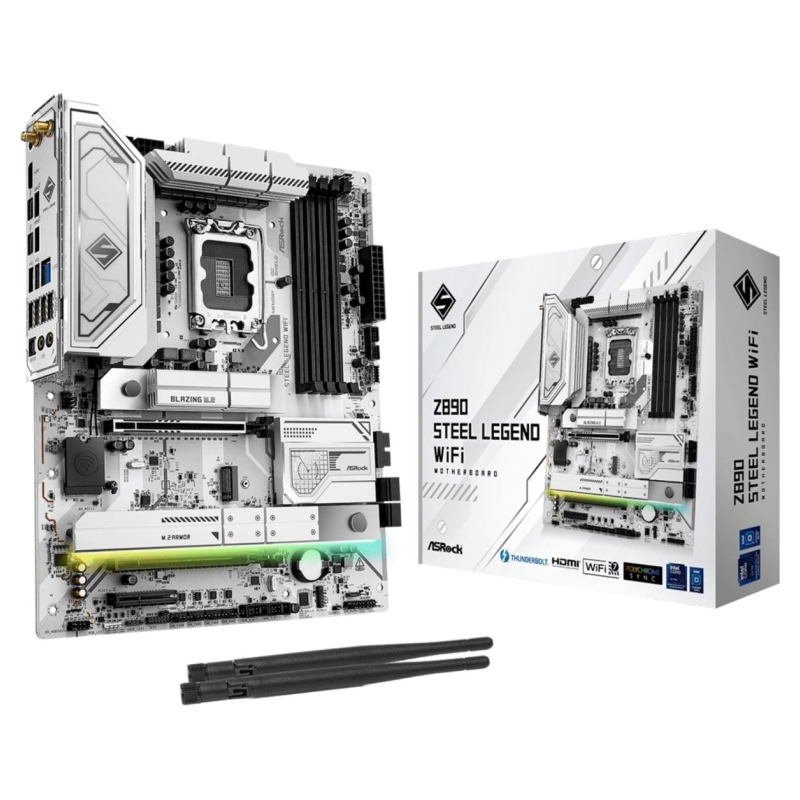

- Accessories included
- 2 x SATA data cables 2 x ASRock WiFi 2.4/5/6 GHz antennas Thermistor cable
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash
- Other information
- Certifications FCC, CE ErP/EuP ready (ErP/EuP ready power supply required)
- Designation
- CE+WEEE
Z890 STEEL LEGEND WIFI
5 Items
Specific References
- EAN13
- 4710483947520
- MPN
- Z890 STEEL LEGEND WIFI
