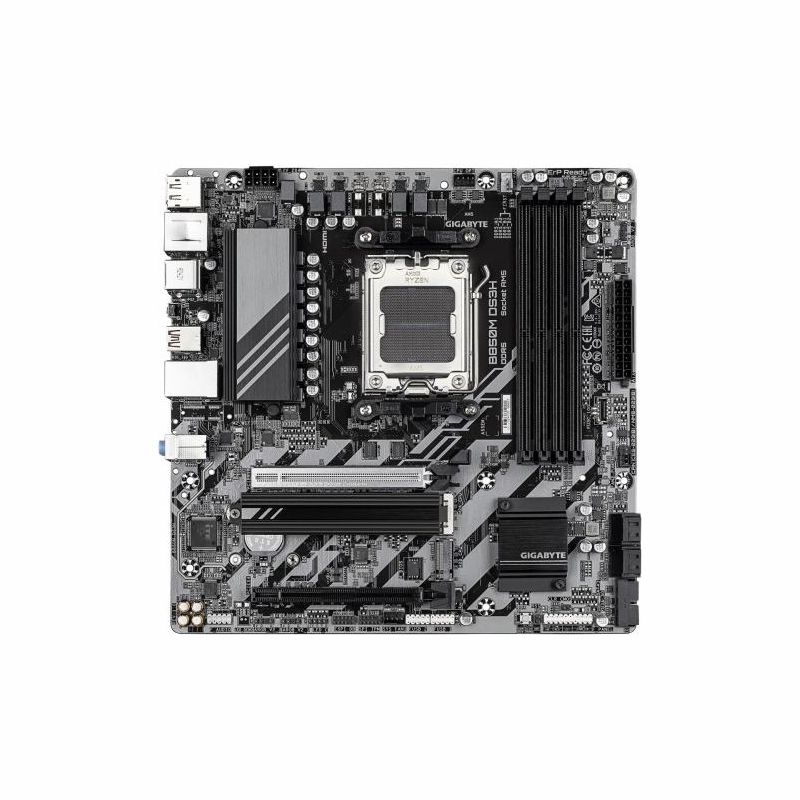

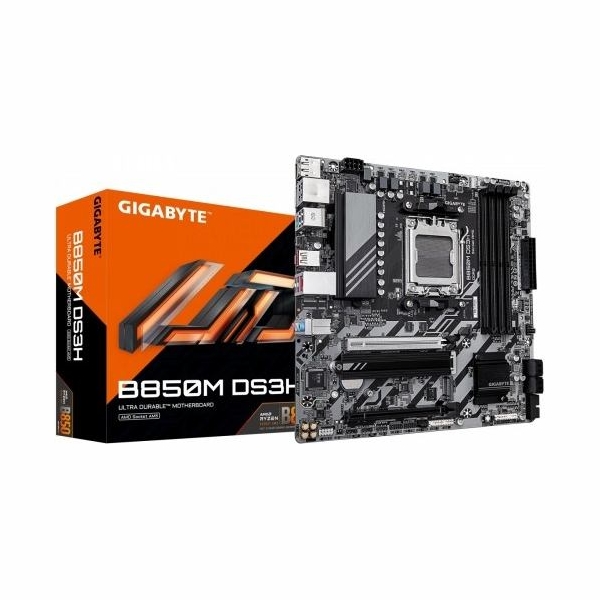

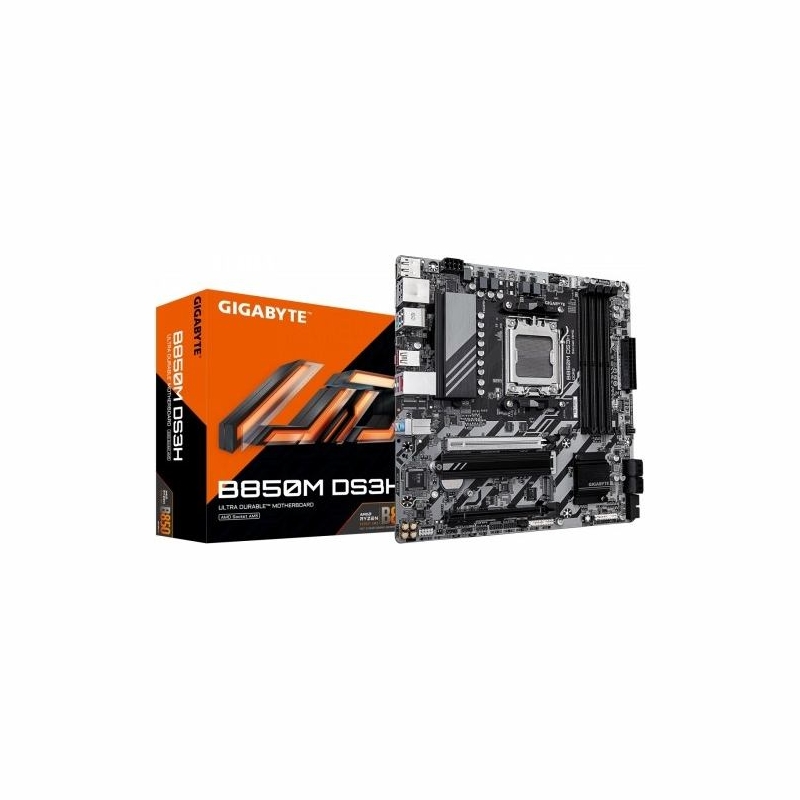

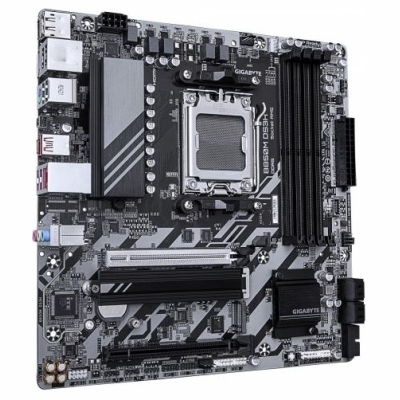

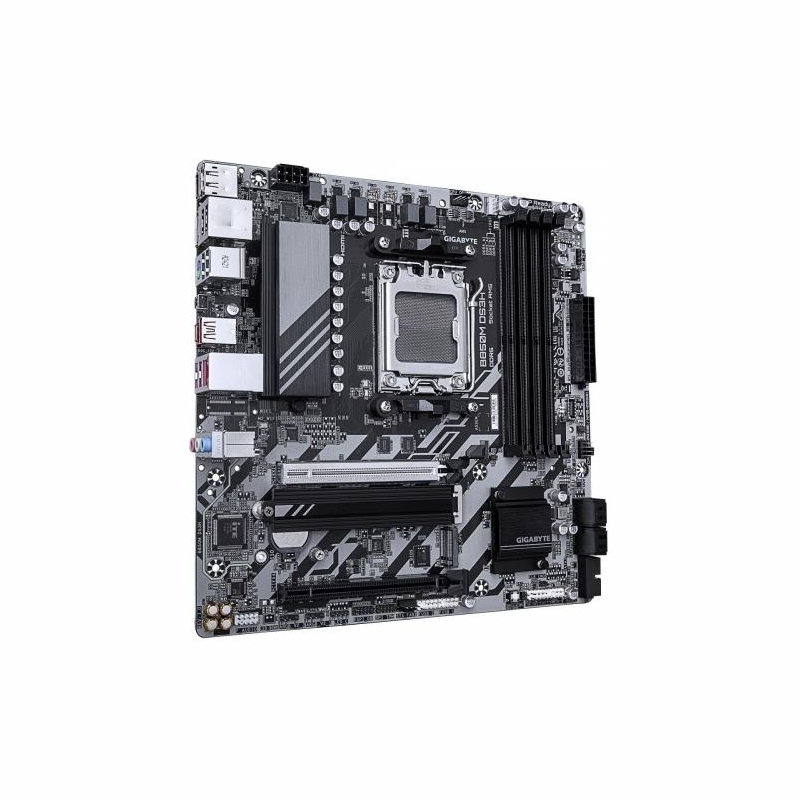

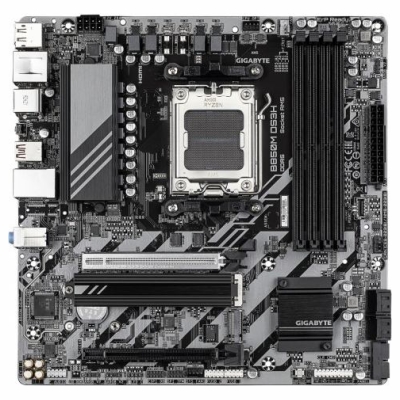

Gigabyte Motherboard B850M DS3H
Gigabyte Motherboard B850M DS3H
Gigabyte Motherboard B850M DS3H
Gigabyte Motherboard B850M DS3H
Gigabyte Motherboard B850M DS3H
    Gigabyte Motherboard B850M DS3H
    Gigabyte Motherboard B850M DS3H
    Gigabyte Motherboard B850M DS3H
    Gigabyte Motherboard B850M DS3H
    Gigabyte Motherboard B850M DS3H

Gigabyte Motherboard B850M DS3H

€183.45
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAAA8B850U01
Barcode
4719331866518
Model
B850M DS3H
CPU socket
Socket AM5
Processor family
AMD Ryzen 9
Processor family
AMD Ryzen 7
Processor family
AMD Ryzen 5
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD B850
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
4400 MHz
Memory bus frequency
4800 MHz
Memory bus frequency
5200 MHz
Memory bus frequency
8200 MHz
Memory bus frequency
8000 MHz
Memory bus frequency
7800 MHz
Memory bus frequency
6200 MHz
Memory bus frequency
6400 MHz
Memory bus frequency
6600 MHz
Memory bus frequency
6666 MHz
Memory bus frequency
6800 MHz
Memory bus frequency
7000 MHz
Memory bus frequency
7200 MHz
Memory bus frequency
7600 MHz
Memory bus frequency
5600 MHz
Memory bus frequency
6000 MHz
Max memory size
256
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
2 x M.2
Expansion slots
1 x PCIe 4.0 x 4
Expansion slots
1 x PCIe 4.0 x 8
Expansion slots
1 x PCIe 3.0 x 4
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
Expansion connectors  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode  *The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.  Chipset:  - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) SATA connectors  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:  AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:  AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs  AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs  4 x SATA 6Gb/s connectors  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices  * RAID 5 is only available on AMD Ryzen 9000 Series Processors.  RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Sound card
Realtek Audio CODEC  High Definition Audio  2/4/5.1/7.1-channel
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

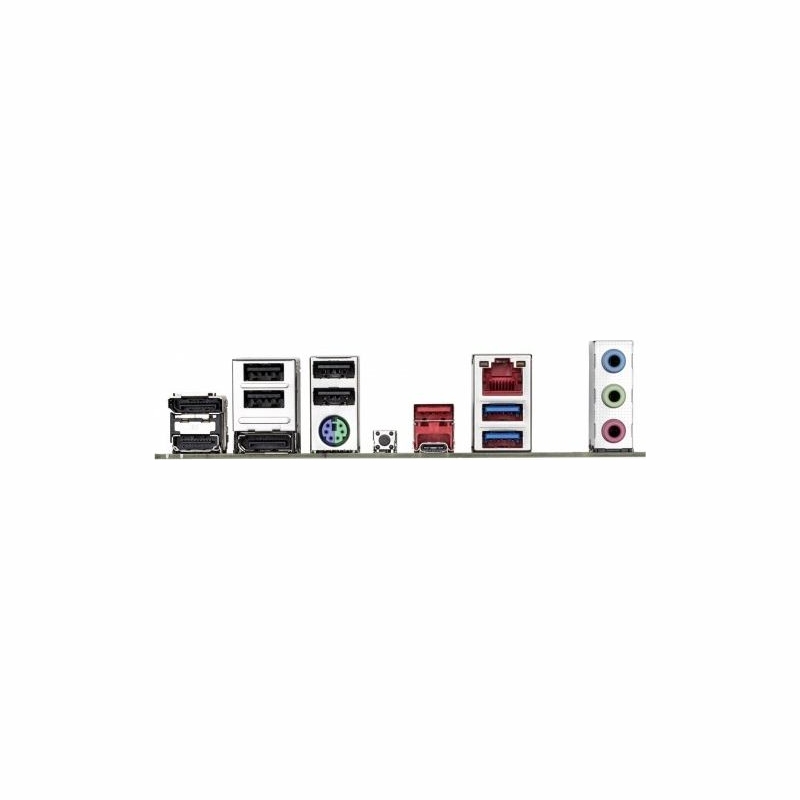

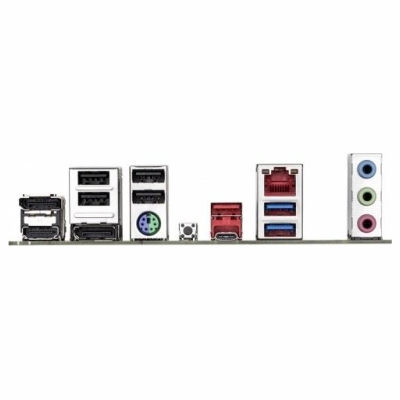

External connectors
2 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x Q-Flash Plus button
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
4 x USB 2.0
External connectors
1 x Line Out
External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
1 x Line In
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x System panel header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
1 x Reset button
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x TPM header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
    Norton Internet Security (OEM version)     LAN bandwidth management software
Designation
CE+WEEE
B850M DS3H
30 Items

Specific References

EAN13
4719331866518
MPN
B850M DS3H
New
