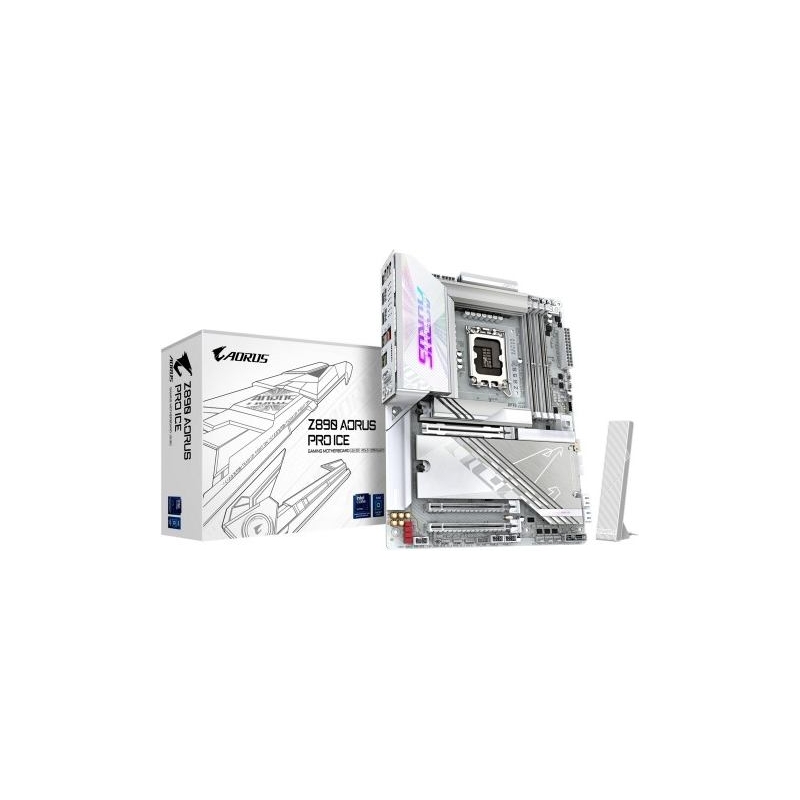

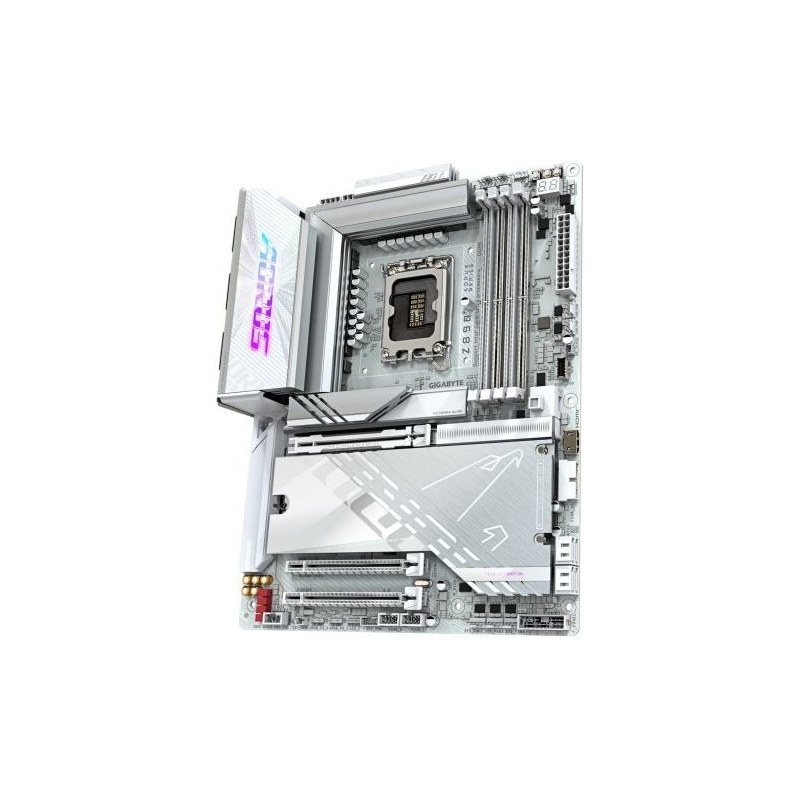

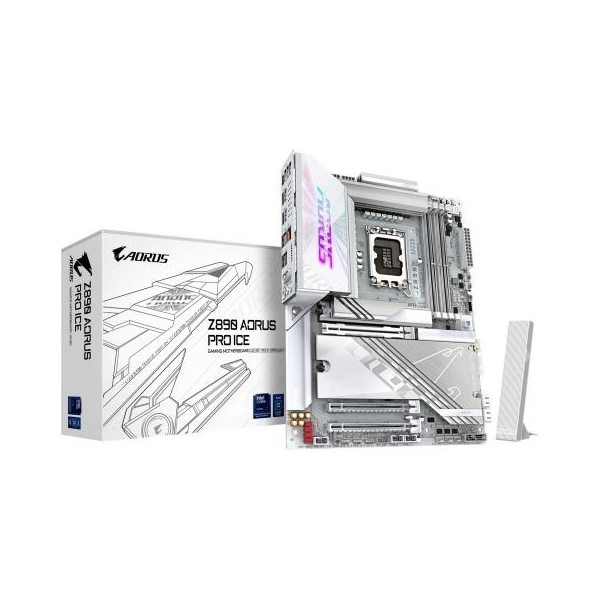

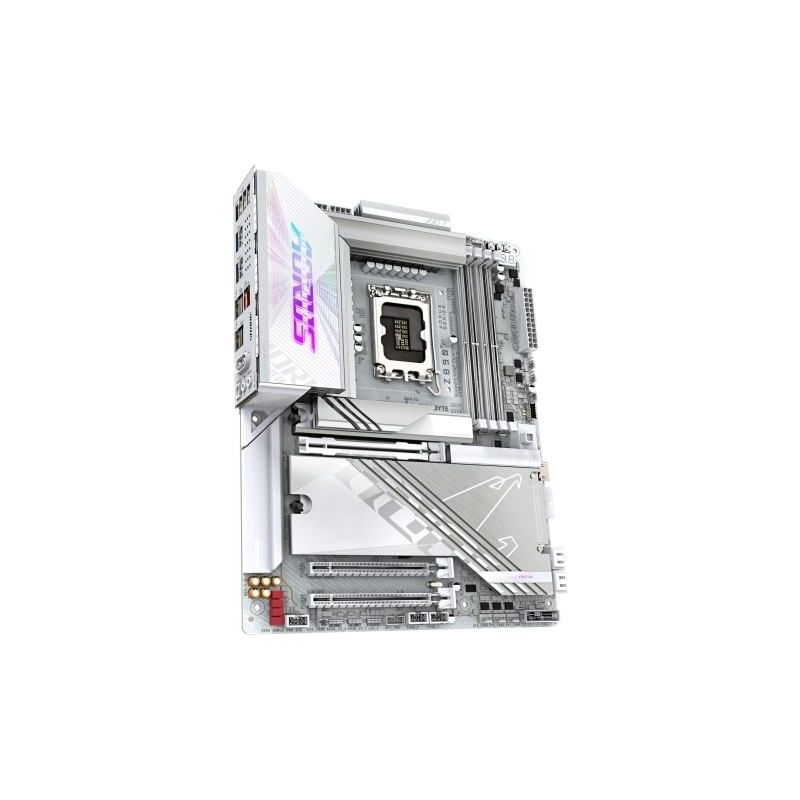

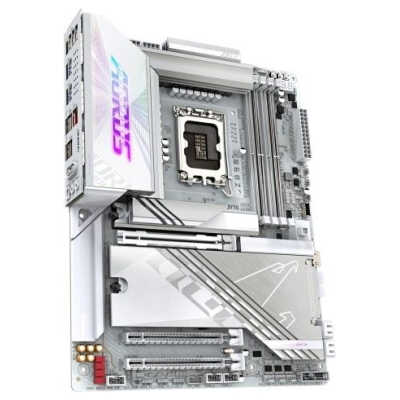

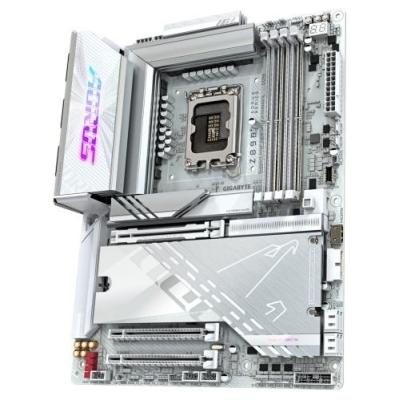

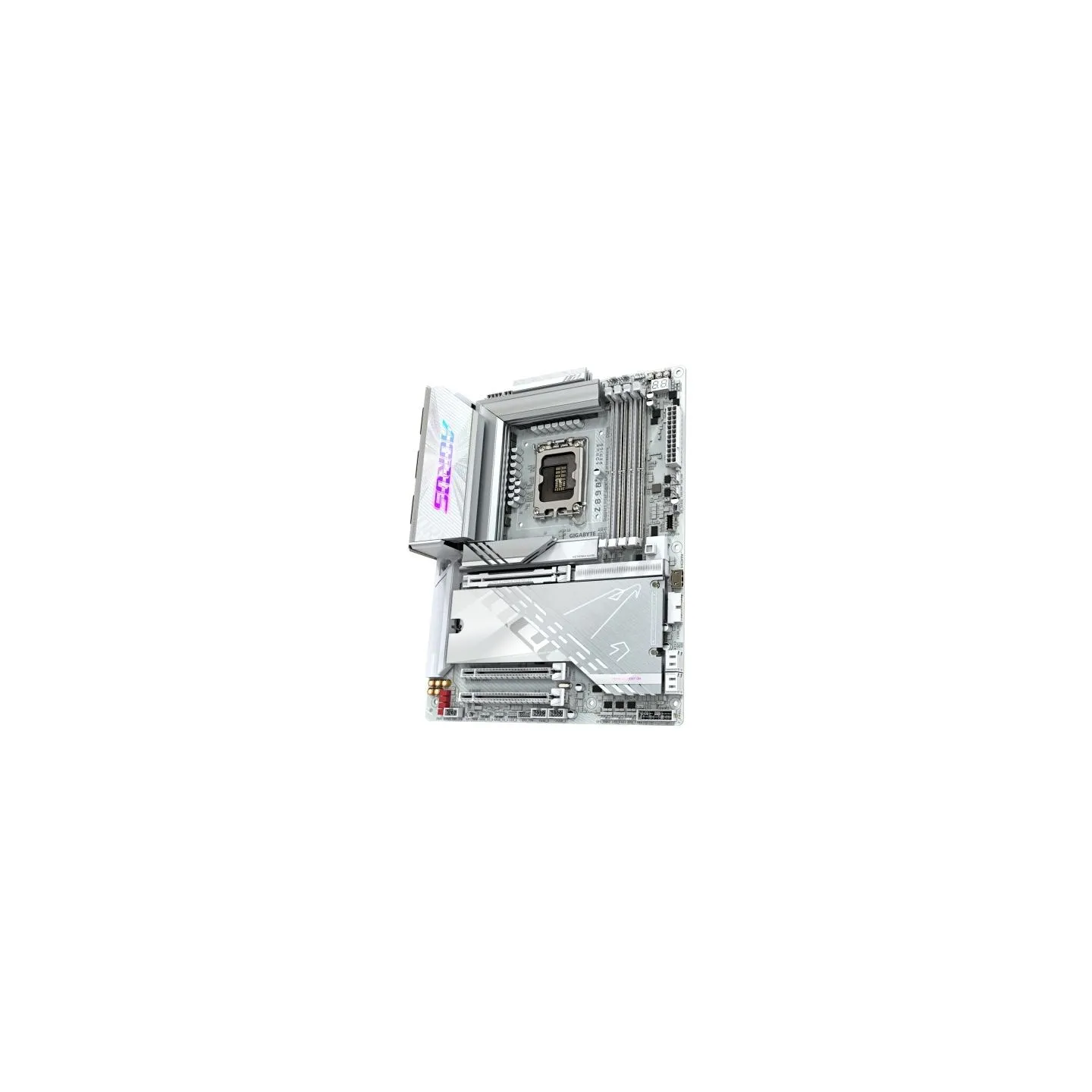

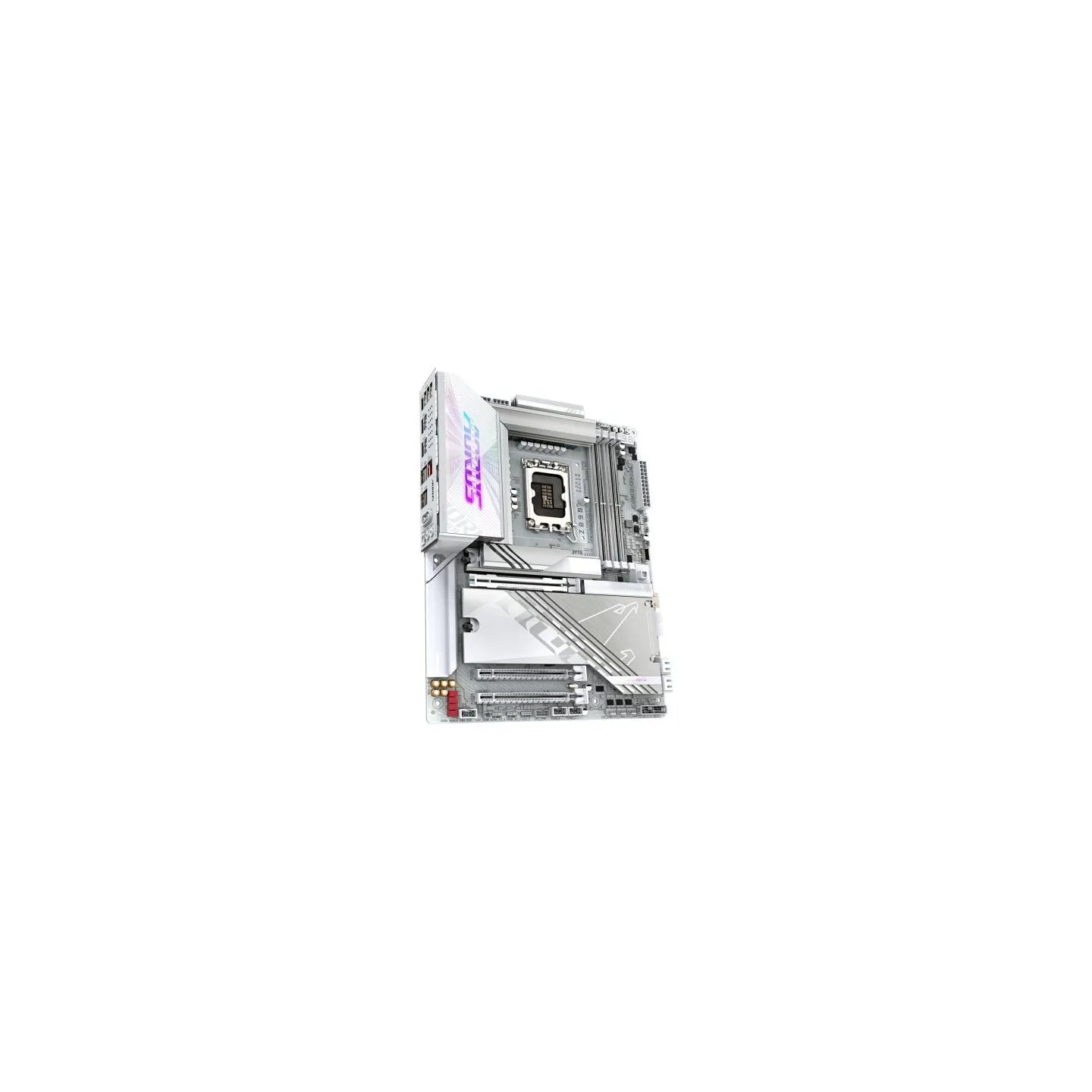

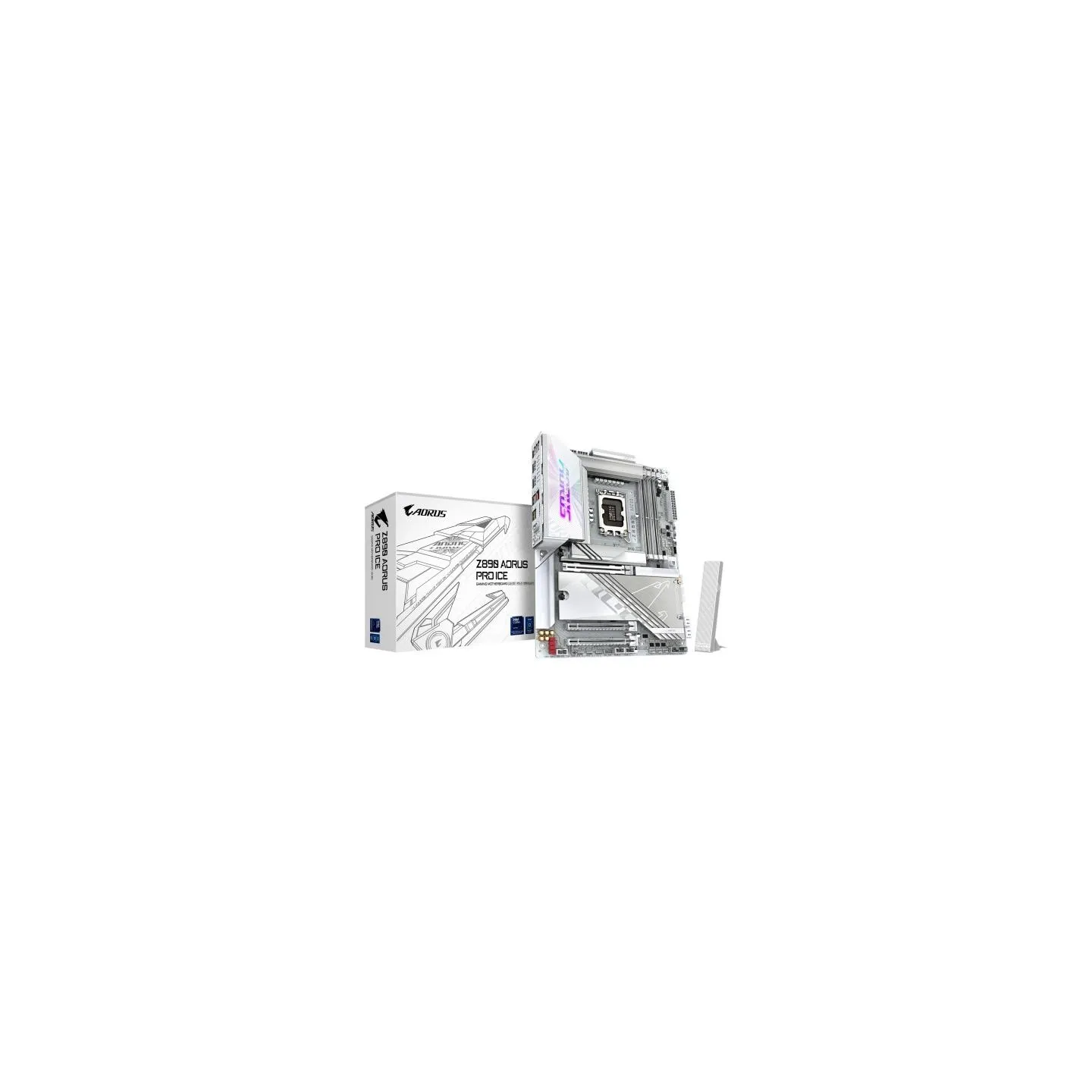

Gigabyte Motherboard Z890 AORUS PRO ICE
Gigabyte Motherboard Z890 AORUS PRO ICE
Gigabyte Motherboard Z890 AORUS PRO ICE
Gigabyte Motherboard Z890 AORUS PRO ICE
Gigabyte Motherboard Z890 AORUS PRO ICE
    Gigabyte Motherboard Z890 AORUS PRO ICE
    Gigabyte Motherboard Z890 AORUS PRO ICE
    Gigabyte Motherboard Z890 AORUS PRO ICE
    Gigabyte Motherboard Z890 AORUS PRO ICE
    Gigabyte Motherboard Z890 AORUS PRO ICE

Gigabyte Motherboard Z890 AORUS PRO ICE

€420.70
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAIIFZ890A02
Barcode
4719331864712
Model
Z890 AORUS PRO ICE
CPU socket
LGA1851
Processor family
Intel Core Ultra
Integrated CPU
Yes
Chipset manufacturer
Intel
Chipset type
Intel Z890 Express Chipset
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
6000 MHz
Memory bus frequency
6200 MHz
Memory bus frequency
6400 MHz
Memory bus frequency
6600 MHz
Memory bus frequency
8400 MHz
Memory bus frequency
8266 MHz
Memory bus frequency
8000 MHz
Memory bus frequency
8200 MHz
Memory bus frequency
7950 MHz
Memory bus frequency
7900 MHz
Memory bus frequency
7800 MHz
Memory bus frequency
7600 MHz
Memory bus frequency
7200 MHz
Memory bus frequency
7400 MHz
Memory bus frequency
8933 MHz
Memory bus frequency
8600 MHz
Memory bus frequency
8800 MHz
Memory bus frequency
5600 MHz
Memory bus frequency
5800 MHz
Memory bus frequency
7000 MHz
Memory bus frequency
6800 MHz
Memory bus frequency
9066 MHz
Memory bus frequency
9200 MHz
Memory bus frequency
9333 MHz
Memory bus frequency
9466 MHz
Memory bus frequency
9500 MHz
Max memory size
256
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
1 x PCIe 4.0 x 4
Expansion slots
1 x PCIe 4.0 x 1
Expansion slots
2 x M.2
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
CPU 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support2 x Intel Thunderbolt 4 (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputWhen a Thunderbolt monitor is installed, the maximum supported resolution is 5120x2880@60 Hz with 24 bpp (single display output).When a USB4 USB Type-C monitor is installed, the maximum supported resolution is 3840x2160@240 Hz (single display output).* Due to the limited I/O resources of the computer architecture, the number of Thunderbolt devices that can be used depends on the number of PCI Express devices installed. (For more information, refer to section 2-6 Back Panel Connectors.)* Support for DisplayPort 1.4 and HDCP 2.3.1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support for HDMI 1.4.(Graphics specifications may vary based on processor support.)Support for up to three displays simultaneously
Sound card
Realtek ALC1220 Codec* The line-out jack on the rear panel supports DSD audio.High Definition Audio SupportAudio Channels 2/4/5.1/7.1* The audio jack functionality can be changed through the audio software. To configure 7.1-channel audio, please go to the audio software for audio settings.S/PDIF Out Support
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Bluetooth
Network interface

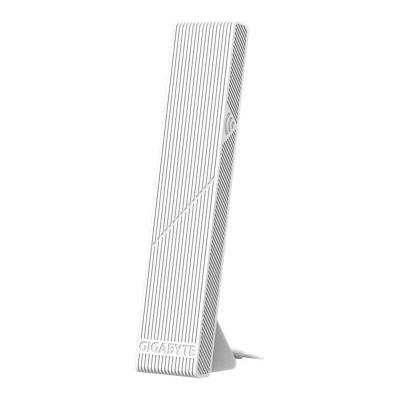

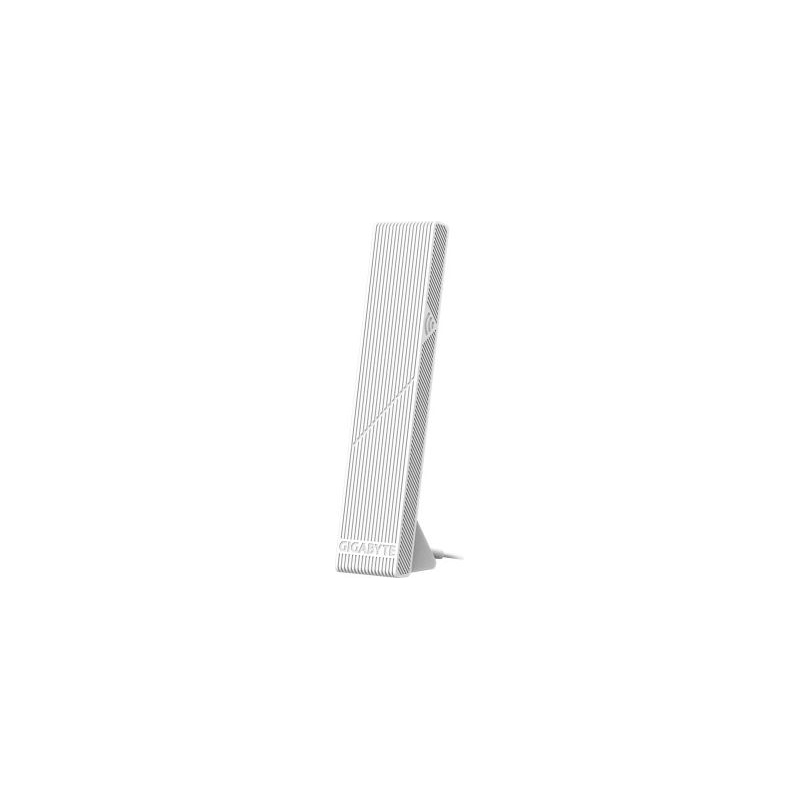

LAN  Realtek 5GbE LAN chip (5Gbps/2.5Gbps/1Gbps/100Mbps) Wireless communication module  Intel Wi-Fi 7 BE200  802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands  BLUETOOTH 5.4  Support for 11be 320MHz wireless standard
USB ports at back panel
12
USB ports on motherboard
8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
6
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

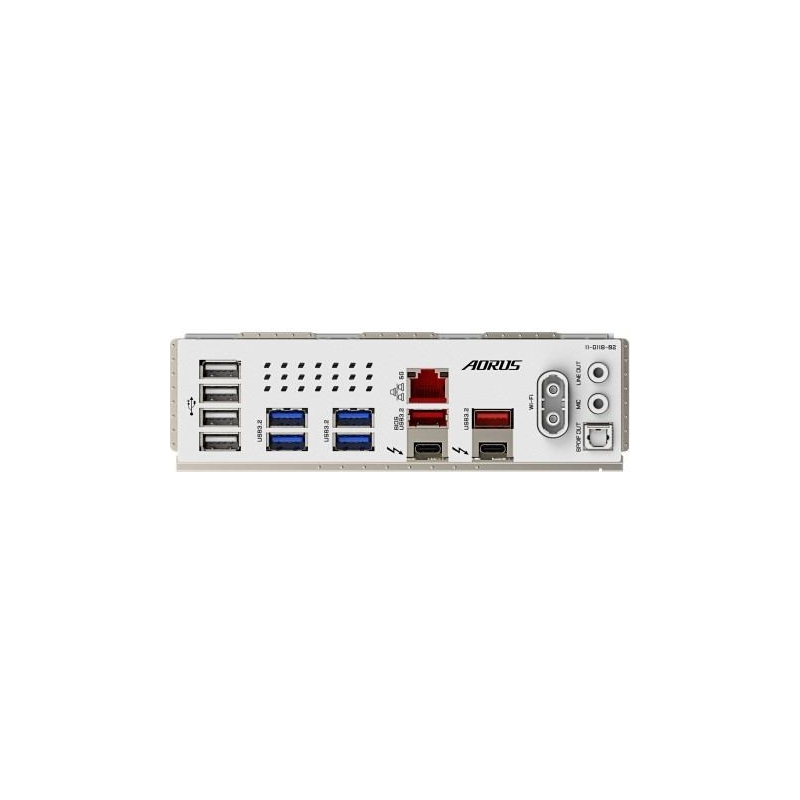

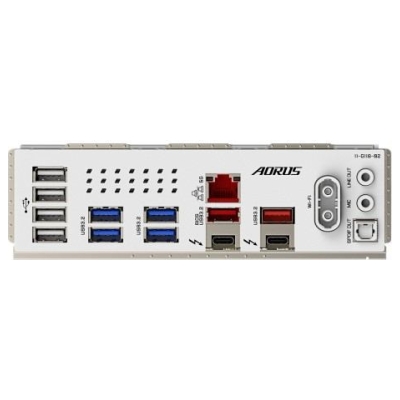

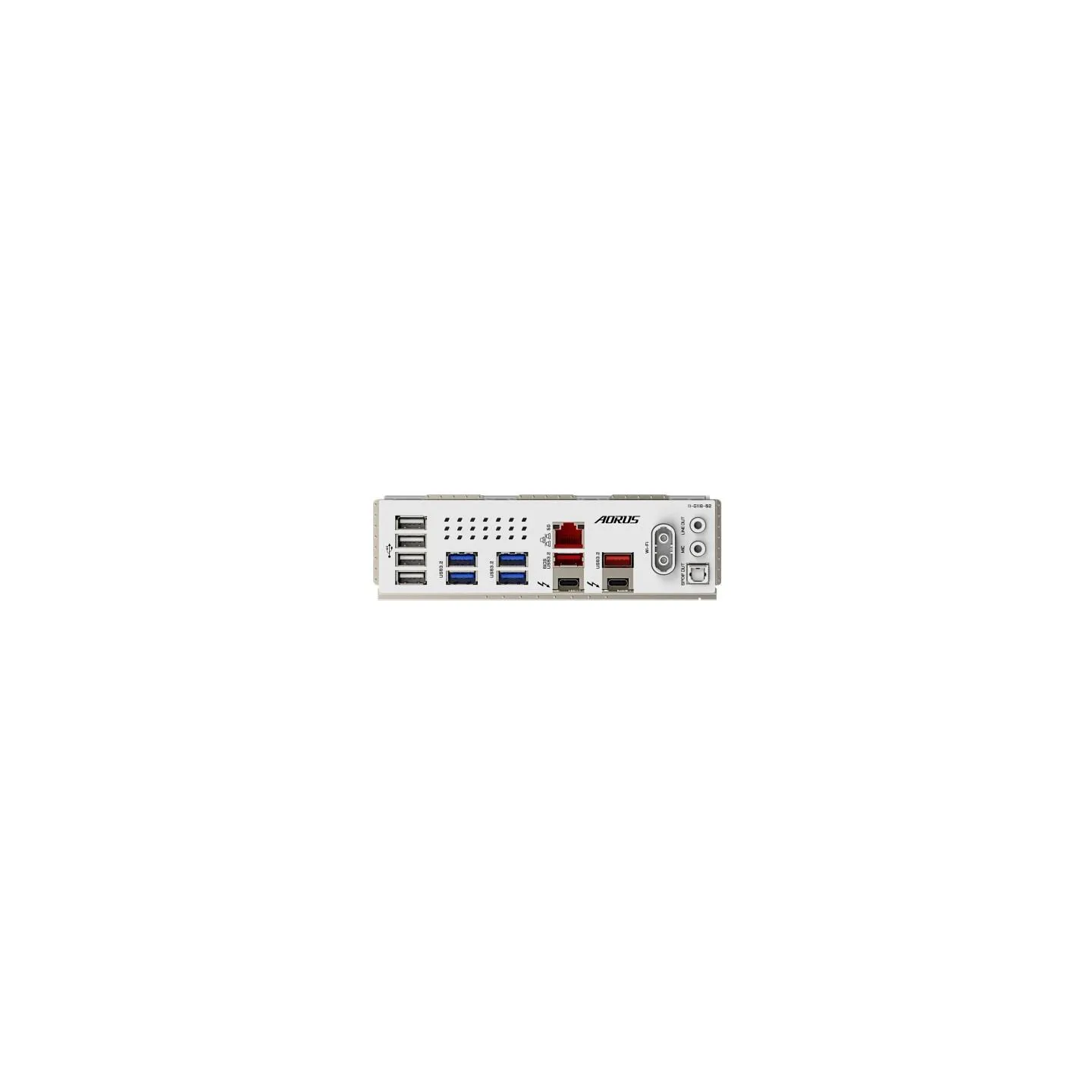

External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
4 x USB 3.2 Gen 1 Type-A
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
2 x Thunderbolt 4
External connectors
2 x SMA
Onboard connectors
1 x Reset button
Onboard connectors
1 x Power button
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
2 x 4pin case fan liquid cooling
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
5 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Noise detection header
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 11
Designation
CE+WEEE
Z890 AORUS PRO ICE
6 Items

Specific References

EAN13
4719331864712
MPN
Z890 AORUS PRO ICE
