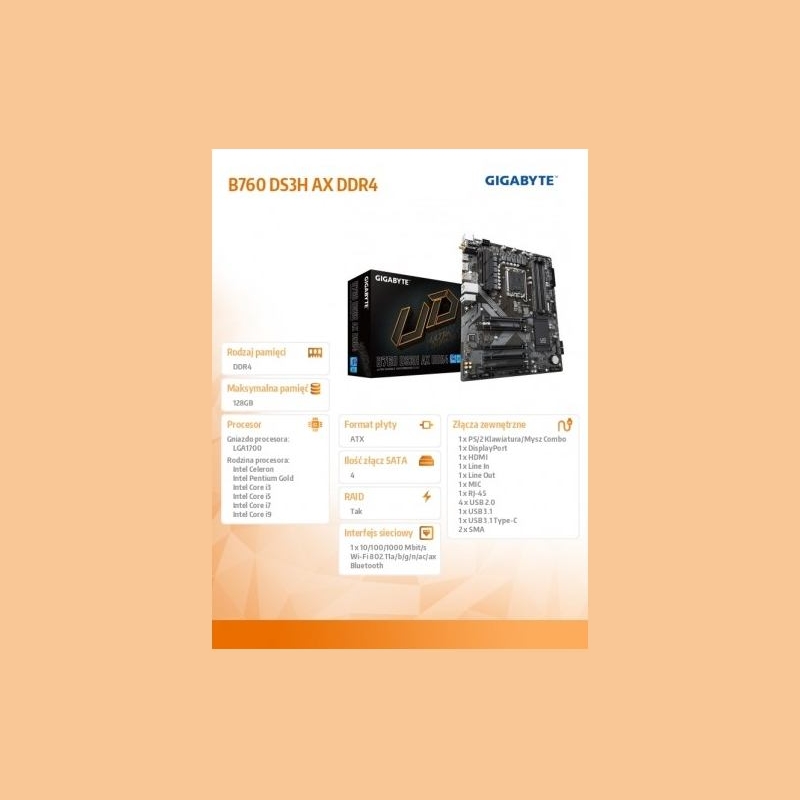

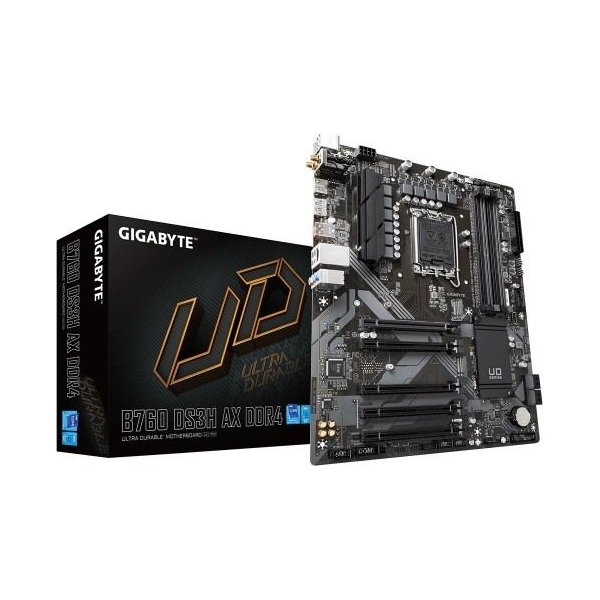

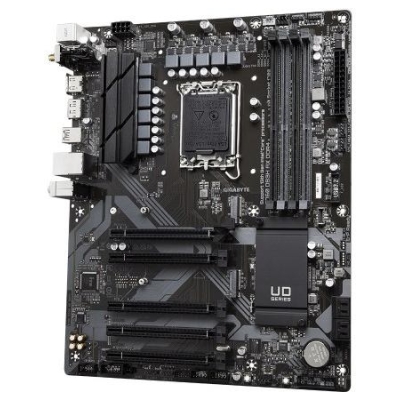

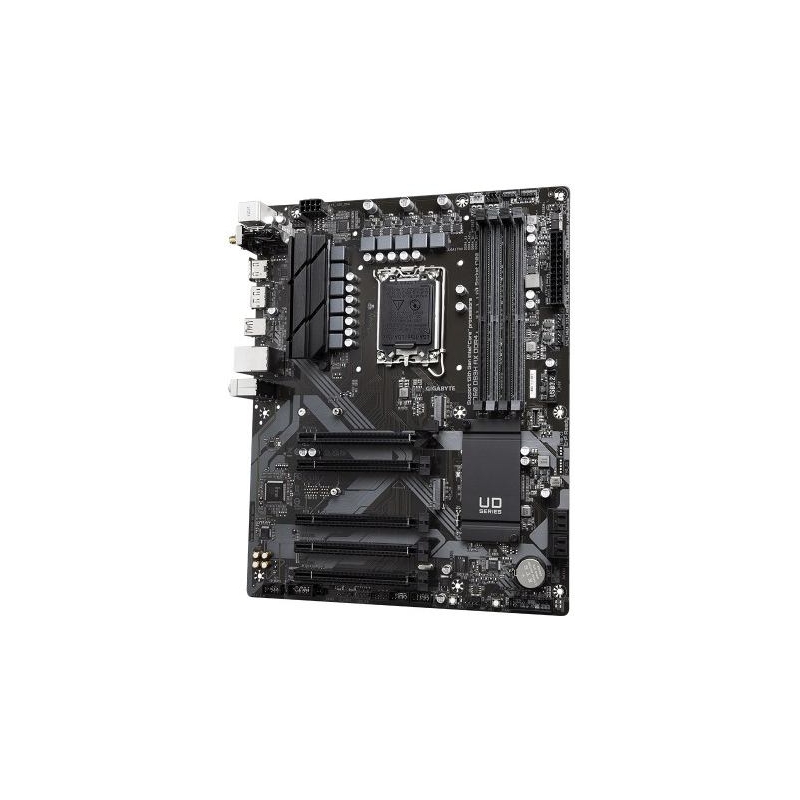

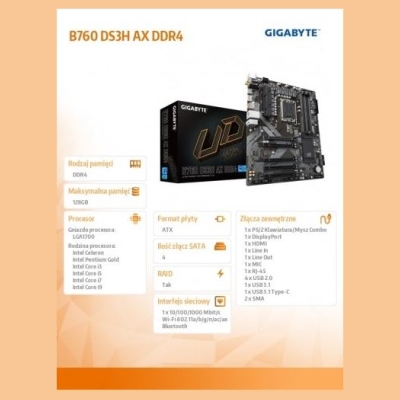

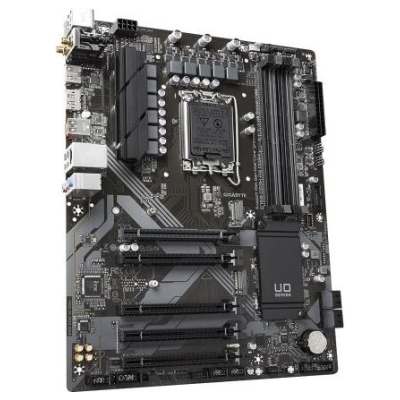

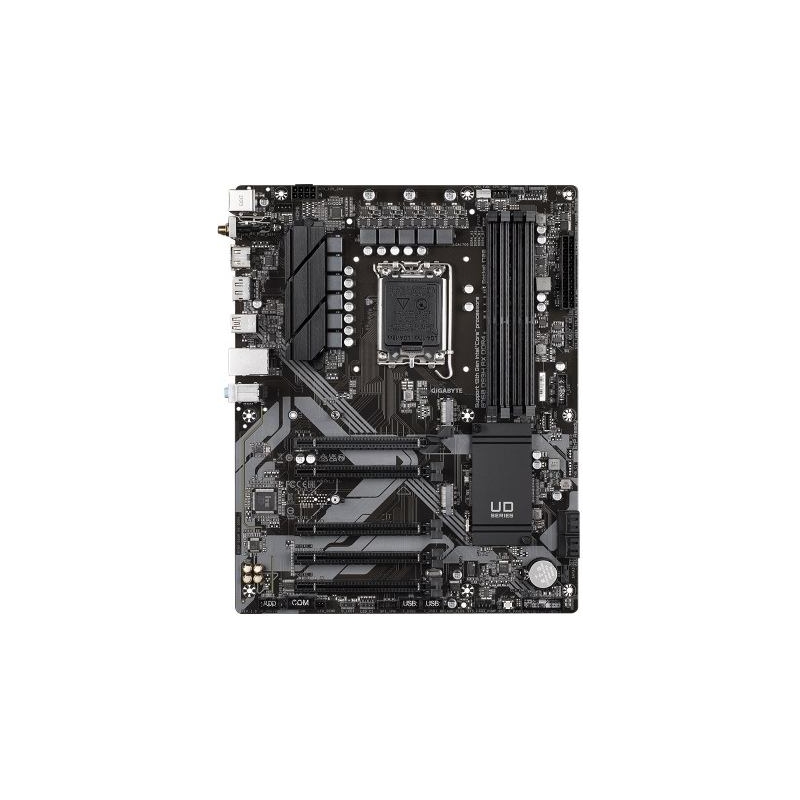

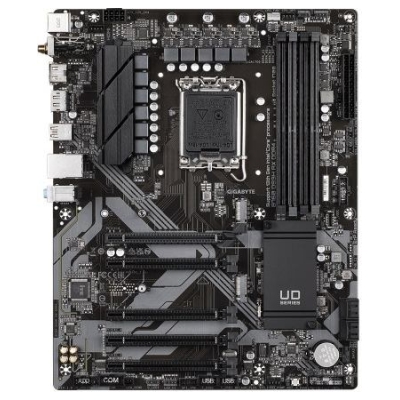

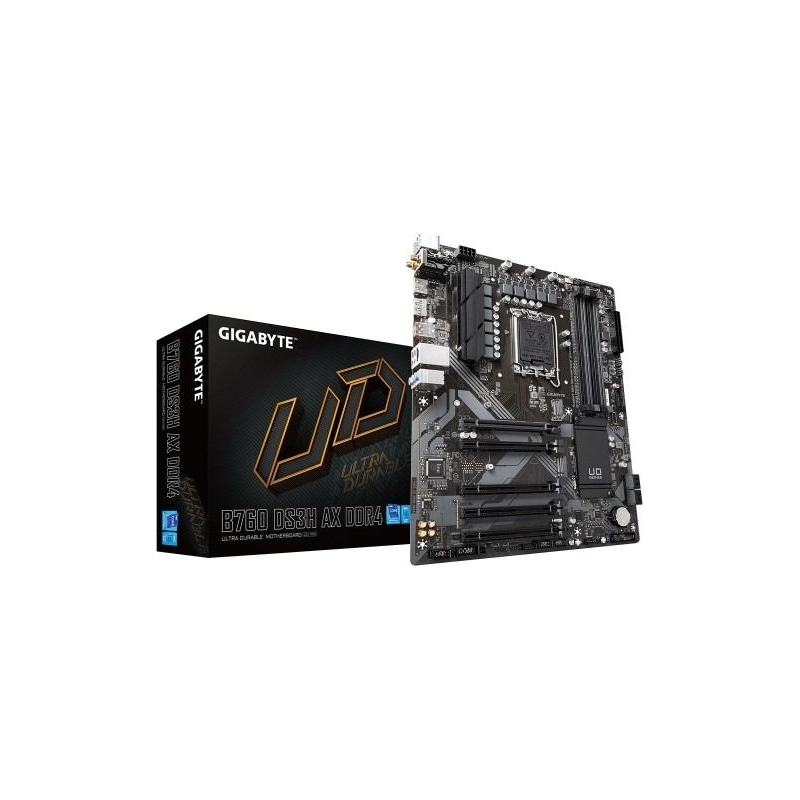

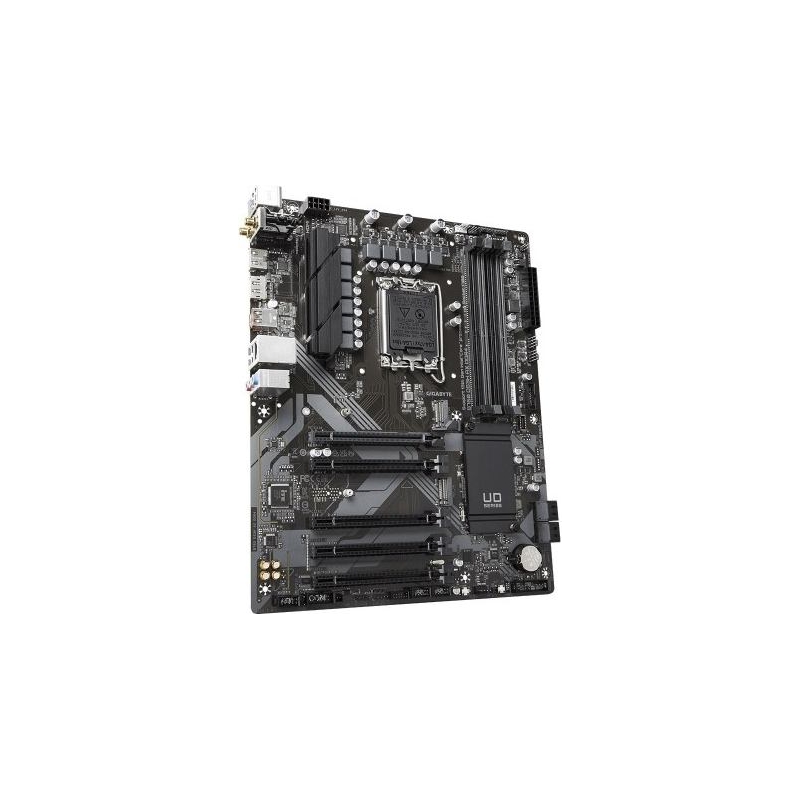

Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
    Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
    Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
    Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
    Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
    Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX

Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX

€142.76
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAIIEB760A05
Barcode
4719331850999
Model
B760 DS3H AX DDR4
CPU socket
LGA1700
Processor family
Intel Pentium Gold
Processor family
Intel Core i3
Processor family
Intel Core i5
Processor family
Intel Core i7
Processor family
Intel Celeron
Processor family
Intel Core i9
Integrated CPU
No
Chipset manufacturer
Intel
Chipset type
Intel B760 Express Chipset
Memory type
DDR4
Number of DDR4 slots
4
Memory bus frequency
2133 MHz
Memory bus frequency
2400 MHz
Memory bus frequency
2666 MHz
Memory bus frequency
5000 MHz
Memory bus frequency
4500 MHz
Memory bus frequency
4400 MHz
Memory bus frequency
4300 MHz
Memory bus frequency
4266 MHz
Memory bus frequency
4133 MHz
Memory bus frequency
4000 MHz
Memory bus frequency
3333 MHz
Memory bus frequency
3400 MHz
Memory bus frequency
3466 MHz
Memory bus frequency
3600 MHz
Memory bus frequency
3666 MHz
Memory bus frequency
3733 MHz
Memory bus frequency
3800 MHz
Memory bus frequency
3866 MHz
Memory bus frequency
3300 MHz
Memory bus frequency
3000 MHz
Memory bus frequency
3200 MHz
Memory bus frequency
2933 MHz
Memory bus frequency
4800 MHz
Memory bus frequency
4933 MHz
Memory bus frequency
4700 MHz
Memory bus frequency
4600 MHz
Memory bus frequency
5133 MHz
Memory bus frequency
5333 MHz
Max memory size
128
Expansion slots
4 x PCIe 3.0 x 16
Expansion slots
1 x PCIe 4.0 x 16
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
Processor: 1 x M.2 connector (slot 3, Key M, support for 22110/2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU) Chipset: 1 x M.2 connector (slot 3, Key M, support for SSD type 2280 PCIe 4.0 x4/x2) (M2P_SB) 4 SATA 6 Gb/sec connectors
Graphics
Integrated graphics processor - Intel HD graphics support: HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz - Support for HDMI version 2.0 and HDCP 2.3. DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz - Support for DisplayPort version 1.2 and HDCP 2.3 (Graphics specifications may vary depending on processor support.)
Sound card
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF output
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps) Wireless communication:  AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Supports wireless standard 11ax 80 MHz and data rates of up to 1.2 Gbps
USB ports at back panel
6
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
2
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x USB 3.1 Type-C
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
1 x USB 3.1
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
2 x SMA
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
2 x RGB LED Strip
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Reset button
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x S/PDIF Out header
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x Serial port header
Onboard connectors
1 x TPM header
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x Addressable LED
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Designation
CE+WEEE
B760 DS3H AX DDR4
24 Items

Specific References

EAN13
4719331850999
MPN
B760 DS3H AX DDR4
New
