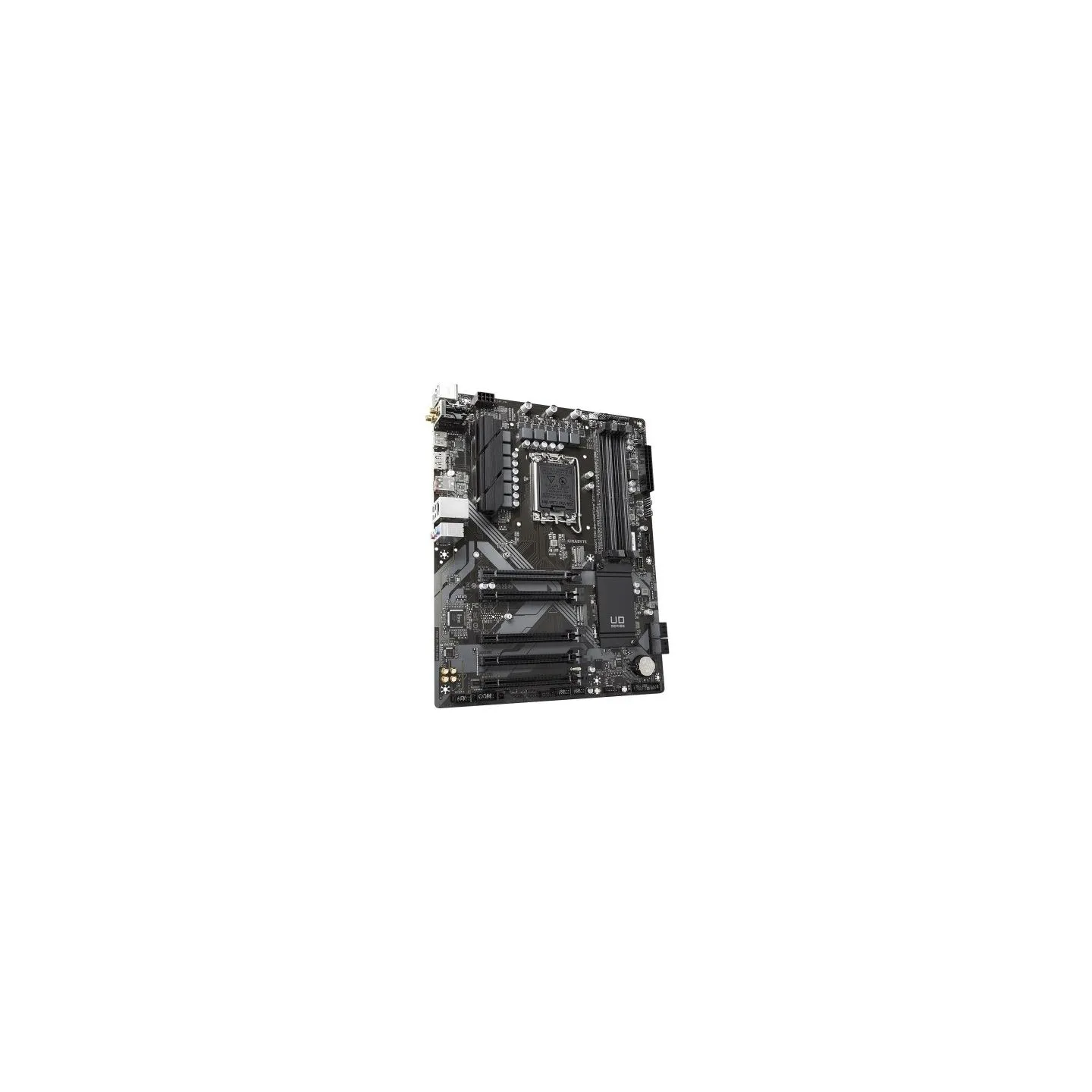

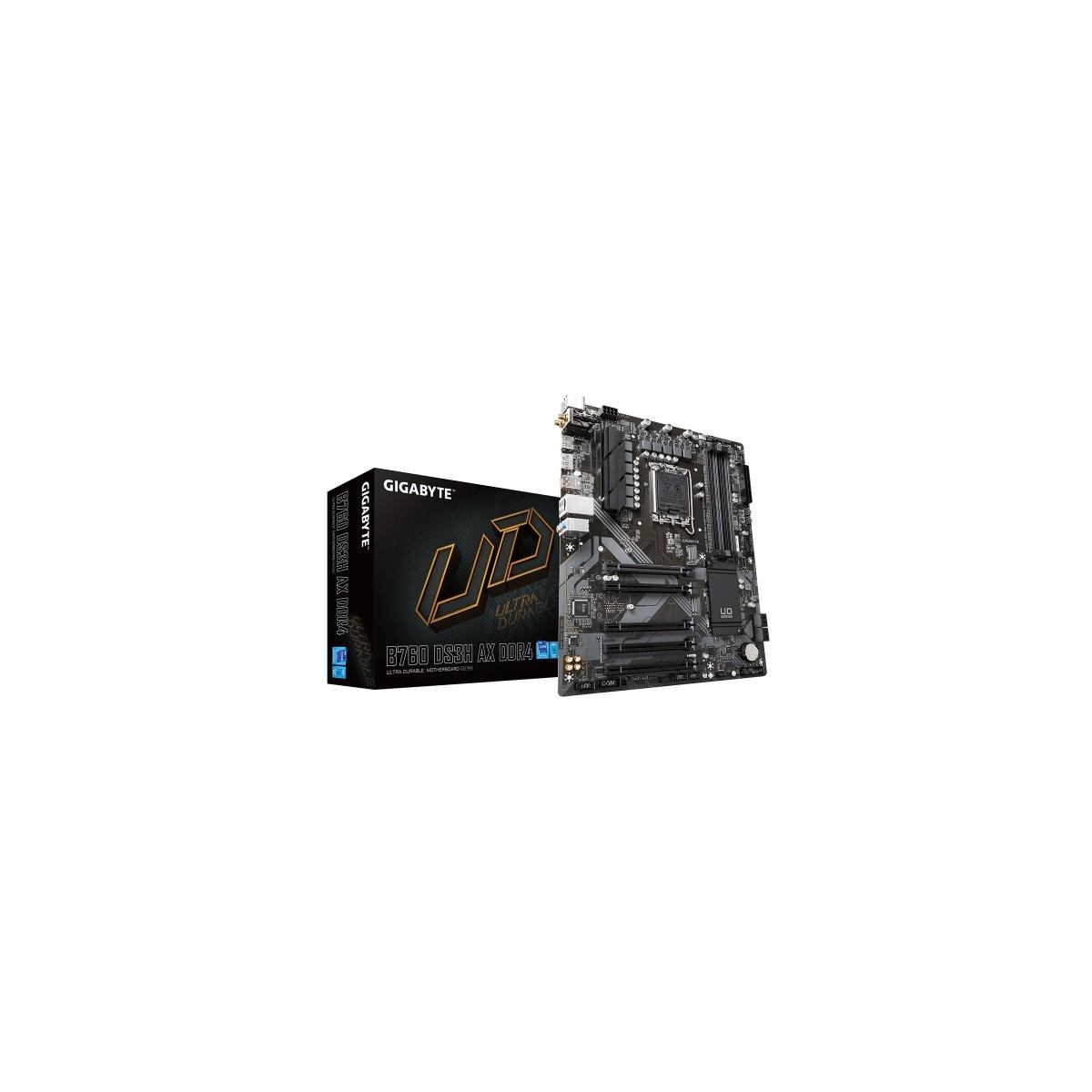

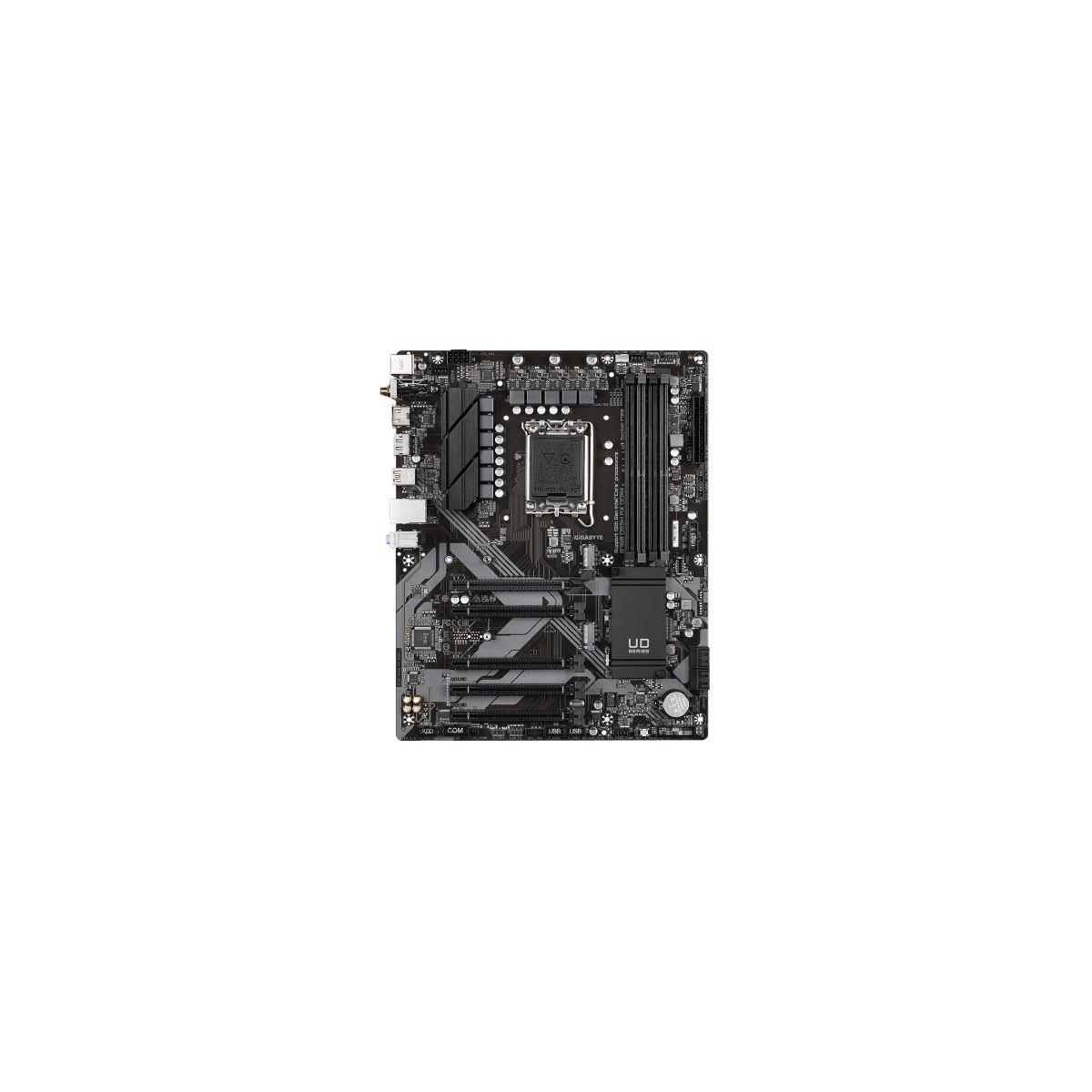

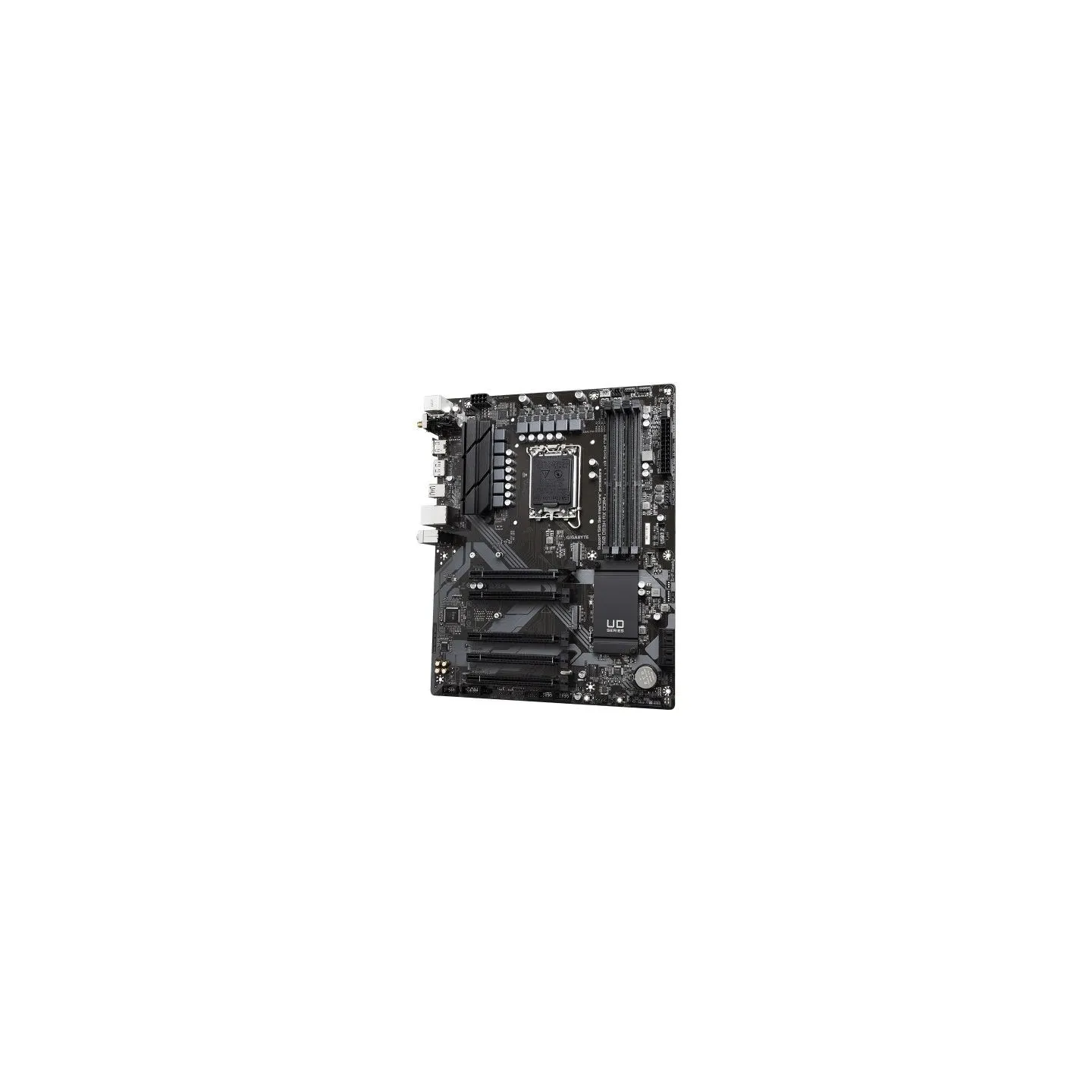

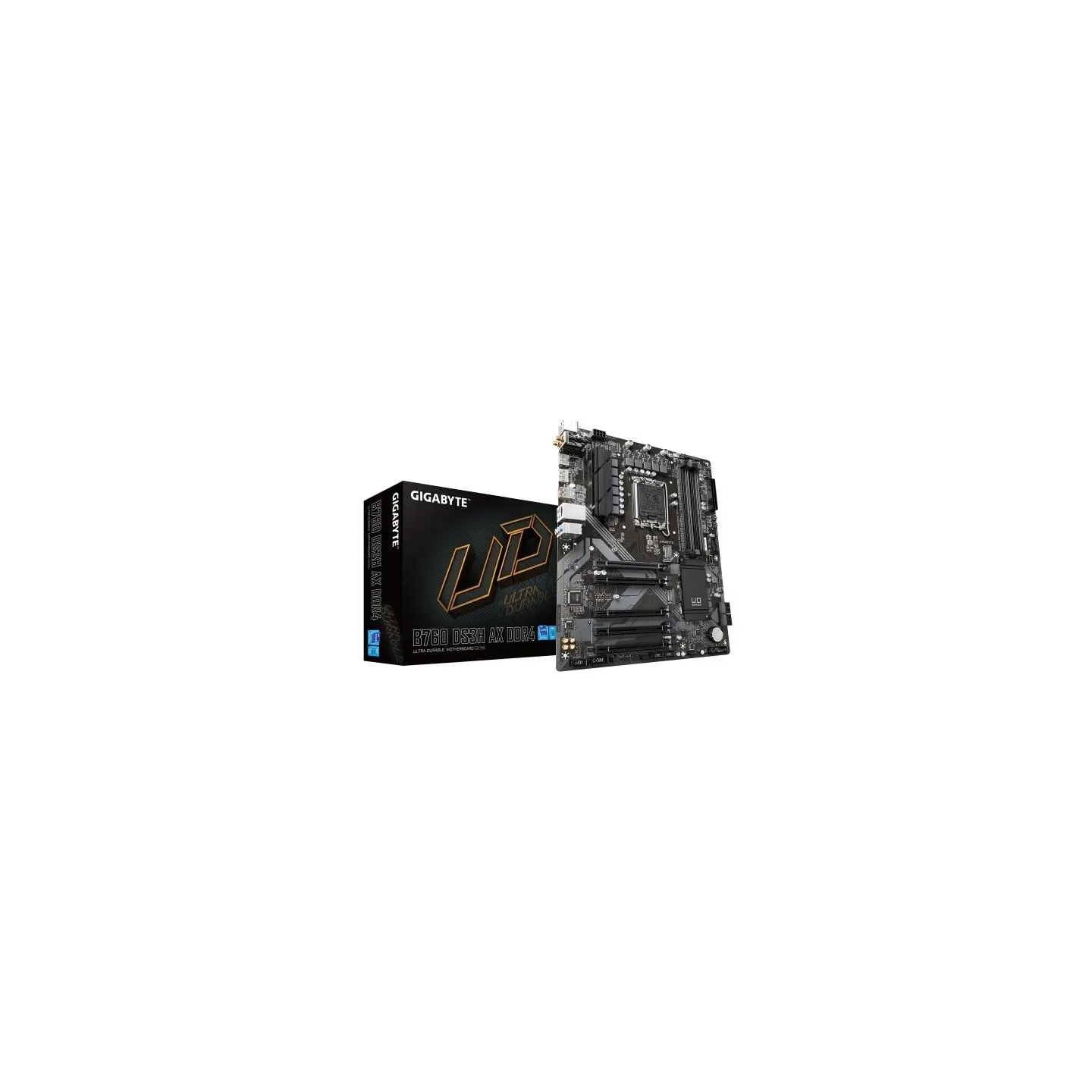

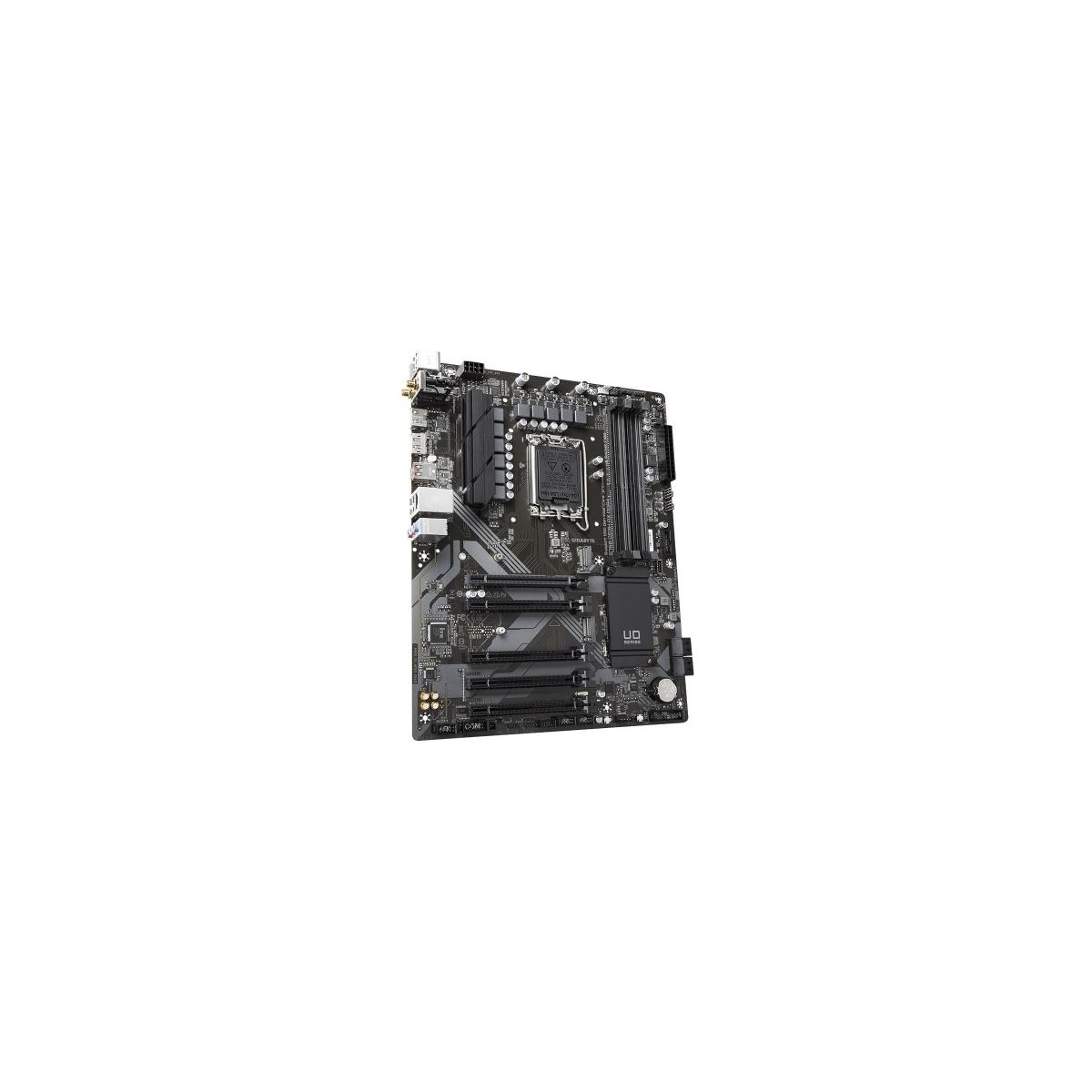

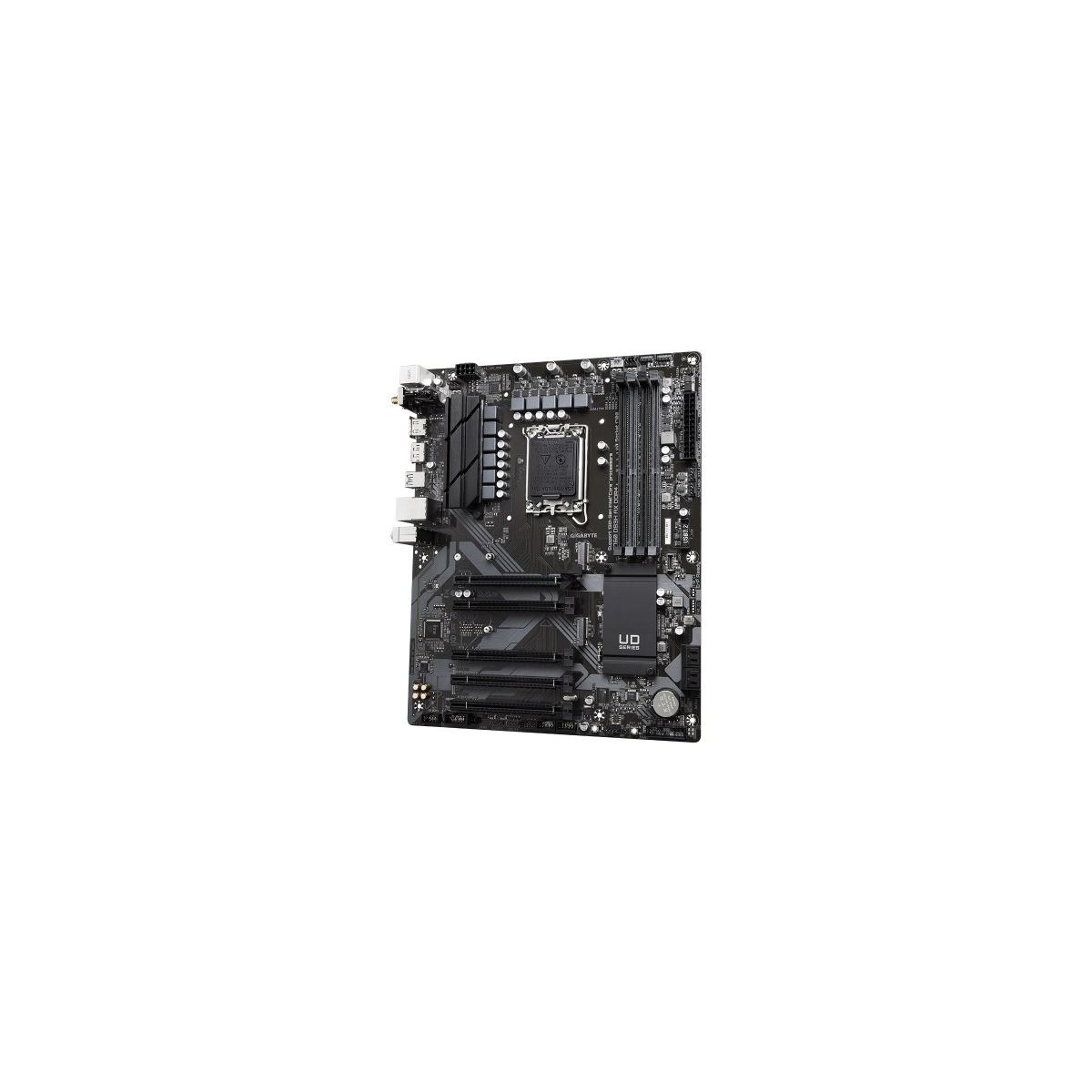

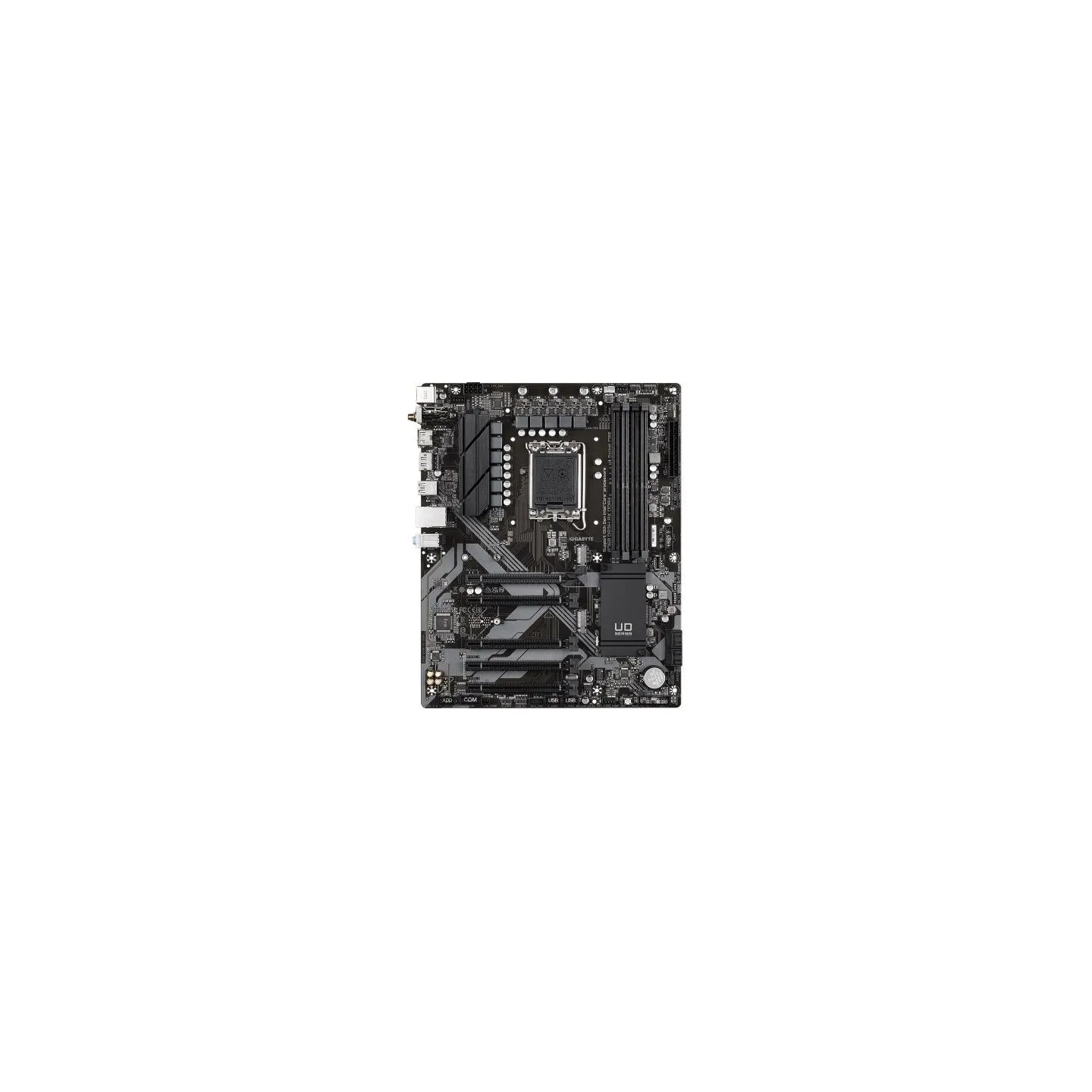

Gigabyte Motherboard B760 DS3H AX DDR4 s1700 4DDR4 DP/HDMI ATX
Price:
€141.31
Tax included
Last items in stock
Share on
- SKU
- KBGBAIIEB760A05
- Barcode
- 4719331850999
- Model
- B760 DS3H AX DDR4
- CPU socket
- LGA1700
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Core i7
- Processor family
- Intel Celeron
- Processor family
- Intel Core i9
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760 Express Chipset
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 4500 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4300 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 3333 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3666 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3800 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 3300 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4933 MHz
- Memory bus frequency
- 4700 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 5133 MHz
- Memory bus frequency
- 5333 MHz
- Max memory size
- 128
- Expansion slots
- 4 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Processor: 1 x M.2 connector (slot 3, Key M, support for 22110/2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU) Chipset: 1 x M.2 connector (slot 3, Key M, support for SSD type 2280 PCIe 4.0 x4/x2) (M2P_SB) 4 SATA 6 Gb/sec connectors
- Graphics
- Integrated graphics processor - Intel HD graphics support: HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz - Support for HDMI version 2.0 and HDCP 2.3. DisplayPort, supporting a maximum resolution of 4096x2304 at 60 Hz - Support for DisplayPort version 1.2 and HDCP 2.3 (Graphics specifications may vary depending on processor support.)
- Sound card
- Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel S/PDIF output
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- LAN: Realtek GbE LAN chip (1 Gbps/100 Mbps) Wireless communication: AMD Wi-Fi 6E RZ608 (MT7921K) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Supports wireless standard 11ax 80 MHz and data rates of up to 1.2 Gbps
- USB ports at back panel
- 6
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 2
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 2 x SMA
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x RGB LED Strip
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x Addressable LED
- BIOS
- 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
