CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and operating at x16 speed (PCIEX16) * The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install a single graphics card, install it in the PCIEX16 slot.Chipset 2 x PCI Express x16 slots, supporting PCIe 4.0 and operating at x1 speed (PCIEX1_2/3)
Graphics
Integrated graphics processor supports Intel HD Graphics 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz Supports HDMI 2.1 and HDCP 2.3 2 x DisplayPort ports, supporting a maximum resolution of 3840x2160 @ 144 Hz Supports DisplayPort 2.1.
Sound card
Realtek audio codec High Definition Audio Support Audio Channels: 2/4/5.1/7.1
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel
6
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
1
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

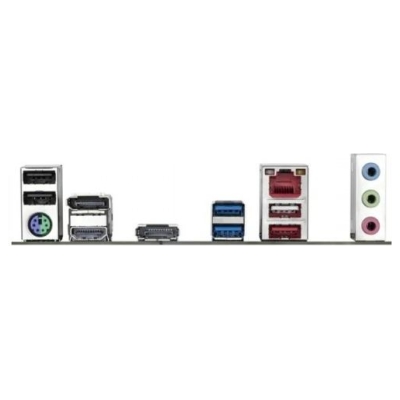

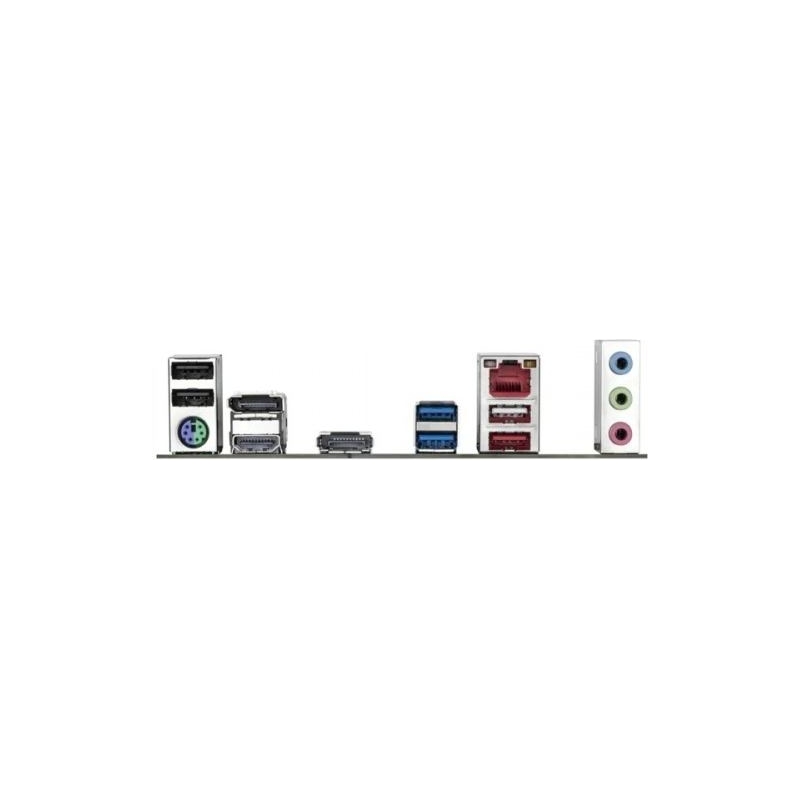

External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
2 x DisplayPort
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
3 x USB 2.0
External connectors
2 x USB 3.0
External connectors
1 x USB 3.1
External connectors
1 x HDMI
External connectors
1 x Line In
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
BIOS
1 x 256 Mbit flash Using a licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Dimensions
24.4 x 17.4cm
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Norton Internet Security (wersja OEM) LAN bandwidth management software
