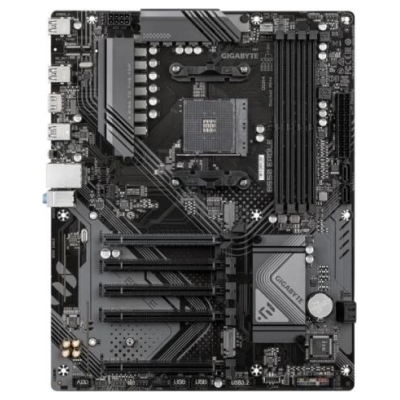

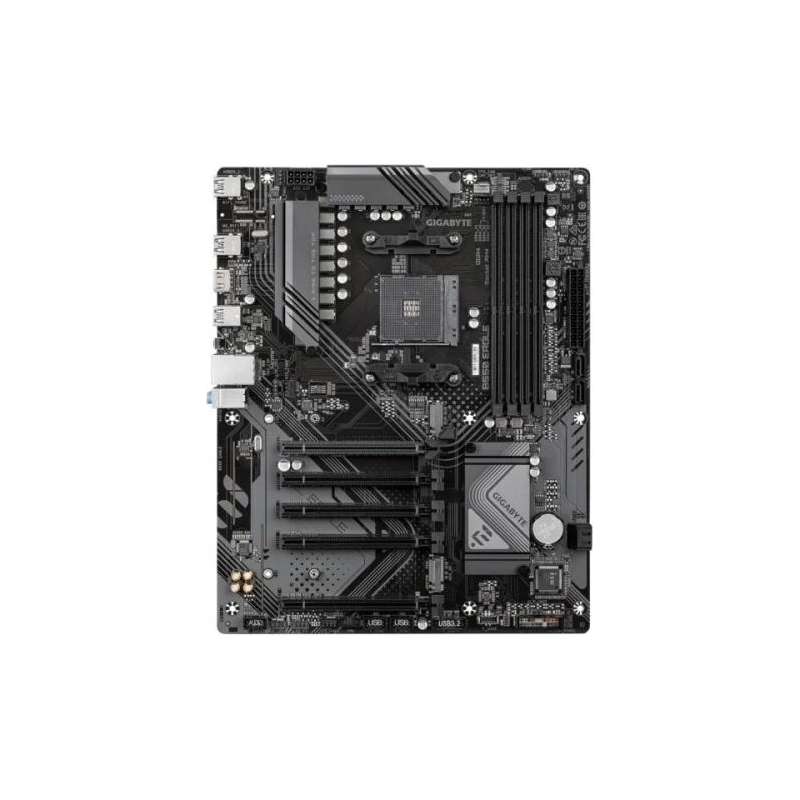

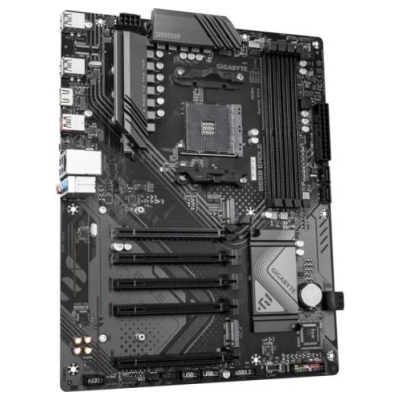

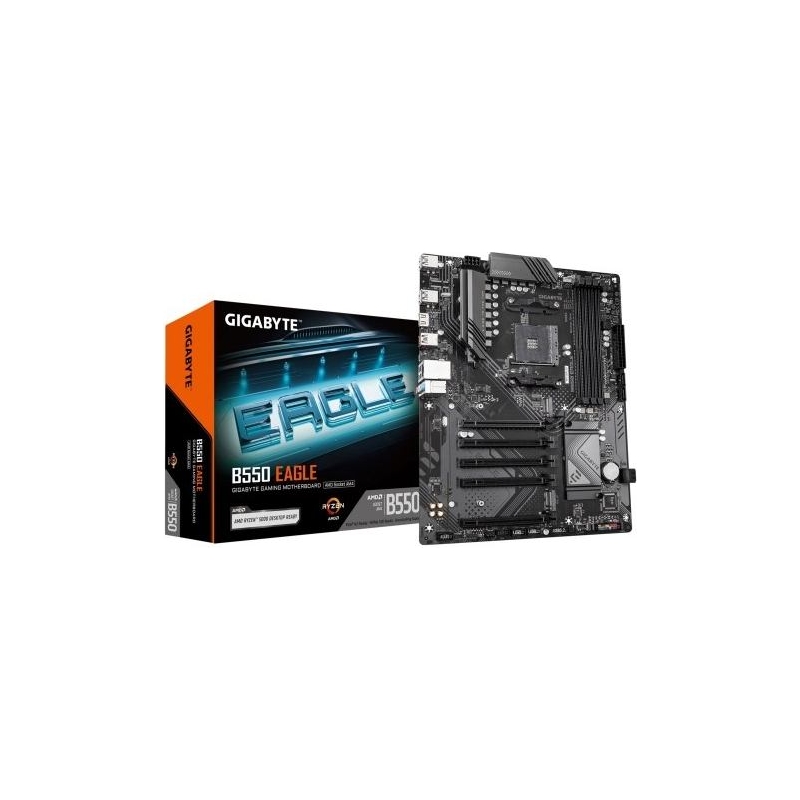

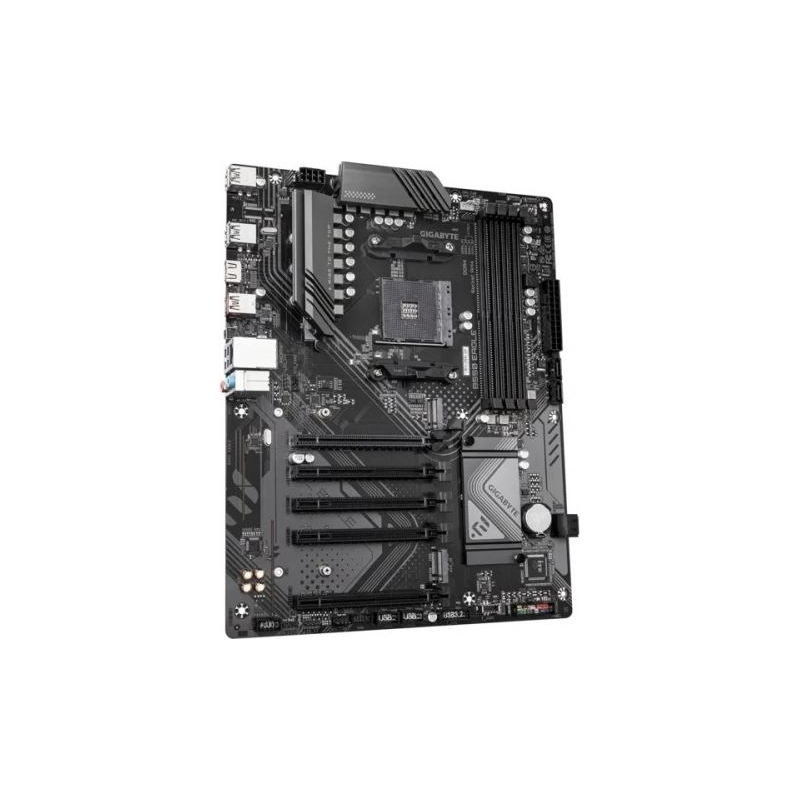

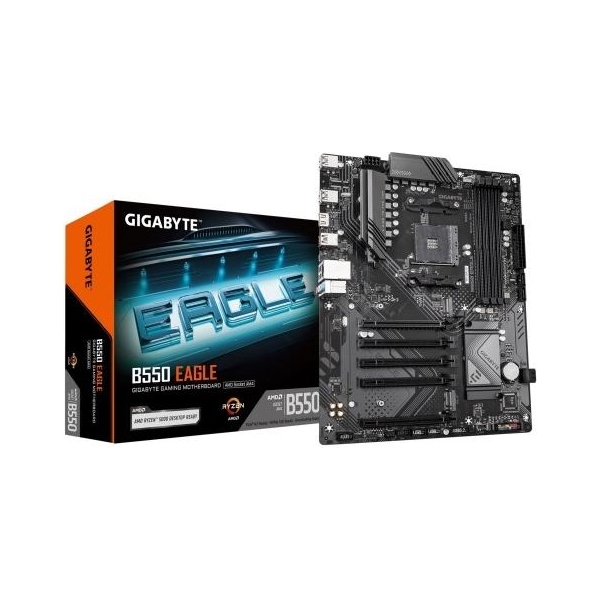

Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
    Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
    Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
    Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX
    Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX

Gigabyte B550 EAGLE AM4 4DDR4 HDMI ATX

€115.17
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAAA7B550A09
Barcode
4719331868208
Model
B550 Eagle
CPU socket
Socket AM4
Processor family
AMD Ryzen
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD B550
Memory type
DDR4
Number of DDR4 slots
4
Memory bus frequency
2133 MHz
Memory bus frequency
2933 MHz
Memory bus frequency
3200 MHz
Memory bus frequency
2400 MHz
Memory bus frequency
2667 MHz
Max memory size
128
Expansion slots
1 x PCIe 4.0 x 16
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
Chipset 1.4 × PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Graphics
Integrated graphics support: AMD Radeon graphics card compatible 1 × HDMI port: Supports up to 4096 × 2160 @ 60 Hz
Sound card
Audio codec: Realtek High Definition Audio support Audio channels: 2/4/5.1/7.1
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
2
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

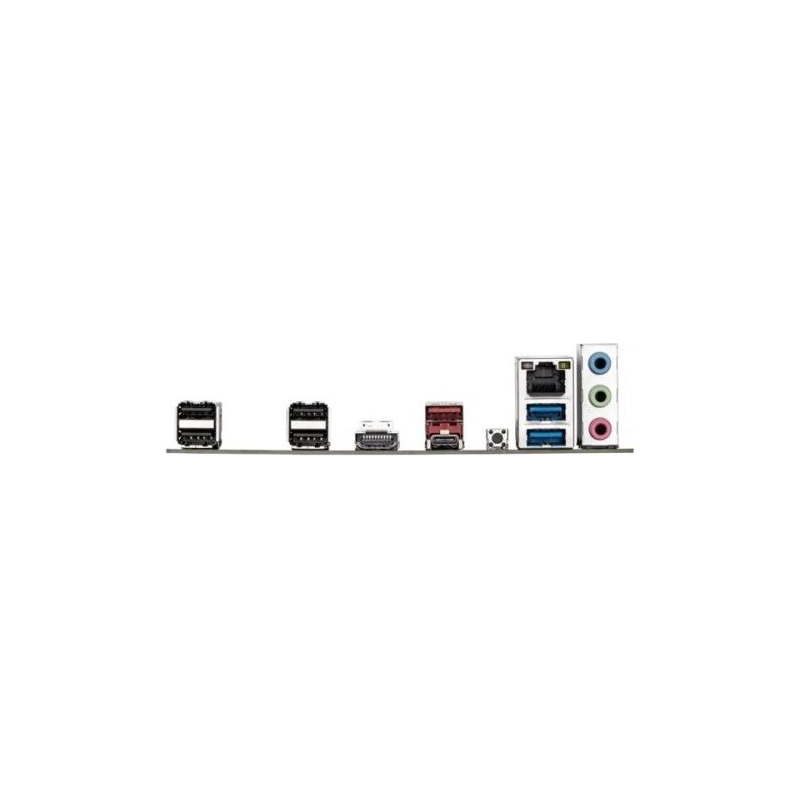

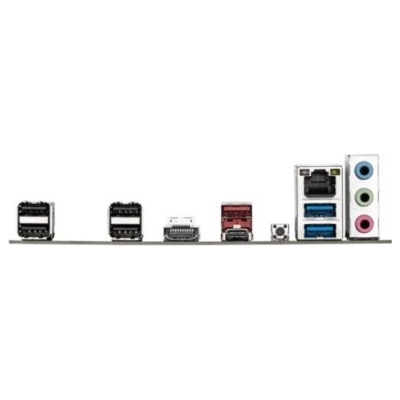

External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
2 x USB 3.0
External connectors
1 x USB 3.1
External connectors
1 x USB 3.0 Type-C
External connectors
1 x HDMI
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x USB C
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Designation
CE+WEEE
B550 EAGLE
30 Items

Specific References

EAN13
4719331868208
MPN
B550 EAGLE
New
