AMD RAIDXpert2 TechnologyRyzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10
Graphics
1 x DisplayPort** 1 x HDMI port*** ** Supports up to 8K at 30 Hz, as per DisplayPort 1.4 specification.*** Supports 4K at 60 Hz, as per HDMI 2.1 specification.
Sound card
Realtek 7.1 Surround Sound High Definition Audio Codec* Supports: jack detection, multi-stream streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding High-quality audio capacitors Dedicated audio PCB layers Audio Shield *7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
Bluetooth
Network interface
Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6 GHz frequency band Bluetooth v5.3
USB ports at back panel
8
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

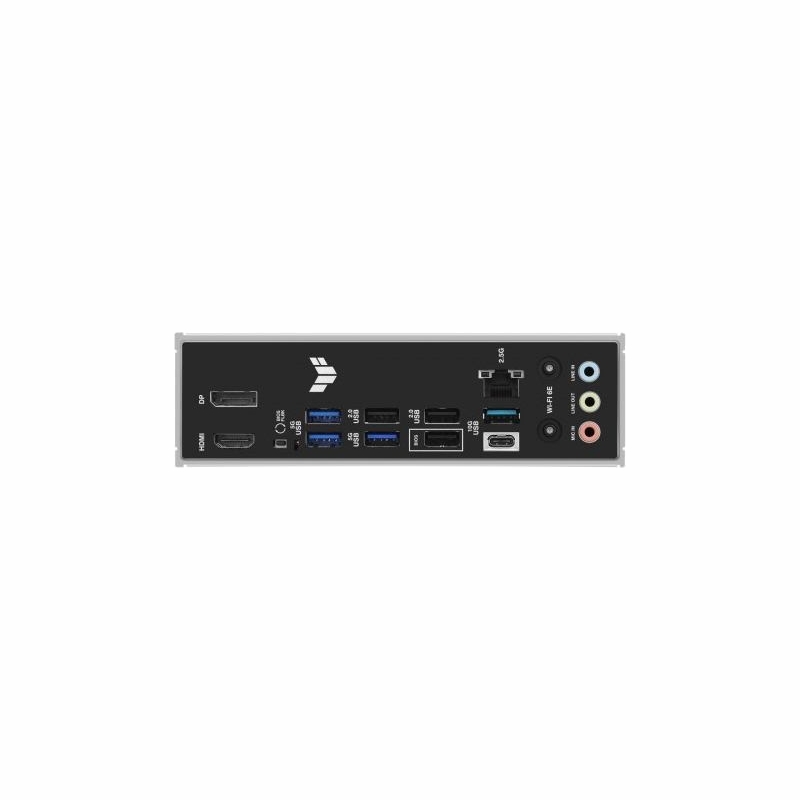

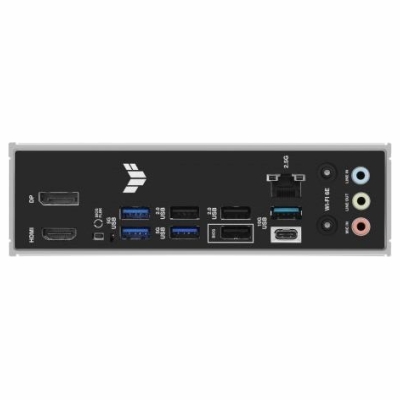

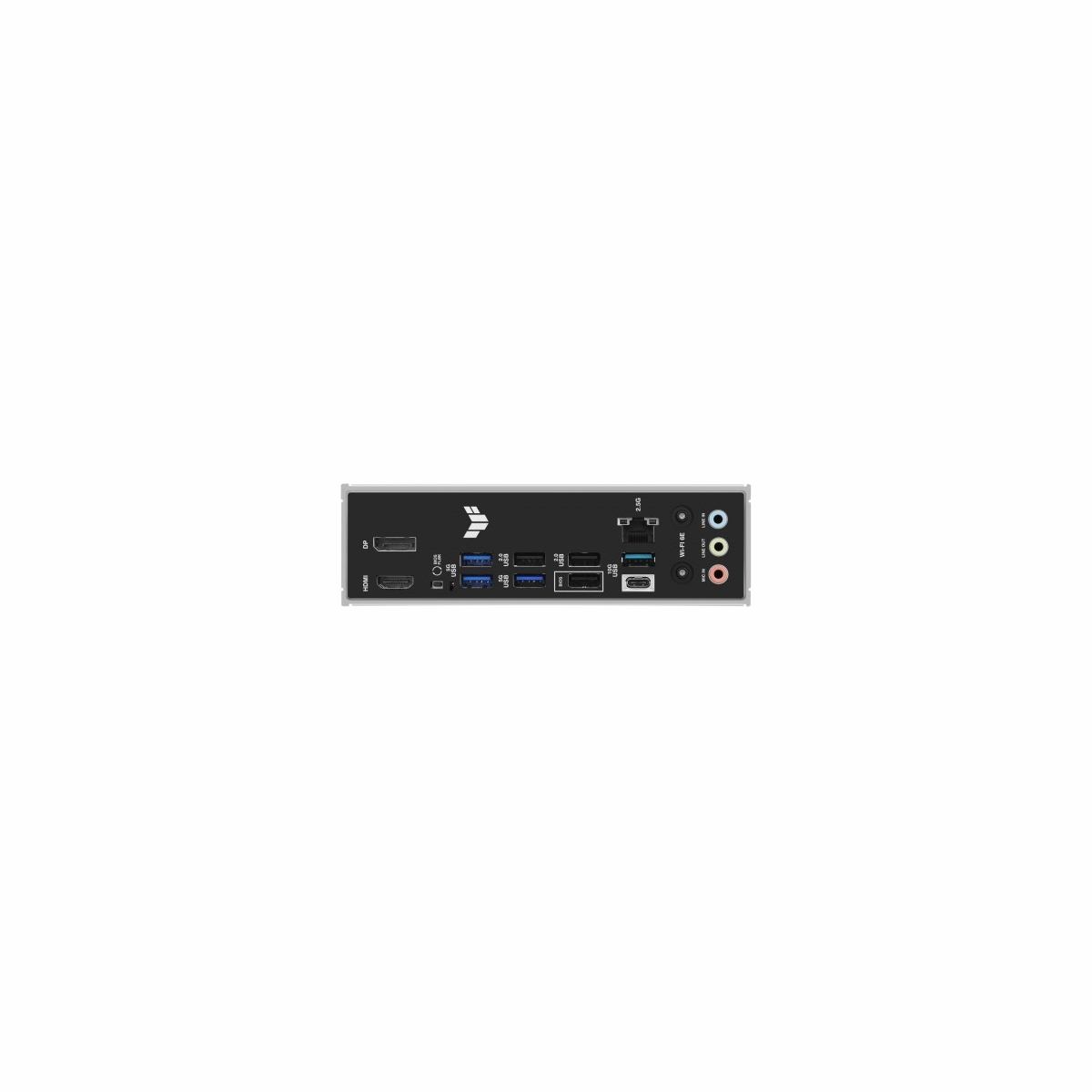

External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
3 x USB 2.0
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x Wi-Fi Module
External connectors
1 x USB BIOS Flashback button
External connectors
1 x USB 3.2 Gen 2 Type-C
External connectors
1 x RJ-45
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x 4pin 12V power
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Serial port header
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
4 x 4pin Chassis fan
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included
2 x SATA 6 Gb/s Cable ASUS WiFi Q Antenna TUF Gaming Sticker M.2 Rubber Pack 2 x M.2 SSD Screw Sets Quick Start Guide
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
ASUS Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 Energy Savings ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (free trial) Norton 360 for Gaming (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
