- SKU
- KBASUAA8B850A04
- Barcode
- 4711387987544
- Model

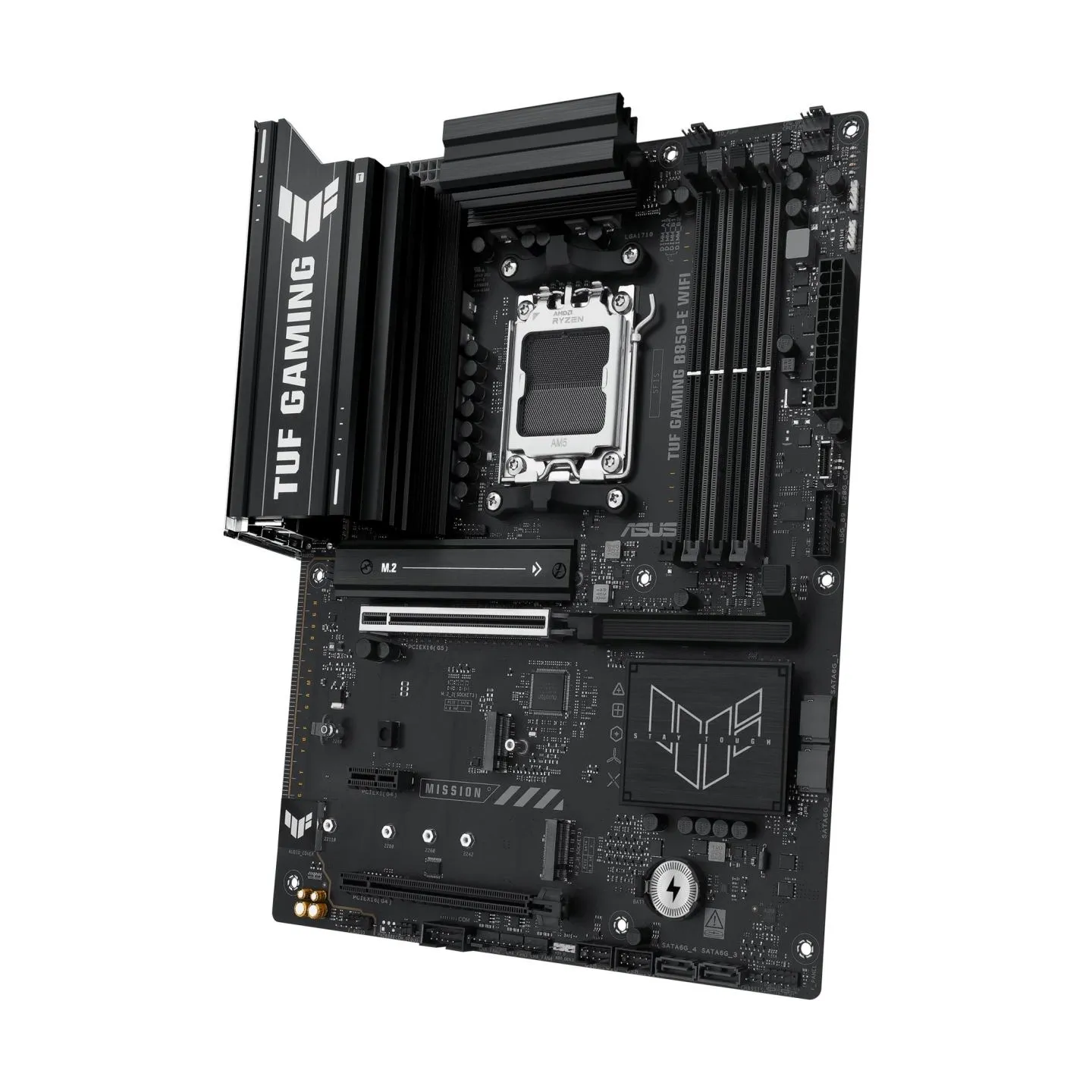

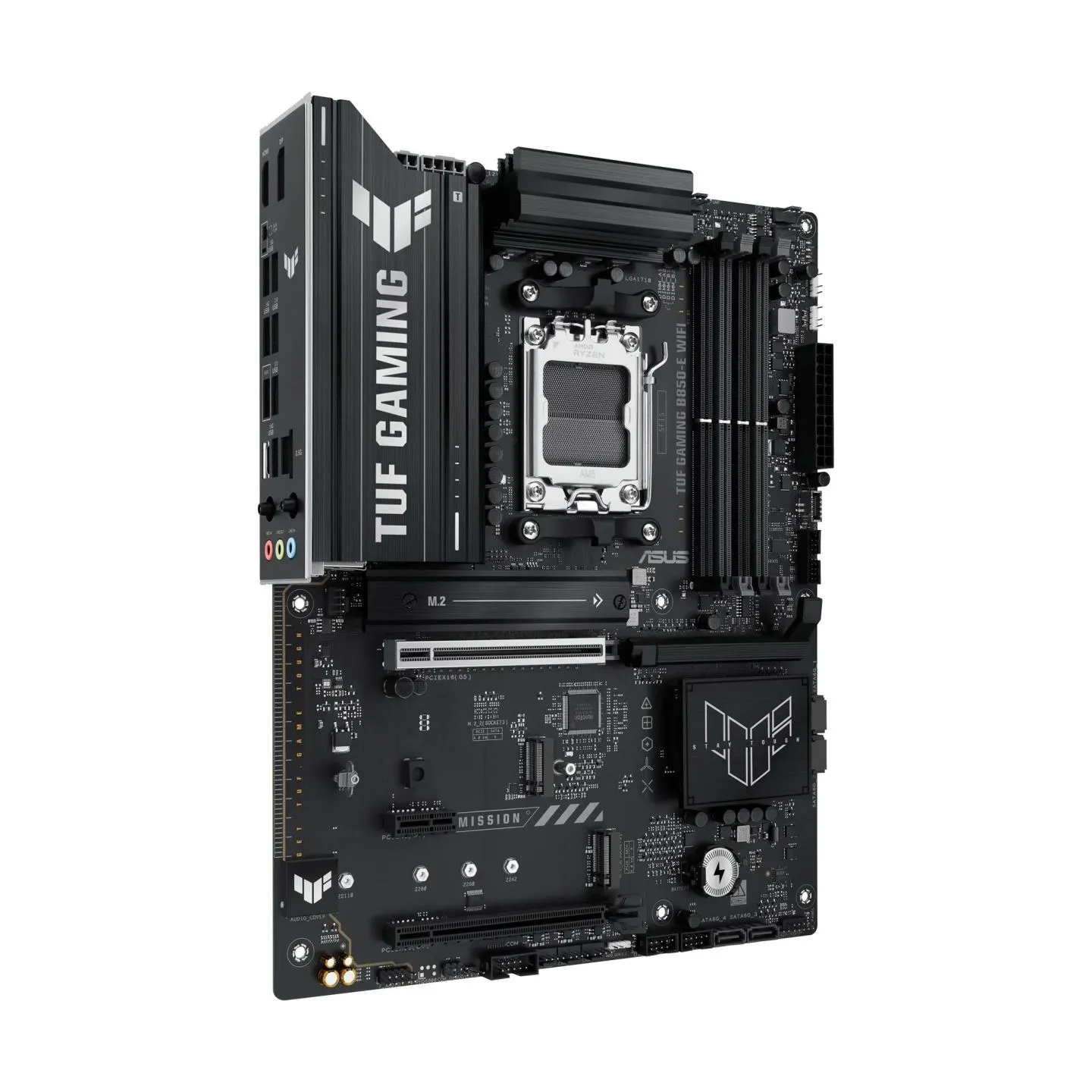

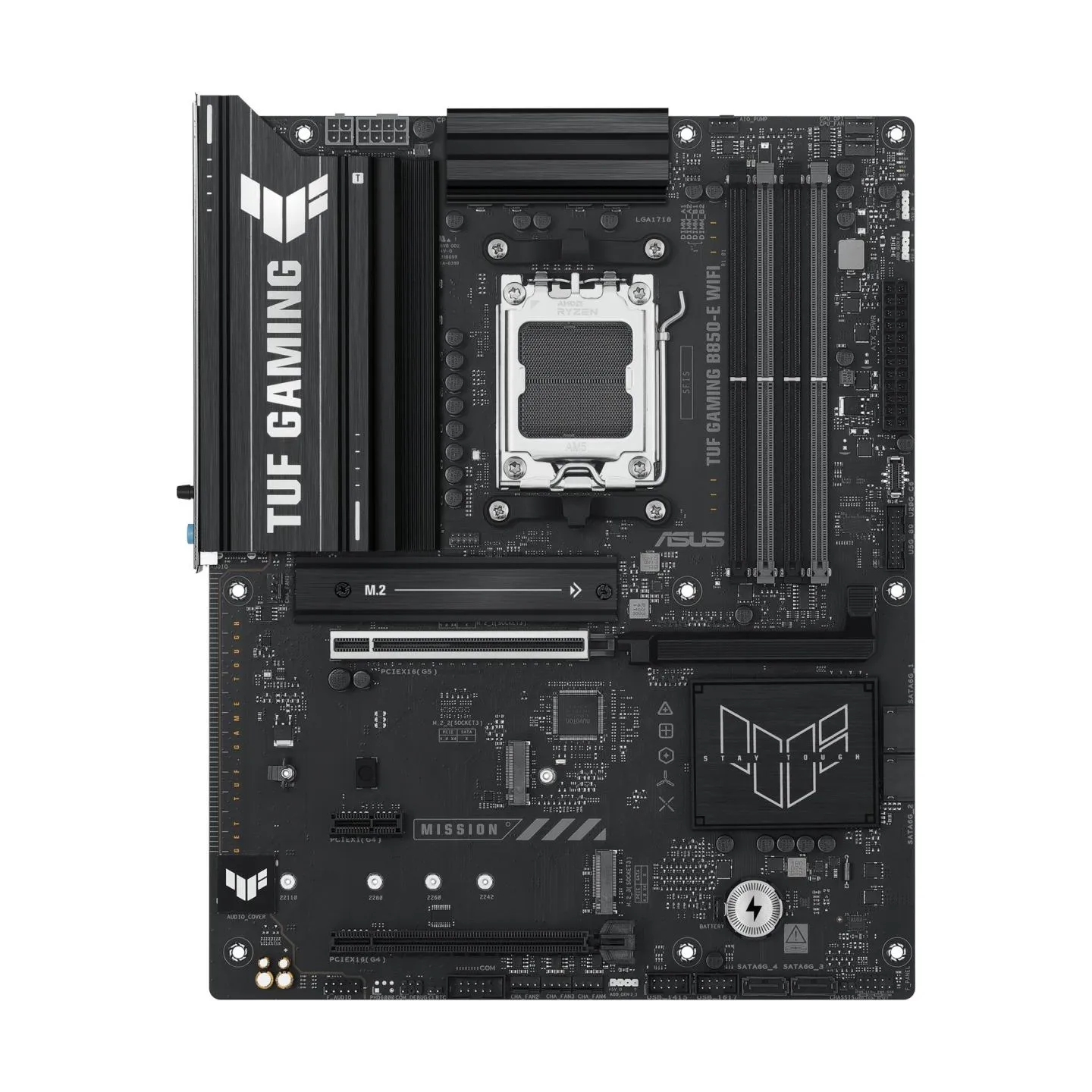

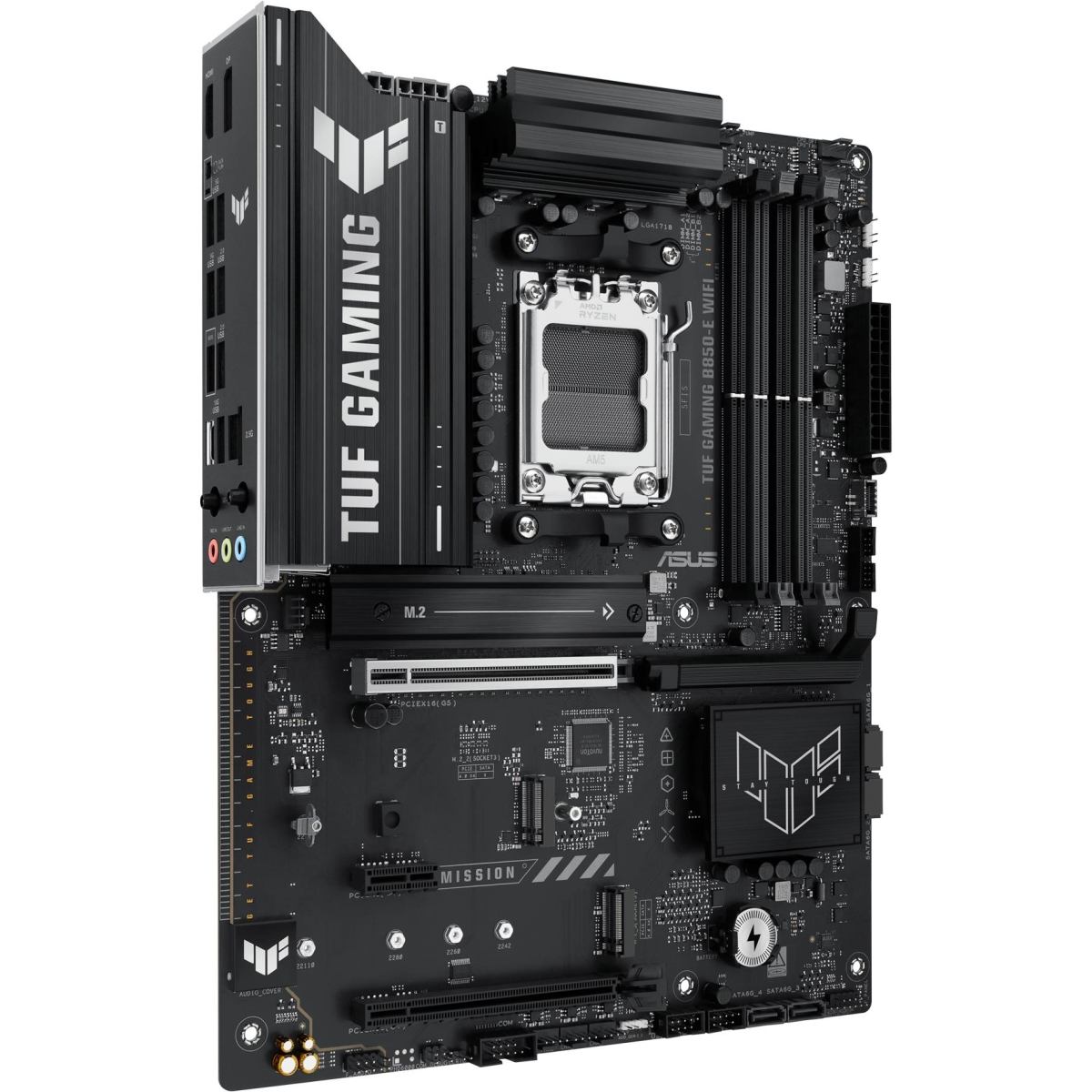

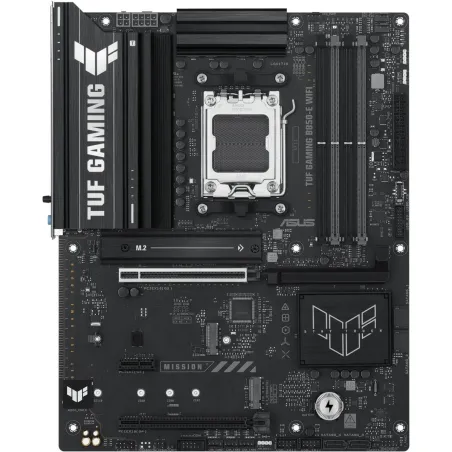

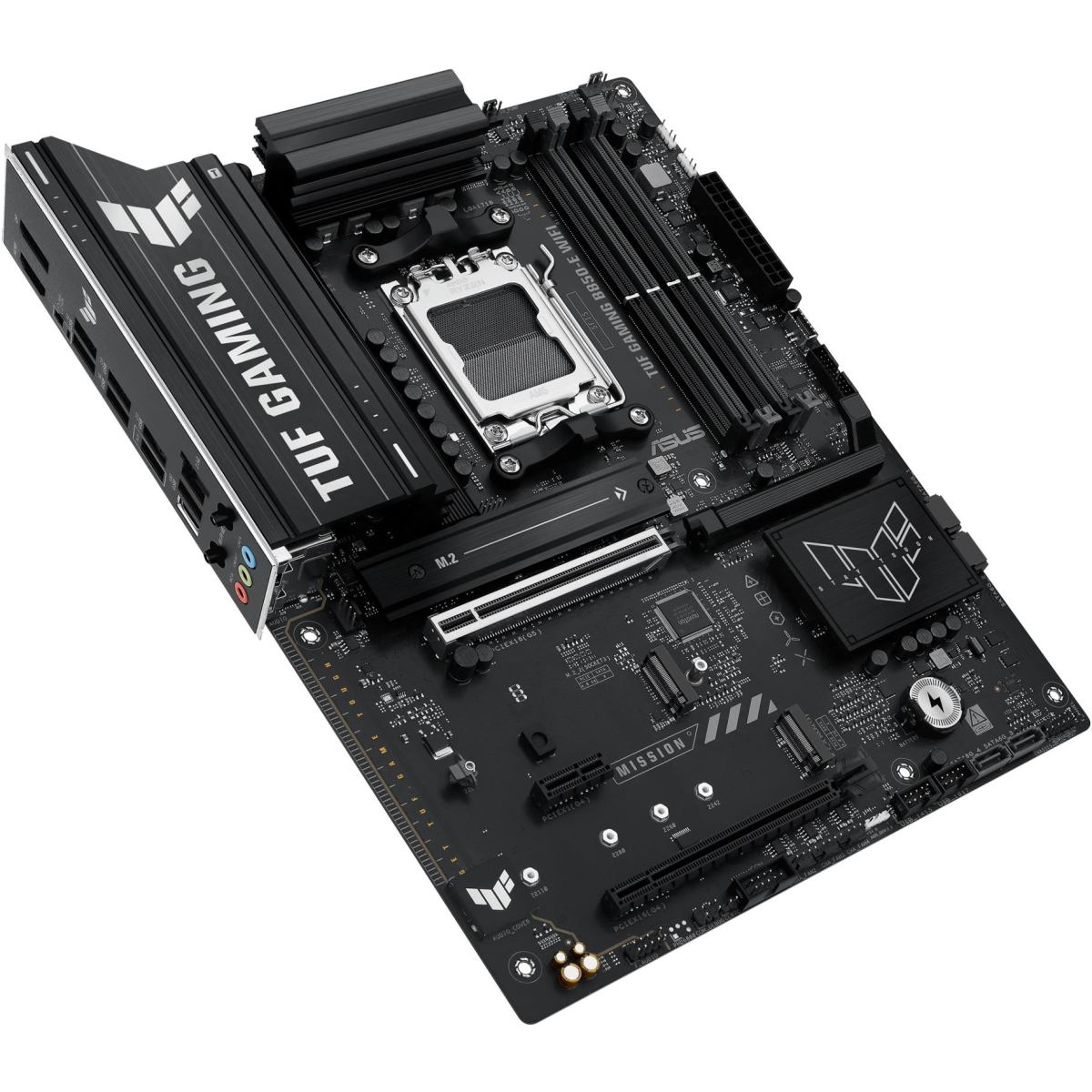

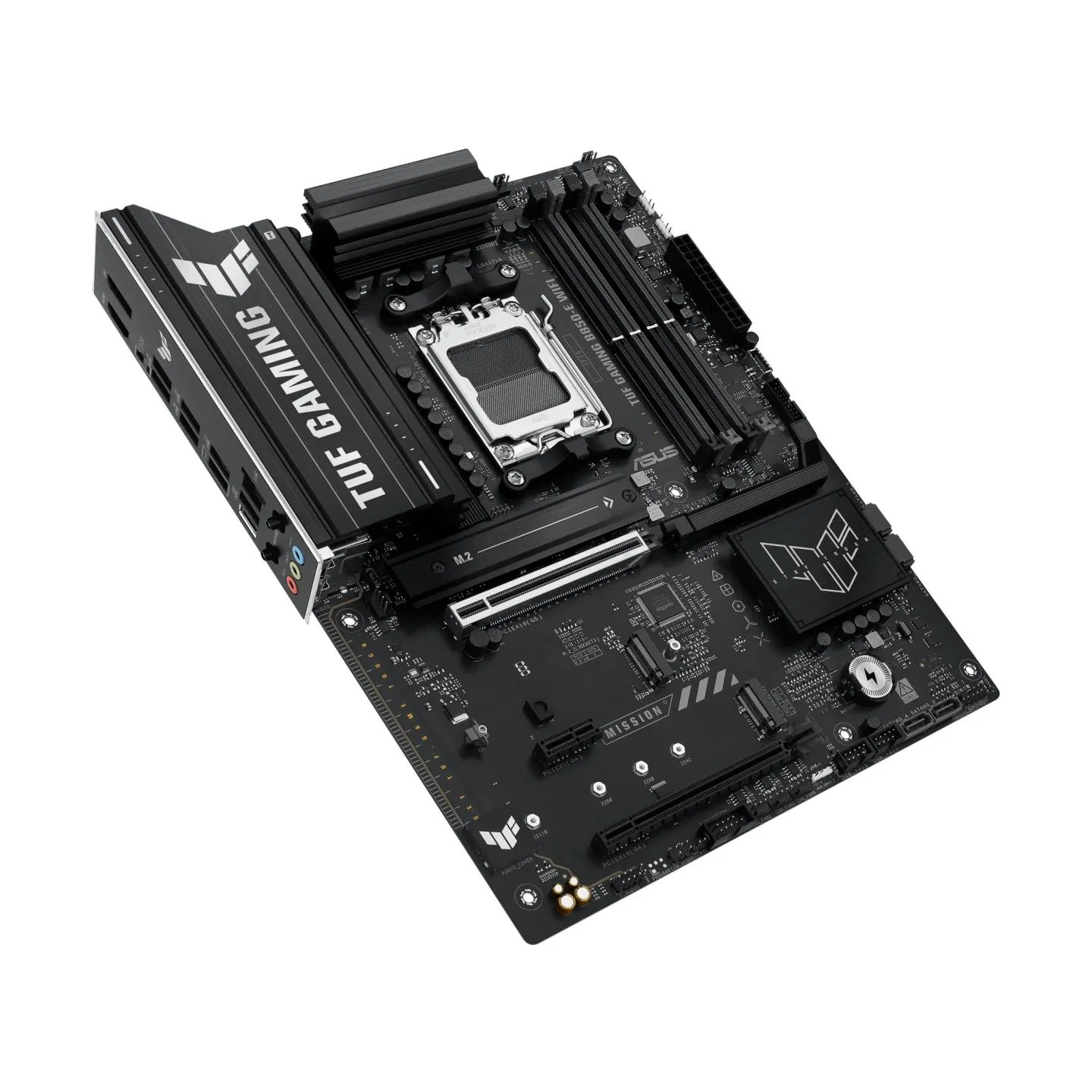

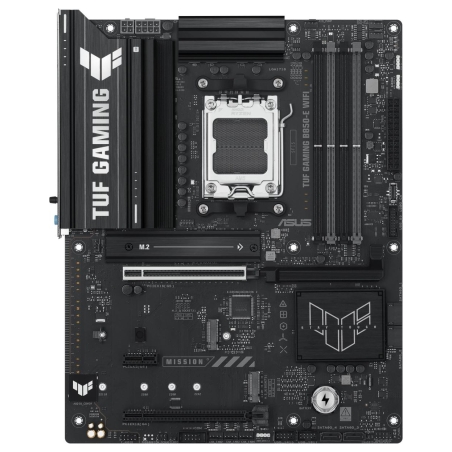

- TUF GAMING B850-E WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 7
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 4.0 x 1
- Expansion slots
- 2 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 3 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- AMD RAIDXpert2 TechnologyRyzen 9000 Series Processors: RAID 0/1/5/10Ryzen 8000 Series Processors: RAID 0/1Ryzen 7000 Series Processors: RAID 0/1/10
- Graphics
- 1 x DisplayPort** 1 x HDMI port*** ** Supports up to 8K at 30 Hz, as per DisplayPort 1.4 specification.*** Supports 4K at 60 Hz, as per HDMI 2.1 specification.
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio Codec* Supports: jack detection, multi-stream streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding High-quality audio capacitors Dedicated audio PCB layers Audio Shield *7.1 Surround Sound audio output requires a chassis with an HD audio module on the front panel.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface

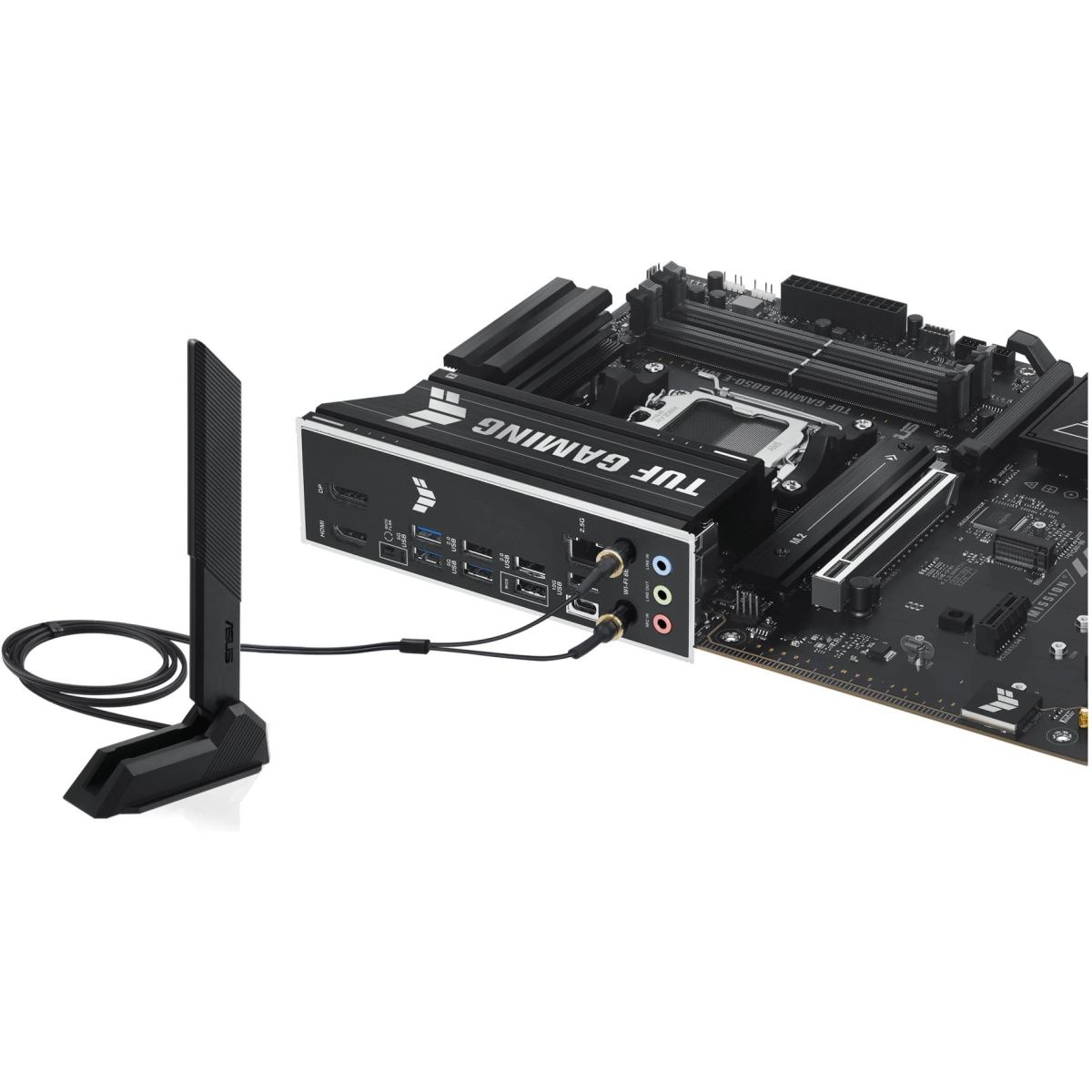

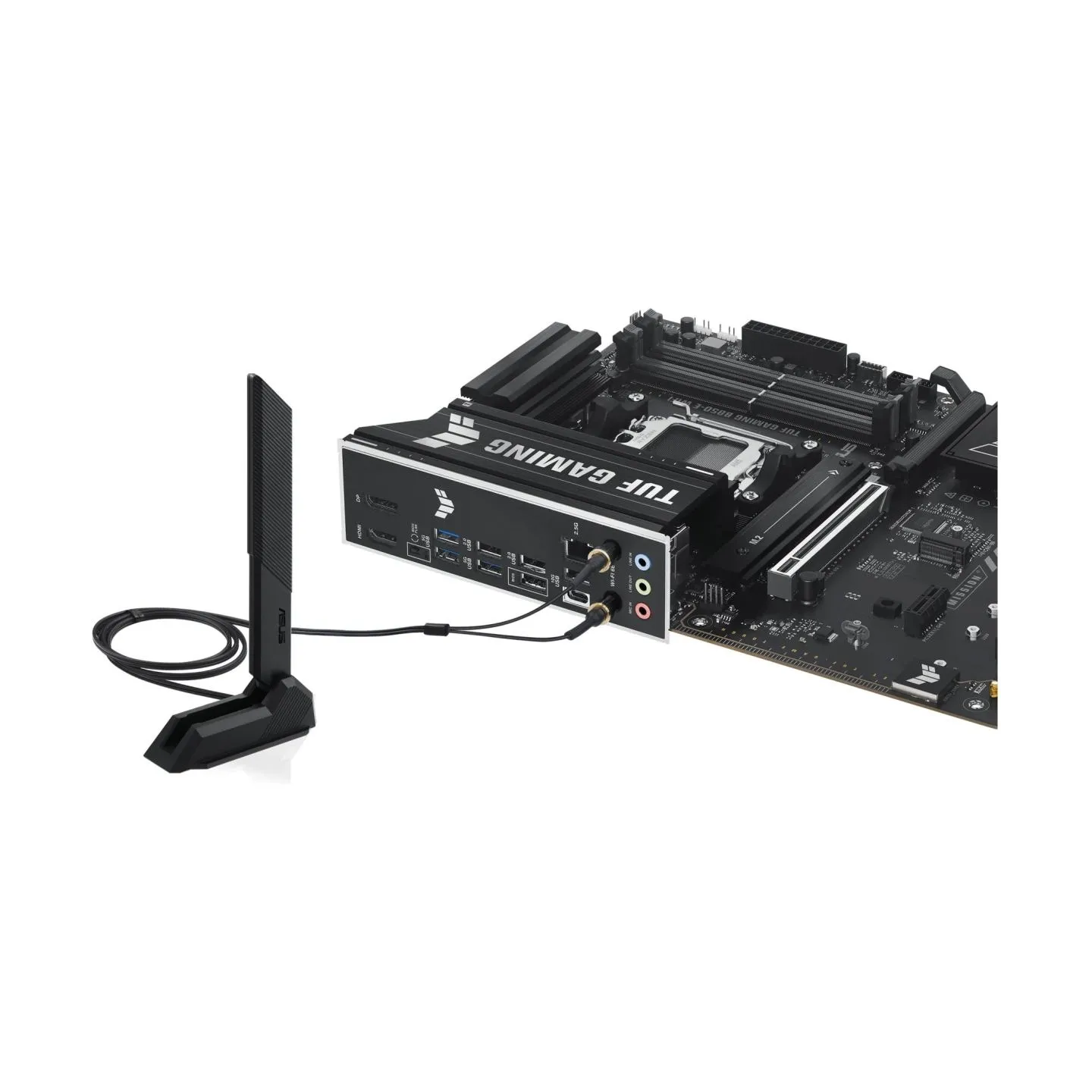

- Ethernet 1 x Realtek 2.5Gb Ethernet TUF LANGuard Wireless and Bluetooth Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6 GHz frequency band Bluetooth v5.3
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

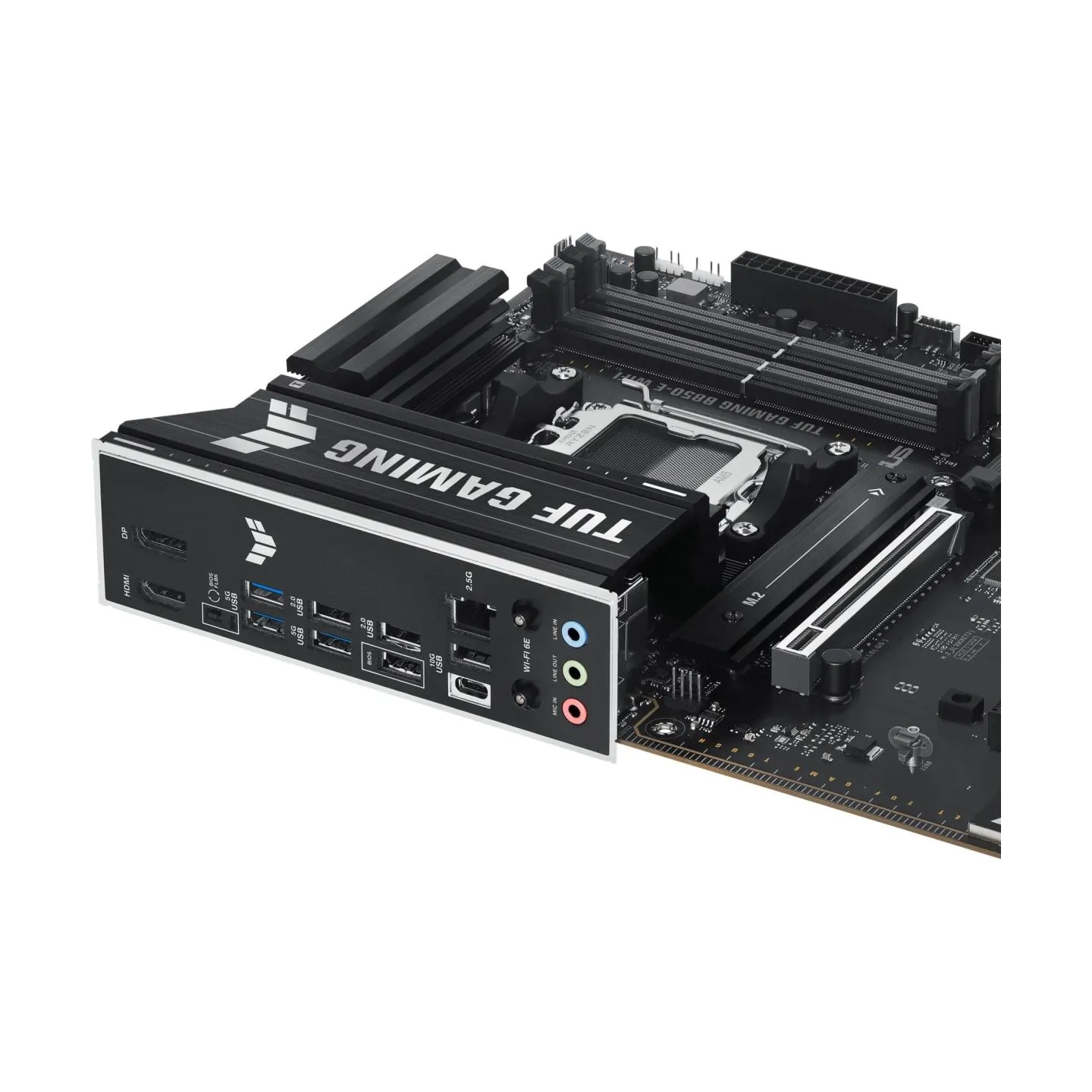

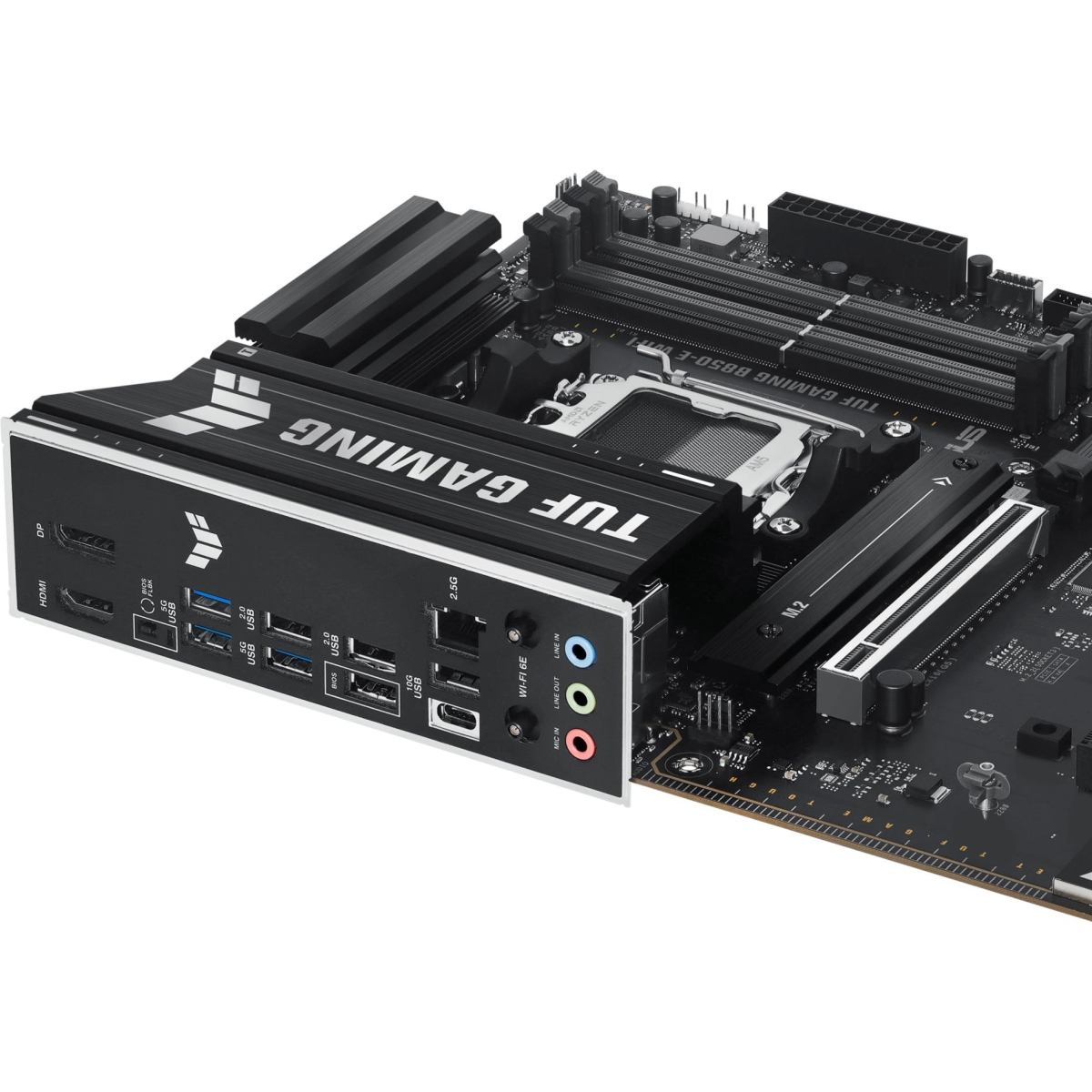

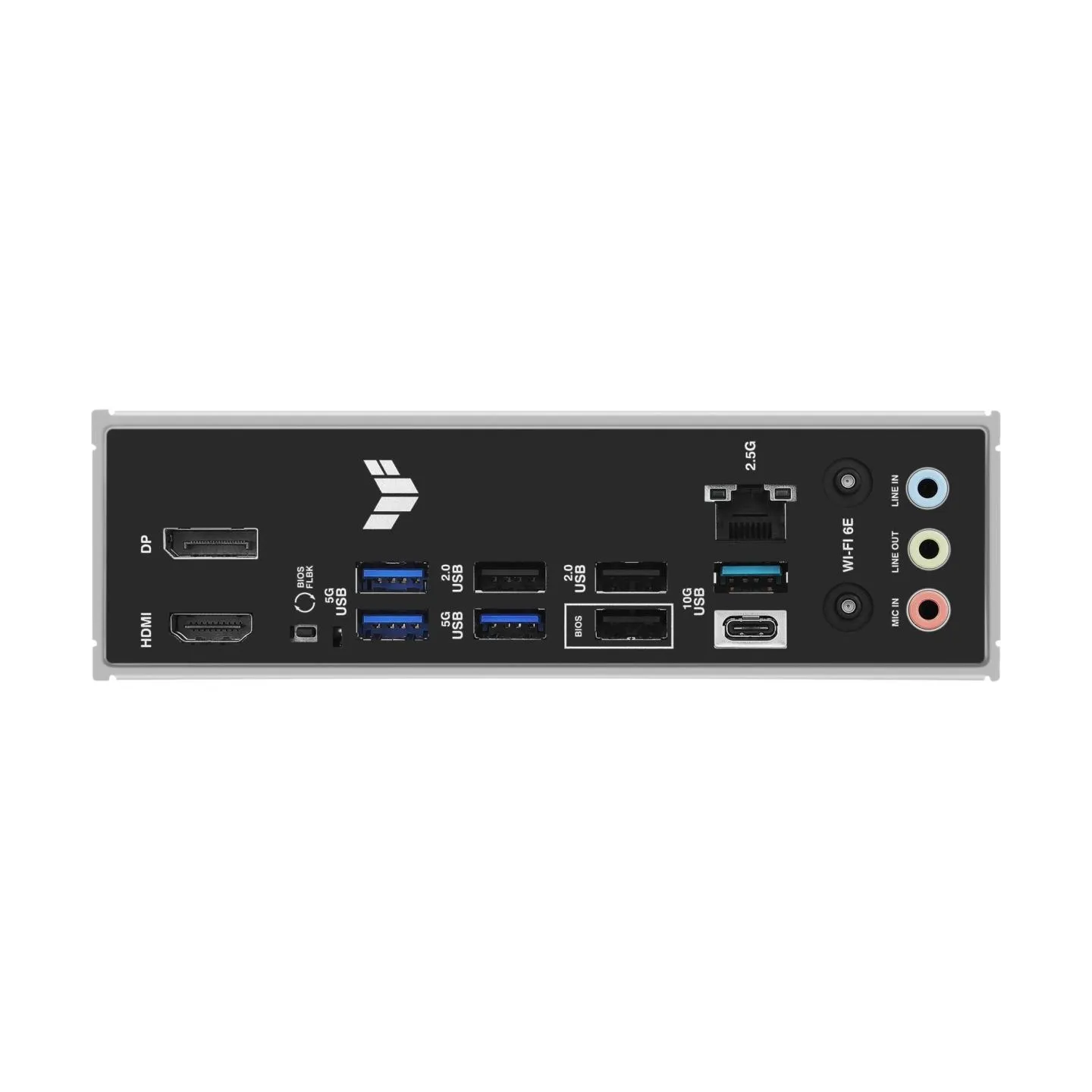

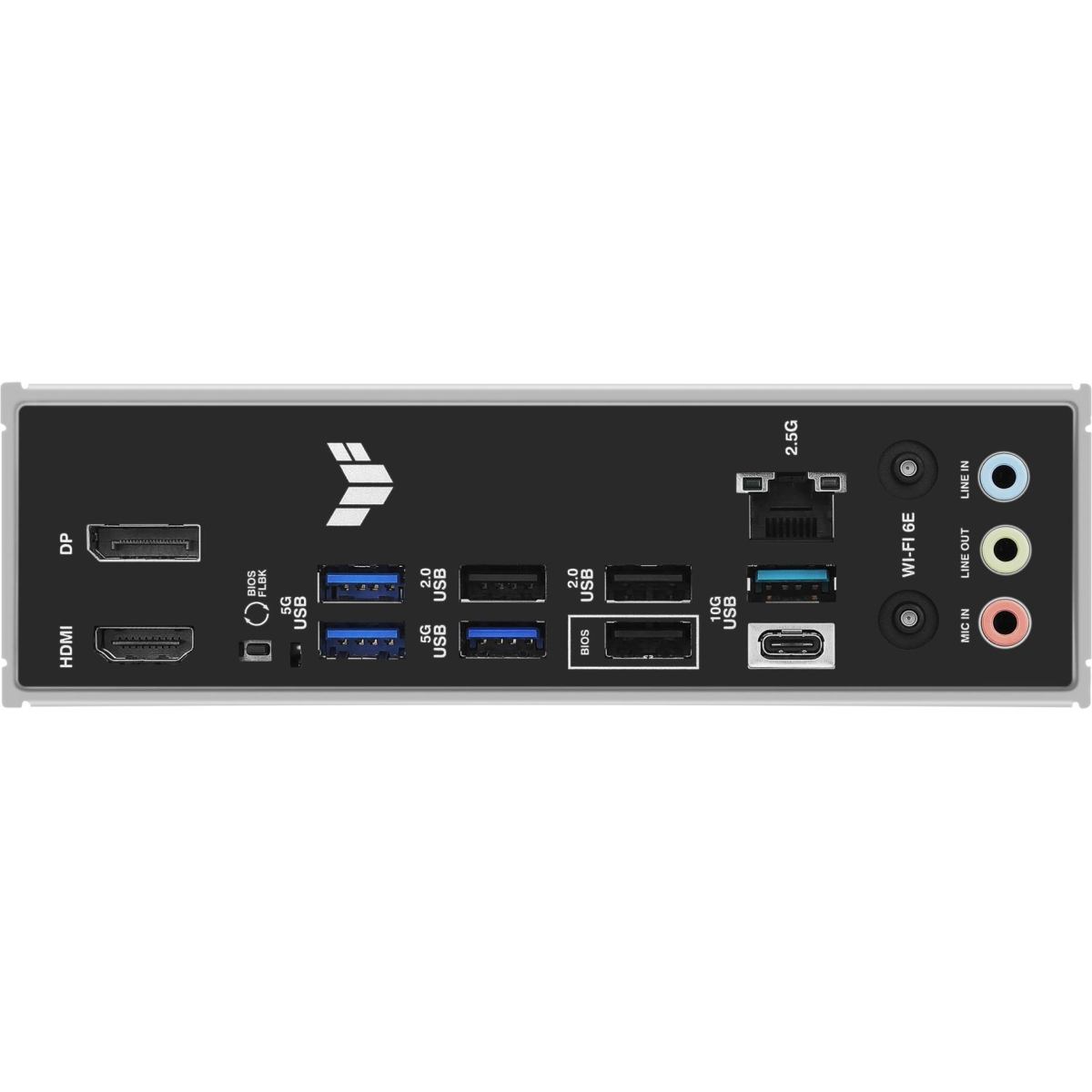

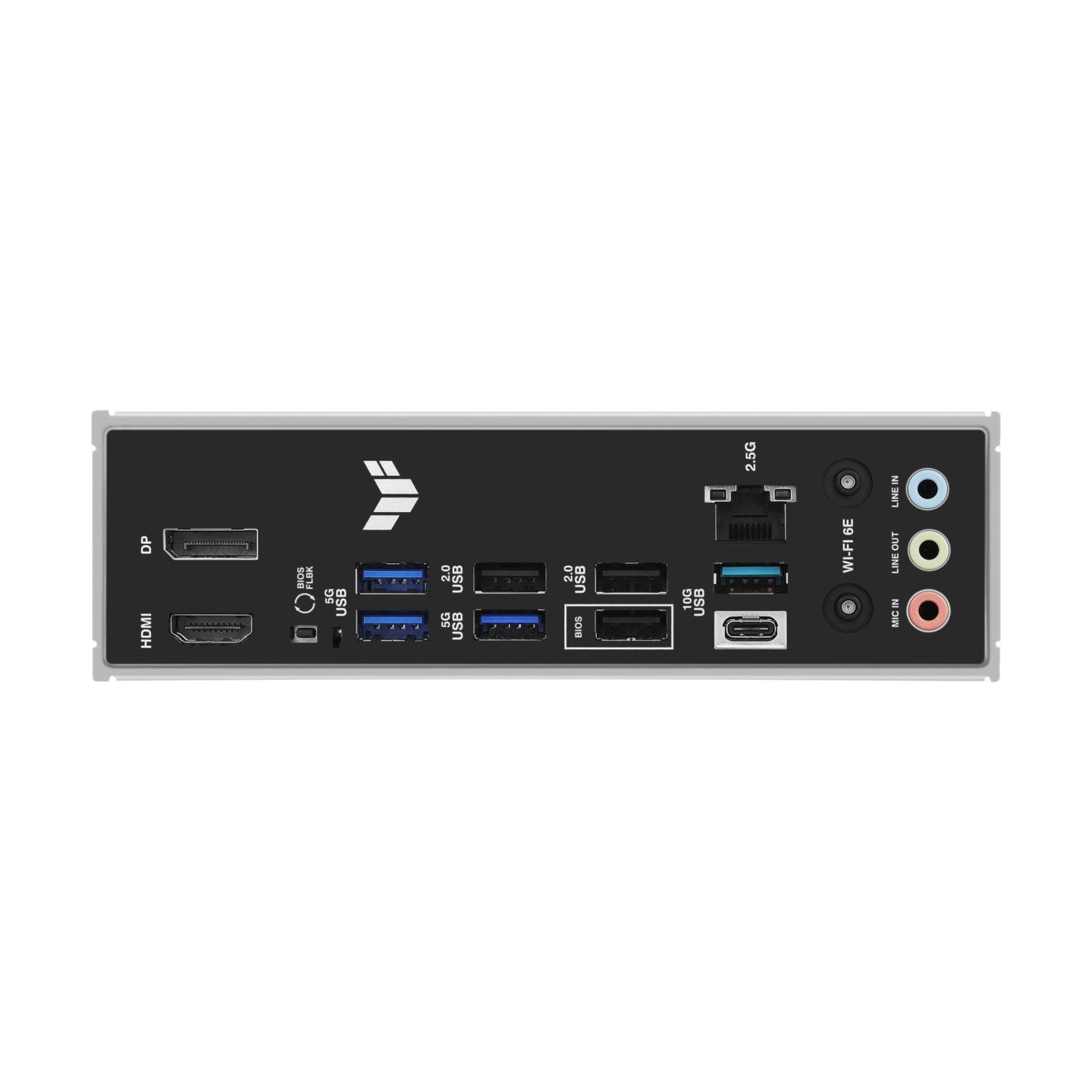

- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 3 x USB 2.0
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x Wi-Fi Module
- External connectors
- 1 x USB BIOS Flashback button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x RJ-45
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 4 x 4pin Chassis fan
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm

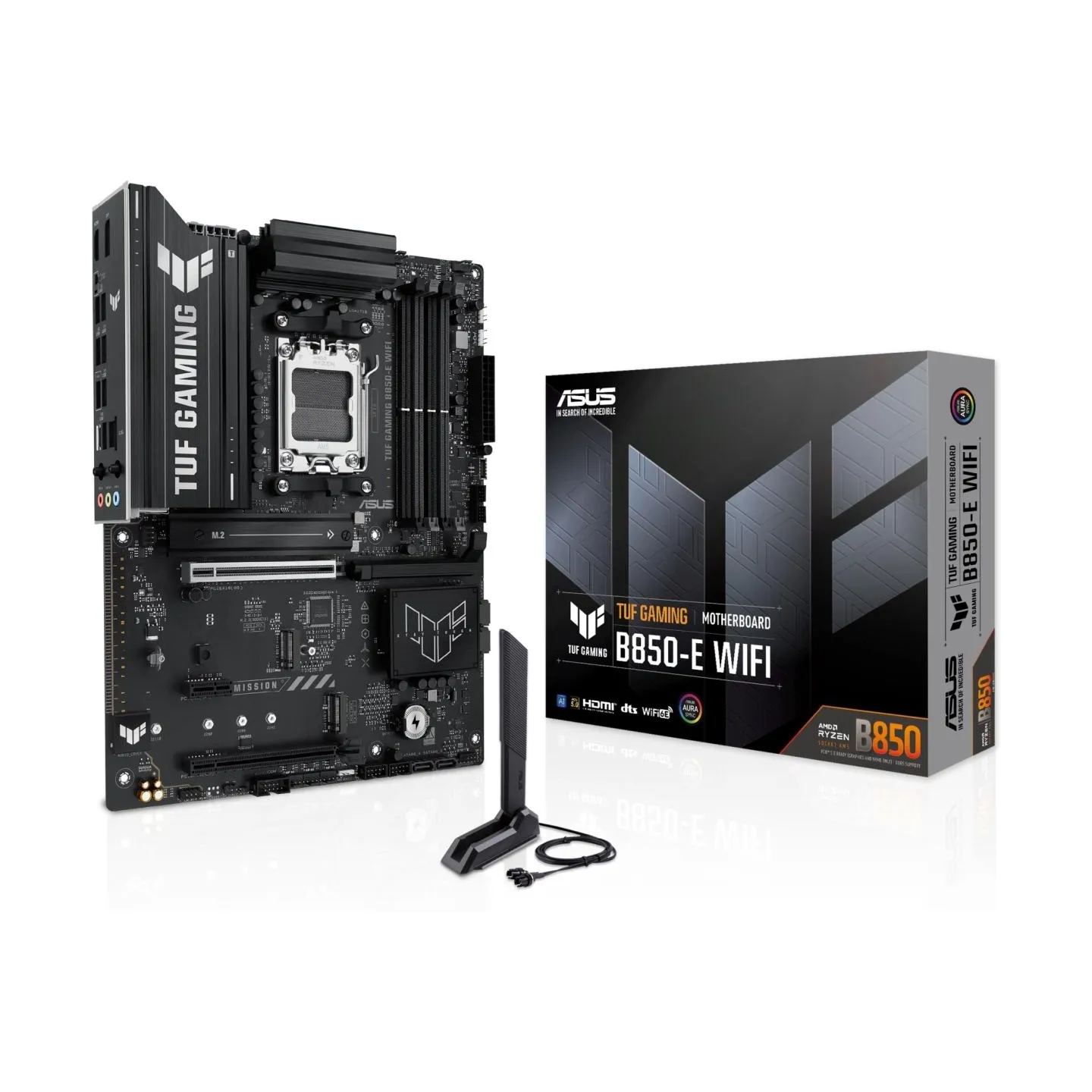

- Accessories included

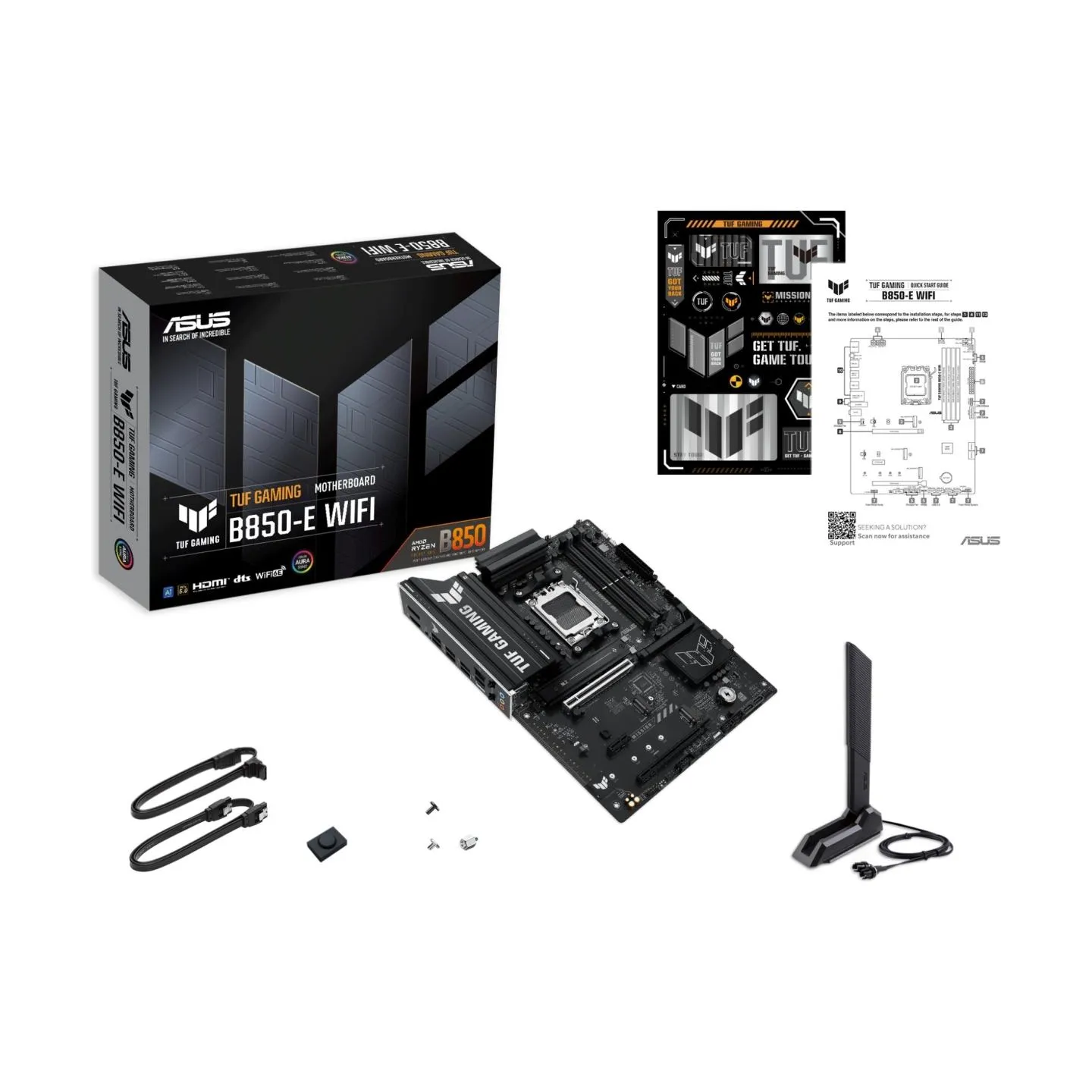

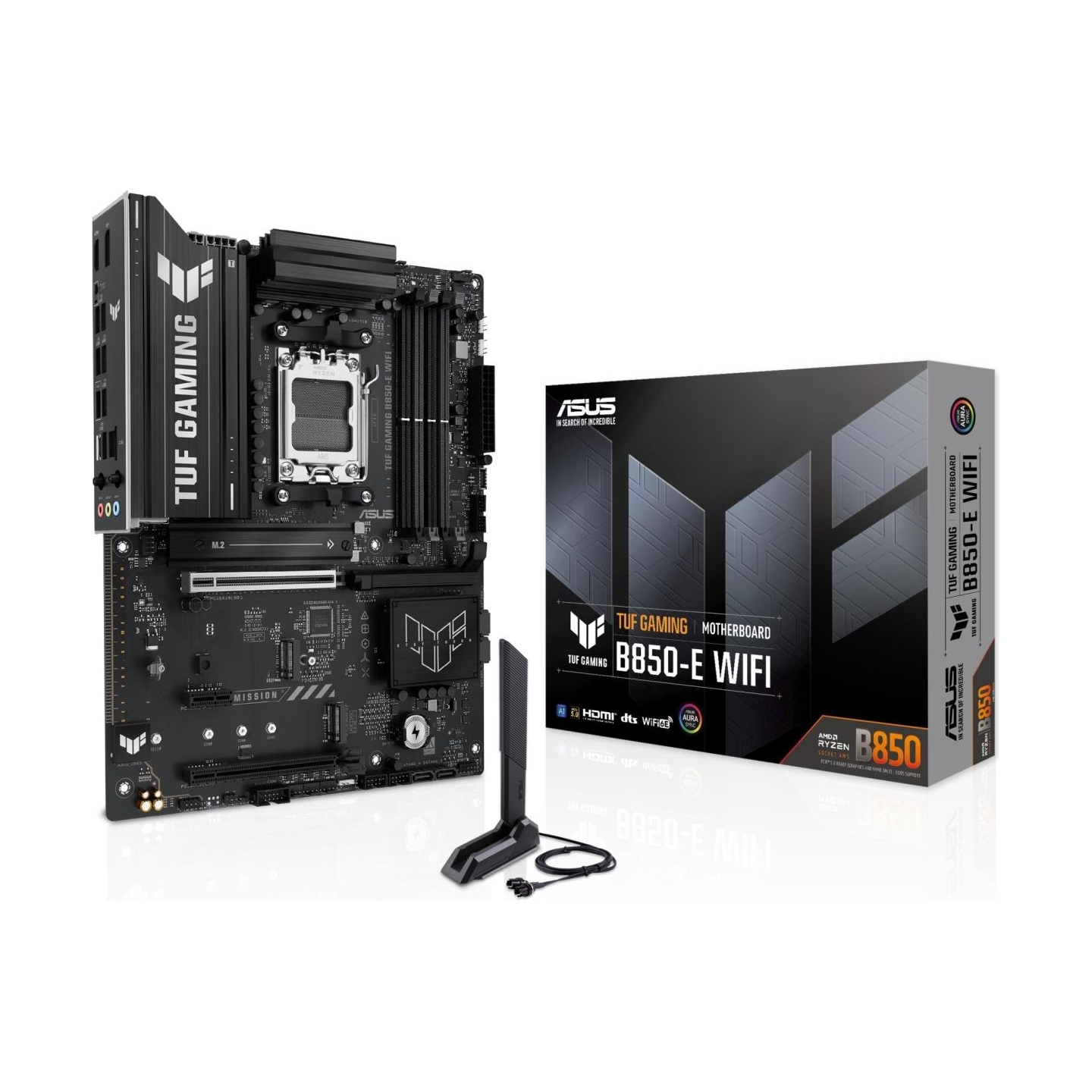

- 2 x SATA 6 Gb/s Cable ASUS WiFi Q Antenna TUF Gaming Sticker M.2 Rubber Pack 2 x M.2 SSD Screw Sets Quick Start Guide
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- ASUS Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 Energy Savings ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Adobe Creative Cloud (free trial) Norton 360 for Gaming (60-day free trial) WinRAR (40-day free trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
- Designation
- CE+WEEE
