CPU: 1 x Hyper M.2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gbps)* mode. 1 x Blazing M.2 slot (M2_2, Key M), supports 2260/2280 PCIe Gen5x4 (128 Gbps) mode*. Chipset: 1 x Hyper M.2 slot (M2_3, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gbps)* type. 1 x Hyper M.2 slot (M2_4, Key M), supports 2242/2260/2280 PCIe Gen4x4 (64 Gb/s)* 1 x Hyper M.2 slot (M2_5, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* 8 x SATA3 6.0Gb/s connectors *Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drives If M2_2 is occupied, PCIE1 will downgrade to x8 mode. Either M2_1 or M2_2 can be used at any given time.
Graphics
Intel Xe graphics architecture (Gen 12) 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors.
Sound card
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual user-friendly user interface Visual network usage statistics Optimised default settings for game, browser and streaming modes User customisable priority control
USB ports at back panel
10
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
12
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Central Speaker / Subwoofer
External connectors
1 x Rear Speaker
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
1 x USB 3.1 Type-C
External connectors
2 x SMA
External connectors
1 x USB 3.1
External connectors
8 x USB 3.0
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x Thunderbolt header
Onboard connectors
1 x TPM header
Onboard connectors
1 x USB C
Onboard connectors
1 x 4pin CPU fan
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX
Dimensions
30.5 x 24.4 cm

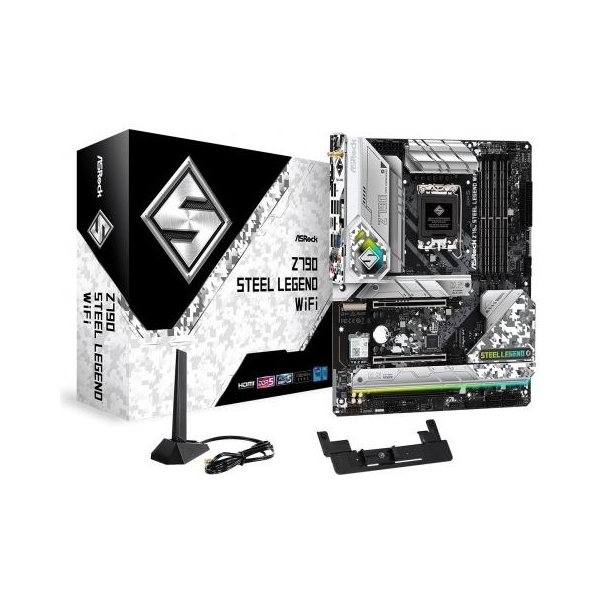

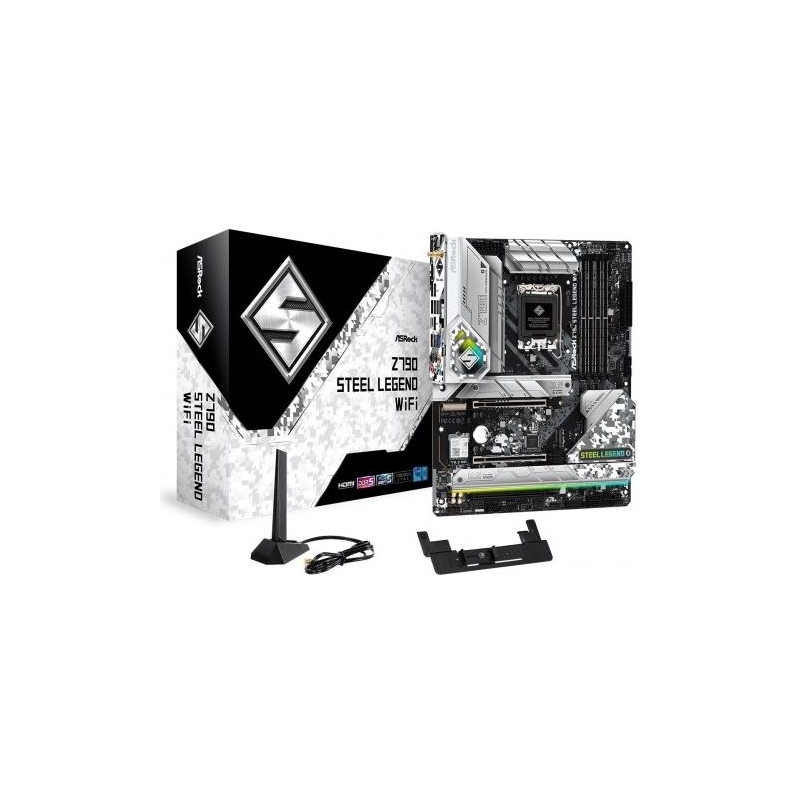

Accessories included

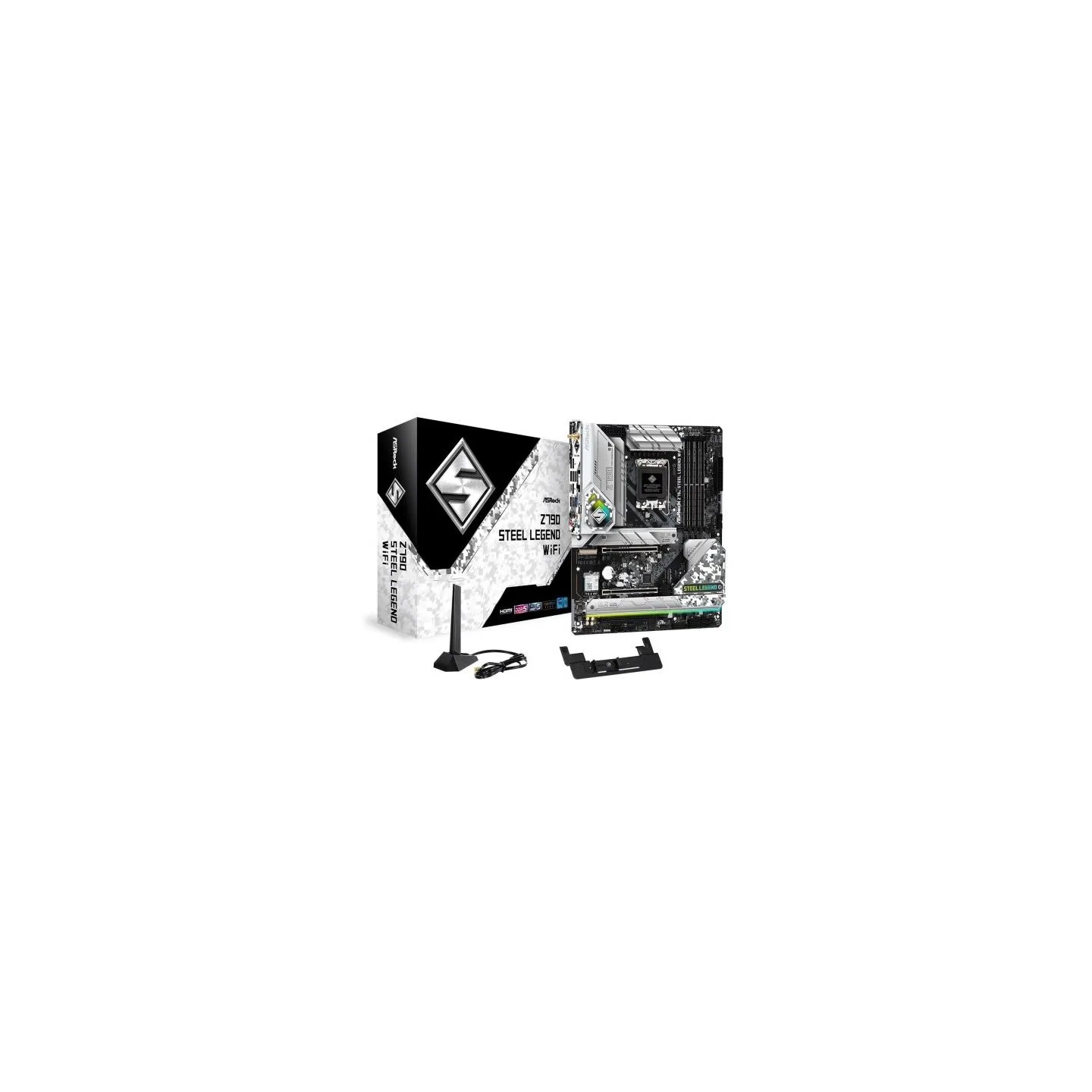

1 x User manual 2 x SATA data cables 1 x ASRock WiFi 2.4/5/6 GHz antenna 4 x Screws for M.2 slots 1 x Graphics card holder
Supported operating systems
Windows 11
Supported operating systems
Windows 10
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
