CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors
Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
Sound card
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz frequency band Supports 160MHz channel bandwidth with 6GHz frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
USB ports at back panel
11
USB ports on motherboard
8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
2 x USB 3.1
External connectors
1 x HDMI
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 2.0
External connectors
3 x USB 3.0
External connectors
2 x SMA
External connectors
2 x USB4 Type-C
External connectors
1 x Flash BIOS Button
Onboard connectors
2 x 4pin wentylator CPU
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
4 x USB 3.0
Onboard connectors
1 x USB C
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Thermistor Cable Header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Power LED and Speaker Header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x M.2
BIOS
256Mb AMI UEFI Legal BIOS ze wsparciem GUI
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Accessories included

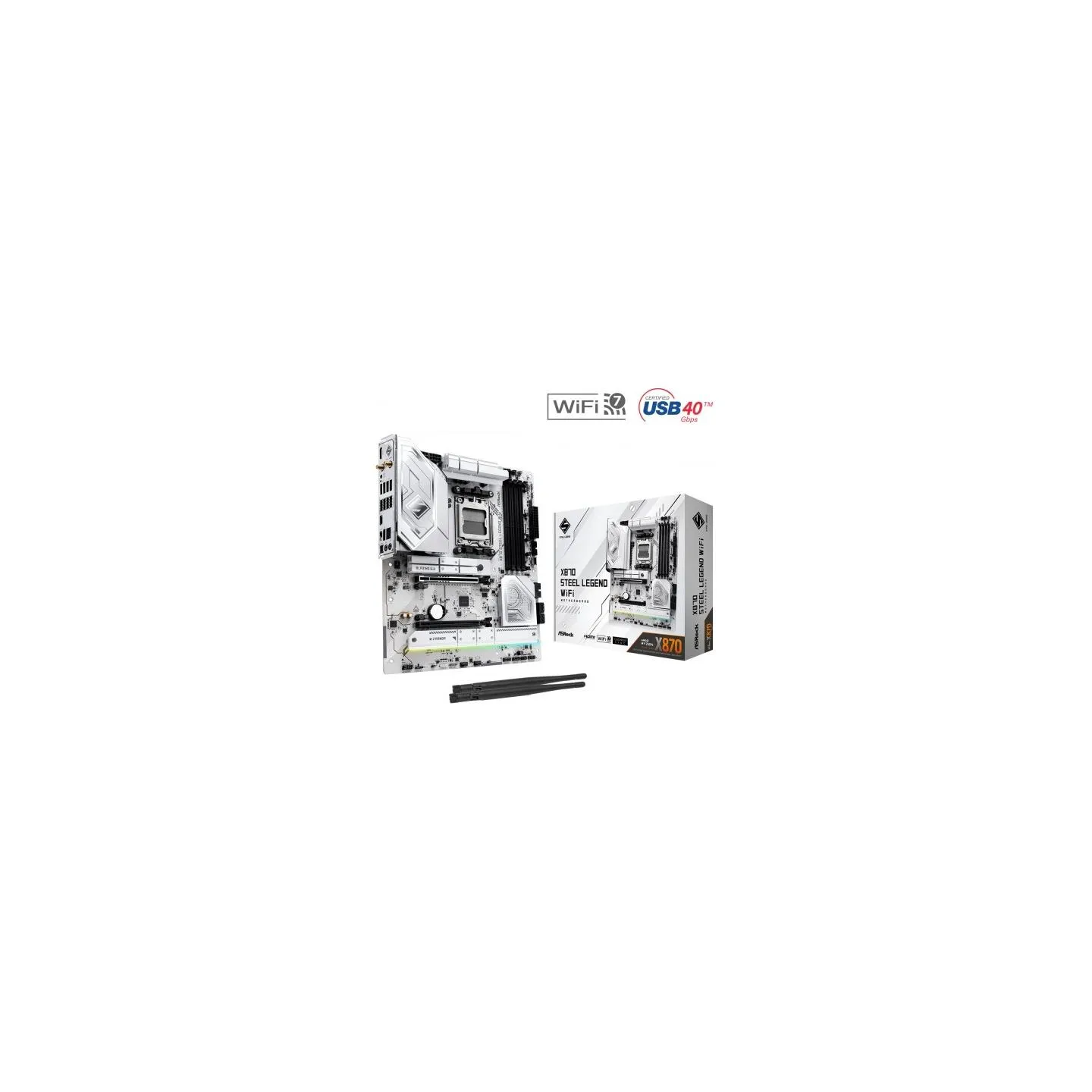

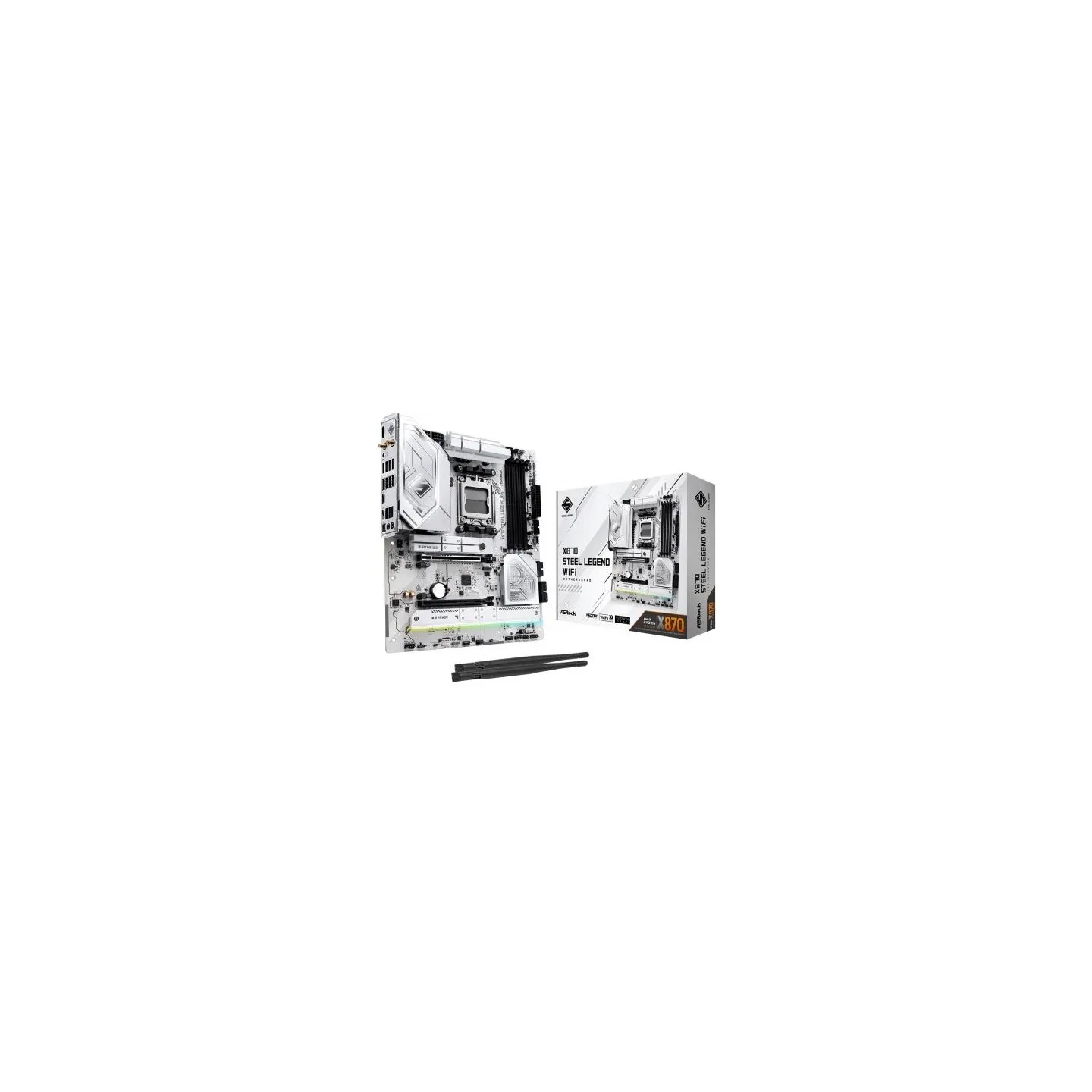

2 x SATA Data Cable 2 x ASRock WiFi 2.4/5/6 GHz Antenna Thermistor Cable
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
