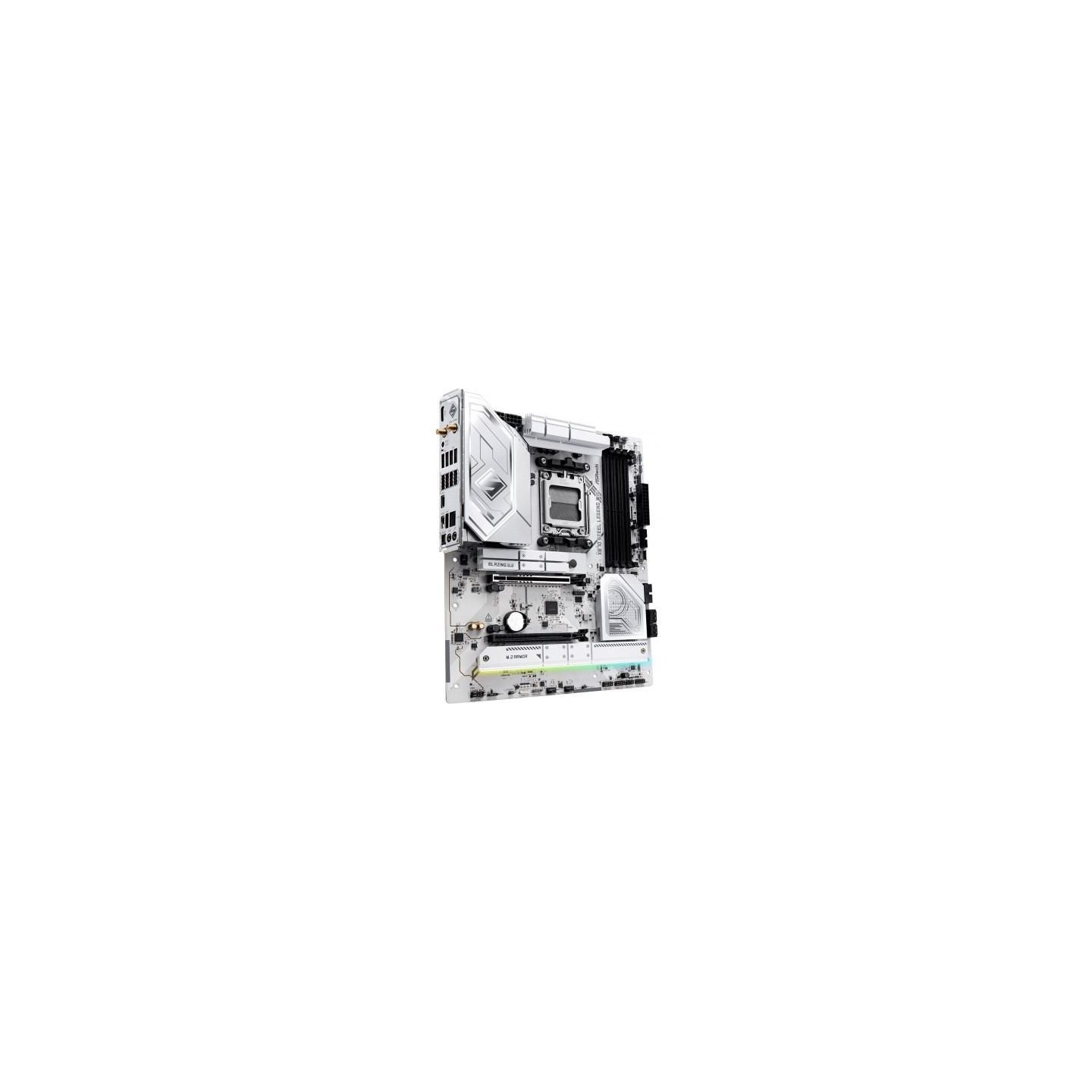

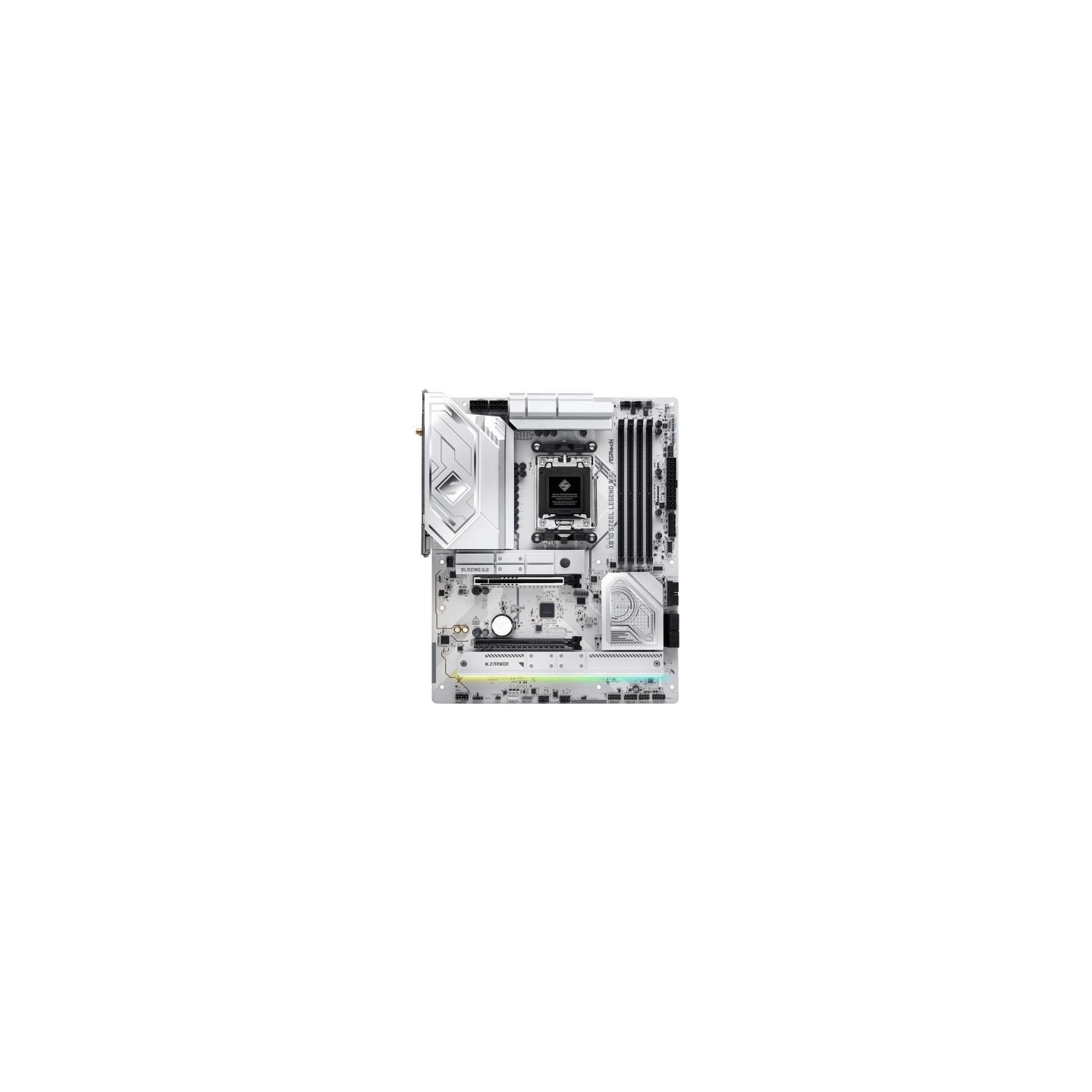

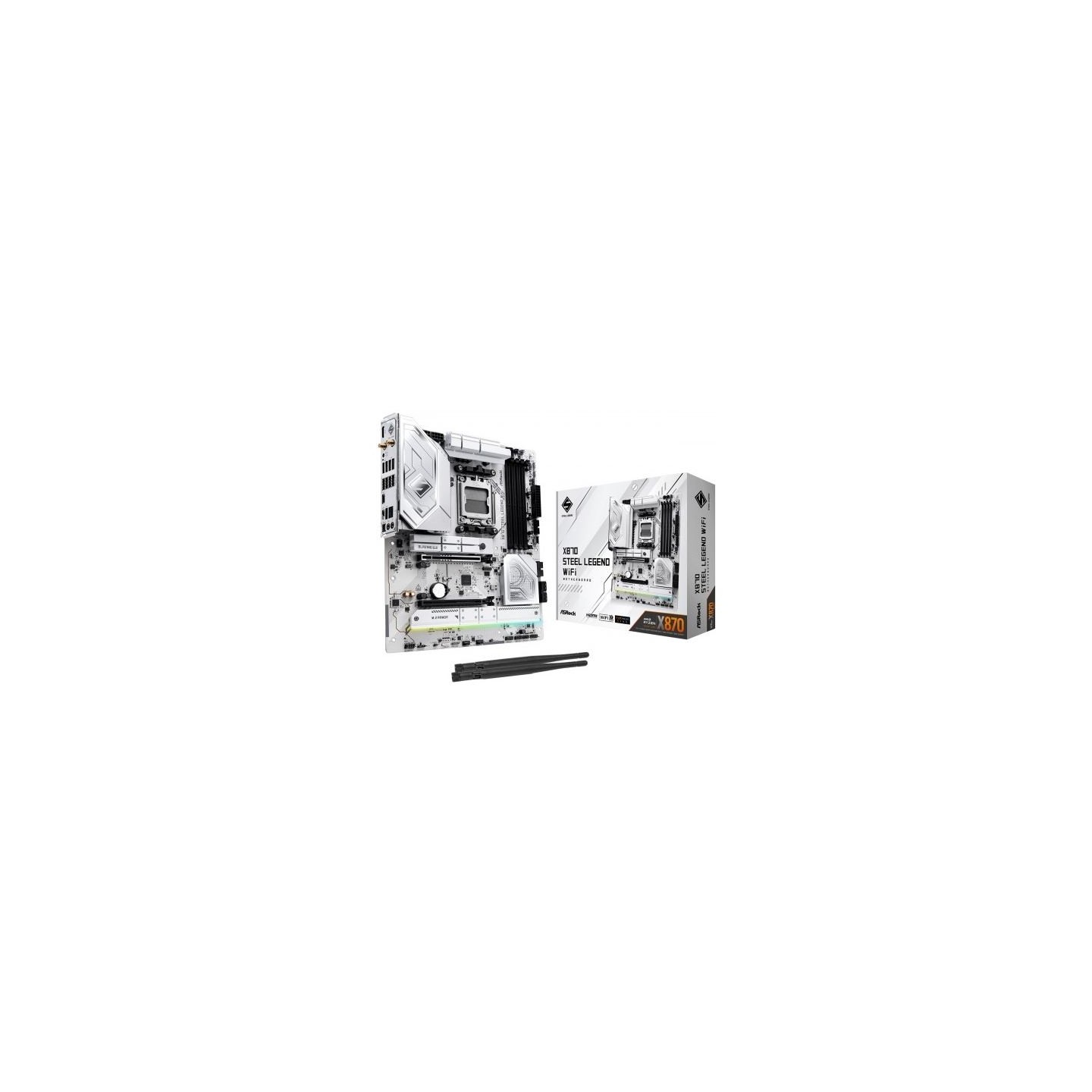

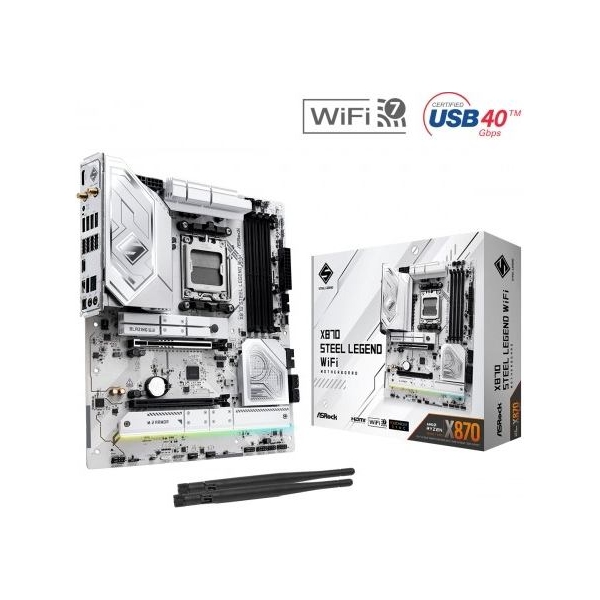

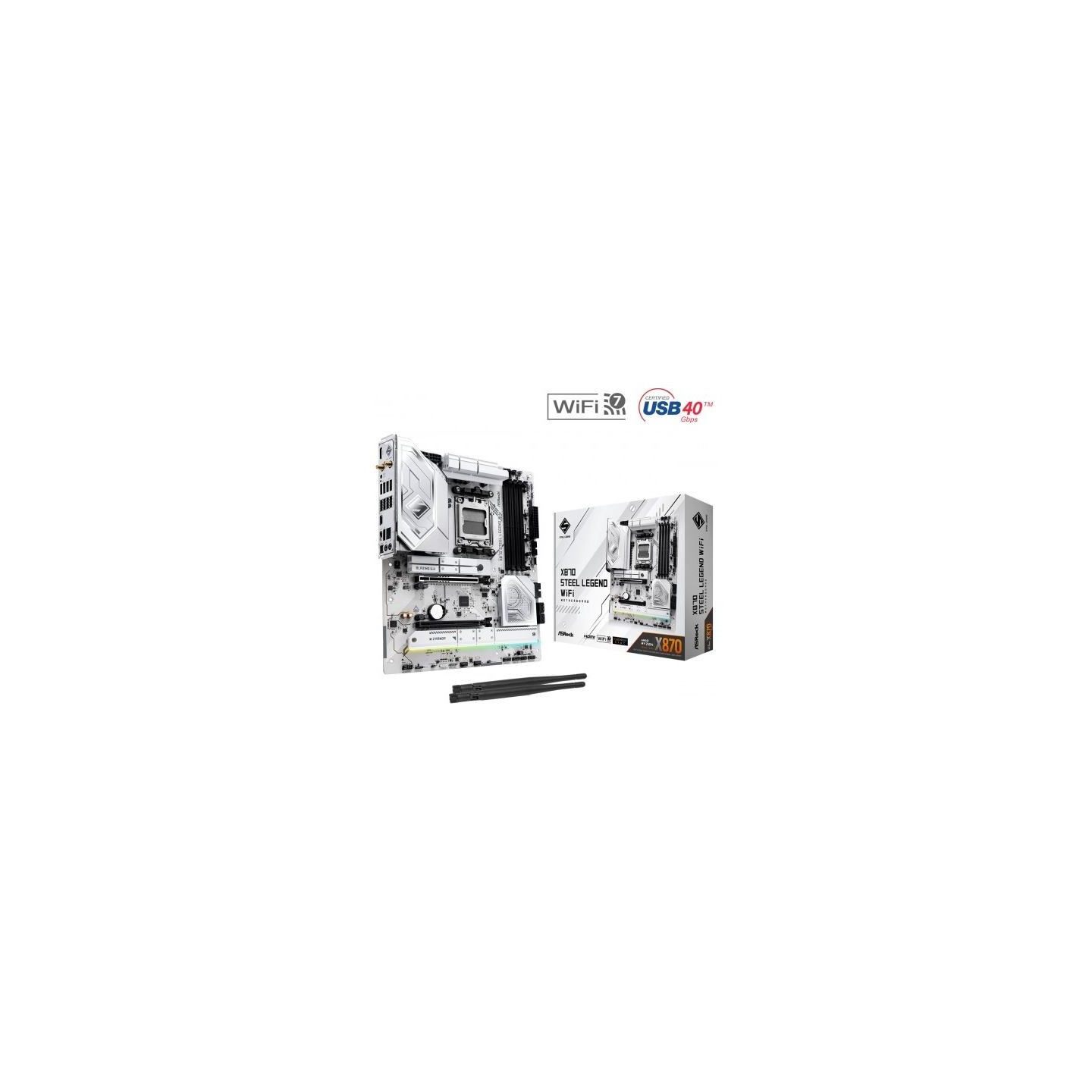

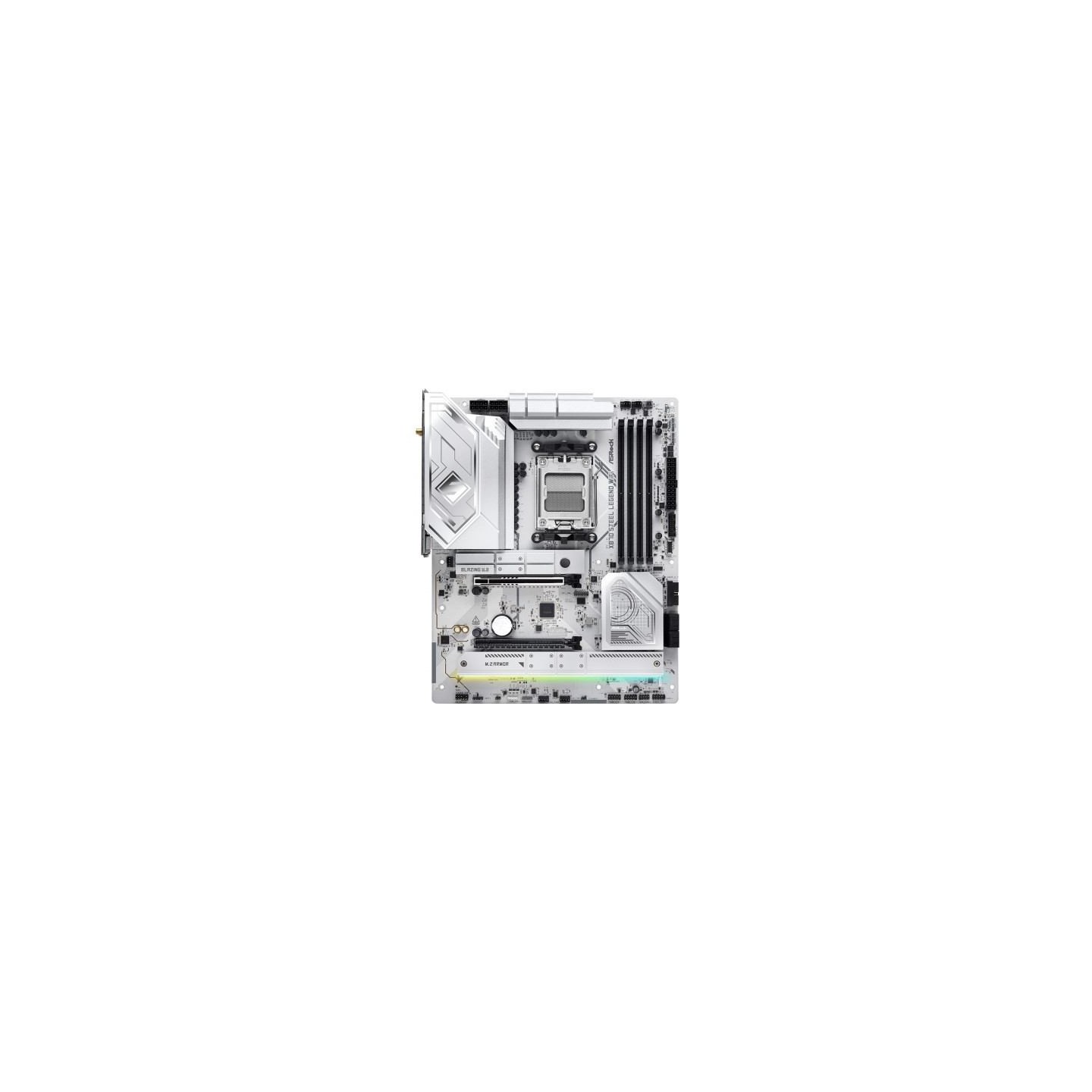

Asrock Motherboard X870 STEEL LEGEND WIFI AM5 4DDR5 M.2 ATX
Price:
€303.48
Tax included
Product Comments module (productcomments) must be installed!
Share on
- SKU
- KBASRAA8X870A04
- Barcode
- 4710483949340
- Model
- X870 STEEL LEGEND WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode Chipset: 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors
- Graphics
- Integrated AMD RDNA graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
- Sound card
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec) Individual PCB Layers for R/L Audio Channel Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets) Nahimic Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control Wireless LAN: 802.11be 2x2 Wi-Fi 7 Module Supports IEEE 802.11a/b/g/n/ac/ax/axe/be Supports 2.4GHz/5GHz/6GHz frequency band Supports 160MHz channel bandwidth with 6GHz frequency band 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.4 Supports MU-MIMO
- USB ports at back panel
- 11
- USB ports on motherboard
- 8
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 2 x USB 3.1
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 3 x USB 3.0
- External connectors
- 2 x SMA
- External connectors
- 2 x USB4 Type-C
- External connectors
- 1 x Flash BIOS Button
- Onboard connectors
- 2 x 4pin wentylator CPU
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 4 x USB 3.0
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Thermistor Cable Header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Power LED and Speaker Header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 3 x M.2
- BIOS
- 256Mb AMI UEFI Legal BIOS ze wsparciem GUI
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- 2 x SATA Data Cable 2 x ASRock WiFi 2.4/5/6 GHz Antenna Thermistor Cable
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash
- Designation
- CE+WEEE
