Storage 4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devicesM.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devicesM.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices4x SATA 6GM.2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)M.2_2 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)* The M2_2 slot will be unavailable when using Ryzen 8500/ 8300 Series processors.** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.RAID Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices
Graphics
1x HDMI Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
Network interface
1 x 10/100/1000/2500/5000 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
LAN 1x Realtek 8126 5G LAN WIRELESS AND BLUETOOTH NETWORK WiFi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM

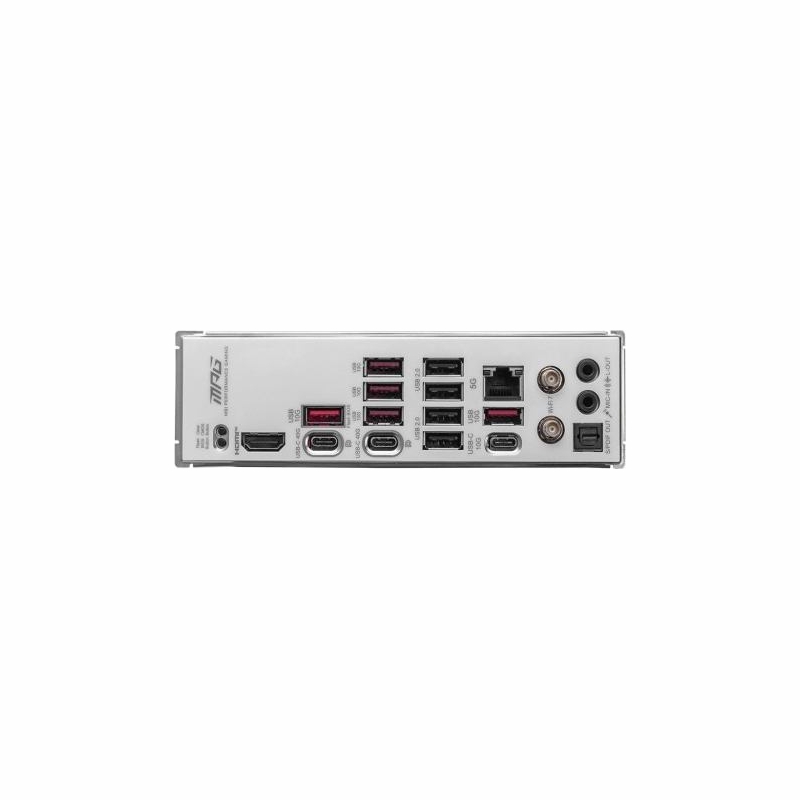

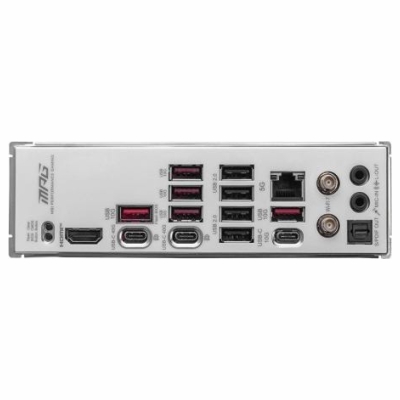

USB ports at back panel
12
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
