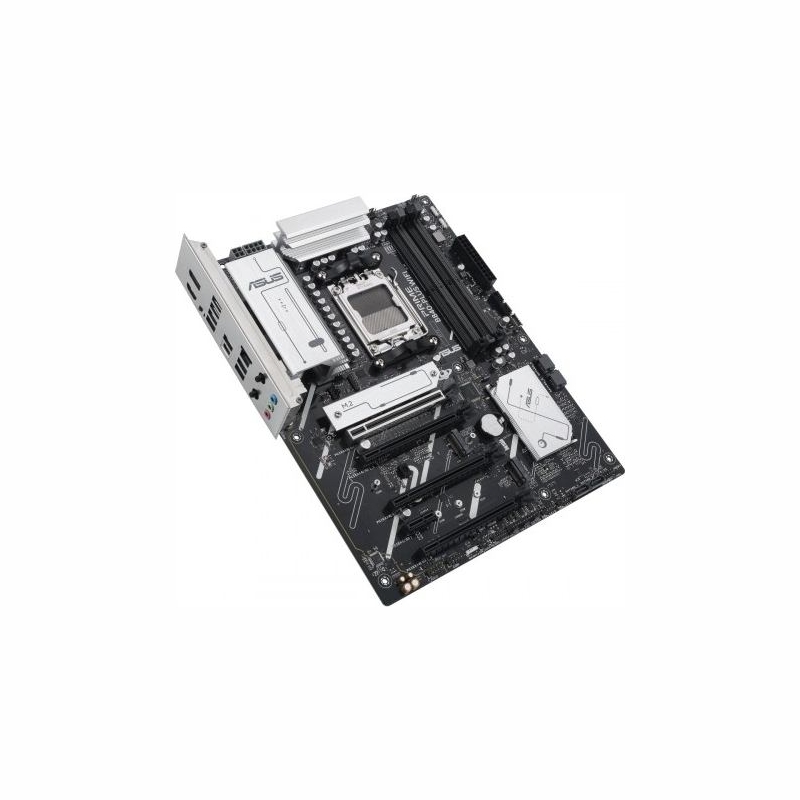

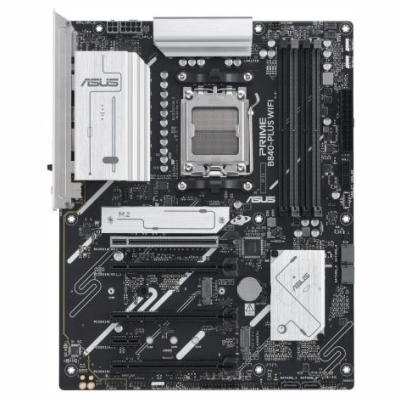

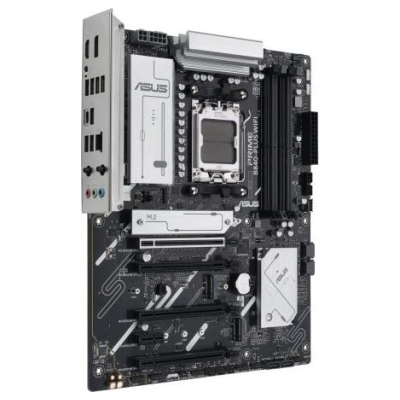

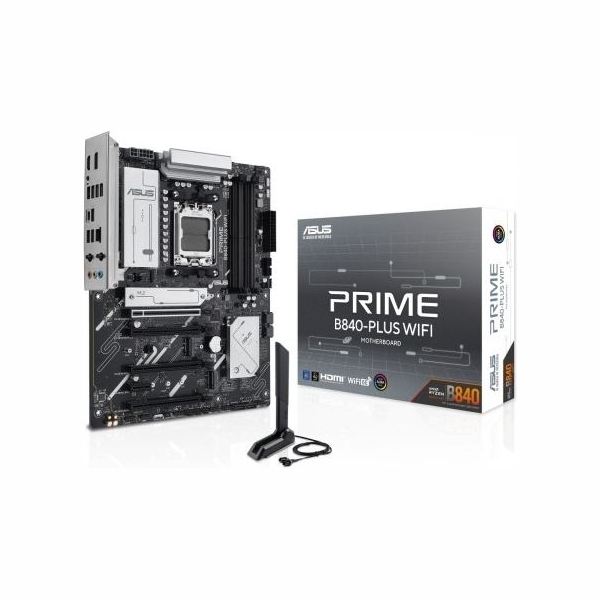

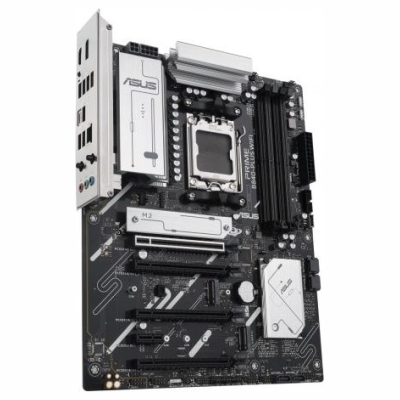

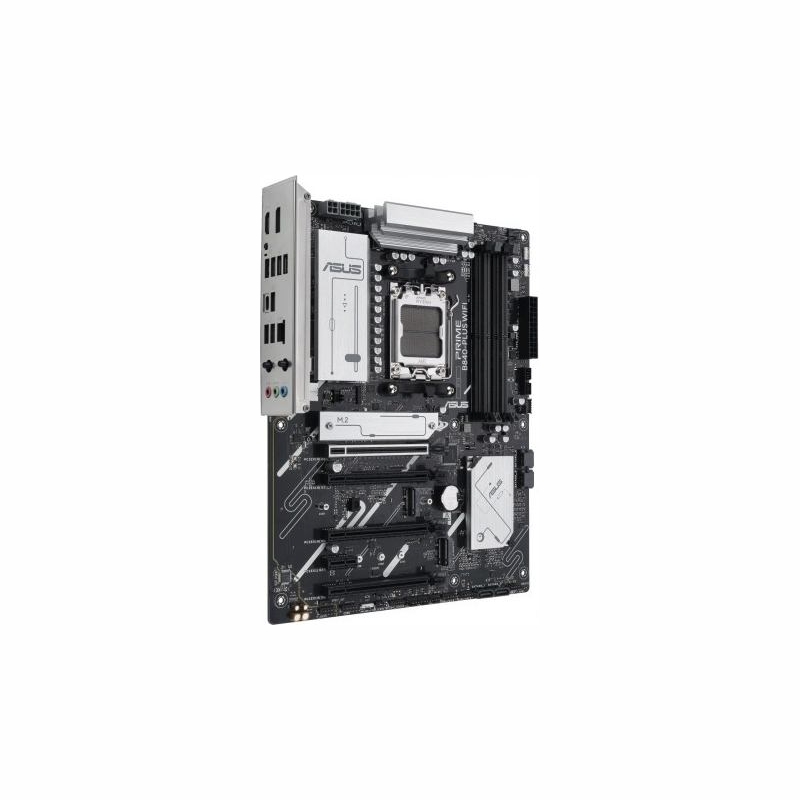

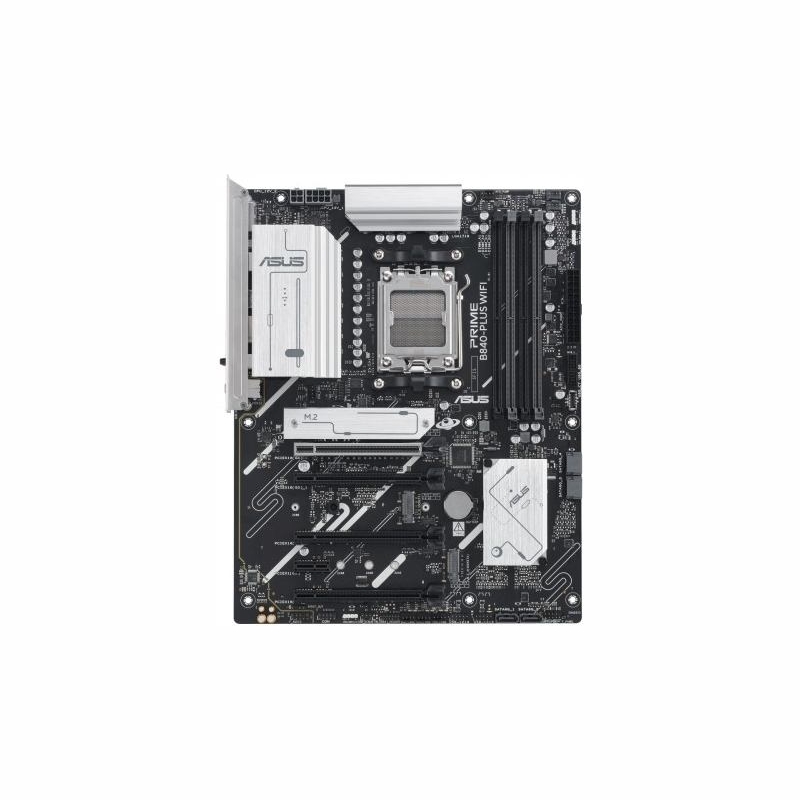

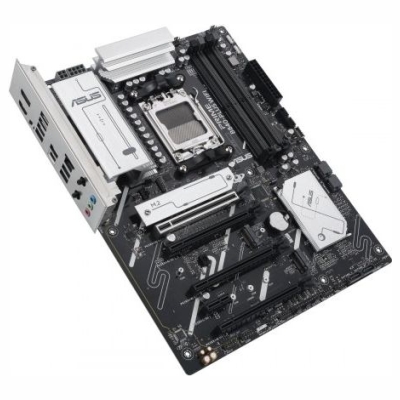

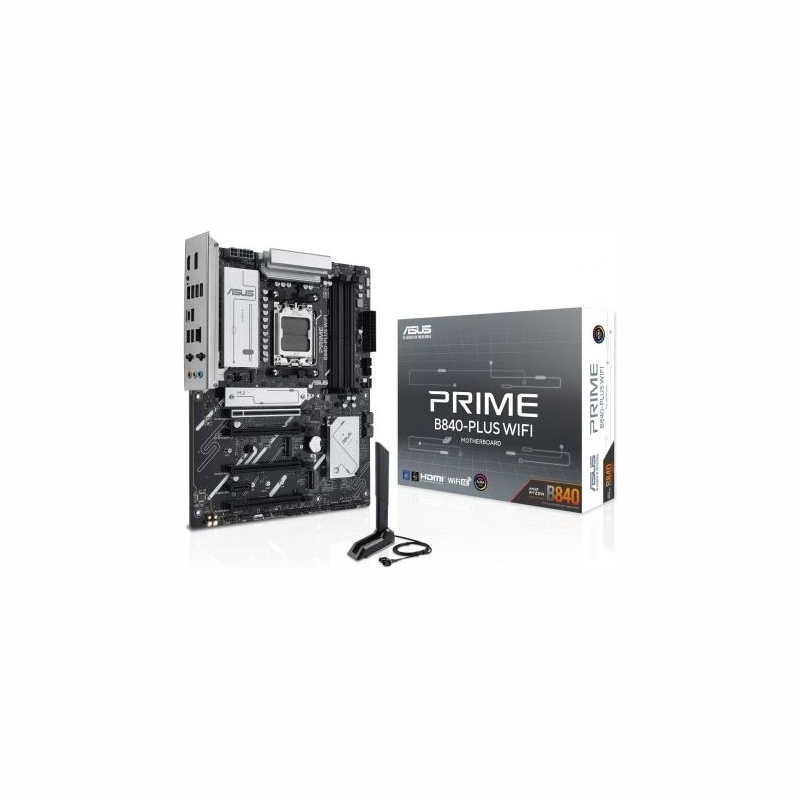

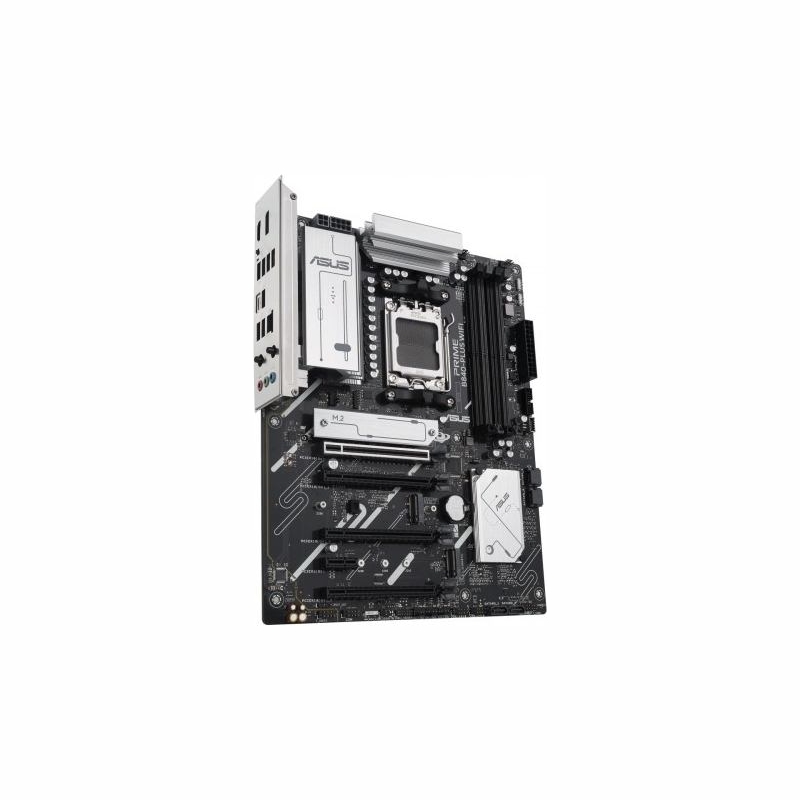

Asus Motherboard PRIME B840-PLUS WIFI
- Write a review
€262.08
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUAA8B840A00
- Barcode
- 4711387797273
- Model
- PRIME B840-PLUS WIFI
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Processor family
- AMD Ryzen 5
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B840 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 7600 MHz
- Max memory size
- 192
- Expansion slots
- 2 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 3 x PCIe 3.0 x 16
- Expansion slots
- 3 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Expansion Slots AMD Ryzen 9000 and 7000 Series Desktop Processors* 1 PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B840 Chipset 1 PCIe 3.0 x16 slot (supports x4 mode)*** 2 PCIe 3.0 x16 slots (supports x1 mode)*** 1 PCIe 3.0 x1 slot*** Storage Supports 3 M.2 slots and 4 SATA 6 Gb/s ports AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 (M Key) socket, type 2280 (supports PCIe 4.0 mode) x4) M.2_2 slot (M key), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 series desktop processors M.2_1 slot (M key), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (M key), type 2280 (supports PCIe 4.0 x4/x2 mode)* AMD B840 chipset M.2_3 slot (M key), type 2242/2260/2280 (supports PCIe 3.0 x4 mode 4 SATA 6 Gb/s ports AMD RAIDXpert2 technology Ryzen 9000 series processors: RAID 0/1/5/10 Ryzen 8000 series processors: RAID 0/1 Ryzen 7000 series processors: RAID 0/1/10
- Graphics
- 1 x DisplayPort 1 x port HDMI
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio CODEC*Supports: jack detection, streaming, and front panel jack remapping Supports playback up to 24-bit/192 kHz Audio Features Audio Shielding Premium Audio Capacitors Dedicated PCB Audio Layers *A chassis with an HD audio module on the front panel is required to support 7.1 Surround Sound audio output.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ax
- Network interface
- Ethernet 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth "Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.3** * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x Wi-Fi Module
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x USB BIOS Flashback button
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber sleeves 3 x M.2 SSD screw packs 1 x Quick Start Guide
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 2+ Power Saving ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
- Designation
- CE+WEEE
PRIME B840-PLUS WIFI
5 Items
Specific References
- EAN13
- 4711387797273
- MPN
- PRIME B840-PLUS WIFI
