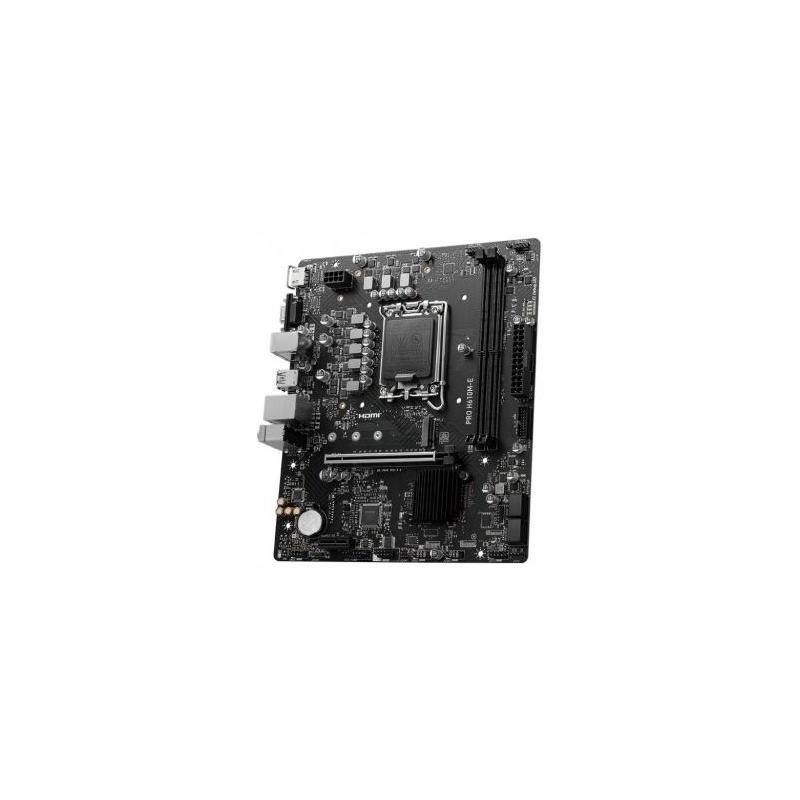

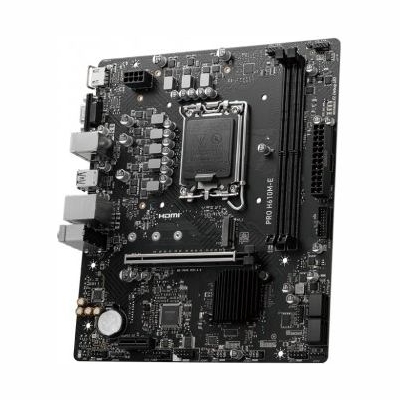

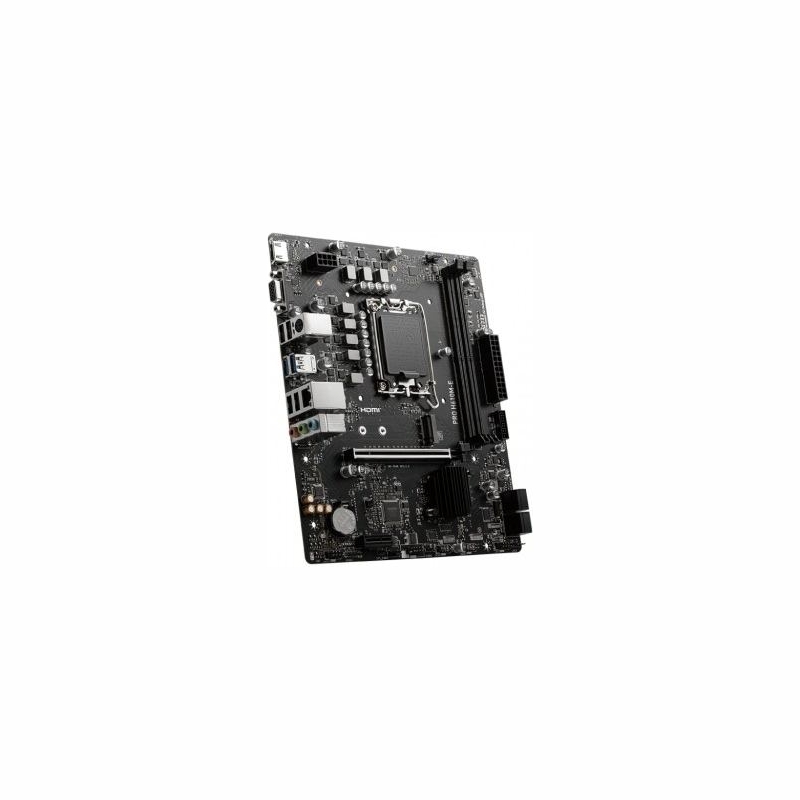

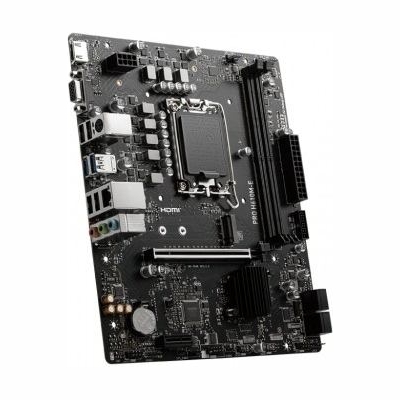

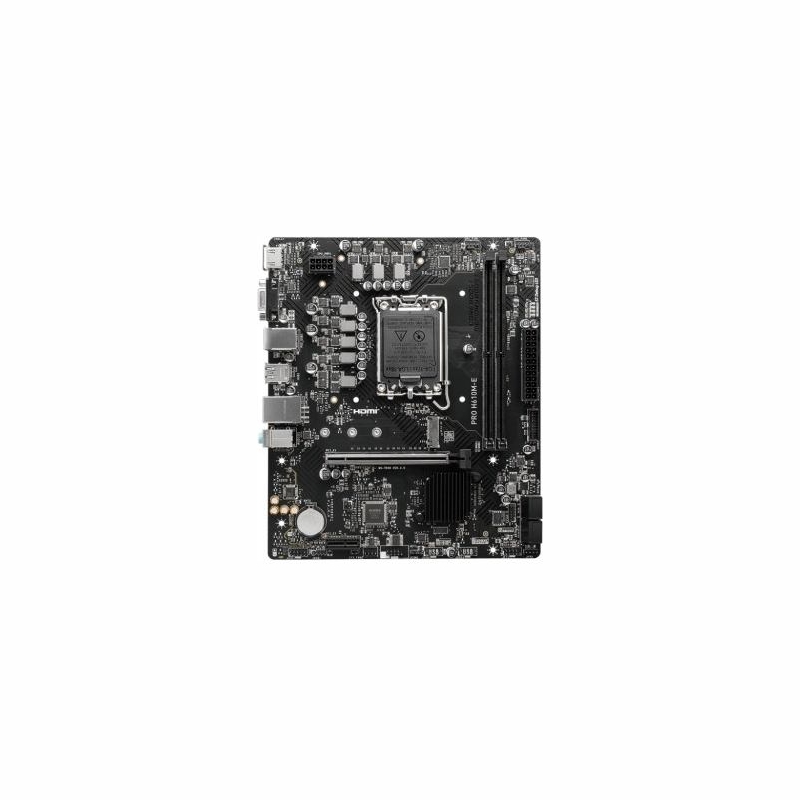

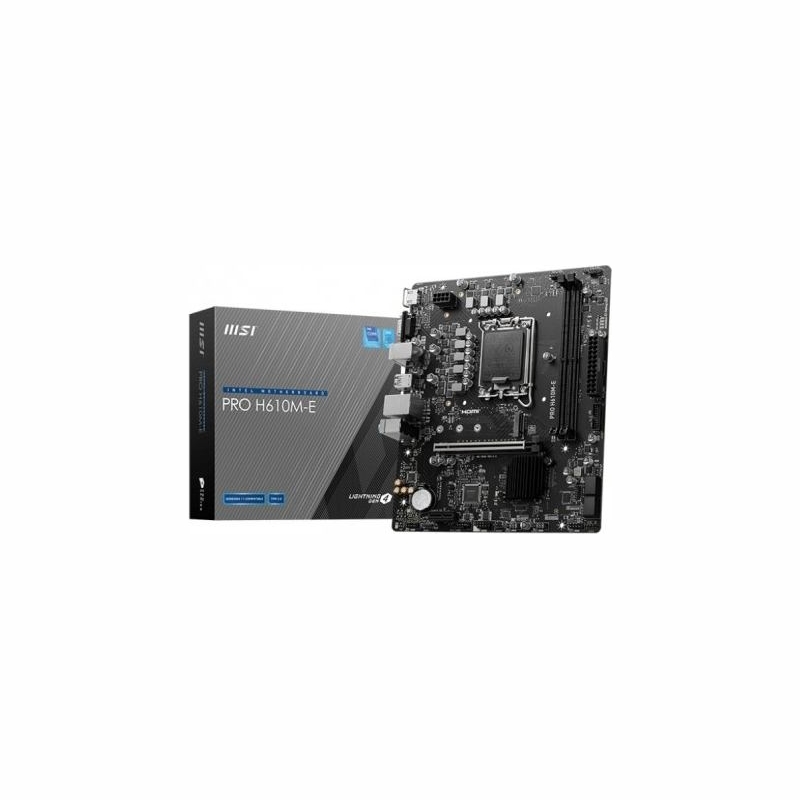

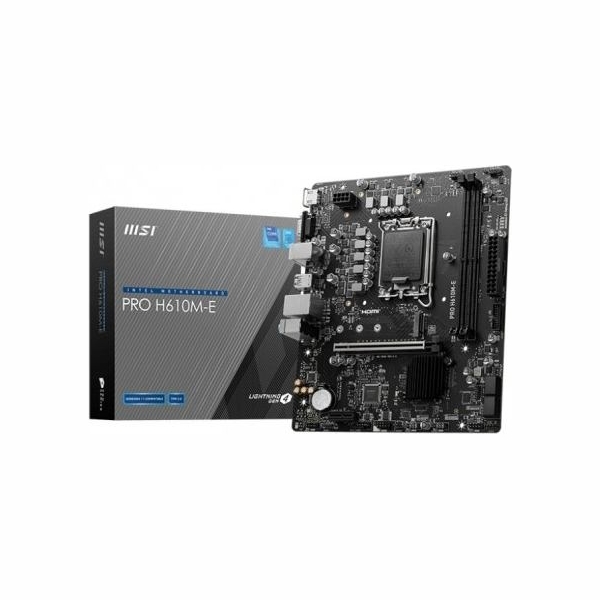

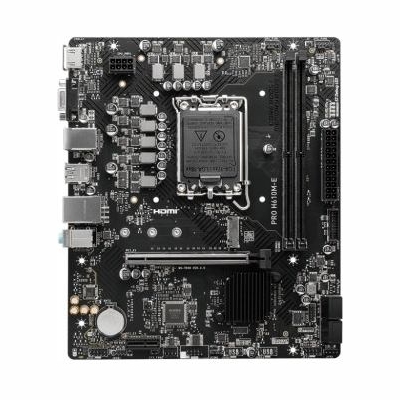

MSI Motherboard PRO H610M-E s1700 2DDR5 HDMI M.2 mATX
- SKU
- KBMSIIIEH610U03
- Barcode
- 4711377125147
- Model
- PRO H610M-E
- CPU socket
- LGA1700
- Processor family
- Intel Celeron
- Processor family
- Intel Core i3
- Processor family
- Intel Core i5
- Processor family
- Intel Core i7
- Processor family
- Intel Pentium Gold
- Processor family
- Intel Core i9
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel H610
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 5600 MHz
- Max memory size
- 96
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- No
- Detailed data on disk/drive interfaces
- 1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G
- Graphics
- 1 x HDMI - Supports HDMI 1.4 with HDR, maximum resolution 4K 30 Hz 1 x VGA
- Sound card
- Realtek ALC897 Codec 7.1-Channel High Definition Audio
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek RTL8111H Gigabit LAN
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

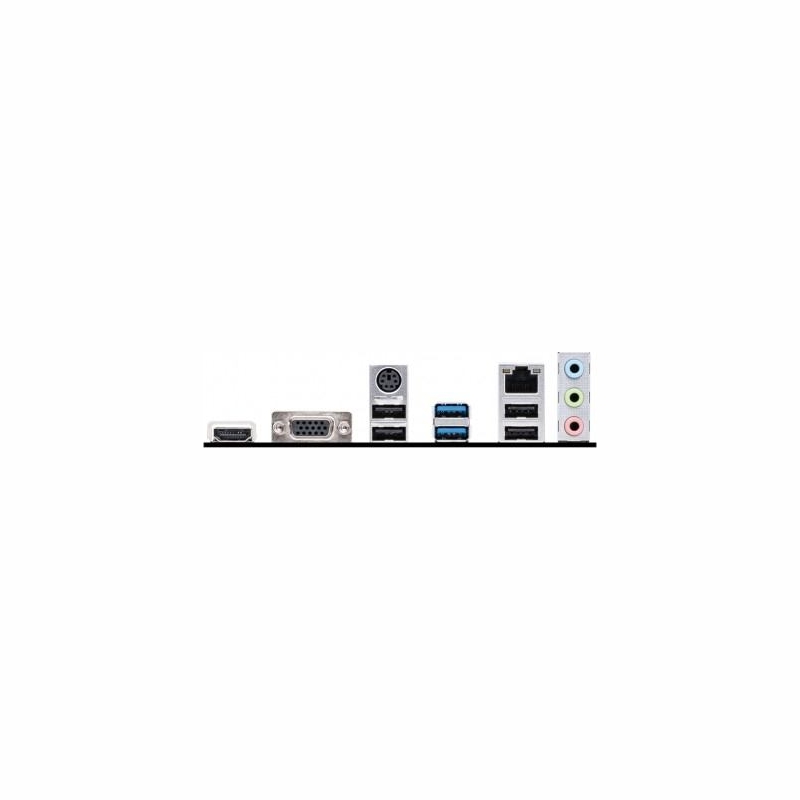

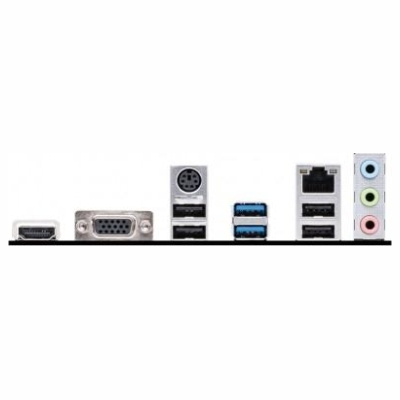

- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x D-Sub
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.0
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 4 x EZ Debug LED
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x RGB LED strip header
- Form factor
- micro ATX
- Dimensions
- 200 x 236.16 mm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
PRO H610M-E
30 Items
Specific References
- EAN13
- 4711377125147
- MPN
- PRO H610M-E
New
