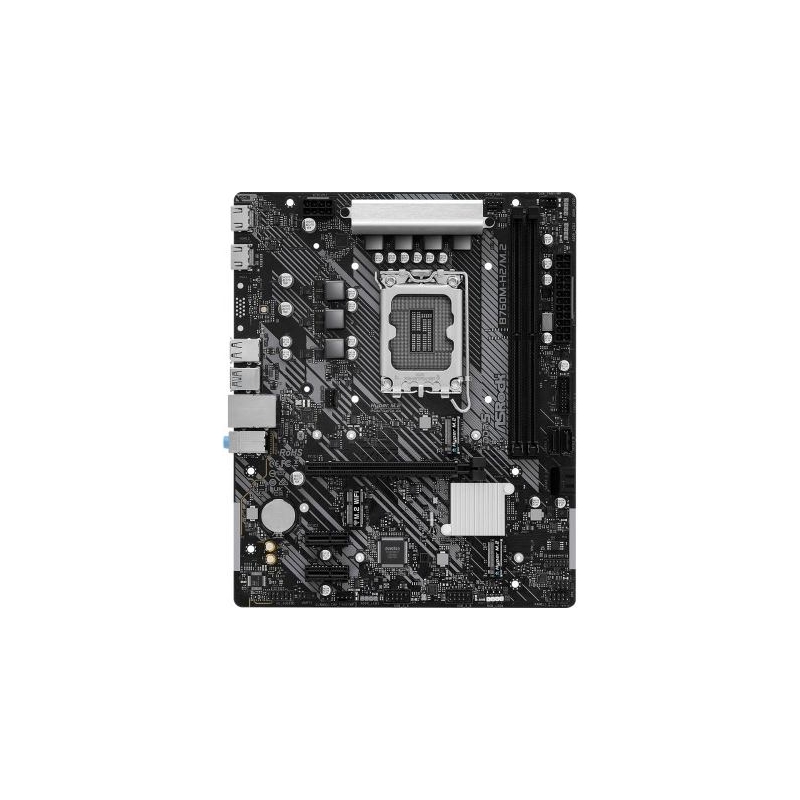

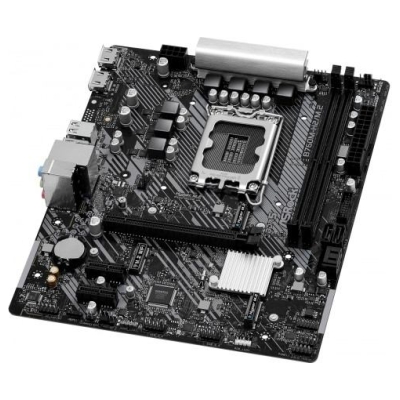

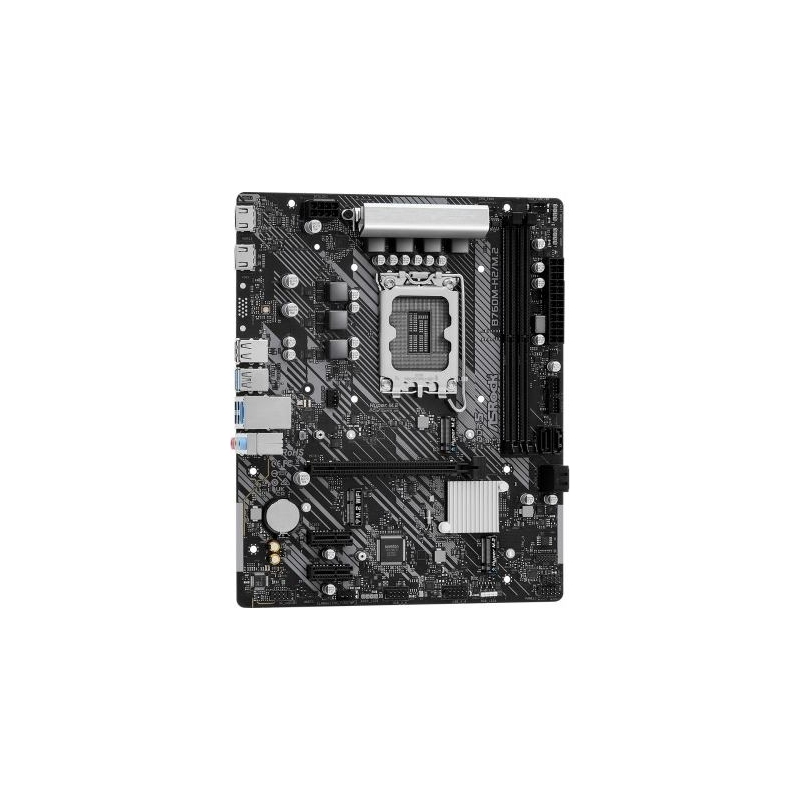

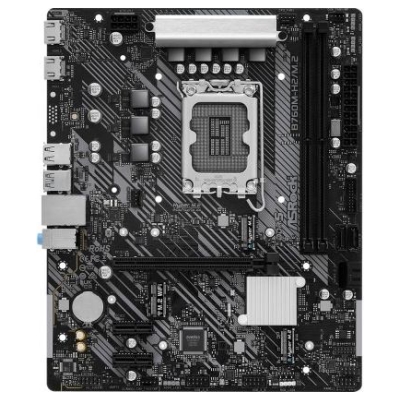

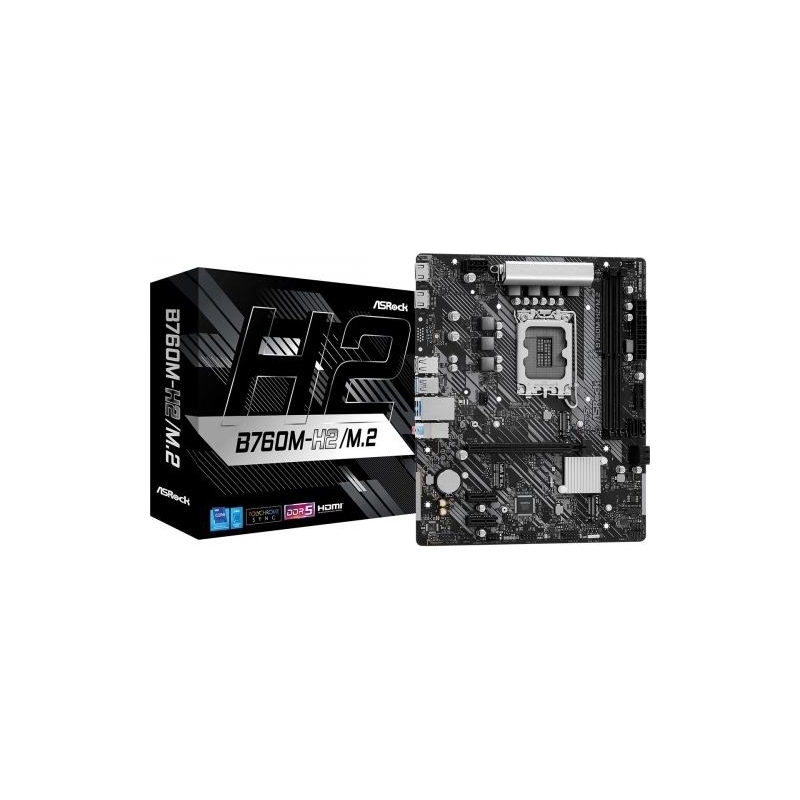

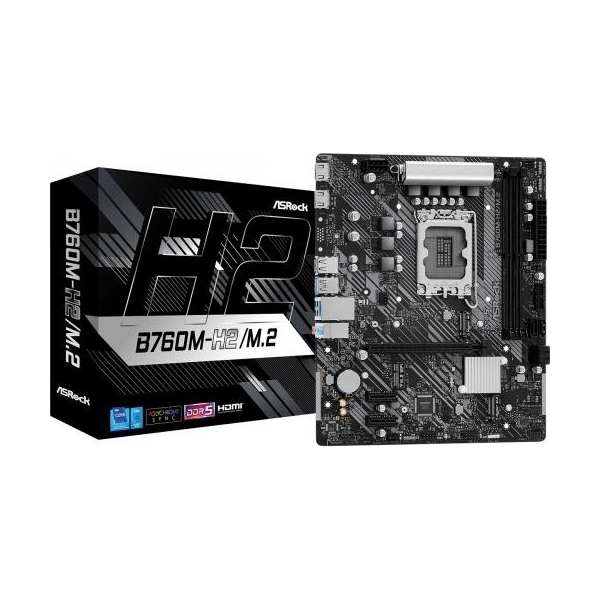

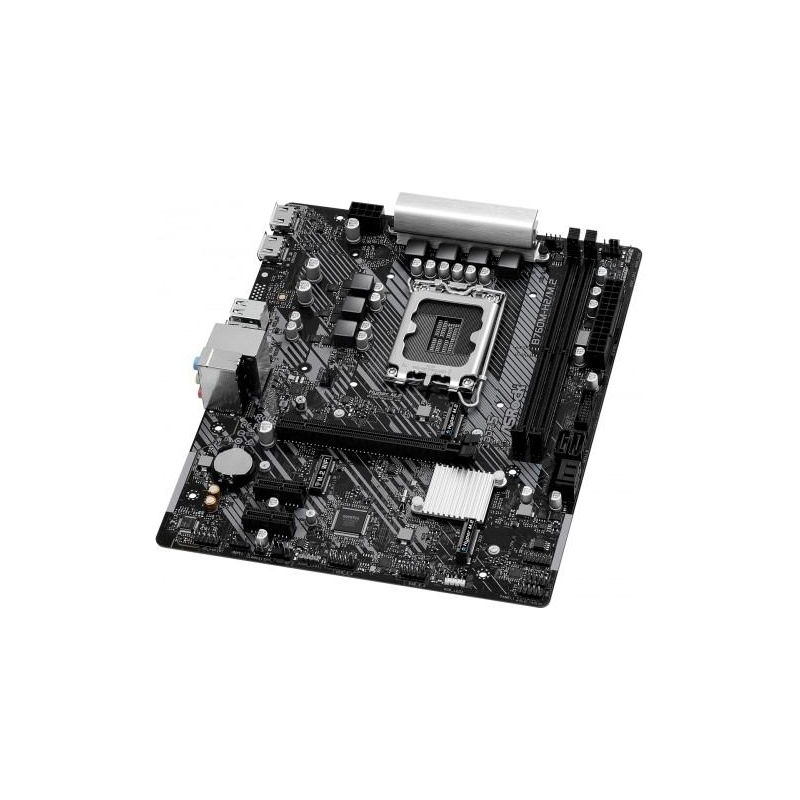

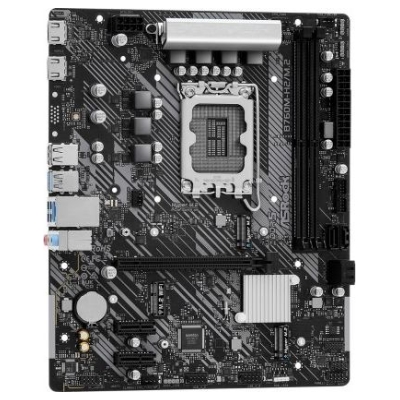

Asrock B760M-H2/M.2 s1700 2DDR5 DP/HDMI mATX
- SKU
- KBASRIIEB760U08
- Barcode
- 4710483944215
- Model
- B760M-H2/M.2
- CPU socket
- LGA1700
- Processor family
- Intel Core
- Generation
- Fourteenth
- Generation
- Thirteenth
- Generation
- Twelve
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Max memory size
- 128
- Expansion slots
- 1 x M.2
- Expansion slots
- 2 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU: 1 × PCIe 4.0 x16 slot (PCIE1), supports x16 mode* Chipset: 2 × PCIe 3.0 x1 slots (PCIE2 and PCIE3)* 1 × M.2 slot (Key E), supports 2230 Wi-Fi/BT PCIe module
- Graphics
- Intel Xe Graphics Architecture (Gen 12) 2 × HDMI 2.1 TMDS, compatible, supports HDCP 2.3, and maximum resolution up to 4K 60Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- 2 x 10/100/1000/2500 Mbit/s
- Network interface
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth control Visual, user-friendly interface Visual network usage statistics Optimized default settings for gaming, browsing, and streaming modes User-customizable priority control
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

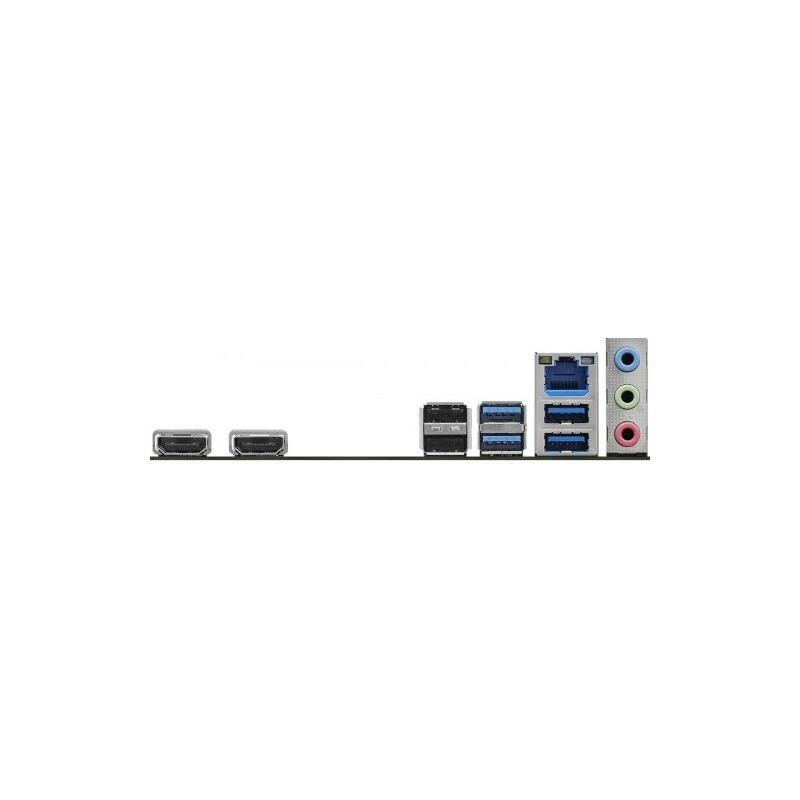

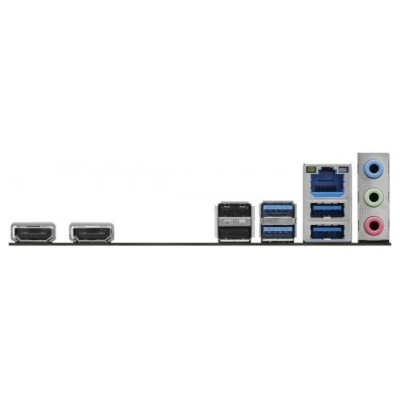

- External connectors
- 2 x SMA
- External connectors
- 2 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 2.0
- External connectors
- 4 x USB 3.0
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Dimensions
- 24.4 x 20.1 cm
- Accessories included
- 1 × User Manual 1 × I/O Shield 2 × SATA Data Cables 3 × Screws for M.2 Slots
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC UEFI Features ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Automatic Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
- Designation
- CE+WEEE
B760M-H2/M.2
3 Items
Specific References
- EAN13
- 4710483944215
- MPN
- B760M-H2/M.2
