Expansion Slots1 PCI Express x16 (PCIEX16) slot, integrated with the processor:AMD Ryzen 9000/7000 series processors support PCIe 5.0 x16 mode* M2B_CPU and M2C_CPU slots share bandwidth with PCIEX16 slot.When M2B_CPU or M2C_CPU slot is occupied, PCIEX16 slot operates at up to x8 mode.AMD Ryzen 8000 Series-Phoenix 1 processors support PCIe 4.0 x8 modeAMD Ryzen 8000 Series-Phoenix 2 processors support PCIe 4.0 x4 mode(The PCIEX16 slot only supports a graphics card or NVMe SSD. If you only want to install one graphics card, you must install it in the PCIEX16 slot.)Chipset:- 1 PCI Express x16 slot, supporting PCIe 4.0 and operating at x4 mode (PCIEX4)* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 speed (PCIEX2)Storage Interface1 x M.2 connector (M2A_CPU), integrated with the processor, supporting socket 3, M key, type 25110/22110/2580/2280 SSD:AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDsAMD Ryzen 8000-Phoenix 1 series processors support PCIe 4.0 x4/x2 SSDsAMD Ryzen 8000-Phoenix 2 series processors support PCIe 4.0 x4/x2 SSDs2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated with the processor, supporting socket 3, M key, type 22110/2280 SSDs:AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs* M2B_CPU and M2C_CPU connectors become unavailable when AMD Ryzen 8000-Phoenix 1/Phoenix 2 series processors are used.1 x M.2 connector (M2D_SB), integrated into the chipset, supporting Socket 3, M-Key, Type 22110/2280 PCIe 4.0 x4/x2 SSD4 x SATA 6Gb/s connectors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devices* RAID 5 is only available on AMD Ryzen 9000 series processors.Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor with AMD Radeon Graphics support + ASMedia USB4 controller:- 2 x USB4 USB Type-C ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz* Support DisplayPort version 1.4 and HDR.Integrated graphics processor with AMD Radeon Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support HDMI version 2.1, HDCP 2.3 and HDR.** Support native HDMI 2.1 TMDS compliant ports.- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz* Support HDMI version 1.4(Graphics specifications may vary depending on processor support.) Support for up to four displays simultaneously.
Sound card
CODE Realtek ALC1220* The line-out jack on the rear panel supports DSD audio.High-resolution audio2/4/5.1/7.1-channel* The audio jack functionality can be changed via audio software. To configure 7.1-channel audio, you must access the audio software for audio settings.S/PDIF output support
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax
Network interface
Bluetooth
Network interface
LANRealtek 2.5GbE LAN chip (2.5Gbps/1Gbps/100Mbps)Wireless Communication moduleMediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for 11be 160MHz wireless standard
USB ports at back panel
12
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

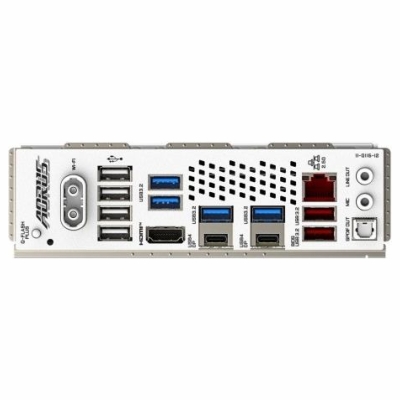

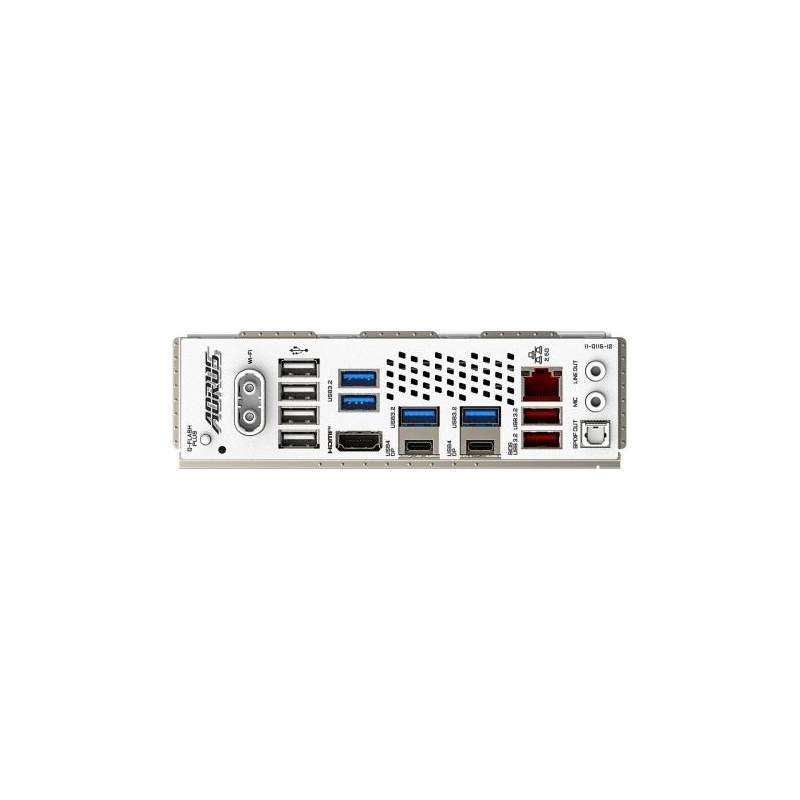

External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
4 x USB 3.0
External connectors
2 x SMA
External connectors
2 x USB4 Type-C
External connectors
2 x USB 3.1
External connectors
1 x S/PDIF
External connectors
1 x HDMI
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Power button
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Reset button
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
2 x 4pin case fan liquid cooling
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x Reset jumper
Onboard connectors
2 x temperature sensor
Onboard connectors
1 x Noise detection header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
