CPU: 1 x M.2 connector (Socket 3, M key, supports 2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, supports 2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, supports 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD) (M2N_SB) 4 x SATA 6Gb/s connector Supports RAID 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz. - Support for HDMI 2.1 and HDCP 2.3 versions. Support for native HDMI 2.1 TMDS-compliant ports. 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz. - Support for DisplayPort 2.1 versions.
Sound card
Realtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel
5
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

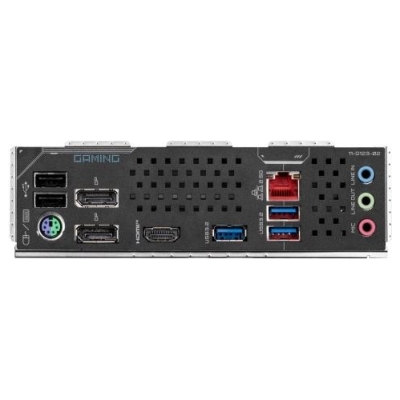

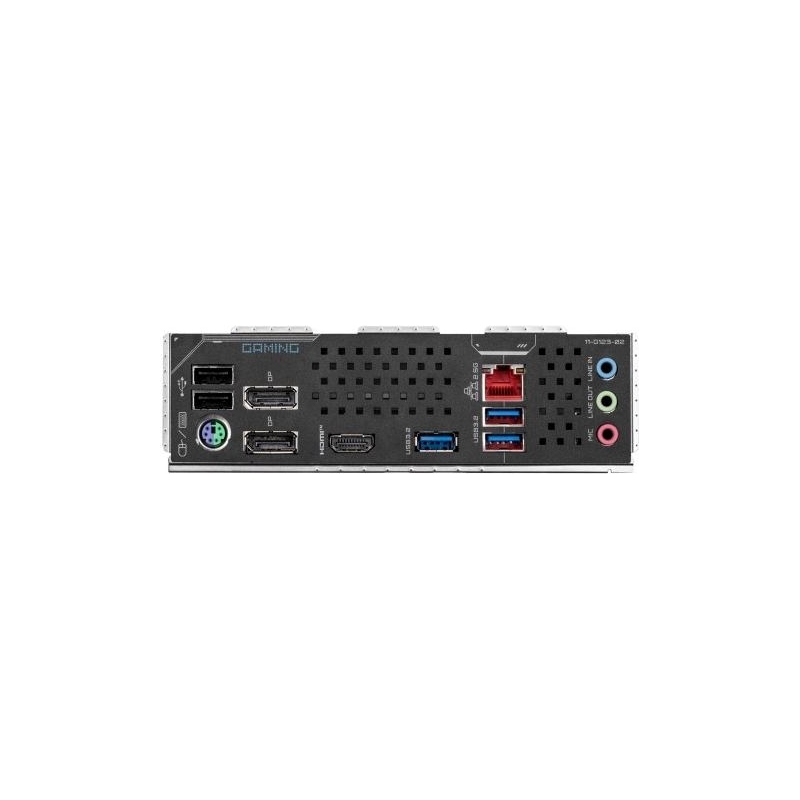

External connectors
1 x Line In
External connectors
2 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x RJ-45
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
2 x USB 2.0
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x Thunderbolt
Onboard connectors
1 x TPM header
Onboard connectors
3 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 1 Type-C
Onboard connectors
1 x Serial port header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x RGB LED strip header
Onboard connectors
2 x Addressable LED
BIOS
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Dimensions
24.4 x 17.4 cm
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
