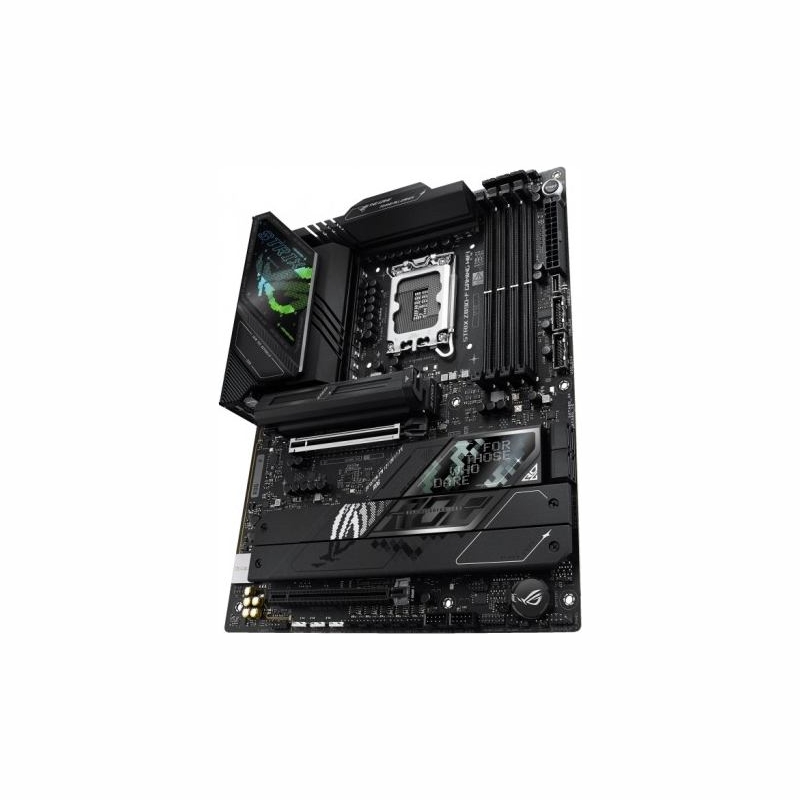

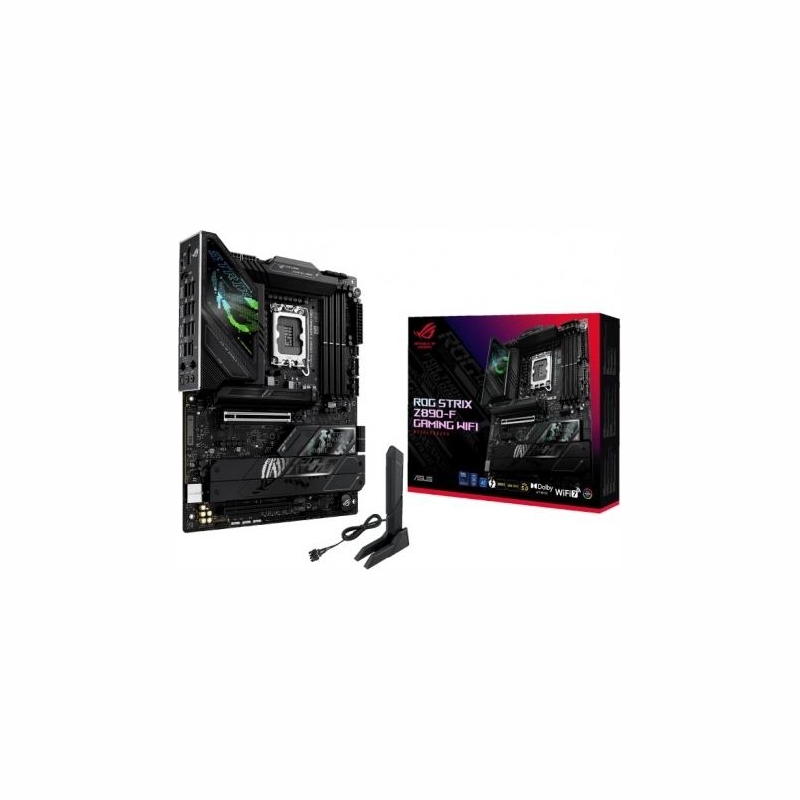

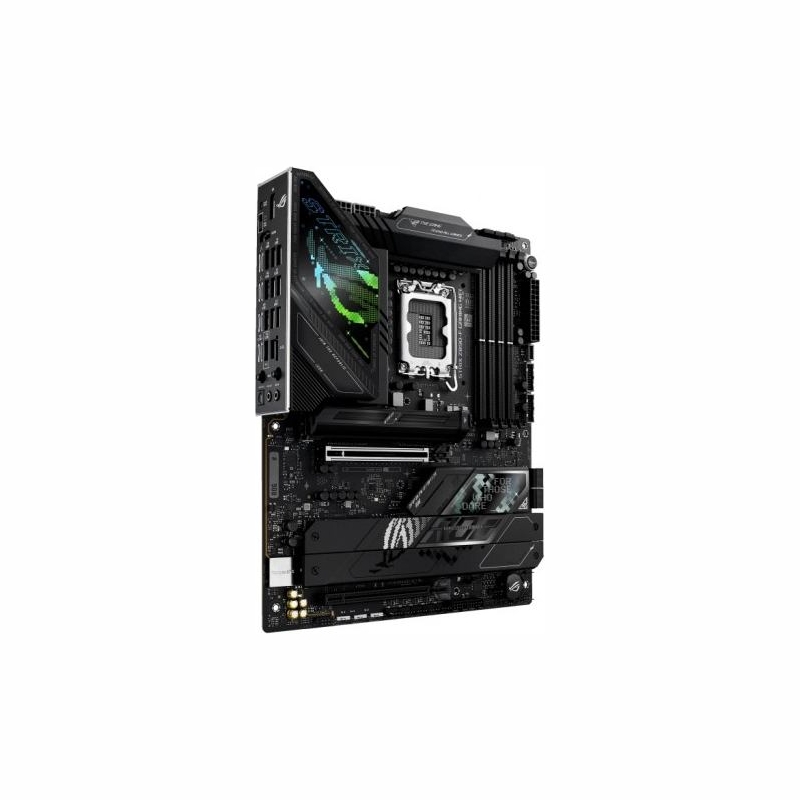

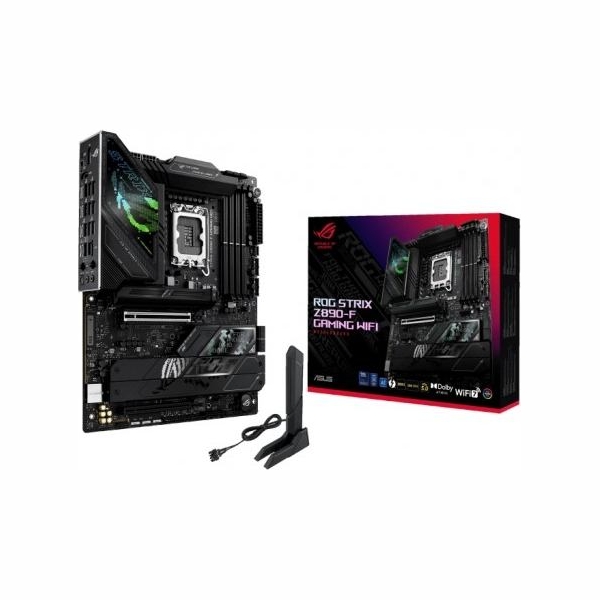

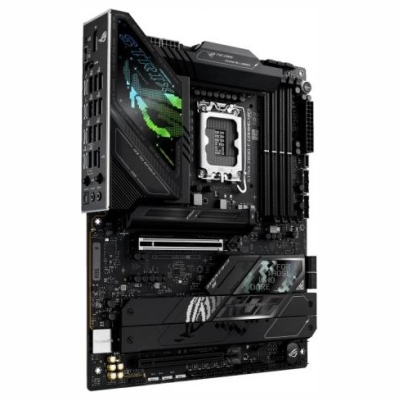

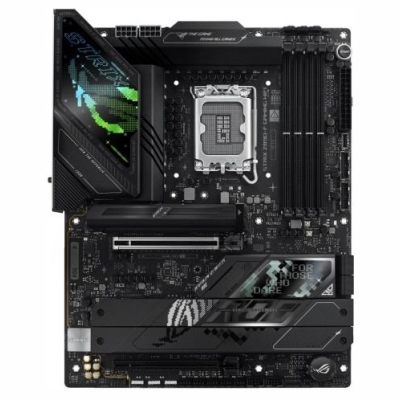

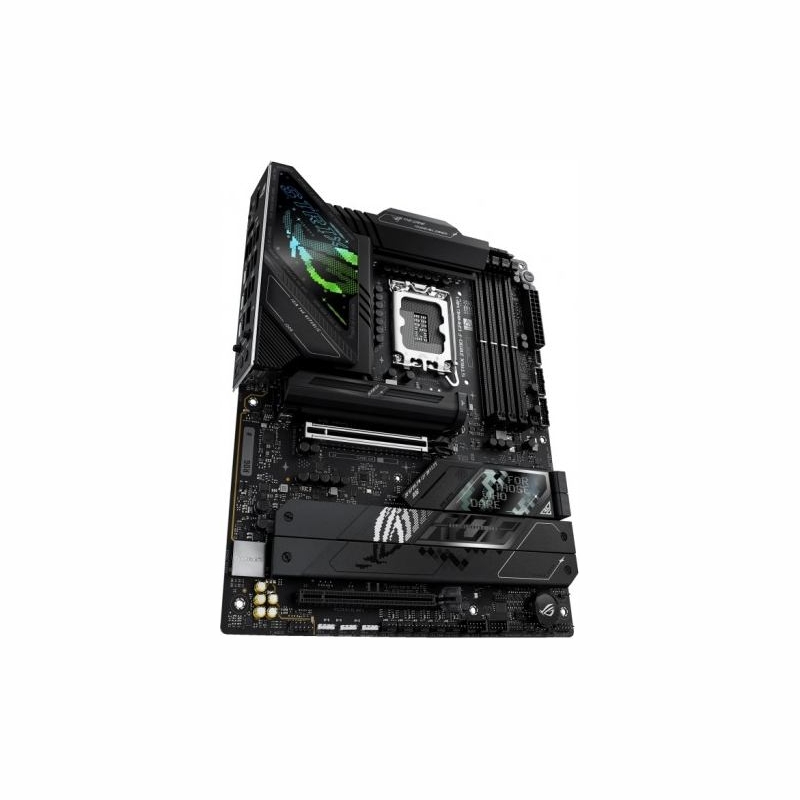

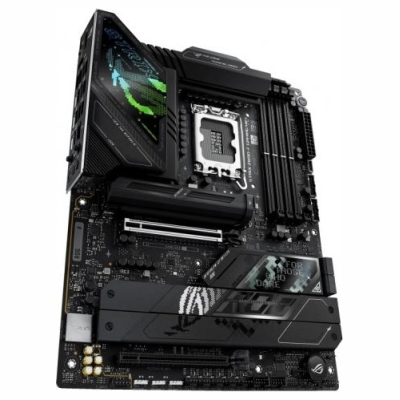

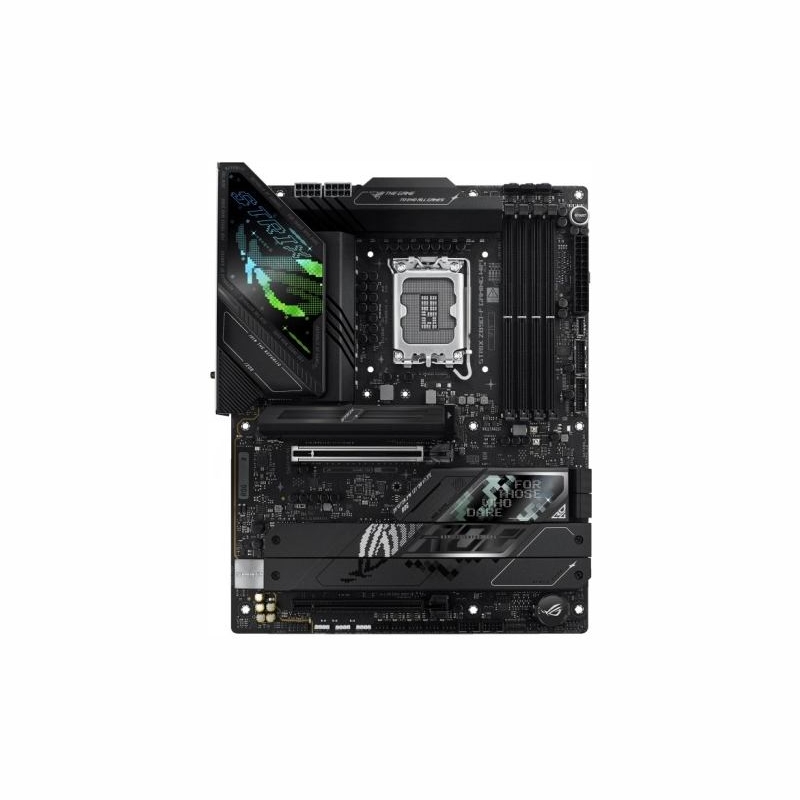

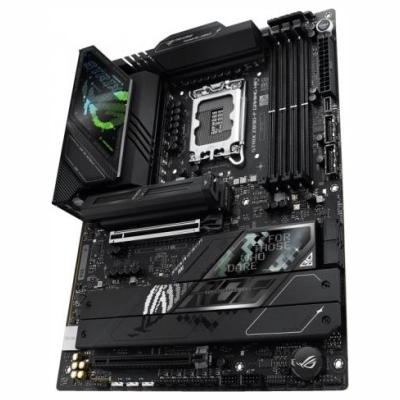

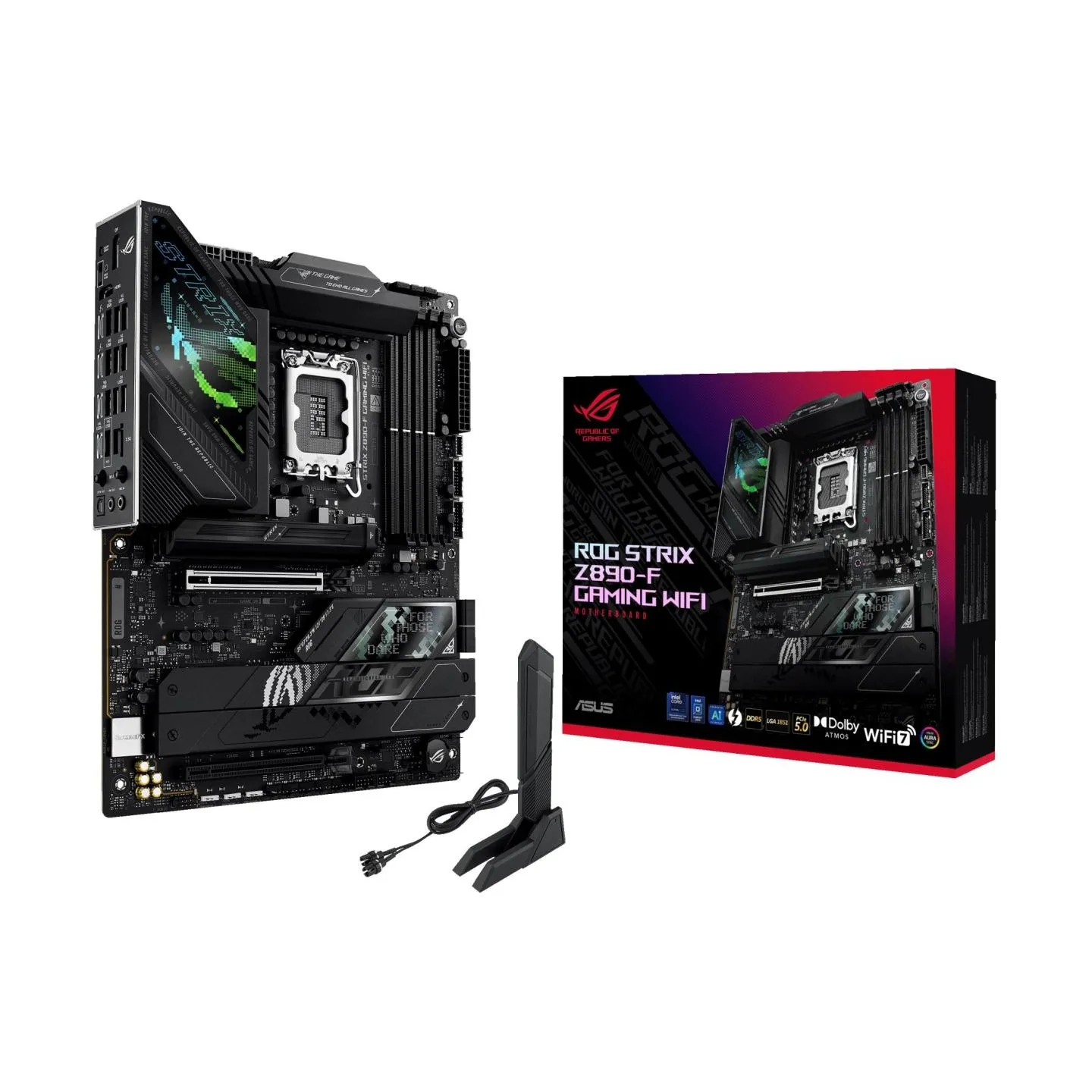

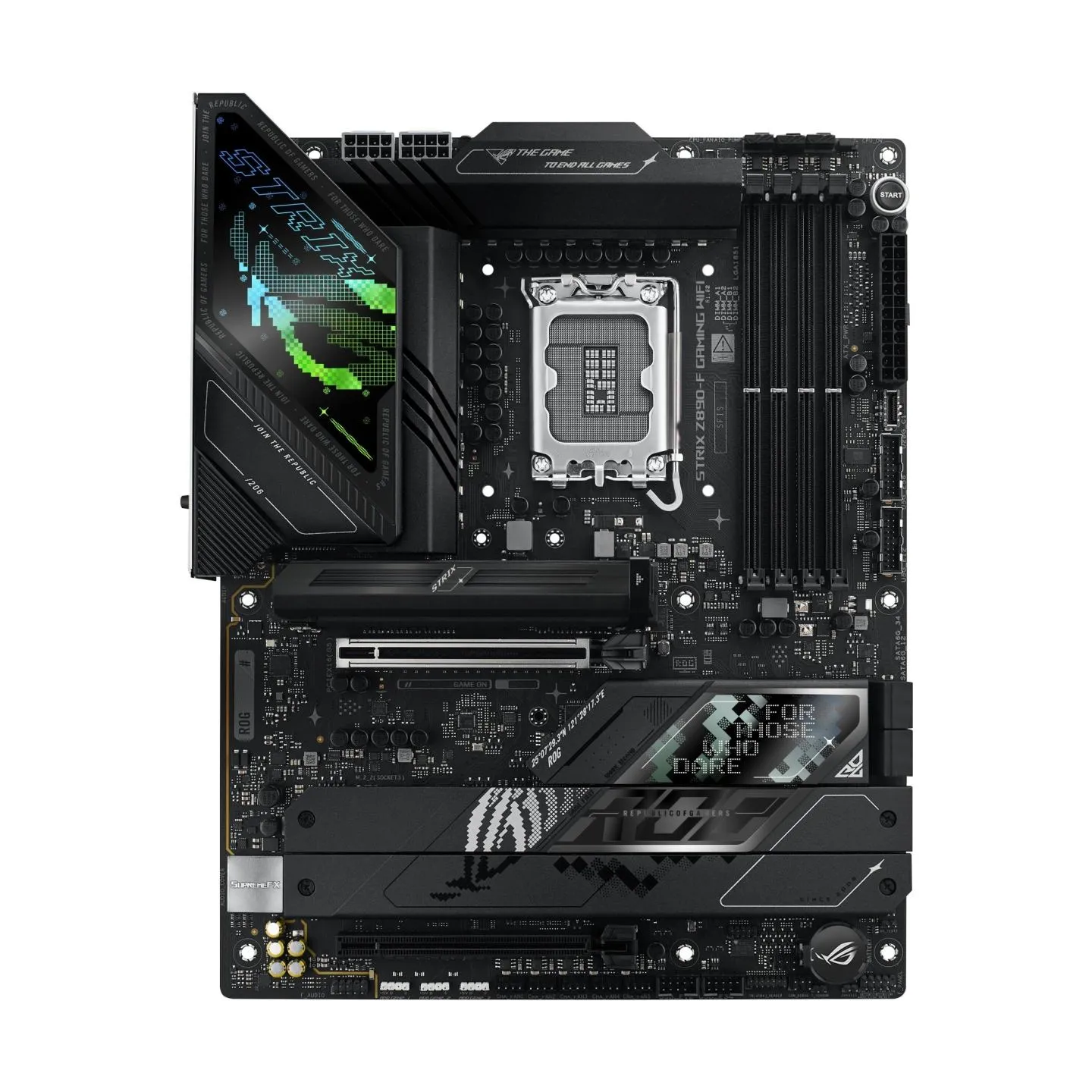

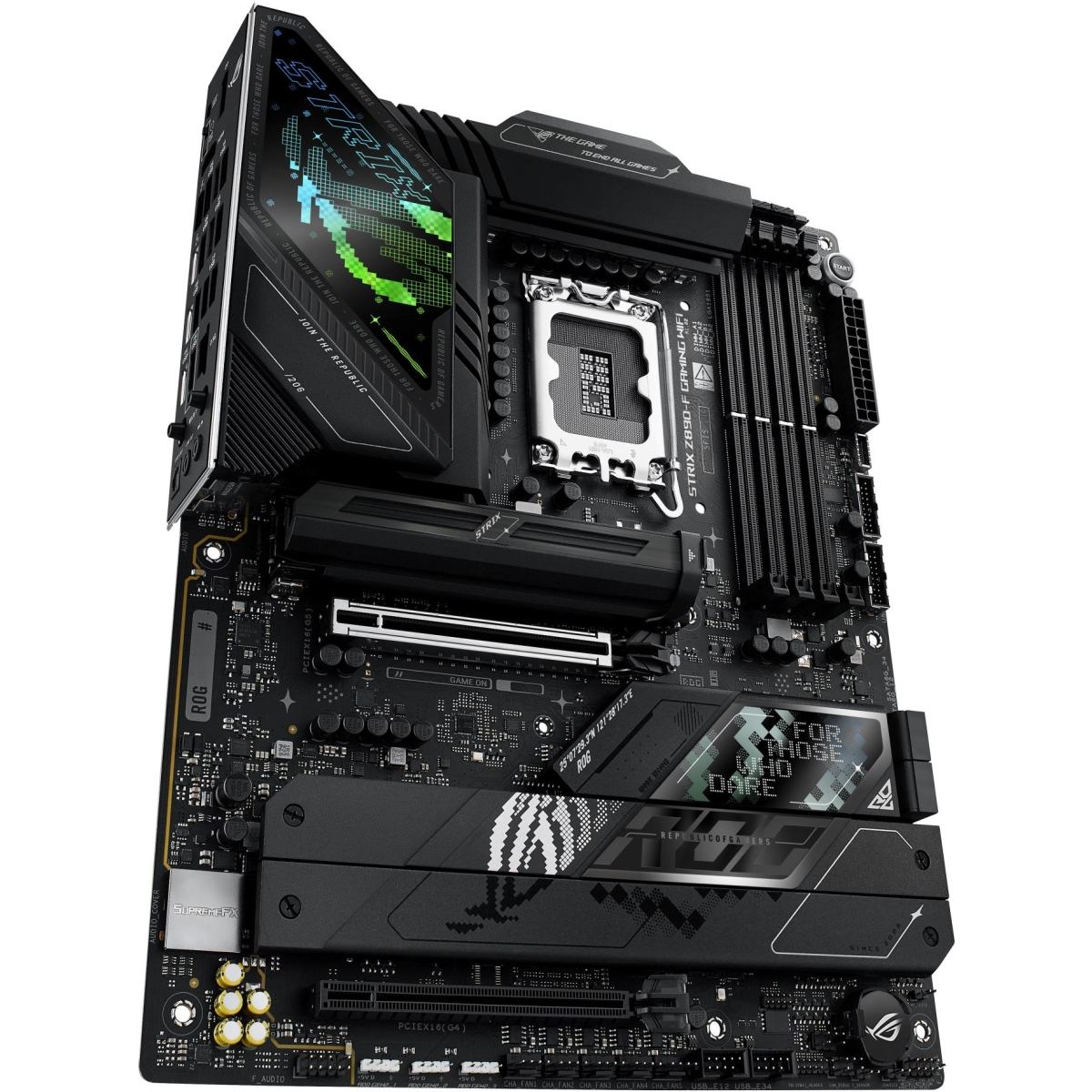

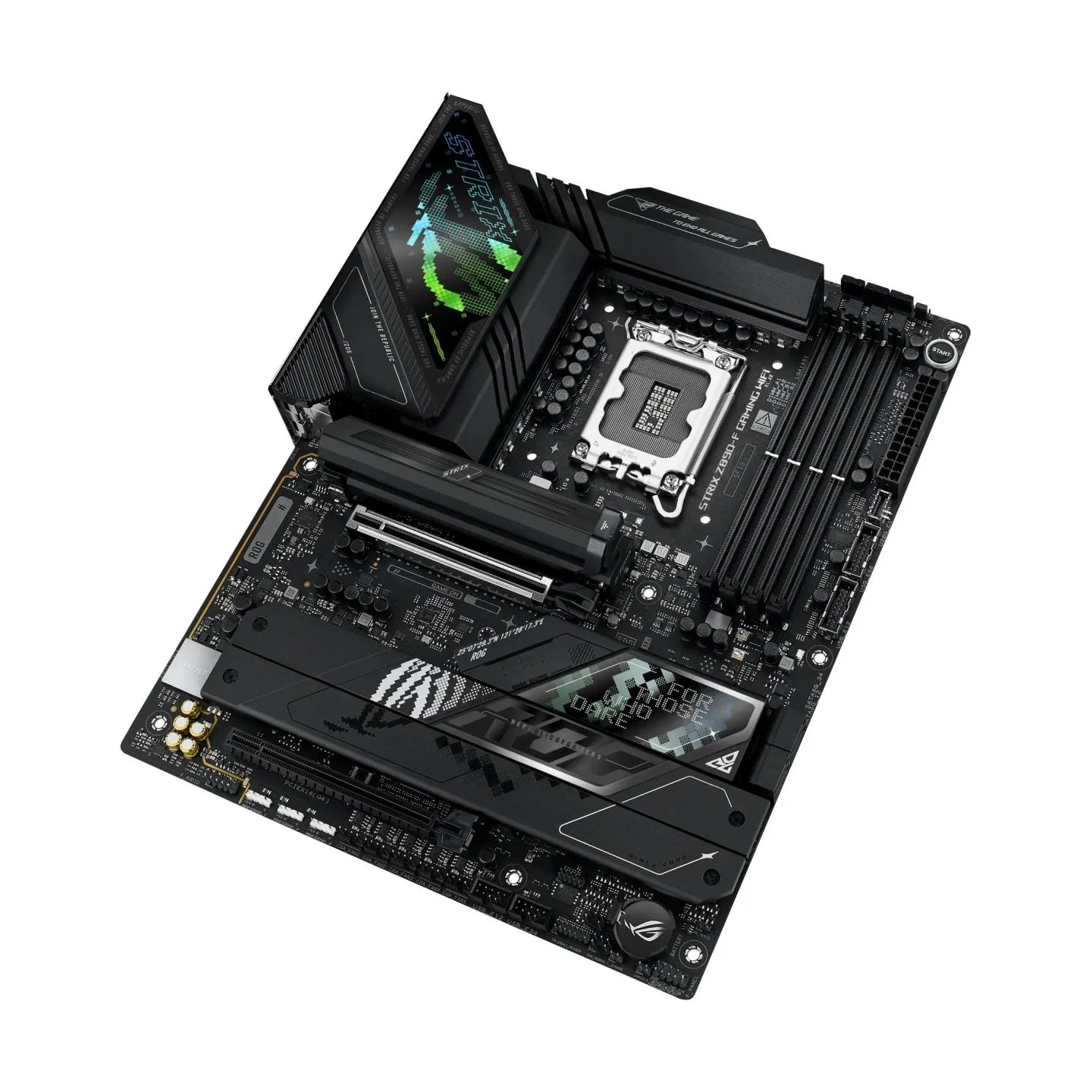

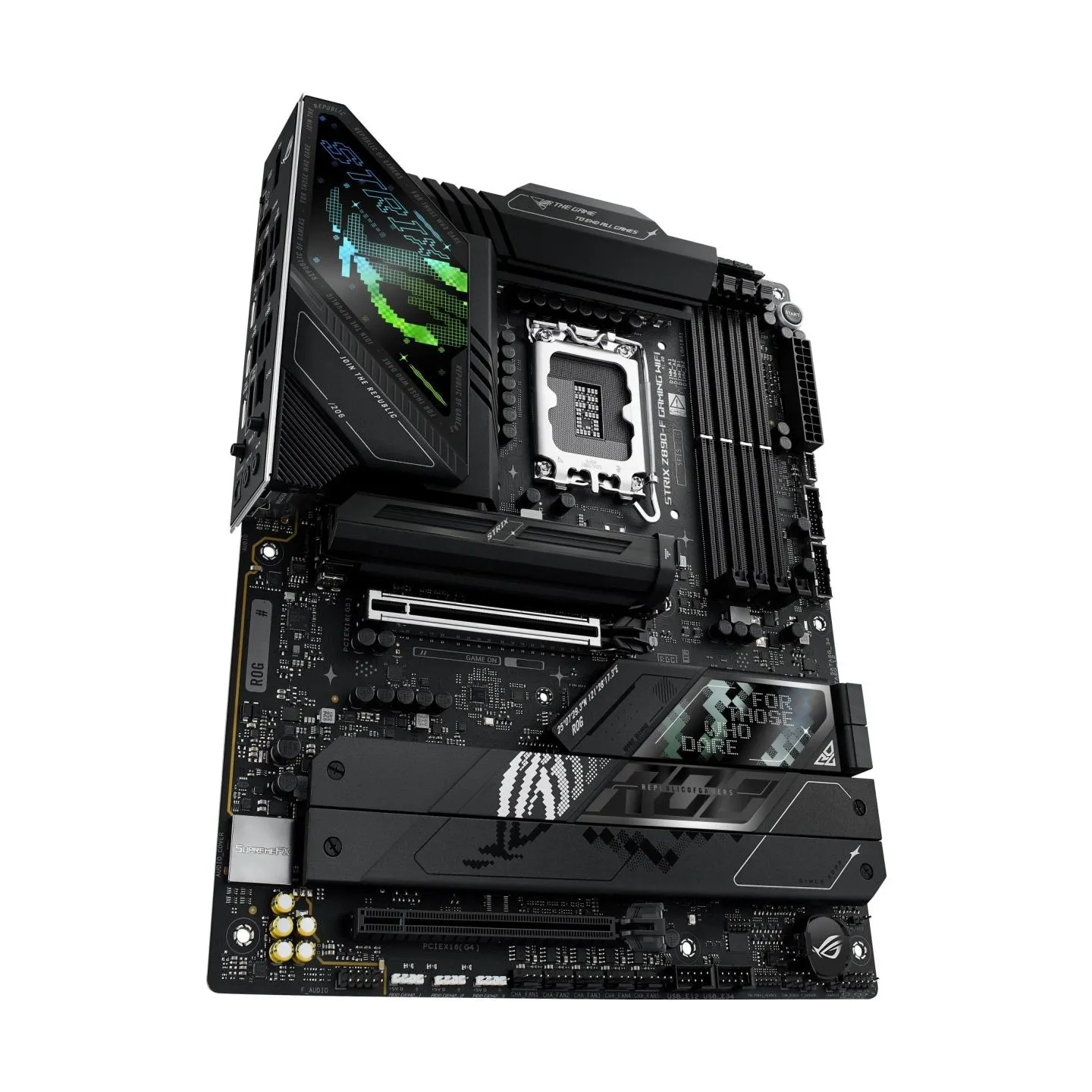

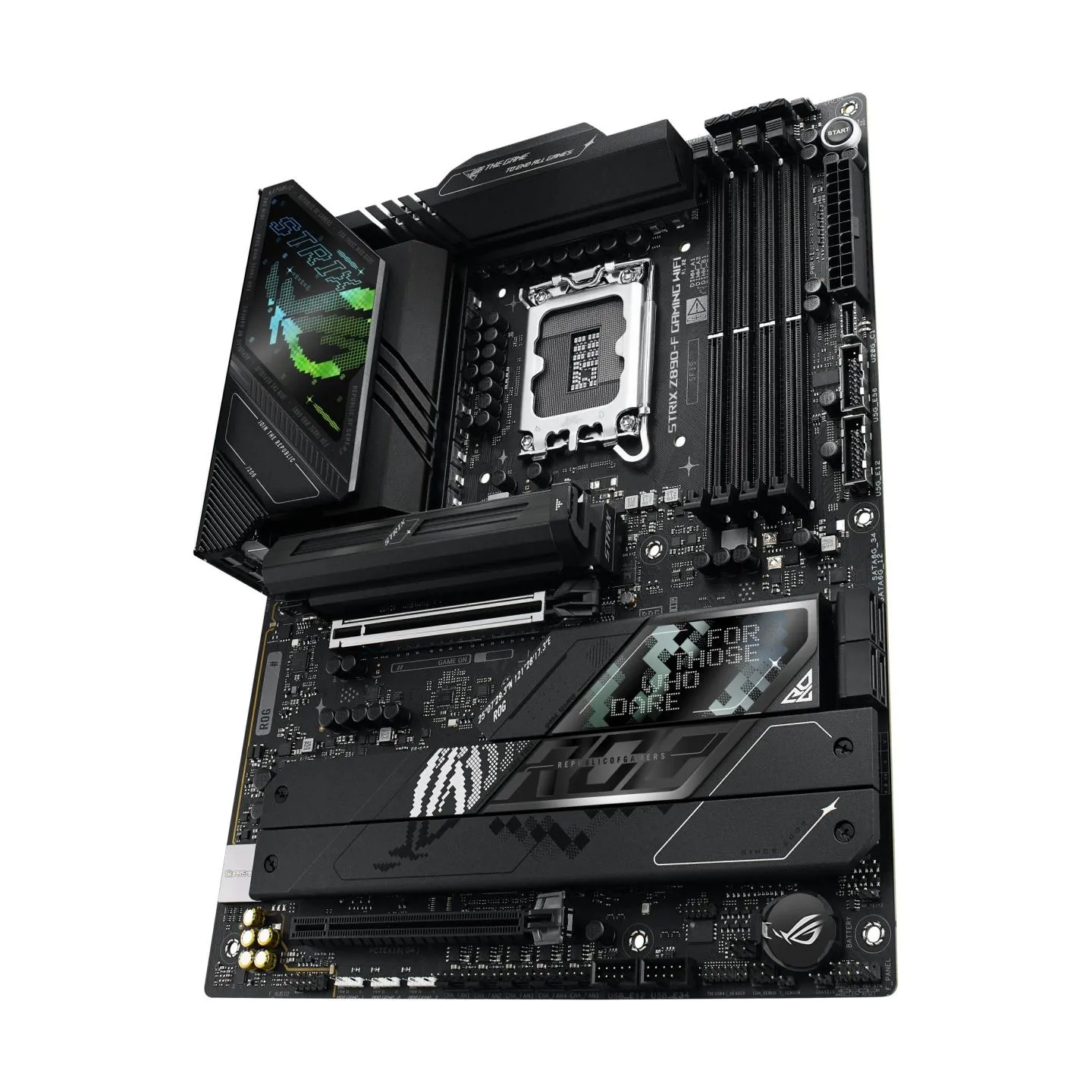

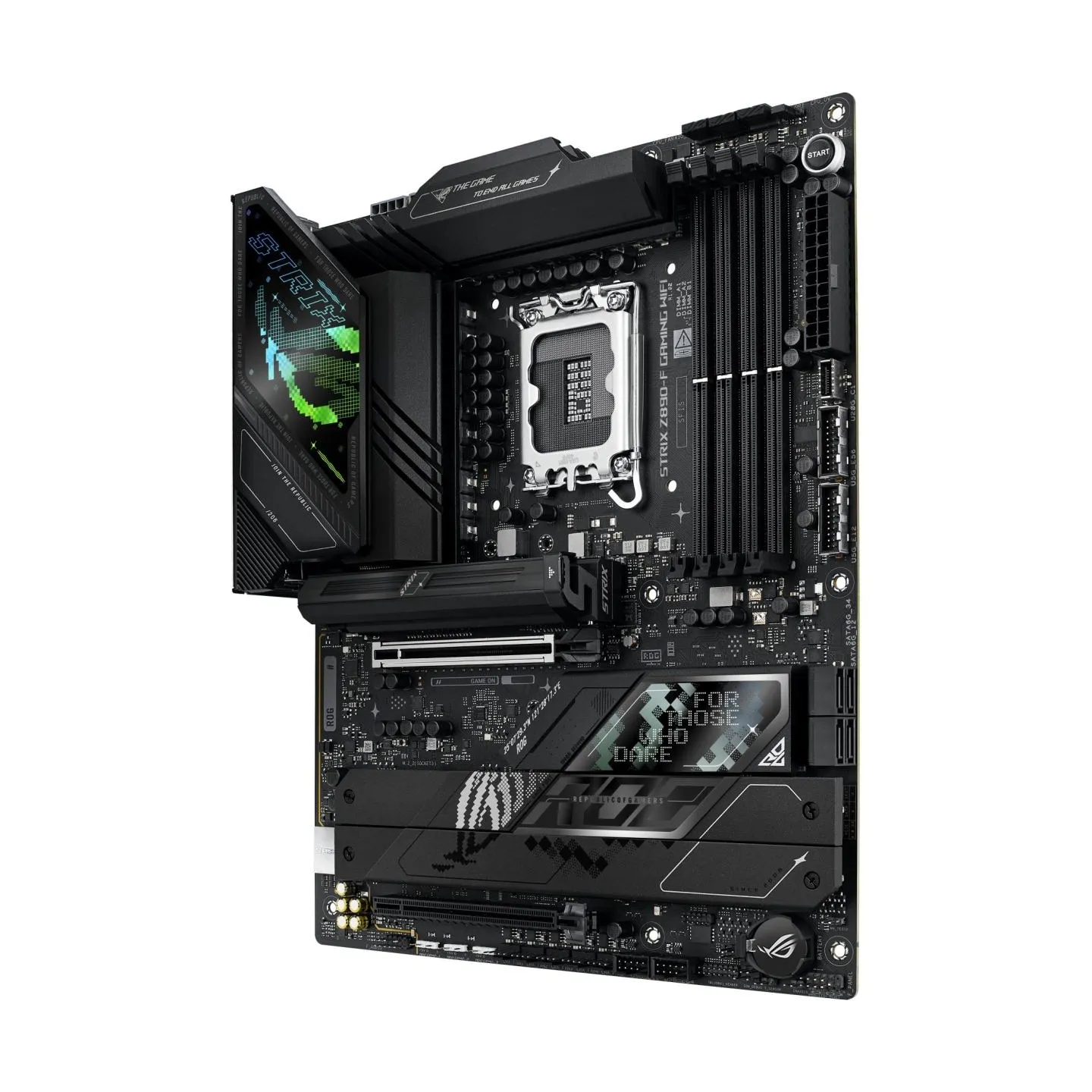

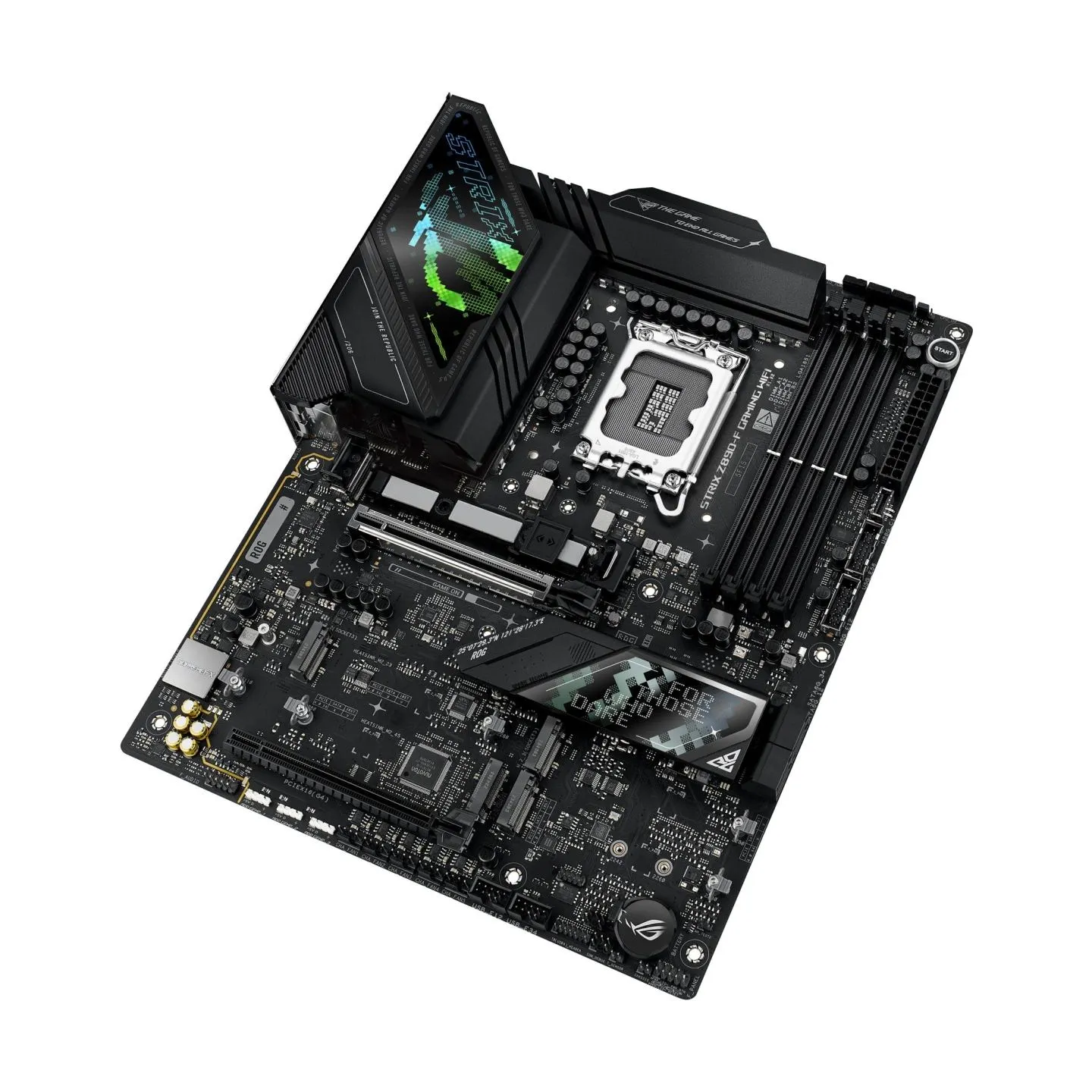

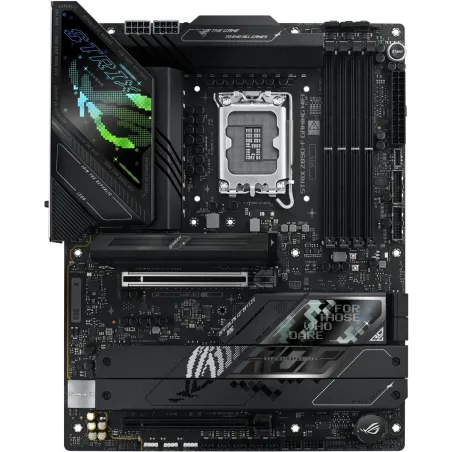

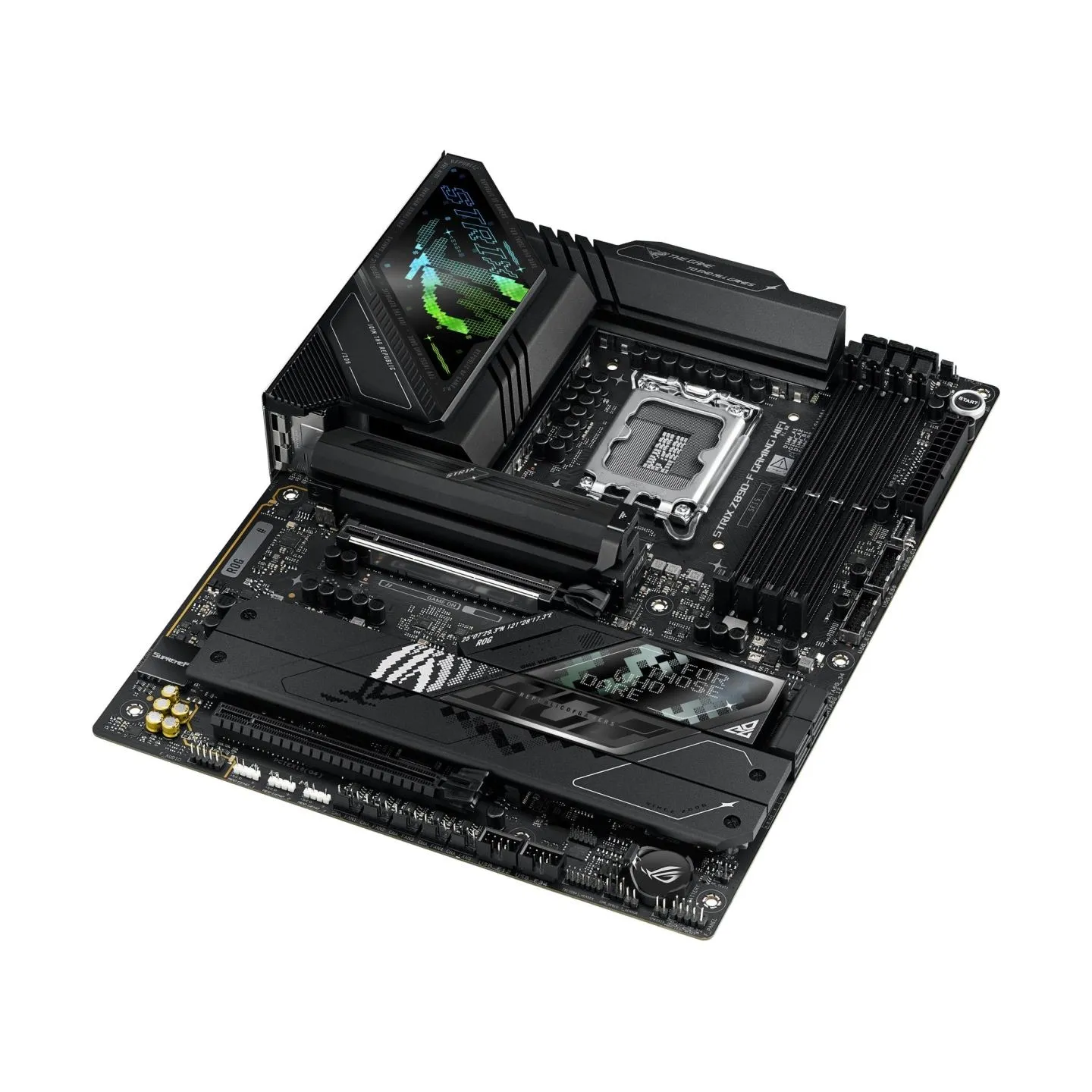

Asus Motherboard ROG STRIX Z890-F GAMING WIFI s1851 4DDR5 TB4 ATX/90MB1I40-M0EAY0
- Write a review
€593.12
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUIIFZ890A06
- Barcode
- 4711387755921
- Model
- ROG STRIX Z890-F GAMING WIFI
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel Z890 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 8600 MHz
- Max memory size
- 192
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 5 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Intel Core Ultra Processors(Series 2)*M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)Intel Z890 ChipsetM.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
- Graphics
- 1 x DisplayPort** 1 x HDMI port*** 2 x Intel Thunderbolt 4 (USB Type-C) ports support DisplayPort and Thunderbolt video output**** * Graphics specifications may vary depending on processor type. For updates, please visit www.intel.com.** Supports up to 8K@60Hz with DSC as per DisplayPort 1.4a specification.*** Supports 4K@60Hz as per HDMI 2.1 specification.**** Supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8 Gbps or 16 Gbps/16 Gbps. For supported resolutions, see DisplayPort 2.1 specification.***** VGA resolution support depends on processor or graphics card resolutions.
- Sound card
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sensing for front and rear headphone outputs Supports: jack detection, streaming, and front-panel microphone jack remapping High-quality stereo playback output with a 120 dB SNR and recording input with a 110 dB SNR Supports playback up to 32-bit/384 kHz on the front panel Audio Features SupremeFX Shielding Technology Savitech SV3H712 Amplifier Gold-plated audio jacks Rear optical S/PDIF output Premium audio capacitors Audio shield *A chassis with an HD audio module on the front panel is required for 7.1 Surround Sound audio output.**The rear-panel LINE OUT port does not support surround sound. If you want to enjoy surround sound, connect your audio output device to the audio jack on the front panel of the case or use a USB audio device.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands** Supports Wi-Fi 7 320 MHz band, up to 5.8 Gbps transfer speeds. Bluetooth v5.4*** *Wi-Fi features may vary by operating system.For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.**The Wi-Fi 6 GHz frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
- USB ports at back panel
- 14
- USB ports on motherboard
- 9
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 9
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

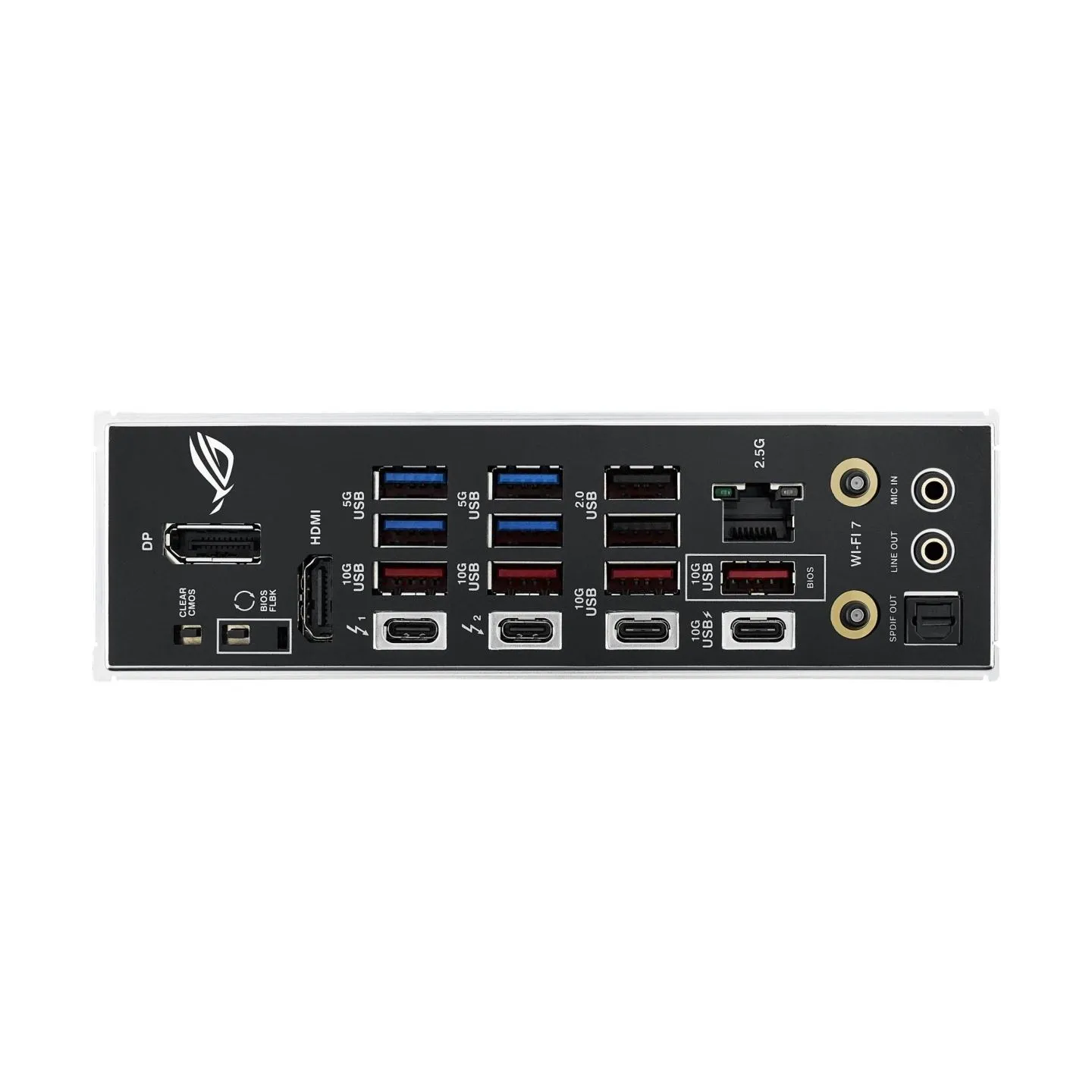

- External connectors
- 1 x HDMI
- External connectors
- 1 x Line Out
- External connectors
- 1 x USB BIOS Flashback button
- External connectors
- 1 x S/PDIF
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 3.1
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 2 x USB 2.0
- External connectors
- 4 x USB 3.0
- External connectors
- 2 x Thunderbolt 4
- External connectors
- 2 x USB 3.1 Type-C
- External connectors
- 1 x MIC
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x Wi-Fi Module
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 5 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 5 x 4pin Chassis fan
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Power button
- Onboard connectors
- 1 x Thermal sensor connector
- Onboard connectors
- 1x CPU/DRAM overvoltage jumper
- Onboard connectors
- 3 x Addressable LED
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 cm x 24.4 cm
- Accessories included
- 2 x SATA 6Gb/s cables M.2 22110 thermal pad ASUS WiFi Q antenna Cable tie pack M.2 Q-Latch pack ROG keychain ROG Strix stickers 3 x M.2 rubber packs Quick start guide
- Supported operating systems
- Windows 11
- Software
- ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial) - Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power SavingASUS AI AdvisorASUS Driver HubASUS GlideXUSB Wattage WatcherTurboV Core Adobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKeyNPU Boost
- Designation
- CE+WEEE
ROG STRIX Z890-F GAMING WIFI
4 Items
Specific References
- EAN13
- 4711387755921
- MPN
- ROG STRIX Z890-F GAMING WIFI
