Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*AMD Ryzen 9000 and 7000 Series Desktop Processors*M.2_1 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 5.0 x4 mode)M.2_2 (M-Key) Socket Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode)**AMD Ryzen 8000 Series Desktop Processors**M.2_1 (M-Key) Socket Type 2242/2260/2280 (Supports PCIe 4.0 x4/x2 mode)M.2_2 (M-Key) Socket Type 2242/2260/2280/22110 (not supported)****AMD X870 ChipsetM.2_3 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)***M.2_4 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode)2 x SATA 6Gb/s ports* AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 function is only supported by AMD Ryzen 9000 series processors.** M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied by SSD, PCIEX16(G5) will only operate at x8 mode.*** M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied by SSD, PCIEX16(G4) will be disabled.**** M.2_2 will be disabled when using AMD Ryzen 8000 series desktop processors.
Graphics
1 x DisplayPort** 1 x HDMI port*** 2 x USB4 (40Gbps) ports support USB Type-C display outputs**** * Please refer to AMD processor specifications.** Supports up to 8K@30Hz according to DisplayPort 1.4 specification.*** Supports 4K@60Hz according to HDMI 2.1 specification.**** Supports up to 4K@60Hz according to DisplayPort 1.4a specification**** VGA resolution support depends on CPU or graphics card resolution.
Sound card
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance detection for front and rear headphone outputs- Supports: jack detection, streaming, front panel microphone jack repurposing- High-quality stereo playback output SNR 120 dB and recording input SNR 110 dB- Supports up to 32-bit/384 kHz playback on the front panel"Audio Features- SupremeFX Shielding Technology- Savitech SV3H712 Amplifier- Rear optical S/PDIF output port- Premium audio capacitors- Audio shield* The LINE OUT port on the rear panel does not support surround sound. If you want to enjoy surround sound, connect your audio output device to the audio jack on the front panel of the chassis or use a USB audio device.
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency band** Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speed. Bluetooth v5.4*** *Wi-Fi features may vary by OSFor Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, please note that there is no driver available, please refer to the Wi-Fi chipset vendor's website for details.**6GHz Wi-Fi frequency band and bandwidth regulations may vary by country.***Bluetooth version may vary. Please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB ports at back panel
12
USB ports on motherboard
9
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
9
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

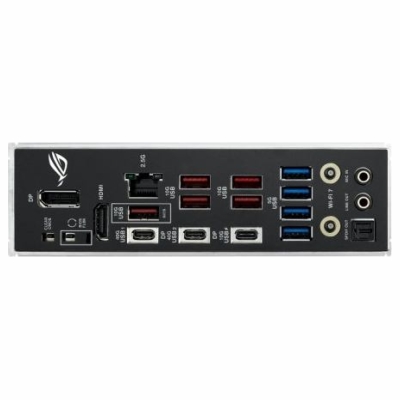

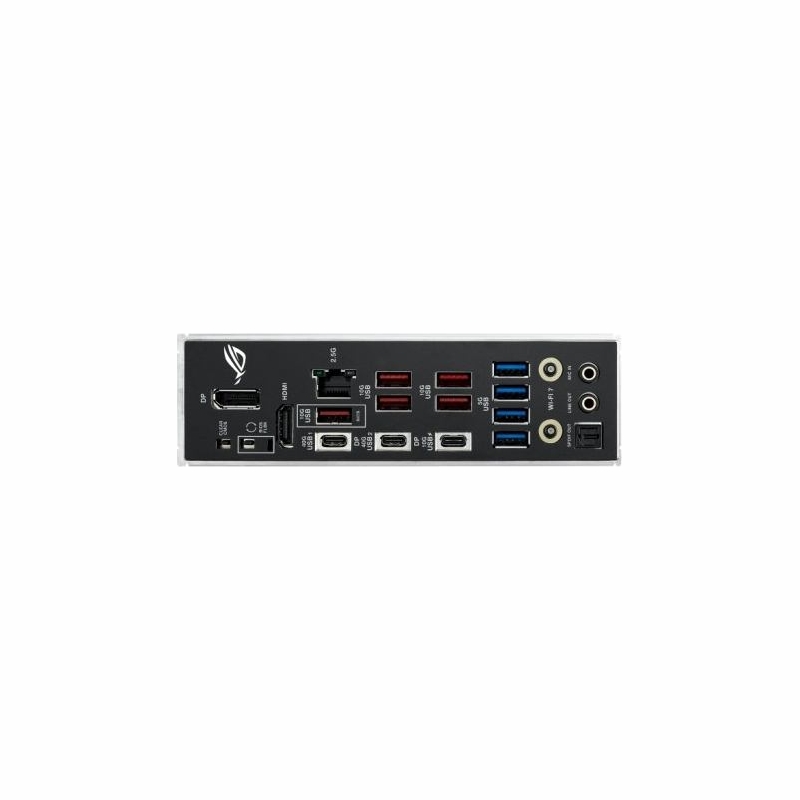

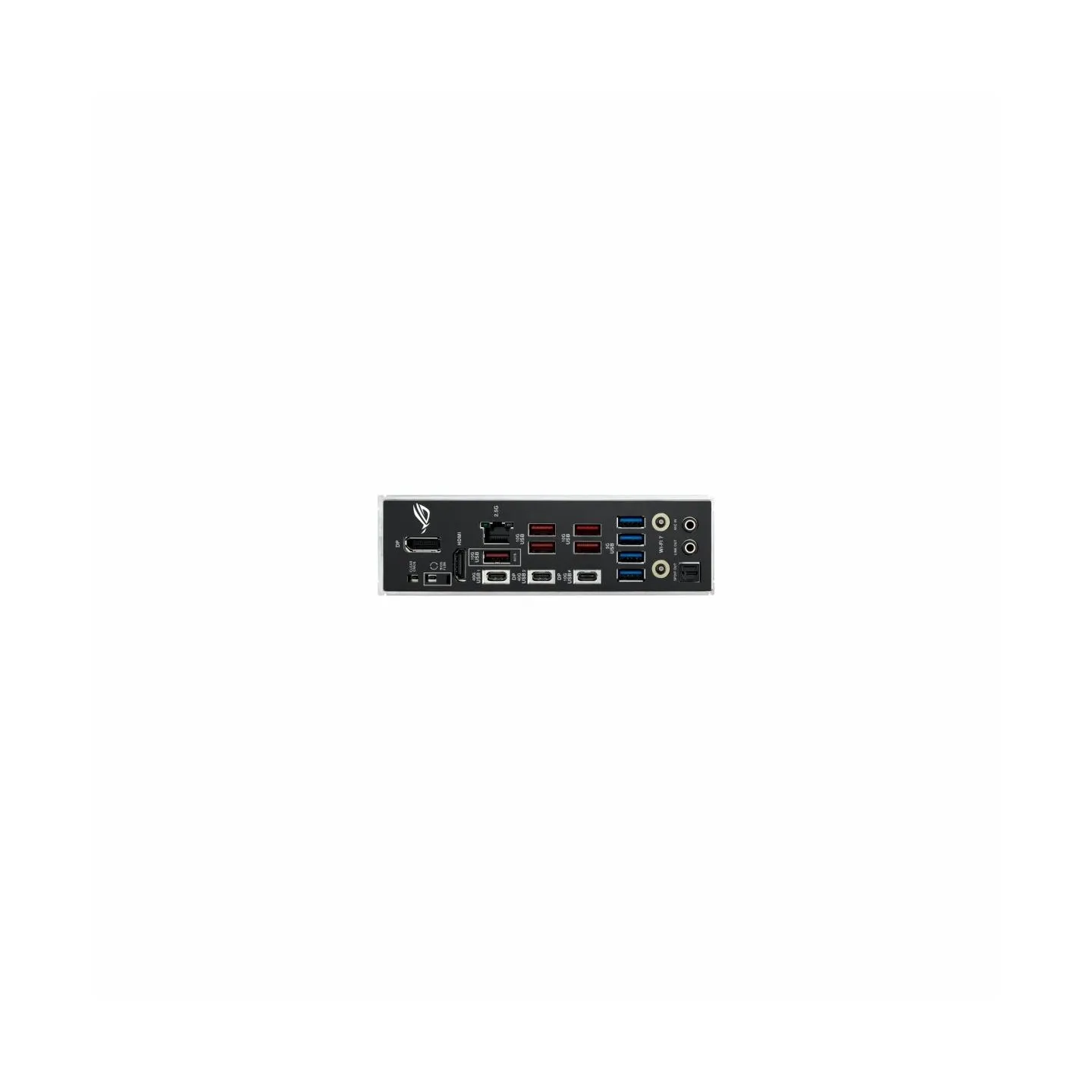

External connectors
1 x HDMI
External connectors
5 x USB 3.1
External connectors
1 x USB 3.1 Type-C
External connectors
4 x USB 3.0
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
1 x Line Out (front)
External connectors
1 x MIC (front)
External connectors
1 x DisplayPort
External connectors
2 x USB4 Type-C
External connectors
1 x Przycisk Clear CMOS
External connectors
1 x Flash BIOS Button
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
5 x 4pin Chassis fan
Onboard connectors
1 x USB C
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x System panel header
Onboard connectors
4 x M.2
Onboard connectors
2 x SATA III 6Gb/s
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x CPU mode switch
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
1x CPU/DRAM overvoltage jumper
Onboard connectors
3 x Addressable LED
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm

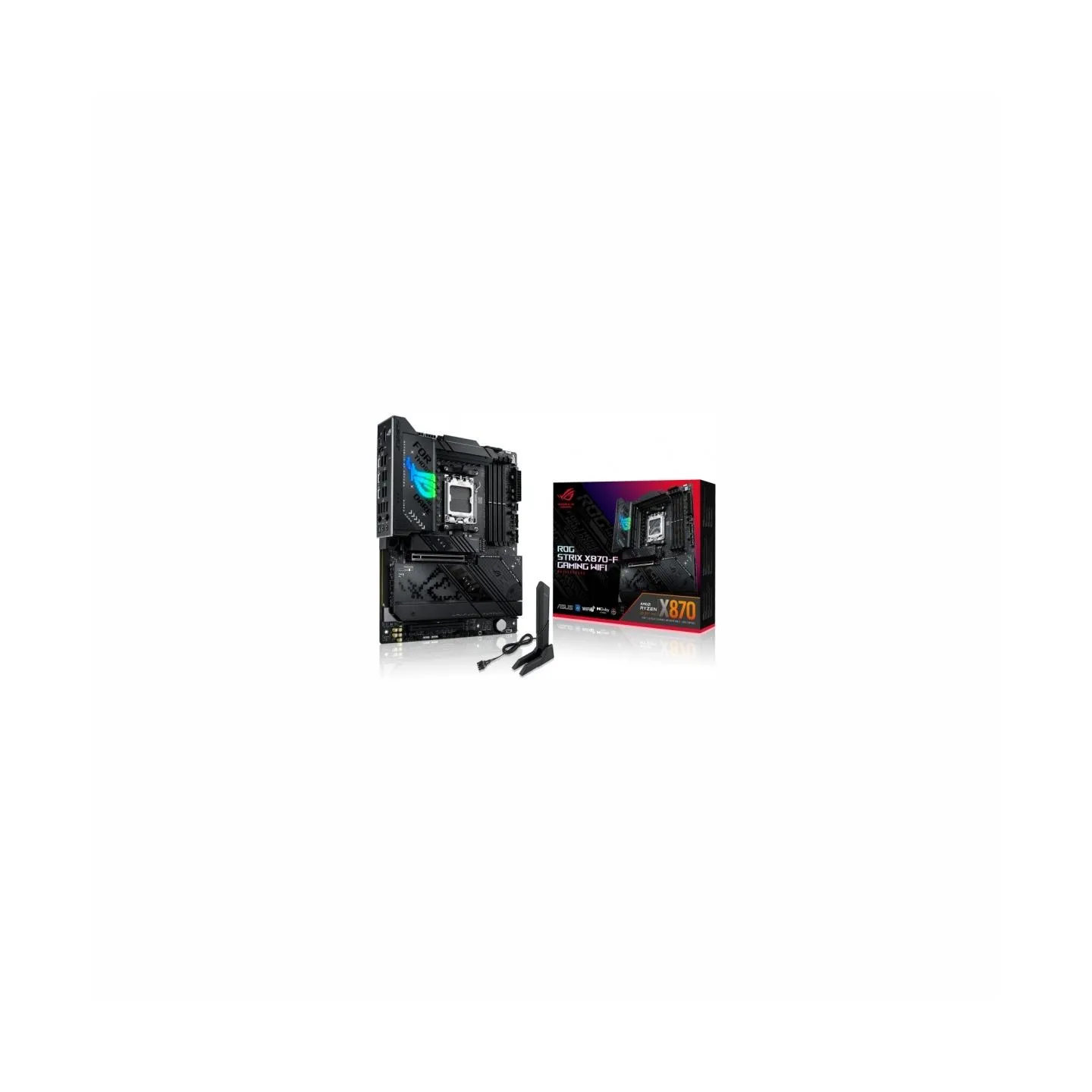

Accessories included

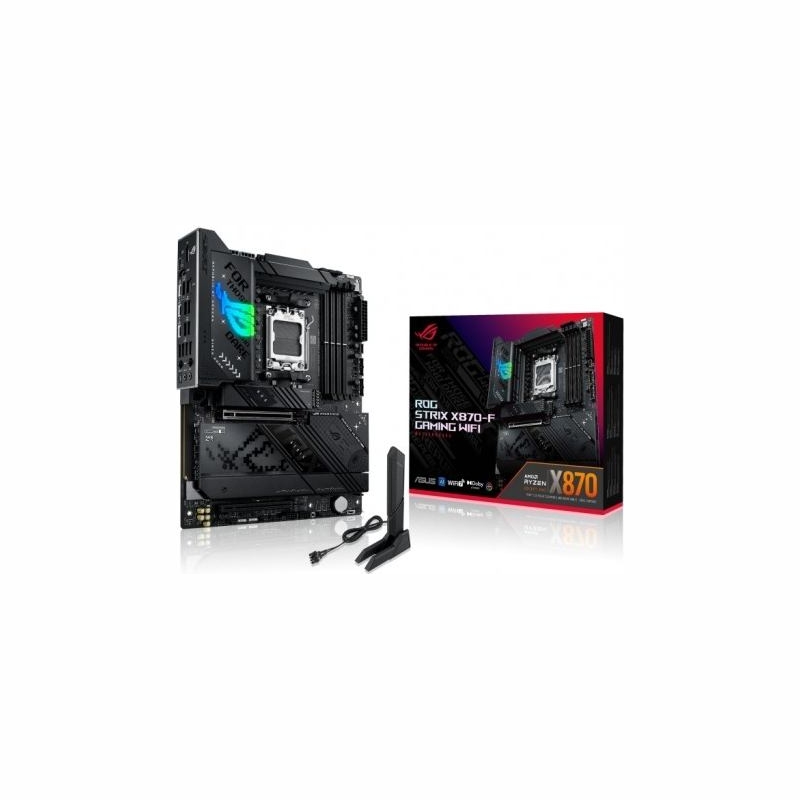

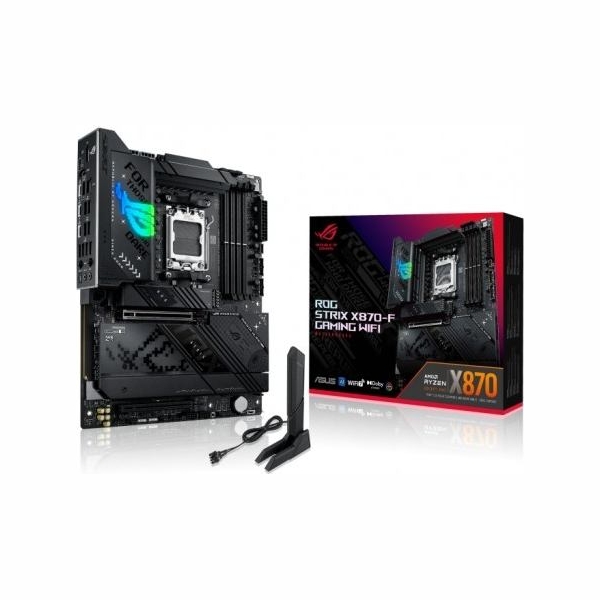

2 x SATA 6Gb/s Cables M.2 22110 Thermal Pad ASUS WiFi Q-Antenna Cable Tie Pack M.2 Q-Latch Pack M.2 Q-Slide Pack ROG Keychain ROG Strix Stickers 4 x M.2 Rubber Packs Quick Start Guide
Supported operating systems
Windows 11
Software
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive SoftwareArmory Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)-GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXUSB Wattage WatcherTurboV CoreAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyDynamic OC SwitcherFlexKey
