CPU: 1 x M.2 connector (Socket 3, M key, supports 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, supports 22110/2280 PCIe 4.0 x4/x2 SSD) (M2B_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, supports 22110/2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, supports 22110/2280 SATA and PCIe 4.0 x4/x2 SSD) (M2M_SB) 4 x SATA 6Gb/s connector RAID support 0, RAID 1, RAID 5, and RAID 10 for NVMe SSD storage devicesSupport for RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Graphics
Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz. Support DisplayPort 2.1 version. (Graphics specifications may vary depending on processor support.)
Sound card
Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel
10
USB ports on motherboard
7
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
3
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

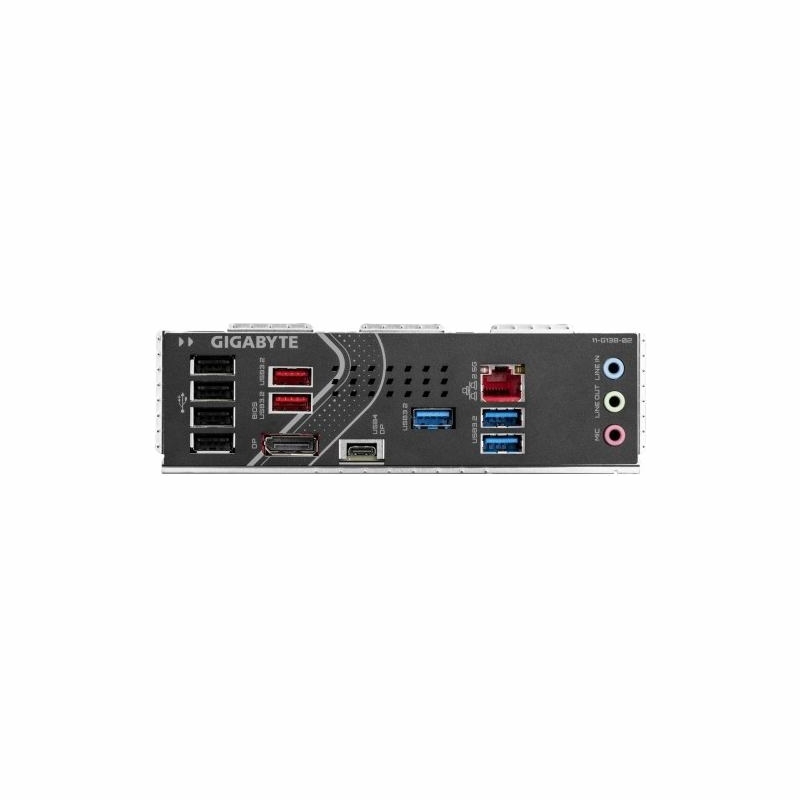

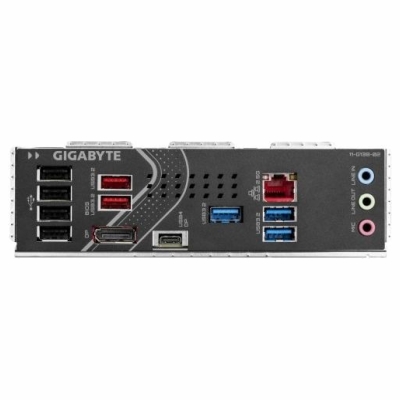

External connectors
1 x MIC
External connectors
1 x Line Out
External connectors
3 x USB 3.2 Gen 1 Type-A
External connectors
2 x USB 3.2 Gen 2 Type-A
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
1 x Line In
External connectors
1 x DisplayPort
External connectors
1 x USB4 Type-C
External connectors
2 x SMA
Onboard connectors
1 x Power button
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
2 x Thunderbolt
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x 4pin Chassis fan
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Reset button
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Q-Flash Plus button
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
BIOS
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
