Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
Graphics
Supports AMD 2-Way CrossFireX Technology
Sound card
Realtek ALC887 7.1-Channel High Definition Audio CODEC
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek RTL8111H ASUS LANGuard
USB ports at back panel
8
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

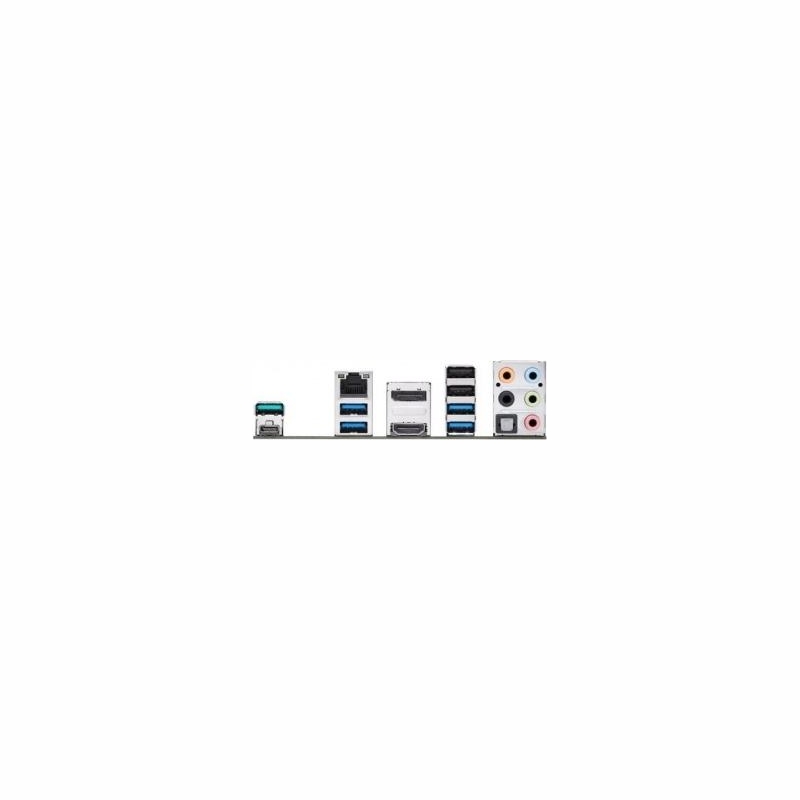

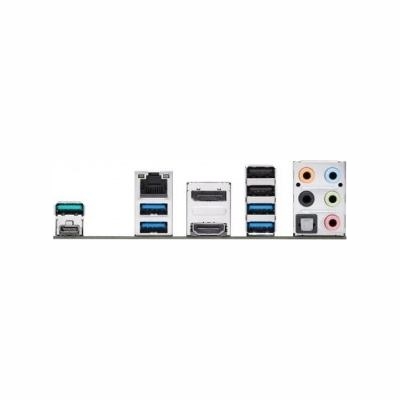

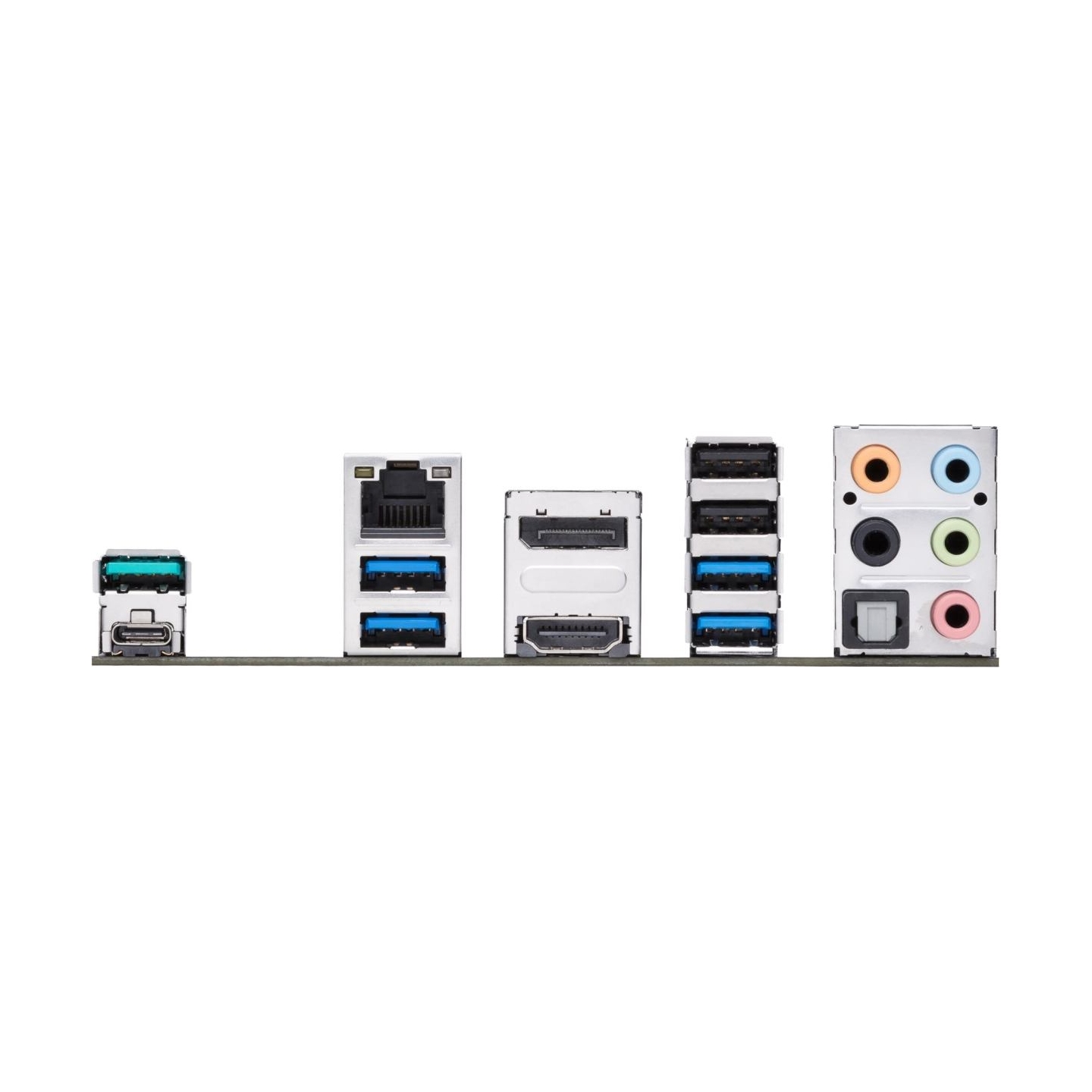

External connectors
1 x DisplayPort
External connectors
1 x USB 3.1 Type-C
External connectors
1 x Side Speaker
External connectors
1 x Rear Speaker
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
4 x USB 3.0
External connectors
1 x HDMI
External connectors
1 x USB 3.1
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Thunderbolt header
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
6 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
2 x M.2
Onboard connectors
1 x Serial port header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Accessories included

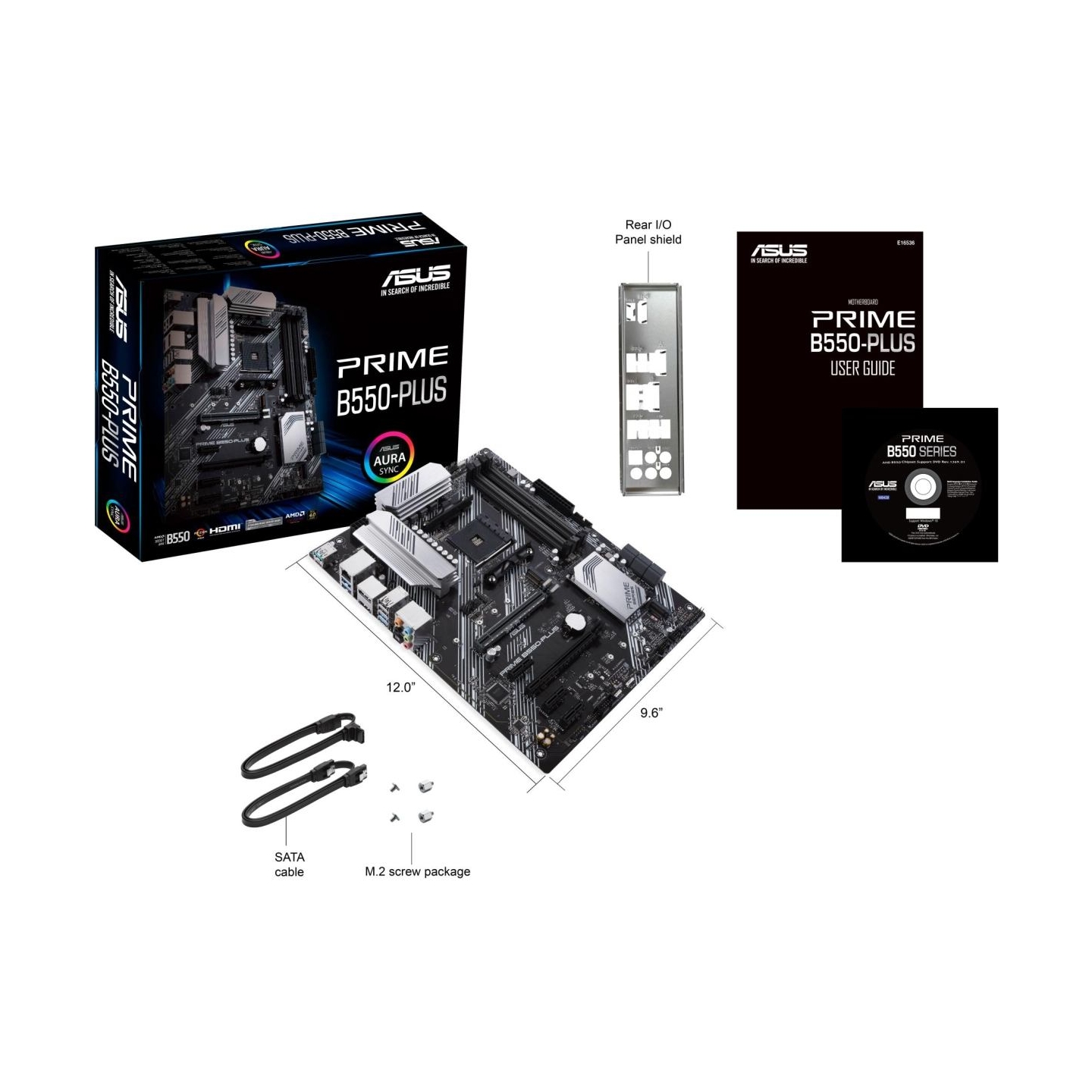

User manual 2 x SATA 6 Gb / s cable DVD M.2 SSD screw pack
