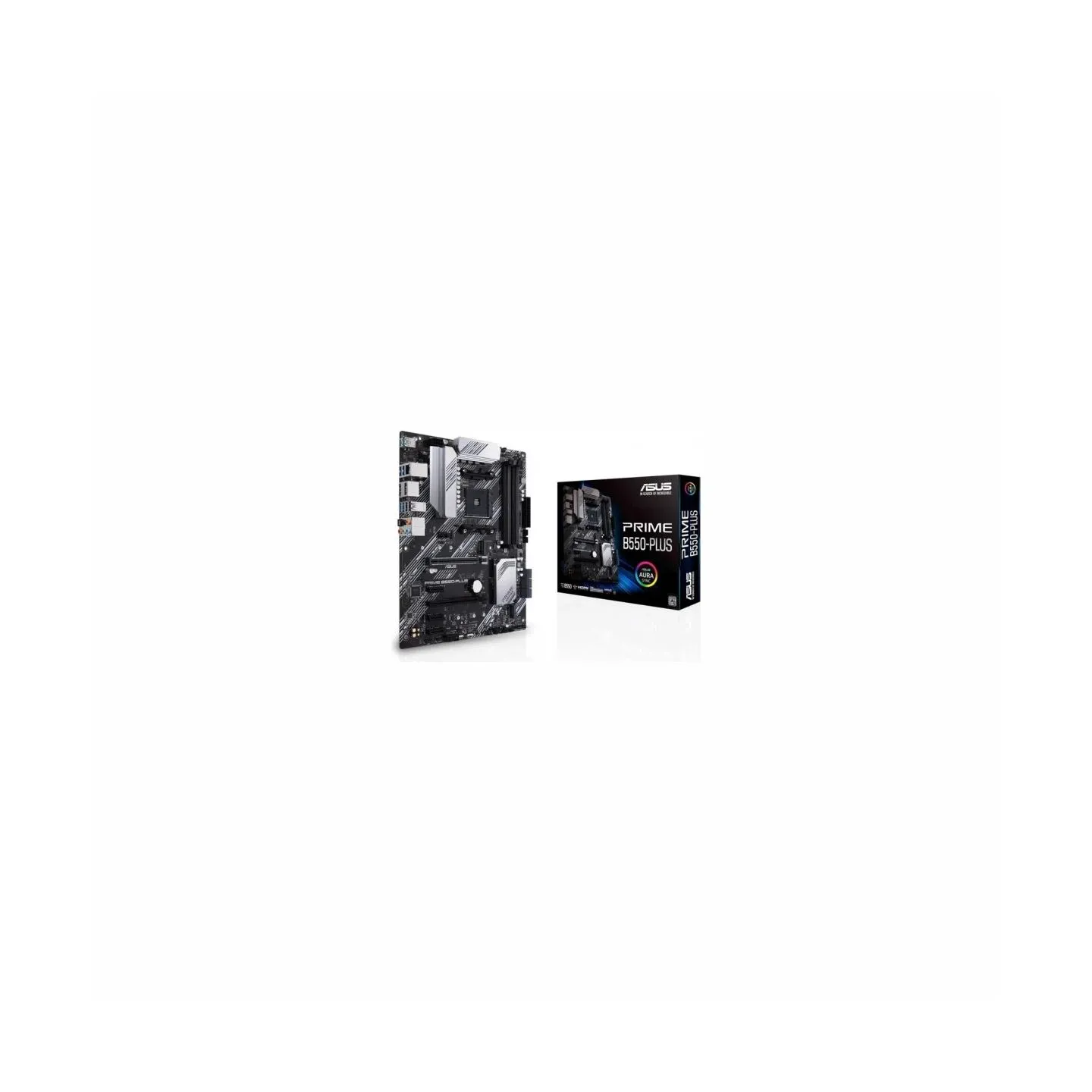

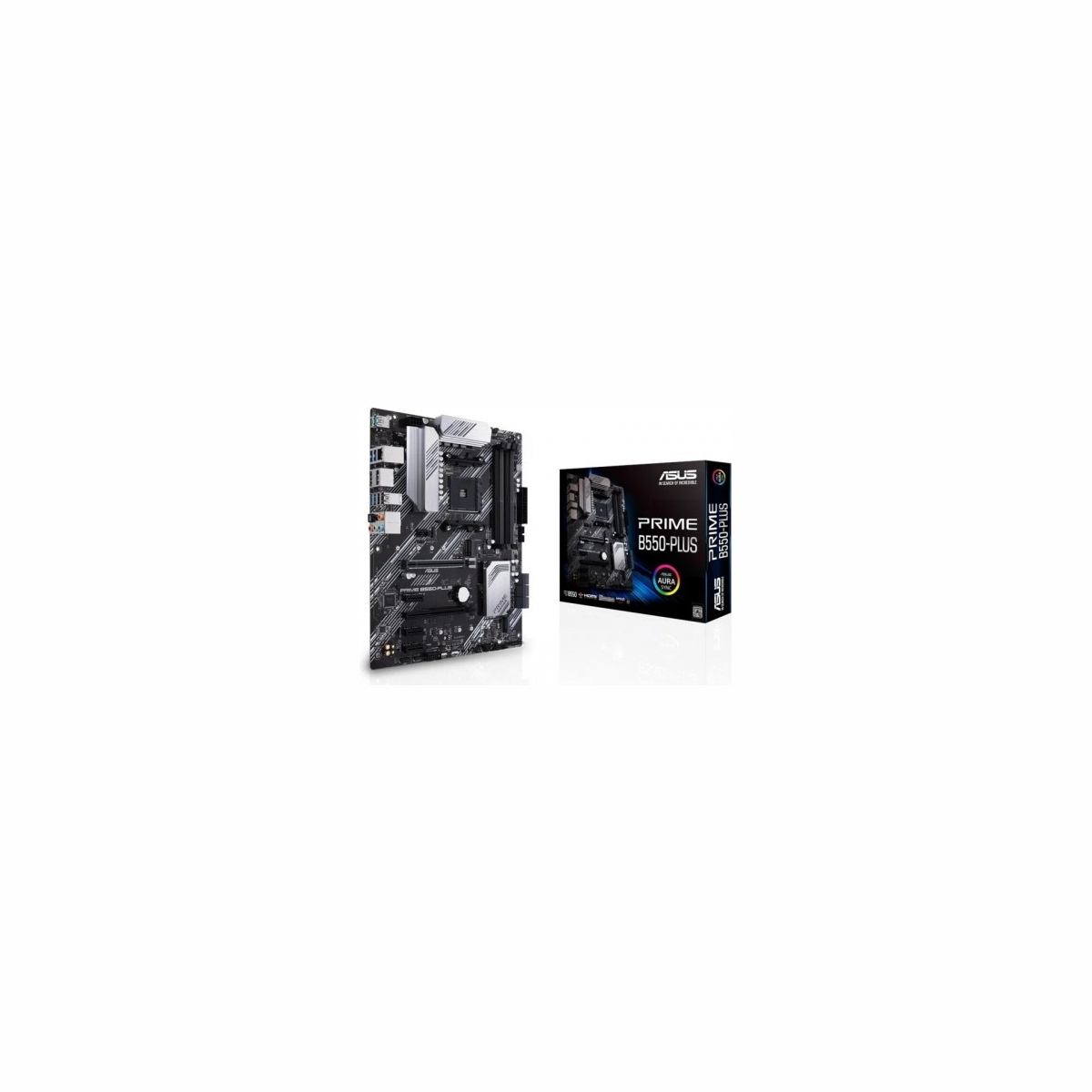

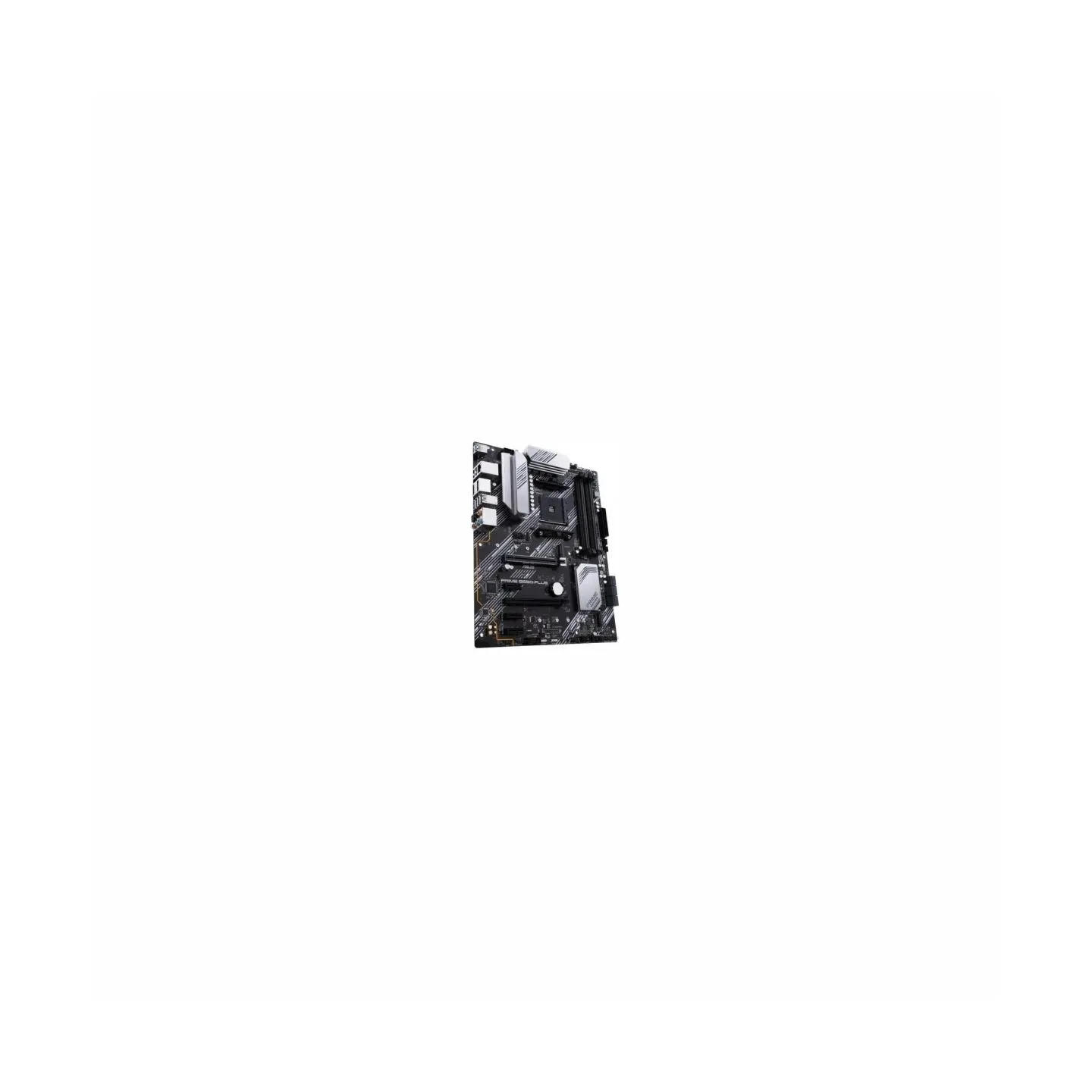

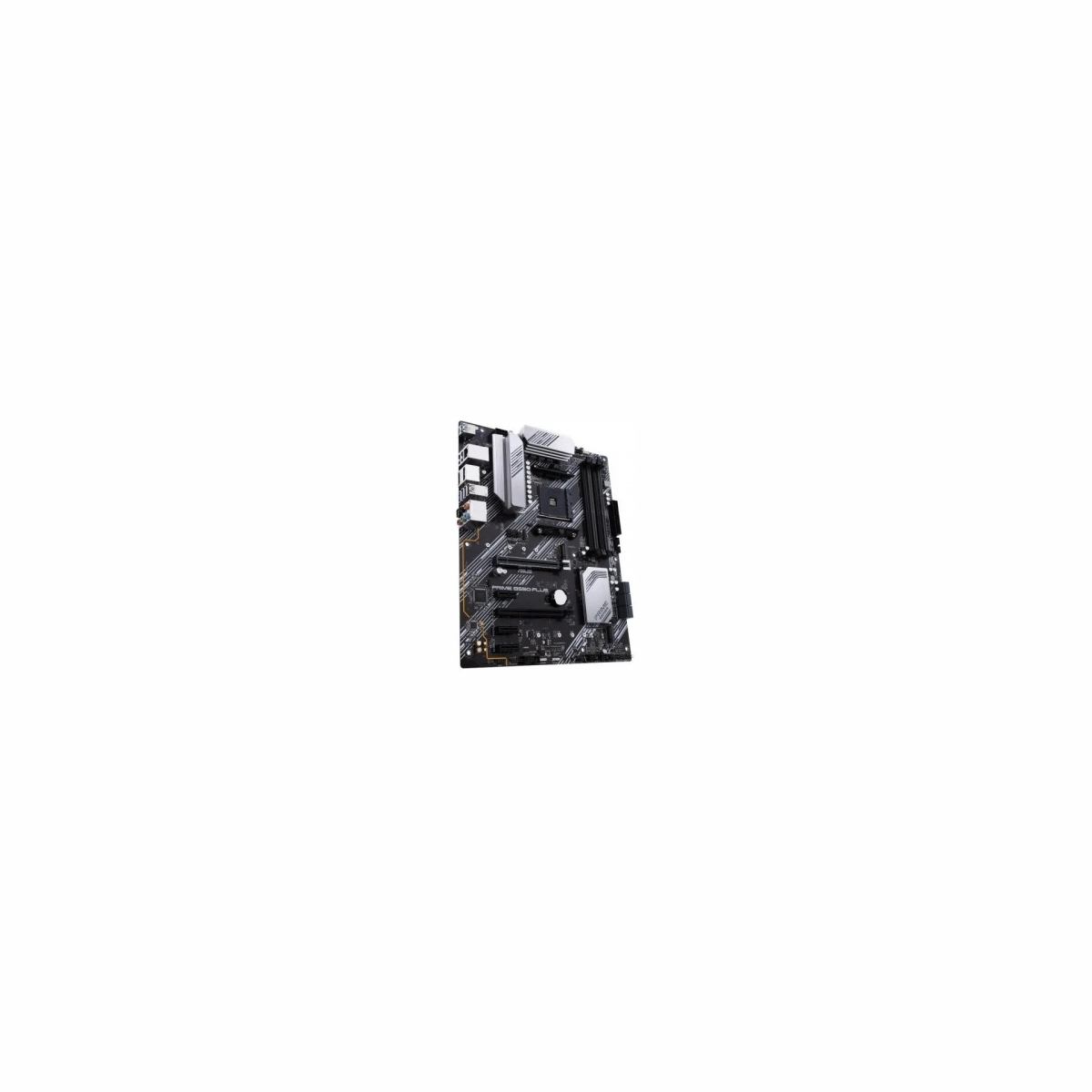

Asus Motherboard PRIME B550-PLUS AM4 4DD R4 HDMI/DP M.2 ATX
Price:
€170.66
Tax included
Share on
- SKU
- KBASUAA7B550A03
- Barcode
- 4718017782340
- Model
- PRIME B550-Plus
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 3300 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 2800 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 4600 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 3 x PCIe 3.0 x 1
- Max. number of SATA devices
- 6
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) AMD B550 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 10
- Graphics
- Supports AMD 2-Way CrossFireX Technology
- Sound card
- Realtek ALC887 7.1-Channel High Definition Audio CODEC
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek RTL8111H ASUS LANGuard
- USB ports at back panel
- 8
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No

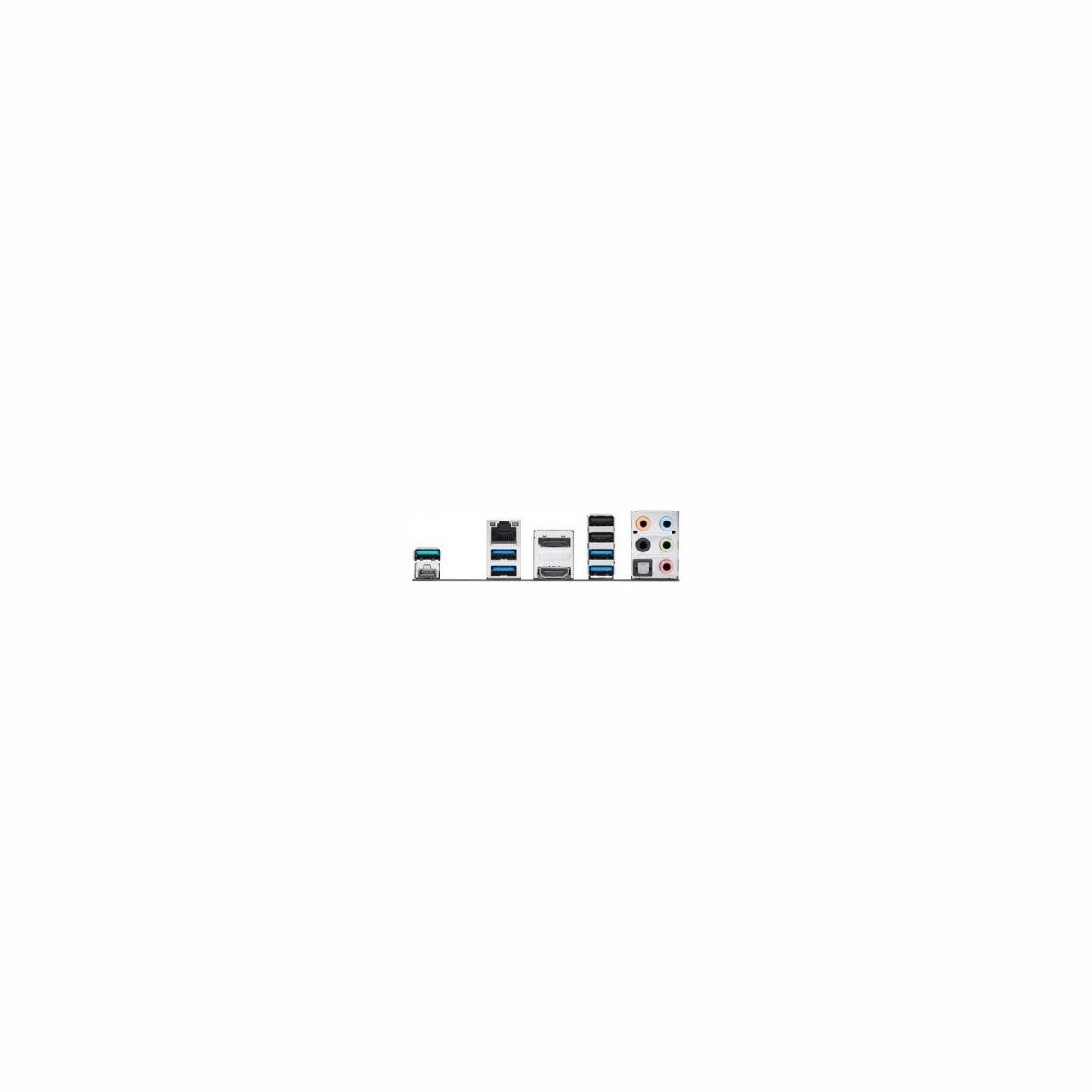

- External connectors
- 1 x DisplayPort
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x Side Speaker
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x HDMI
- External connectors
- 1 x USB 3.1
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Thunderbolt header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 6 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.0 header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Thermal sensor connector
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 1 x Serial port header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- User manual 2 x SATA 6 Gb / s cable DVD M.2 SSD screw pack
- Supported operating systems
- Windows 10
- Designation
- CE+WEEE
