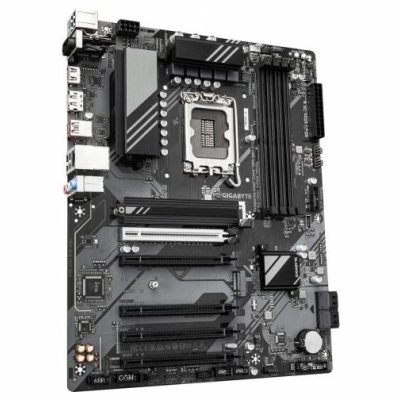

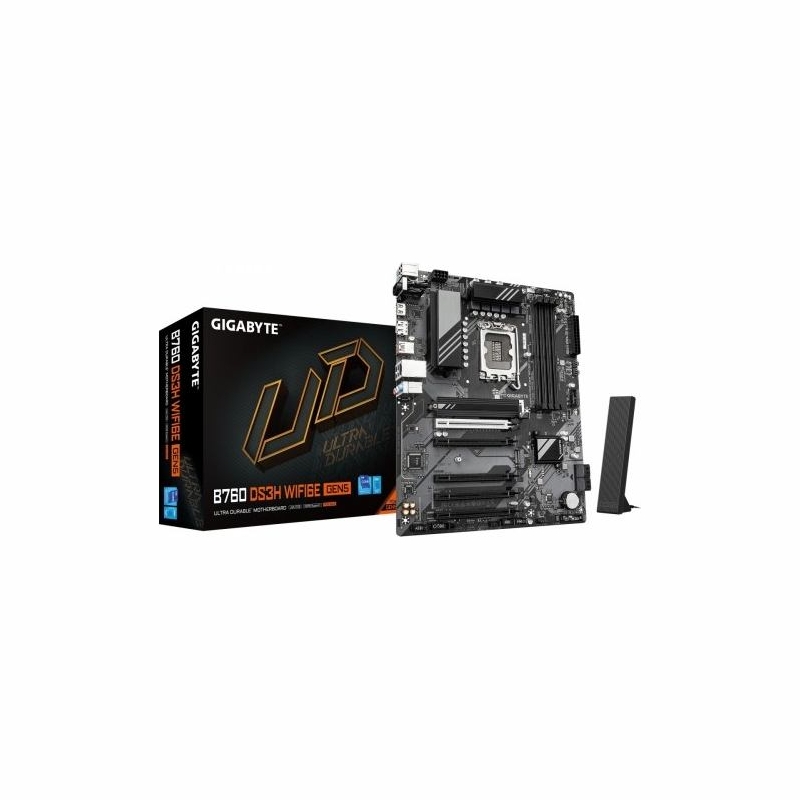

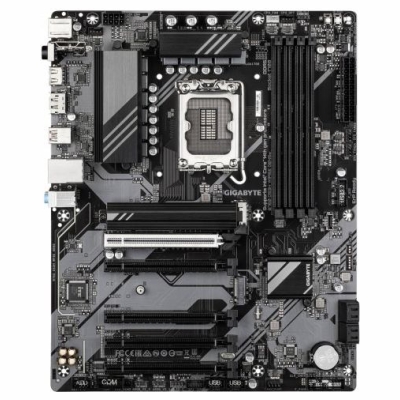

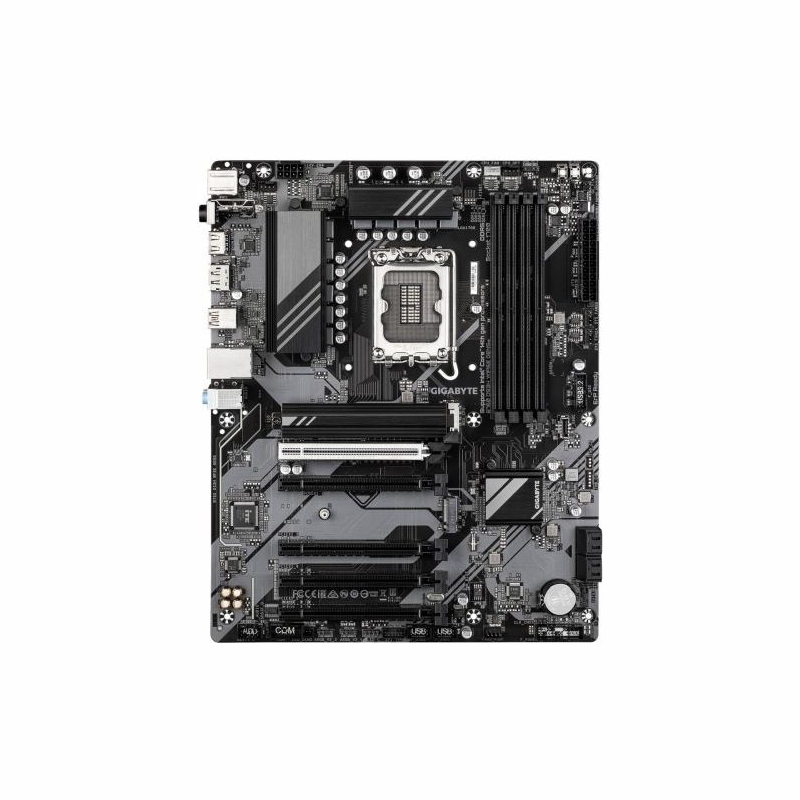

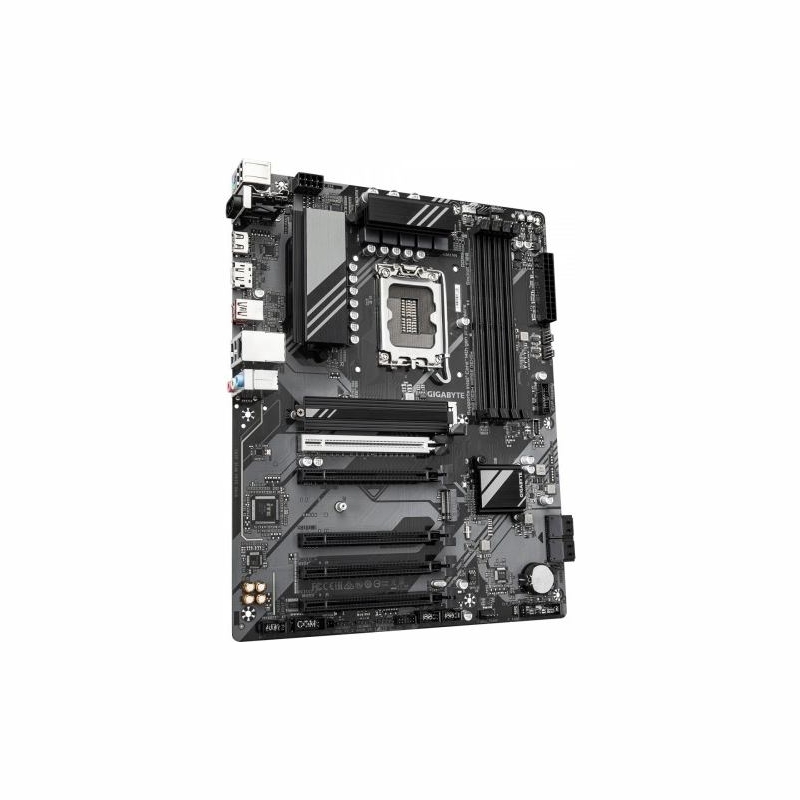

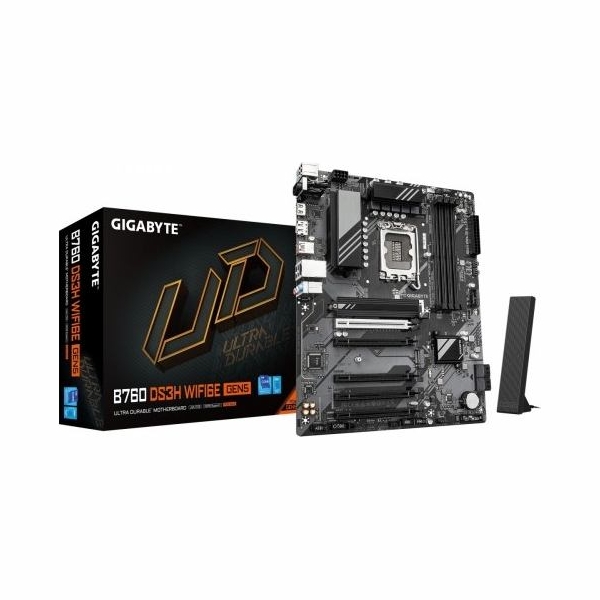

Gigabyte Motherboard B760 DS3H WF6E GEN5 s1700 4DDR5 HDMI/DP ATX

Gigabyte Motherboard B760 DS3H WF6E GEN5 s1700 4DDR5 HDMI/DP ATX

Write a review

€176.56

Tax included

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU: KBGBAIIEB760A12
Barcode: 4719331872939
Model: B760 DS3H
CPU socket: LGA1700
Processor family: Intel Celeron
Processor family: Intel Pentium
Processor family: Intel Core
Generation: Twelve
Generation: Thirteenth
Generation: Fourteenth
Integrated CPU: No
Chipset manufacturer: Intel
Chipset type: Intel B760 Express Chipset
Memory type: DDR5
Number of DDR5 slots: 4
Memory bus frequency: 6400 MHz
Memory bus frequency: 6200 MHz
Memory bus frequency: 5200 MHz
Memory bus frequency: 5400 MHz
Memory bus frequency: 5600 MHz
Memory bus frequency: 5800 MHz
Memory bus frequency: 6000 MHz
Memory bus frequency: 6600 MHz
Memory bus frequency: 6800 MHz
Memory bus frequency: 7000 MHz
Memory bus frequency: 7200 MHz
Memory bus frequency: 7400 MHz
Memory bus frequency: 7600 MHz
Memory bus frequency: 4800 MHz
Memory bus frequency: 4000 MHz
Max memory size: 256
Expansion slots: 4 x PCIe 3.0 x 1
Expansion slots: 1 x PCIe 5.0 x 16
Max. number of SATA devices: 4
RAID: Yes
Detailed data on disk/drive interfaces: CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Sound card: Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Network interface: Bluetooth
Network interface: Wi-Fi 802.11a/b/g/n/ac/ax
Network interface: 1 x 10/100/1000 Mbit/s
Network interface: LAN: Realtek GbE LAN chip (1 Gbps/100 Gbps/10 Mbps) Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard
USB ports at back panel: 6
USB ports on motherboard: 3
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports: 3
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports: 2
FireWire (IEEE 1394): No
COM connector / port: No
LPT connector / port: No

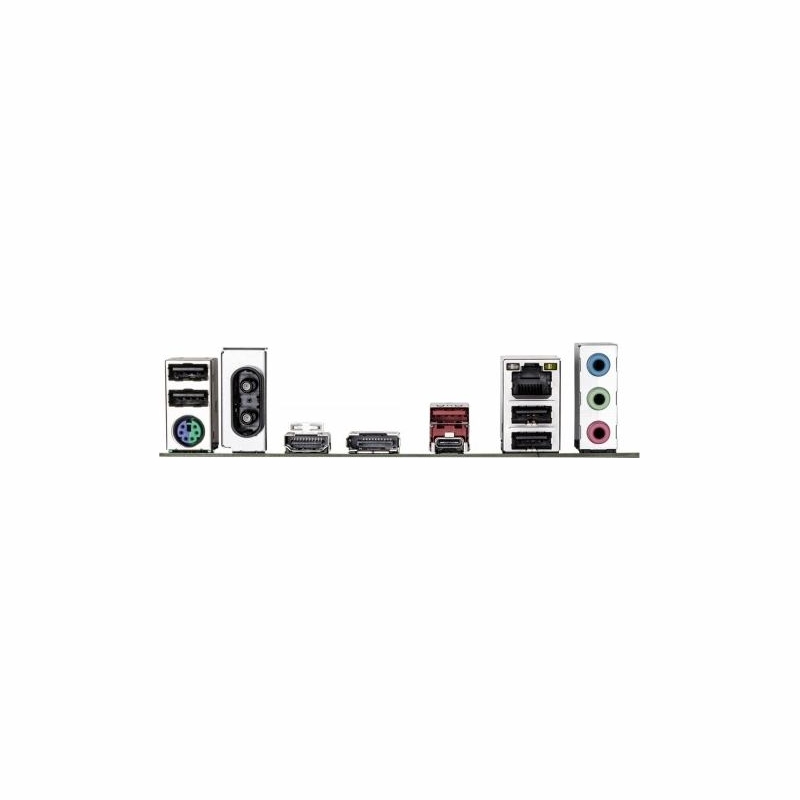

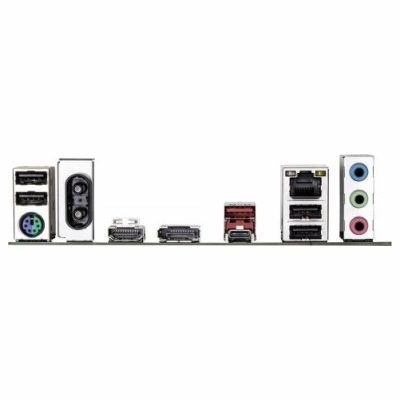

External connectors: 4 x USB 2.0
External connectors: 1 x USB 3.2 Gen 2 Type-C
External connectors: 1 x USB 3.2 Gen 2 Type-A
External connectors: 1 x Line Out
External connectors: 1 x MIC
External connectors: 1 x RJ-45
External connectors: 1 x PS/2 Keyboard/MouseCombo
External connectors: 1 x DisplayPort
External connectors: 1 x HDMI
External connectors: 1 x Line In
External connectors: 2 x SMA
Onboard connectors: 1 x 24pin ATX zasilanie
Onboard connectors: 3 x Addressable LED
Onboard connectors: 1 x S/PDIF Out header
Onboard connectors: 2 x M.2
Onboard connectors: 2 x USB 2.0/1.1 header
Onboard connectors: 1 x USB 3.2 Gen 1 Type-A
Onboard connectors: 1 x USB 3.2 Gen 1 Type-C
Onboard connectors: 1 x TPM header
Onboard connectors: 1 x System panel header
Onboard connectors: 1 x Front panel audio header
Onboard connectors: 1 x 8pin 12V power
Onboard connectors: 1 x 4pin CPU fan
Onboard connectors: 1 x 4pin wentylator OPT CPU
Onboard connectors: 1 x Reset button
Onboard connectors: 1 x Q-Flash Plus button
BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor: ATX
Dimensions: 30.5 x 24.4 cm
Supported operating systems: Windows 11
Supported operating systems: Windows 10
Software: Norton Internet Security (OEM version) LAN bandwidth management software
Designation: CE+WEEE
