PROCESSOR: 1 x M.2 connector (Socket 3, M key, supports 2580 PCIe 4.0 x4/x2 SSDs) Chipset: 4 SATA 6 Gb/s connectors RAID 0, RAID 1 and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1 and RAID 10 support for SATA storage devices
Graphics
Integrated graphics processor: 1 x D-Sub port supporting a maximum resolution of 1920x1200@60 Hz 1 x DisplayPort supporting a maximum resolution of 3840x2160 at 144 Hz * Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz * Support HDMI 2.1 and HDCP 2.3 versions. ** Support for native HDMI 2.1 TMDS compliant ports. (Graphics specifications may vary depending on processor support.) Support for up to 3 displays simultaneously
Sound card
Realtek audio CODEC High quality sound 2/4/5.1/7.1-channel * You can change the functionality of the audio jack using audio software. To configure 7.1 channel audio, go to your audio software for audio settings.
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel
6
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

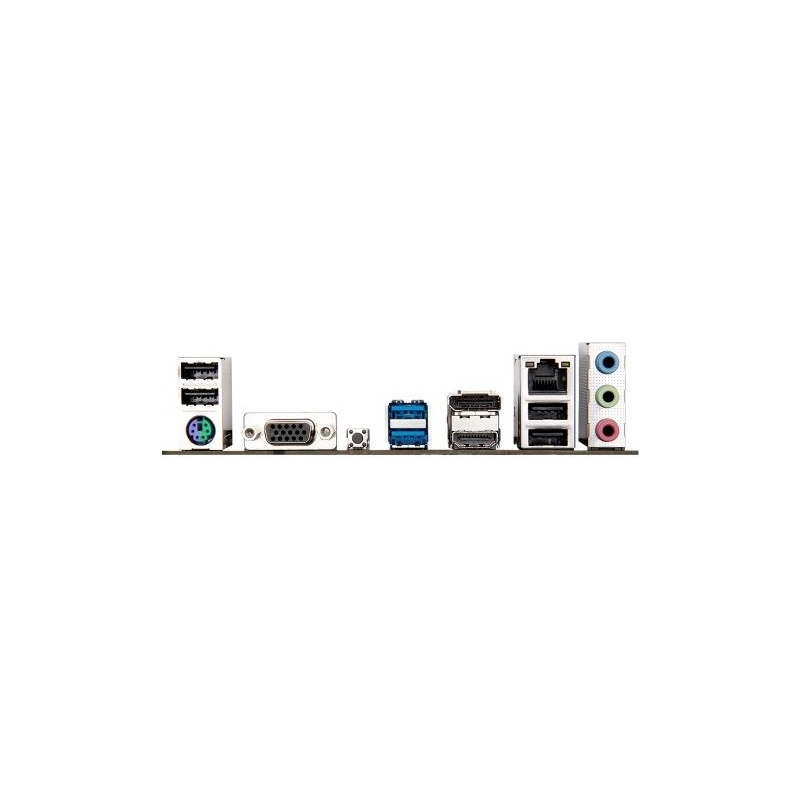

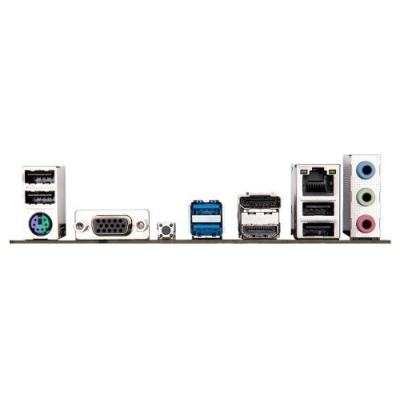

External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
2 x USB 3.0
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x D-Sub
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x M.2
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
micro ATX
Dimensions
23 x 22.5 cm
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Other information
GIGABYTE Control Center (GCC) Support * Available applications in GCC may vary depending on the motherboard model. The supported features of each application may also vary depending on the motherboard specifications. Q-Flash support Support for Q-Flash Plus
