Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Graphics
1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs
Sound card
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel Audio Features: SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors - Audio cover
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless: Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
USB ports at back panel
9
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
1 x Przycisk Clear CMOS
External connectors
1 x Flash BIOS Button
External connectors
1 x USB 3.2 Gen 2x2 Type-C
External connectors
1 x Thunderbolt 4
External connectors
1 x USB 3.2 Gen 2 Type-A
External connectors
1 x HDMI
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
6 x USB 3.2 Gen 1 Type-A
External connectors
1 x Wi-Fi Module
External connectors
1 x DisplayPort
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x Power button
Onboard connectors
1 x Thermal sensor connector
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x System panel header
Onboard connectors
1 x 4-pin water-pump-fan
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x Thunderbolt header
Onboard connectors
4 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
3 x USB 2.0/1.1 header
Onboard connectors
4 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Accessories included

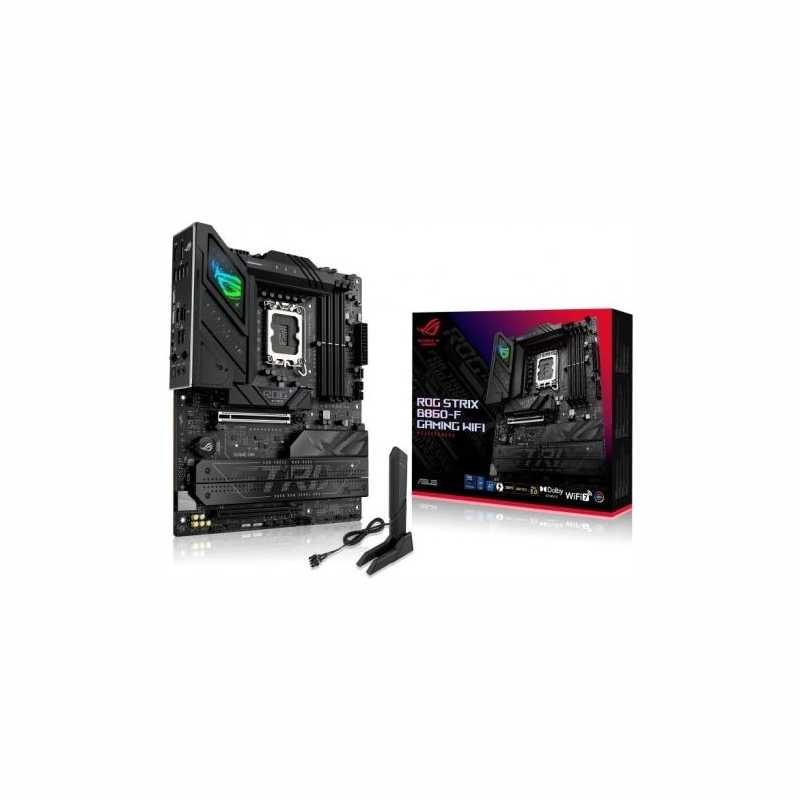

2 x SATA 6Gb/s cable ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch package M.2 Q-Slide package ROG key chain ROG Strix stickers 4 x M.2 rubbers Quick start guide
Supported operating systems
Windows 11
Software
ROG Exclusive Software ROG CPU-Z Dolby Atmos ASUS Exclusive Software Armoury Crate Aura Creator Aura Sync Fan Xpert 4 GameFirst Power Saving ASUS Driver Hub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey
