CPU 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Graphics
1 x DisplayPort, supporting a maximum resolution of 3840 x 2160 at 144 Hz Support for DisplayPort version 1.4. 1 x HDMI port supporting a maximum resolution of 4096x2160 at 60 Hz Support for HDMI 2.1 and HDCP 2.3 versions. Supports native HDMI 2.1 TMDS compatible ports. 1 x D-Sub port supporting a maximum resolution of 1920x1200 at 60 Hz
Sound card
Realtek audio codec High Definition Audio Support Number of audio channels 2/4/5.1/7.1
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
USB ports at back panel
6
USB ports on motherboard
4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
2
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

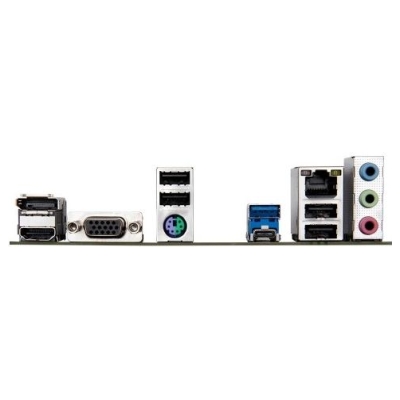

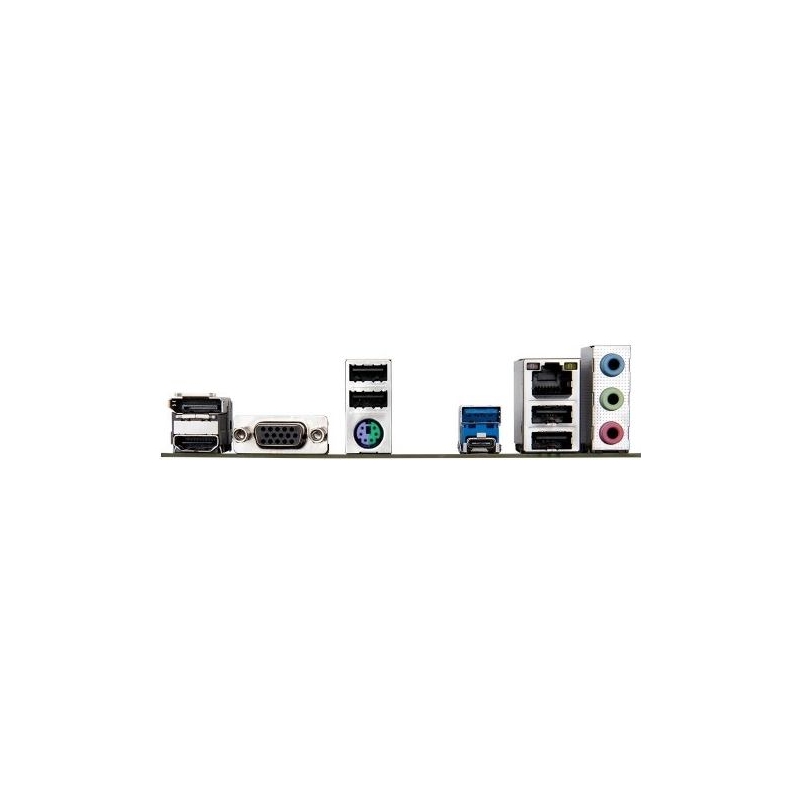

External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x USB 3.1 Type-C
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
1 x USB 3.0
External connectors
1 x DisplayPort
External connectors
1 x D-Sub
Onboard connectors
1 x TPM header
Onboard connectors
1 x USB 3.0 header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
