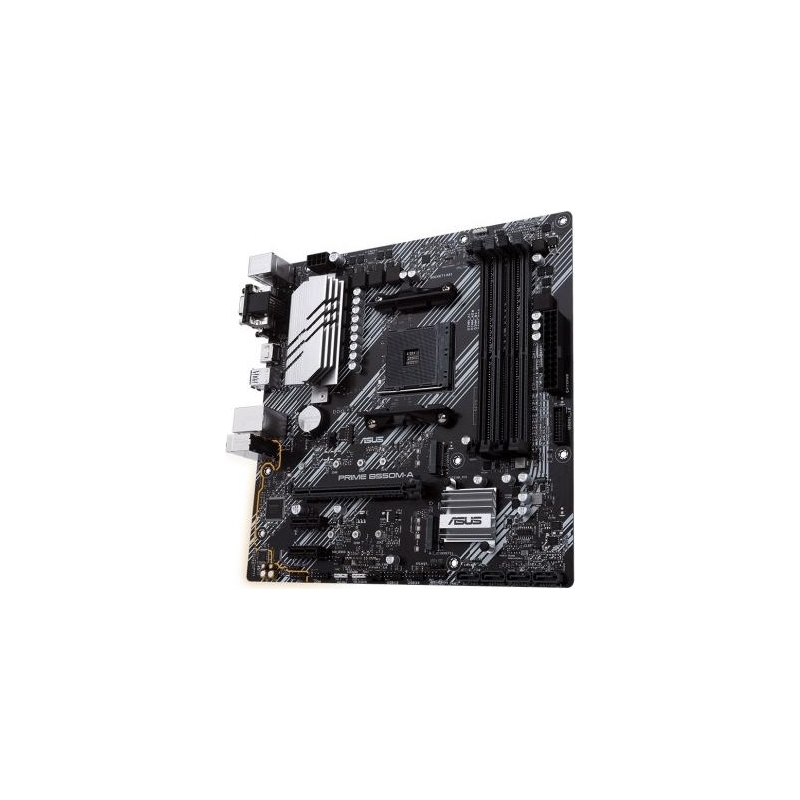

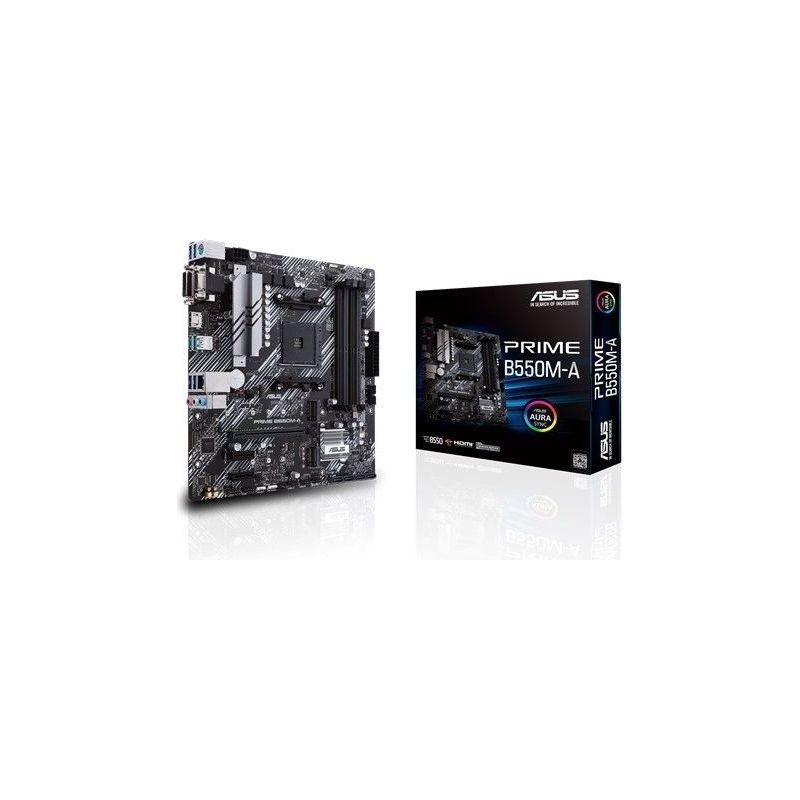

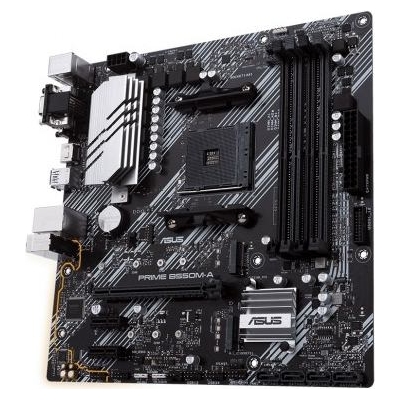

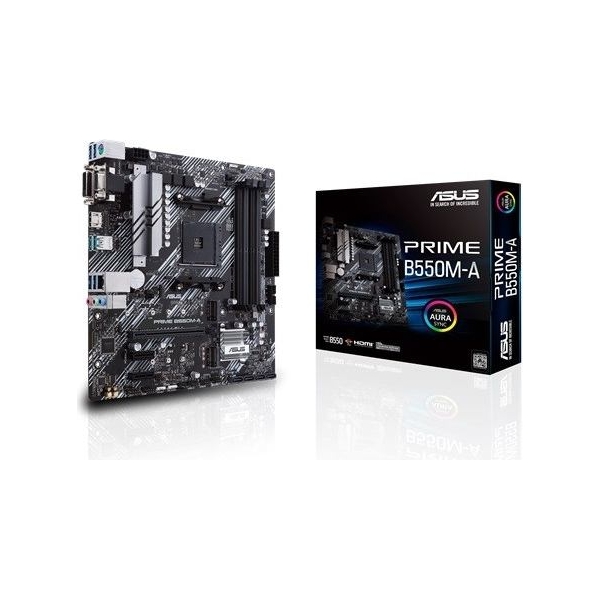

Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX
Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX
Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX
    Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX
    Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX
    Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX

Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX

€143.73
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBASUAA7B550U02
Barcode
4718017755528
Model
Prime B550M-A
CPU socket
Socket AM4
Processor family
AMD Ryzen
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD B550
Memory type
DDR4
Number of DDR4 slots
4
Memory bus frequency
4200 MHz
Memory bus frequency
4266 MHz
Memory bus frequency
4333 MHz
Memory bus frequency
4400 MHz
Memory bus frequency
4600 MHz
Memory bus frequency
4133 MHz
Memory bus frequency
4000 MHz
Memory bus frequency
3866 MHz
Memory bus frequency
3600 MHz
Memory bus frequency
3733 MHz
Memory bus frequency
3466 MHz
Memory bus frequency
3400 MHz
Memory bus frequency
3333 MHz
Memory bus frequency
3200 MHz
Memory bus frequency
3000 MHz
Memory bus frequency
2933 MHz
Memory bus frequency
2800 MHz
Memory bus frequency
2133 MHz
Memory bus frequency
2400 MHz
Memory bus frequency
4800 MHz
Memory bus frequency
4466 MHz
Memory bus frequency
2666 MHz
Memory bus frequency
4866 MHz
Max memory size
128
Expansion slots
2 x PCIe 3.0 x 1
Expansion slots
1 x PCIe 4.0 x 16
Expansion slots
1 x PCIe 3.0 x 16
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
In total, it supports 2 M.2 slots and 4 SATA 6Gb/s slots AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, support for 2242/2260/2280/22110 drives (in SATA and PCIE 3.0 x4 modes) AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, support for 2242/2260/2280 drives (in SATA and PCIE 3.0 x4 modes) 4 x SATA 6Gb/s ports, Raid 0, 1, 10 support
Graphics
D-Sub DVI-D HDMI 2.1(4K@60HZ) *GPU specifications may vary by CPU type.
Sound card
Realtek ALC887/897 7.1 Surround Sound High Definition Audio codec Operation: Jack-detection, plug-in detection, multiple streams, front panel jack reassignment Audio Options: Audio Shielding: Provides accurate analog/digital separation and greatly reduces multi-lateral interference Dedicated audio layers on the PCB: separate layers for the left and right channels to guard the quality of sensitive audio signals LED Backlit Design Brighten up your PC with great lighting modes for your soundtrack. Premium Japanese Audio Capacitors: Provides a warm, natural and deeper sound with exceptional clarity and fidelity
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Realtek RTL8111H 1Gb Ethernet
USB ports at back panel
6
USB ports on motherboard
6
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
2
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

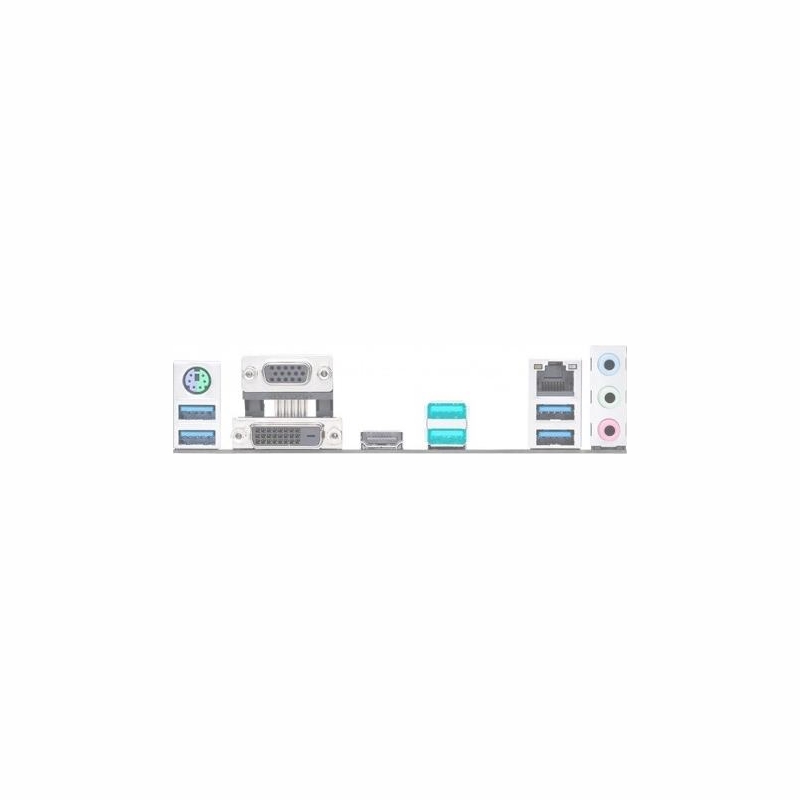

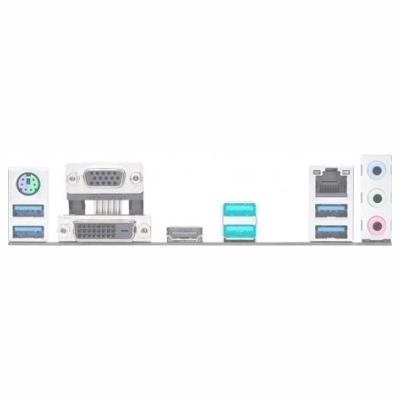

External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 3.0
External connectors
1 x DVI-D
External connectors
1 x HDMI
External connectors
1 x D-Sub
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
2 x USB 3.1
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Serial port header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
2 x 4pin Chassis fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x M.2
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
4 x USB 2.0/1.1
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x S/PDIF Out header
Onboard connectors
1 x System panel header
Onboard connectors
1 x TPM header
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
micro ATX
Dimensions
24.4  x 24.4  cm
Accessories included
2 x Serial ATA 6.0Gb/s cables I/O cover DVD user manual M.2 SSD Screw Set
Supported operating systems
Windows 10
Software
ASUS Exclusive Software AI Suite 3: Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+: EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR Armoury Crate: Aura Creator Aura Sync   UEFI BIOS ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
Designation
CE+WEEE
PRIME B550M-A
21 Items

Specific References

EAN13
4718017755528
MPN
PRIME B550M-A
New
