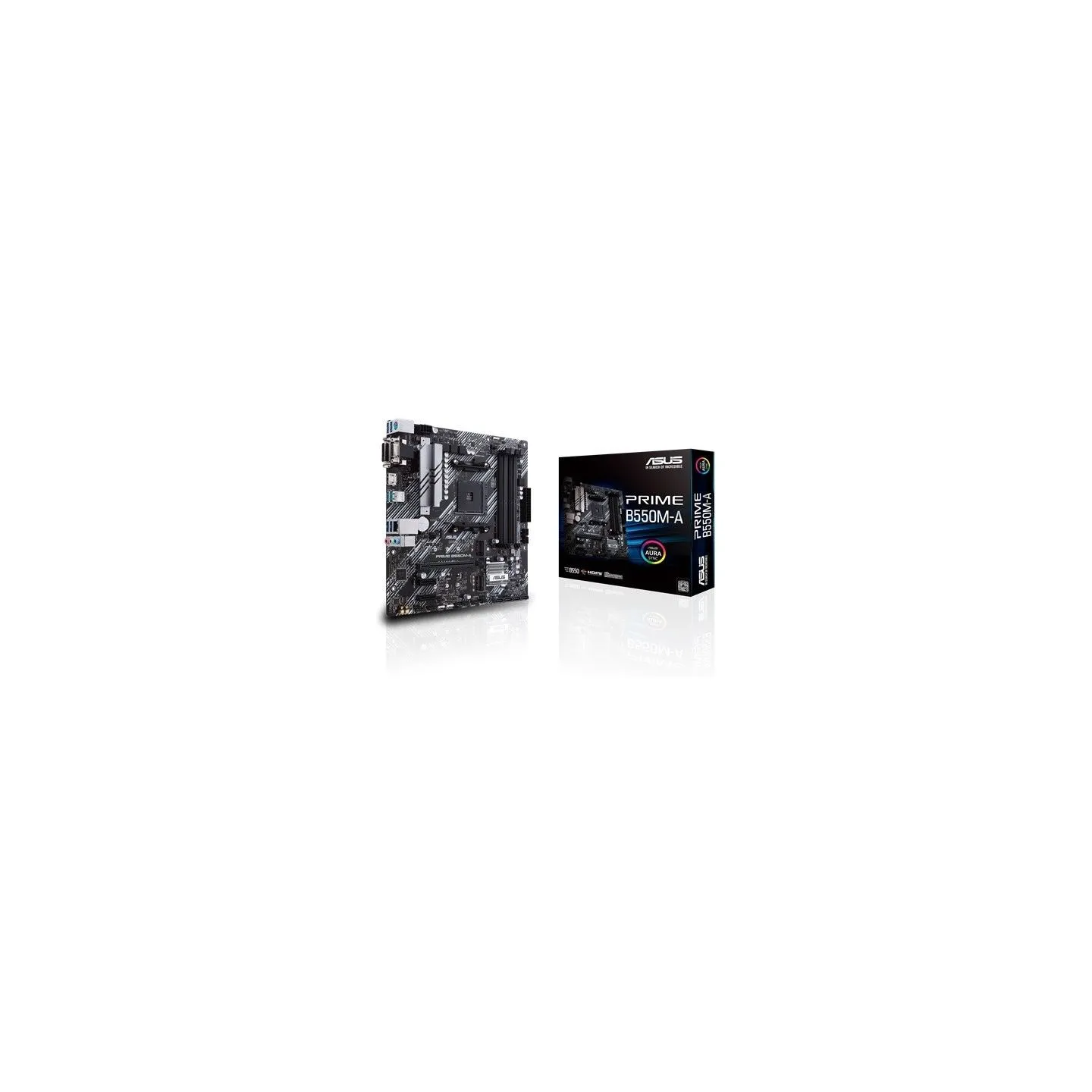

Asus Motherboard PRIME B550M-A AM4 4DDR4 DVI-D/HDMI M.2 mATX
Price:
€142.26
Tax included
Share on
- SKU
- KBASUAA7B550U02
- Barcode
- 4718017755528
- Model
- Prime B550M-A
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 4
- Memory bus frequency
- 4200 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4333 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 3866 MHz
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 3400 MHz
- Memory bus frequency
- 3333 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 3000 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 2800 MHz
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 4466 MHz
- Memory bus frequency
- 2666 MHz
- Memory bus frequency
- 4866 MHz
- Max memory size
- 128
- Expansion slots
- 2 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- In total, it supports 2 M.2 slots and 4 SATA 6Gb/s slots AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, support for 2242/2260/2280/22110 drives (in SATA and PCIE 3.0 x4 modes) AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, support for 2242/2260/2280 drives (in SATA and PCIE 3.0 x4 modes) 4 x SATA 6Gb/s ports, Raid 0, 1, 10 support
- Graphics
- D-Sub DVI-D HDMI 2.1(4K@60HZ) *GPU specifications may vary by CPU type.
- Sound card
- Realtek ALC887/897 7.1 Surround Sound High Definition Audio codec Operation: Jack-detection, plug-in detection, multiple streams, front panel jack reassignment Audio Options: Audio Shielding: Provides accurate analog/digital separation and greatly reduces multi-lateral interference Dedicated audio layers on the PCB: separate layers for the left and right channels to guard the quality of sensitive audio signals LED Backlit Design Brighten up your PC with great lighting modes for your soundtrack. Premium Japanese Audio Capacitors: Provides a warm, natural and deeper sound with exceptional clarity and fidelity
- Network interface
- 1 x 10/100/1000 Mbit/s
- Network interface
- Realtek RTL8111H 1Gb Ethernet
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- Yes
- LPT connector / port
- No
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 3.0
- External connectors
- 1 x DVI-D
- External connectors
- 1 x HDMI
- External connectors
- 1 x D-Sub
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 2 x USB 3.1
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x TPM header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- micro ATX
- Dimensions
- 24.4 x 24.4 cm
- Accessories included
- 2 x Serial ATA 6.0Gb/s cables I/O cover DVD user manual M.2 SSD Screw Set
- Supported operating systems
- Windows 10
- Software
- ASUS Exclusive Software AI Suite 3: Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+: EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR Armoury Crate: Aura Creator Aura Sync UEFI BIOS ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode
- Designation
- CE+WEEE
