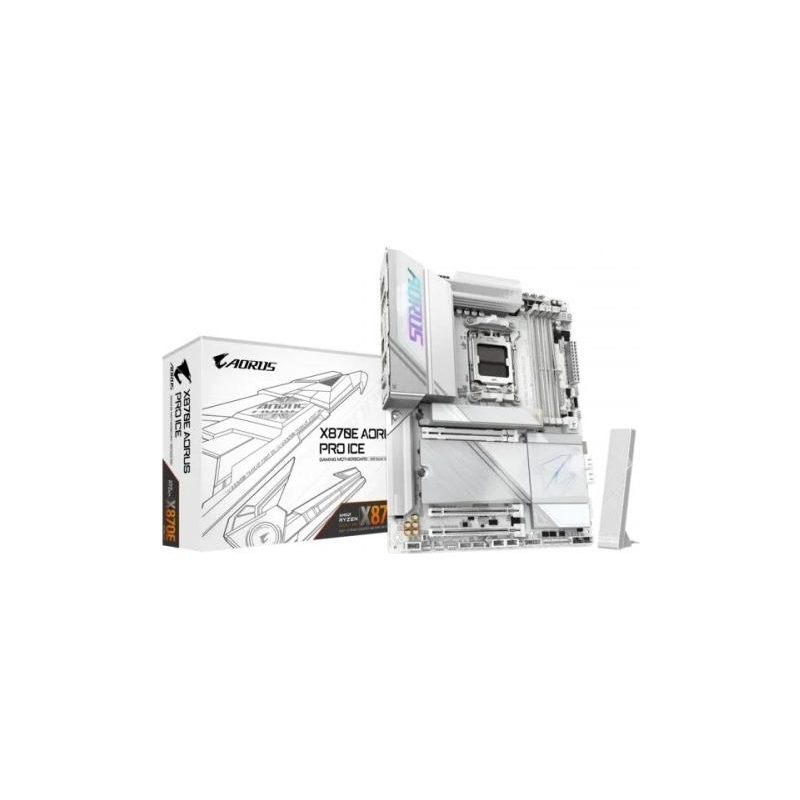

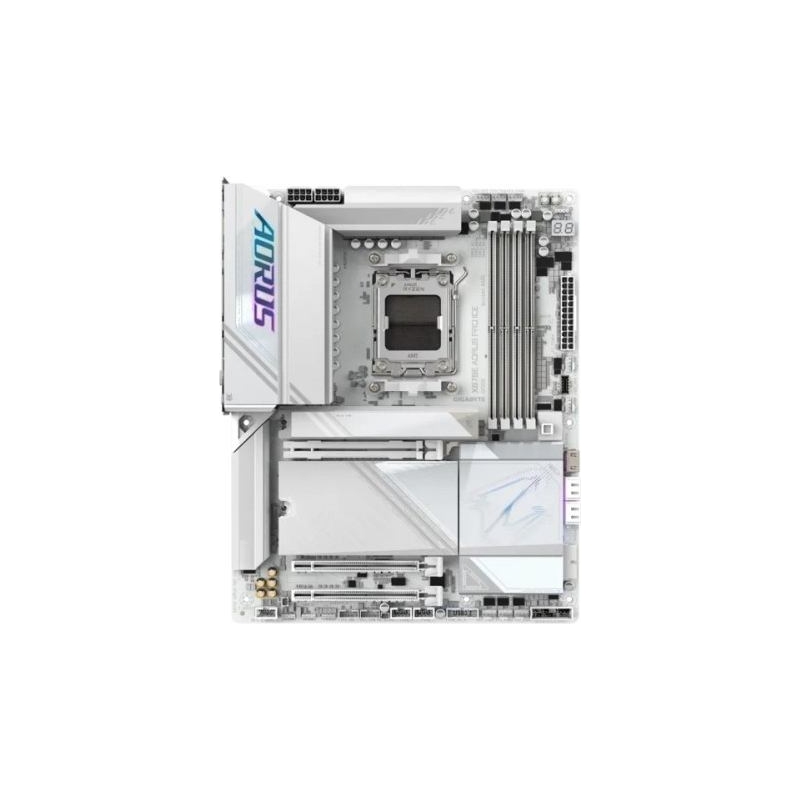

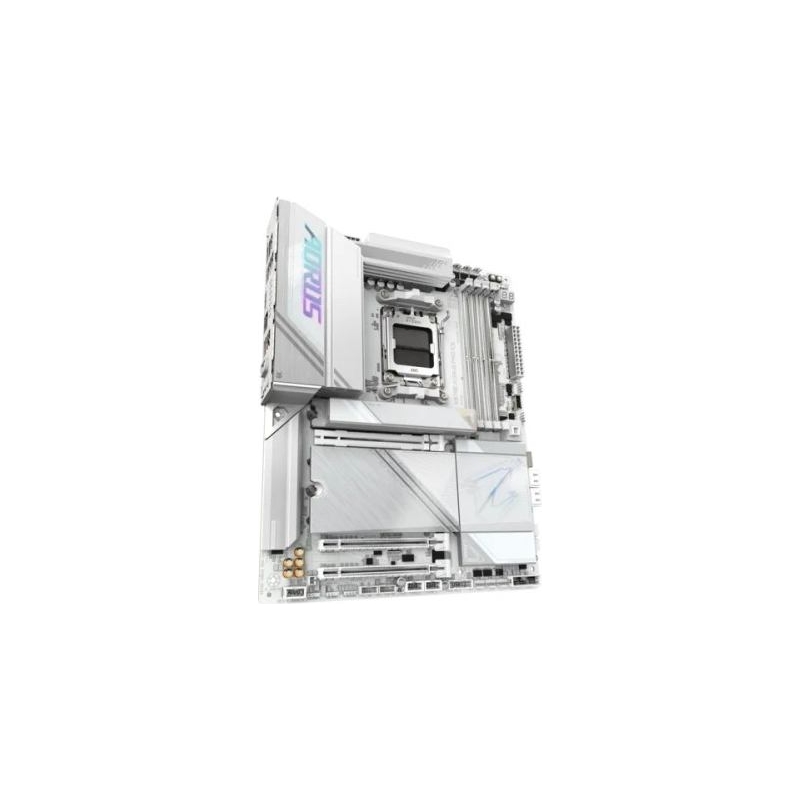

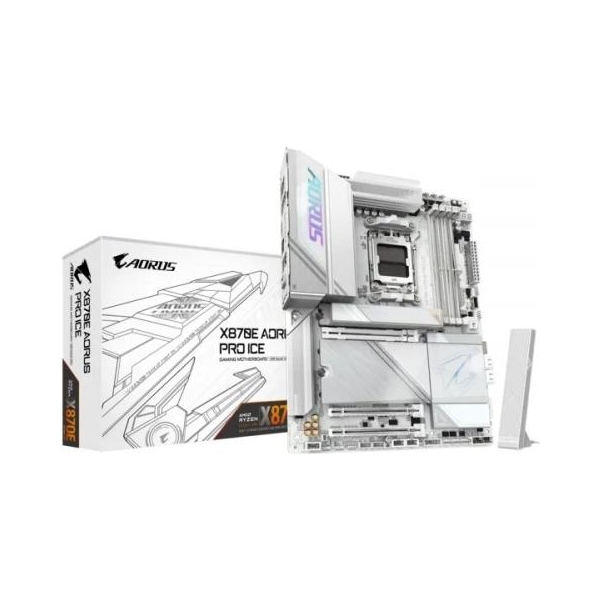

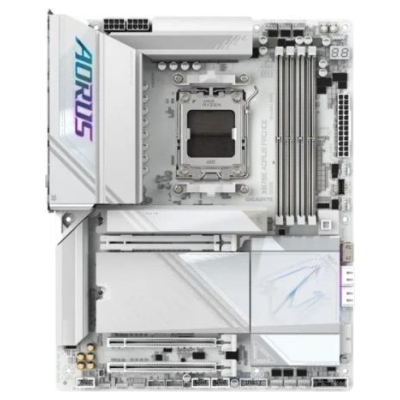

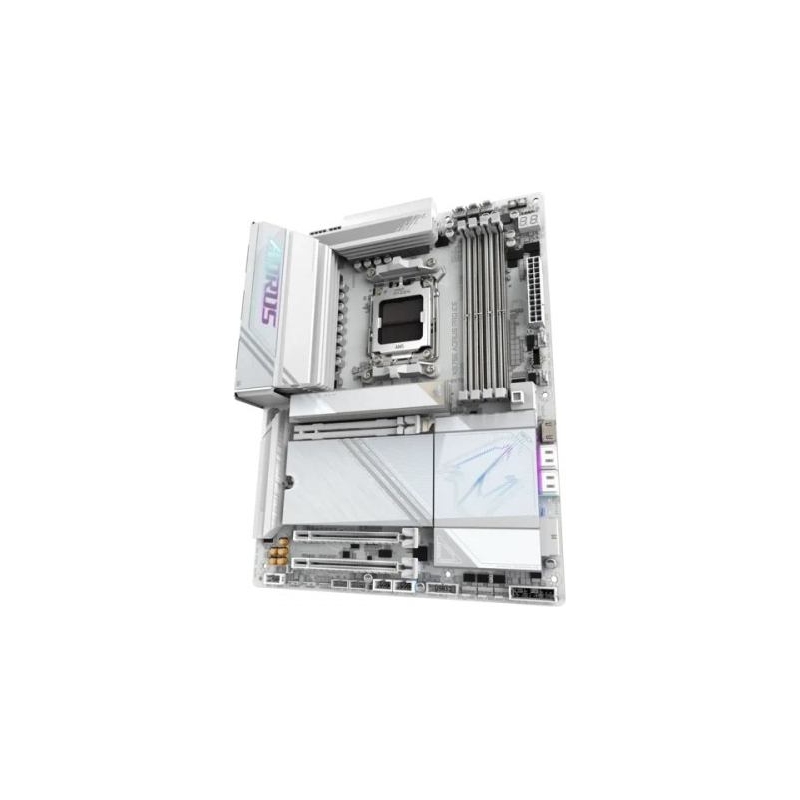

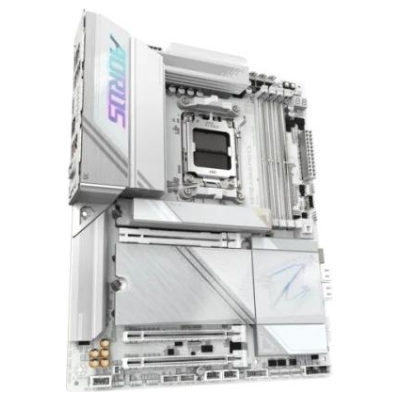

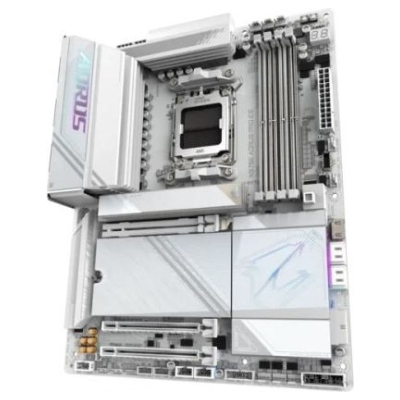

Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX
    Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX

Gigabyte X870E AORUS PRO ICE AM5 4DDR5 HDMI/USB-C ATX

€475.88
Tax included
Quantity
Add to wishlist

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Guarantee safe & secure checkout

SKU
KBGBAAA8X870A07
Barcode
4719331876487
Model
X870E Aorus Pro
CPU socket
Socket AM5
Processor family
AMD Ryzen
Integrated CPU
No
Chipset manufacturer
AMD
Chipset type
AMD X870E
Memory type
DDR5
Number of DDR5 slots
4
Memory bus frequency
8000 MHz
Memory bus frequency
4400 MHz
Memory bus frequency
4800 MHz
Memory bus frequency
5200 MHz
Memory bus frequency
5600 MHz
Memory bus frequency
8200 MHz
Memory bus frequency
7800 MHz
Memory bus frequency
7600 MHz
Memory bus frequency
6800 MHz
Memory bus frequency
7000 MHz
Memory bus frequency
7200 MHz
Memory bus frequency
6200 MHz
Memory bus frequency
6400 MHz
Memory bus frequency
6600 MHz
Memory bus frequency
6666 MHz
Max memory size
256
Expansion slots
3 x PCIe 5.0 x 4
Expansion slots
1 x PCIe 5.0 x 16
Expansion slots
1 x PCIe 4.0 x 4
Expansion slots
1 x PCIe 3.0 x 4
Max. number of SATA devices
4
RAID
Yes
Detailed data on disk/drive interfaces
1 M.2 slot (M2A_CPU), integrated with the processor, supporting SSDs Socket 3, M key, type 25110/22110/2580/22802 M.2 slots (M2B_CPU, M2C_CPU), integrated with the processor, supporting SSDs Socket 3, M key, type 22110/2280 AMD Ryzen 9000/7000 series processors support PCIe 5.0 x4/x2 SSDs. M2B_CPU and M2C_CPU slots will be unavailable when using AMD Ryzen 8000-Phoenix 1/Phoenix 2 series processors. AMD Ryzen 8000 Phoenix 1/Phoenix 2 processors. 1 M.2 slot (M2D_SB), integrated with the chipset, supporting PCIe 4.0 x4/x2 SSDs Socket 3, M key 4 SATA 6 Gb/s slots
Sound card
Realtek ALC1220 codec High Definition Audio support Audio channels: 2/4/5.1/7.1 Support for S/PDIF Out
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
Bluetooth
Network interface
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
USB ports at back panel
11
USB ports on motherboard
8
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No
External connectors
3 x USB 3.2 Gen 2 Type-A
External connectors
1 x Q-Flash Plus button
External connectors
2 x SMA
External connectors
2 x USB4 Type-C
External connectors
1 x HDMI
External connectors
1 x Line Out (front)
External connectors
1 x MIC (front)
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
2 x USB 2.0
External connectors
4 x USB 3.0
Onboard connectors
1 x Noise detection header
Onboard connectors
1 x RGB LED strip header
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Reset jumper
Onboard connectors
2 x temperature sensor
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x USB C
Onboard connectors
1 x HDMI
Onboard connectors
1 x TPM header
Onboard connectors
1 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
1 x Reset button
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
4 x M.2
BIOS
1 × 256 Mbit flash Uses licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Form factor
ATX
Dimensions
30.5 x 24.4 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
Designation
CE+WEEE
X870E A PRO X ICE
22 Items

Specific References

EAN13
4719331876487
MPN
X870E A PRO X ICE
New
