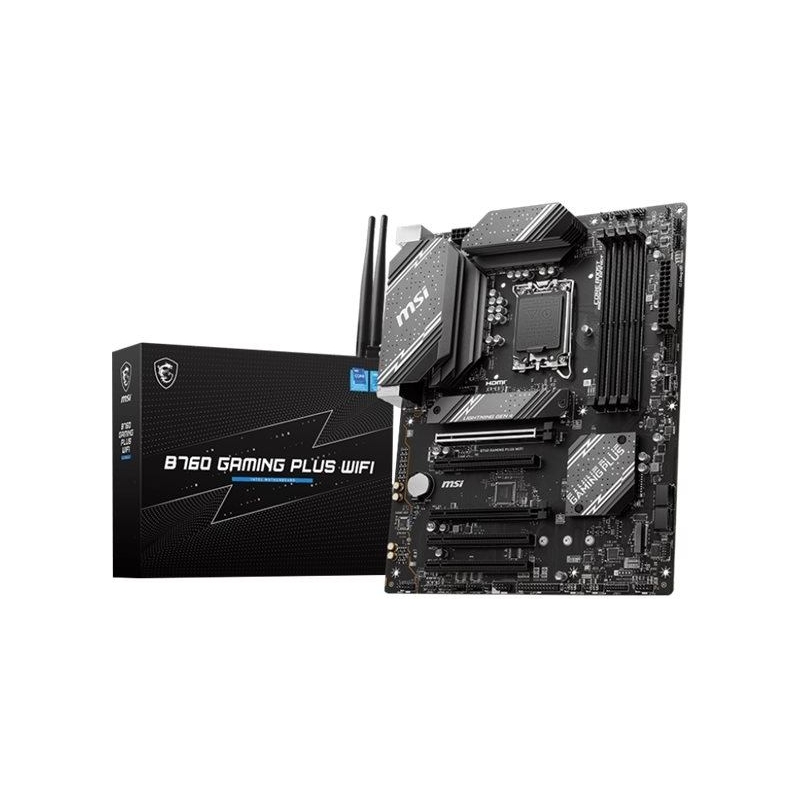

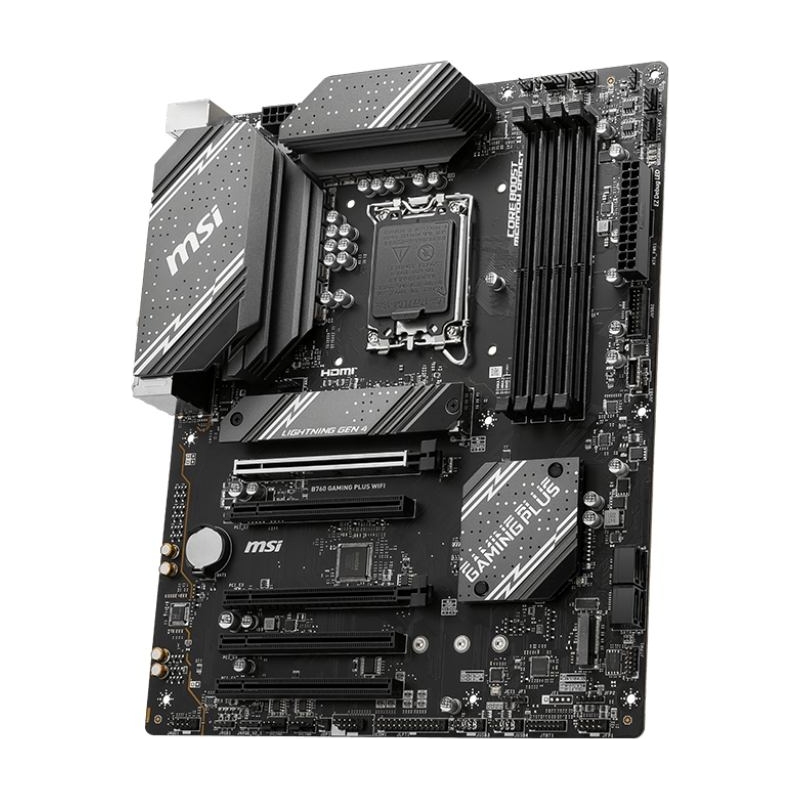

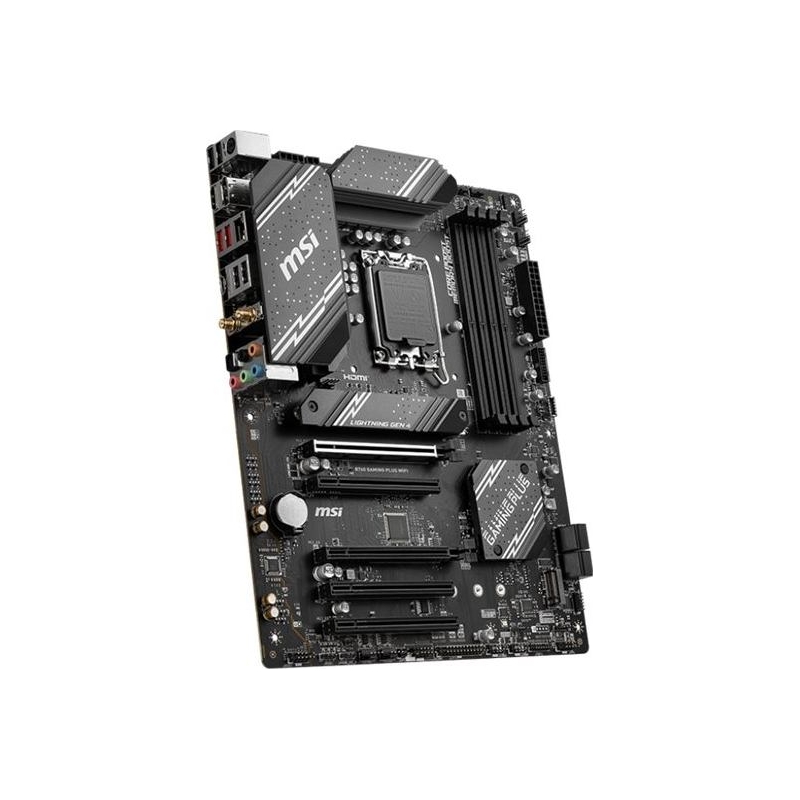

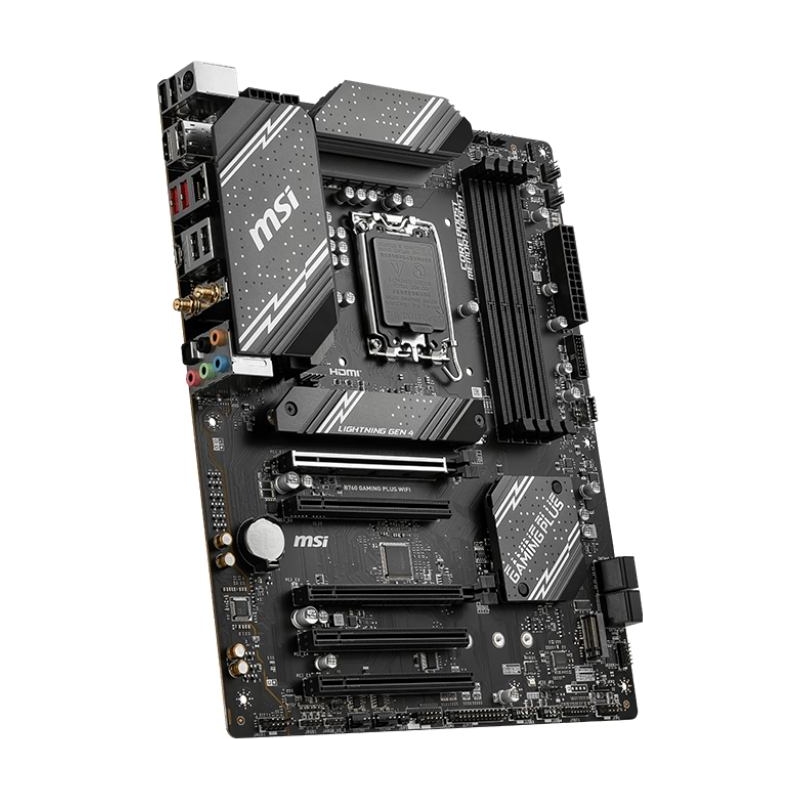

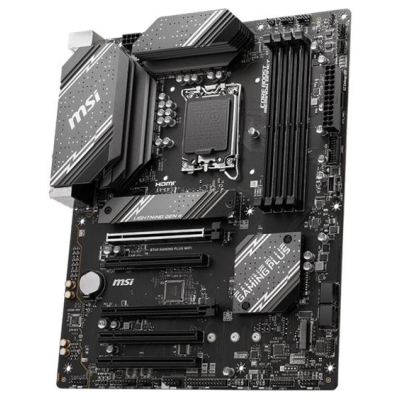

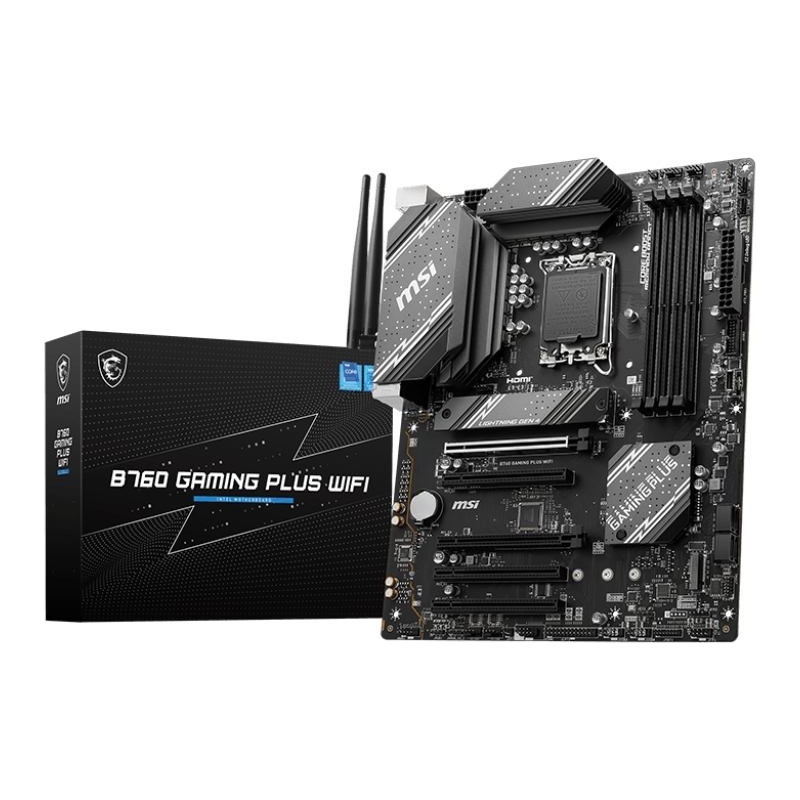

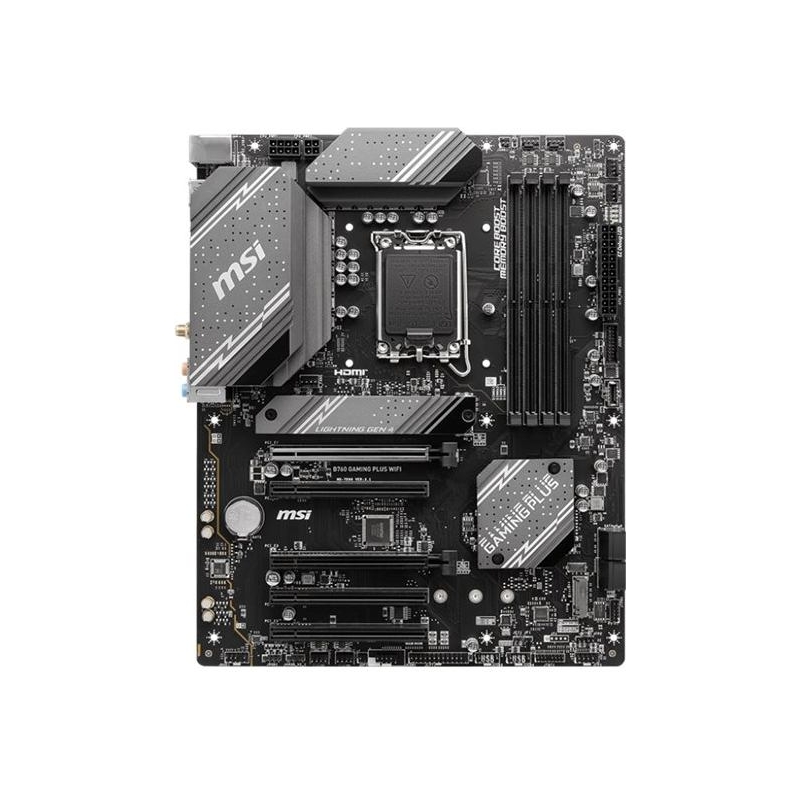

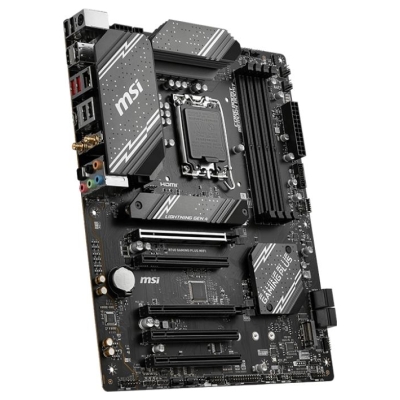

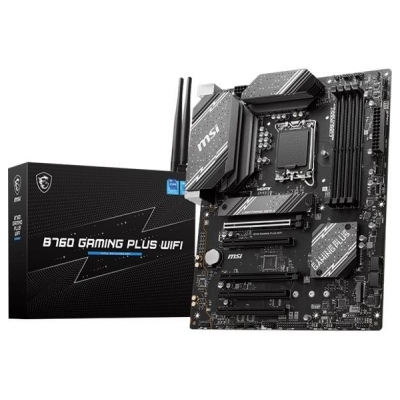

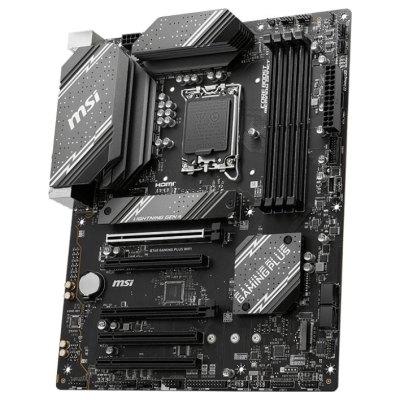

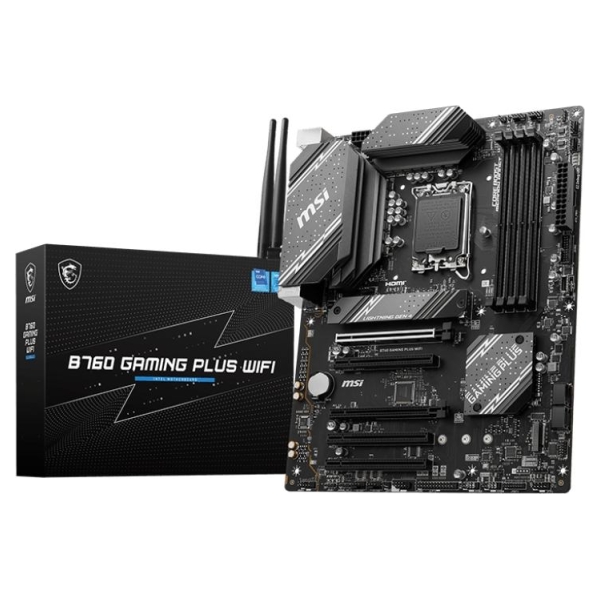

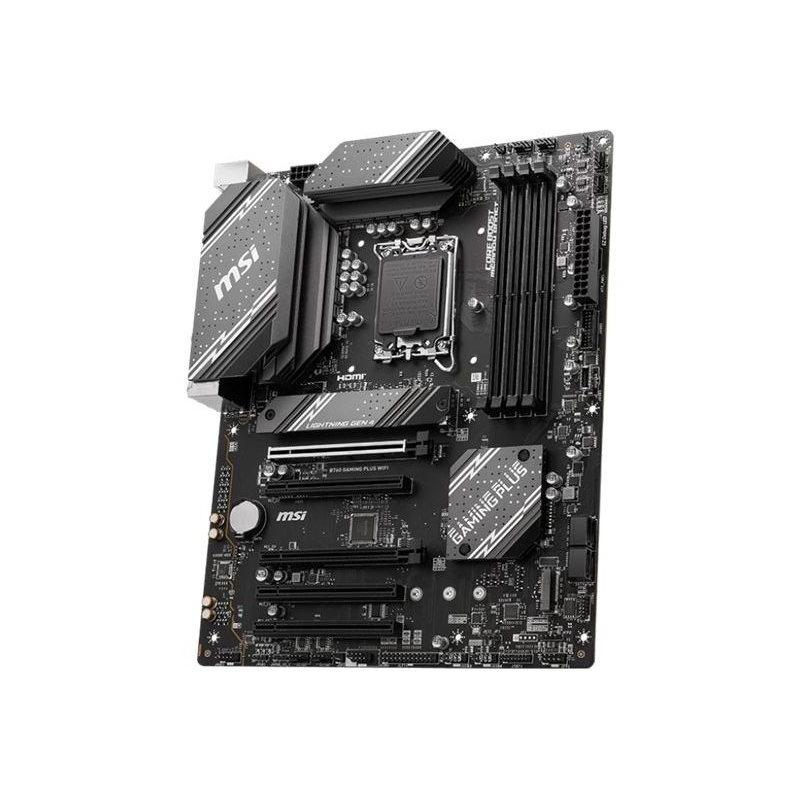

MSI B760 GAMING PLUS WIFI s1700 4DDR5 DP/HDMI ATX
- Write a review
€176.33
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBMSIIIEB760A04
- Barcode
- 4711377086561
- Model
- B760 GAMING PLUS WIFI
- CPU socket
- LGA1700
- Processor family
- Intel Core
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 5000 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 5400 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 4800 MHz
- Max memory size
- 192
- Expansion slots
- 3 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 4.0 x 4
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4xSATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
- Graphics
- 1 x HDMI Support HDMI 2.1 with HDR, max resolution 4K 60Hz 1x DisplayPort Support DP 1.4, max resolution 4K 60Hz
- Sound card
- Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- Bluetooth
- Network interface
- Intel WiFi 6E The wireless module is pre-installed in the M.2 (Key-E) slot. Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth 5.3, FIPS, FISMA
- USB ports at back panel
- 6
- USB ports on motherboard
- 14
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 3
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

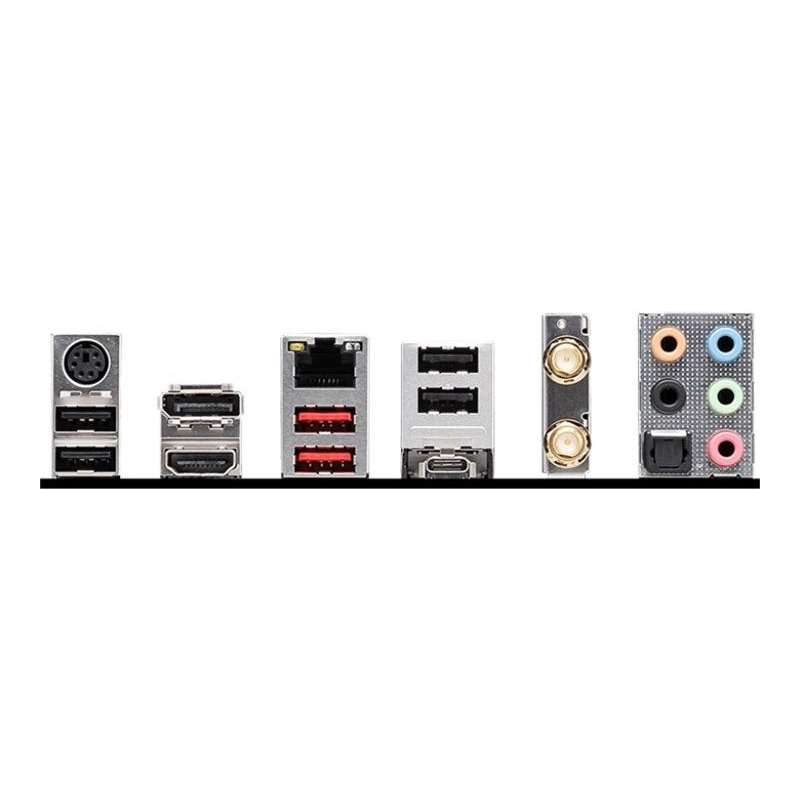

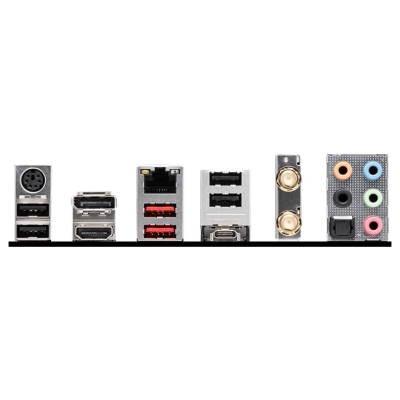

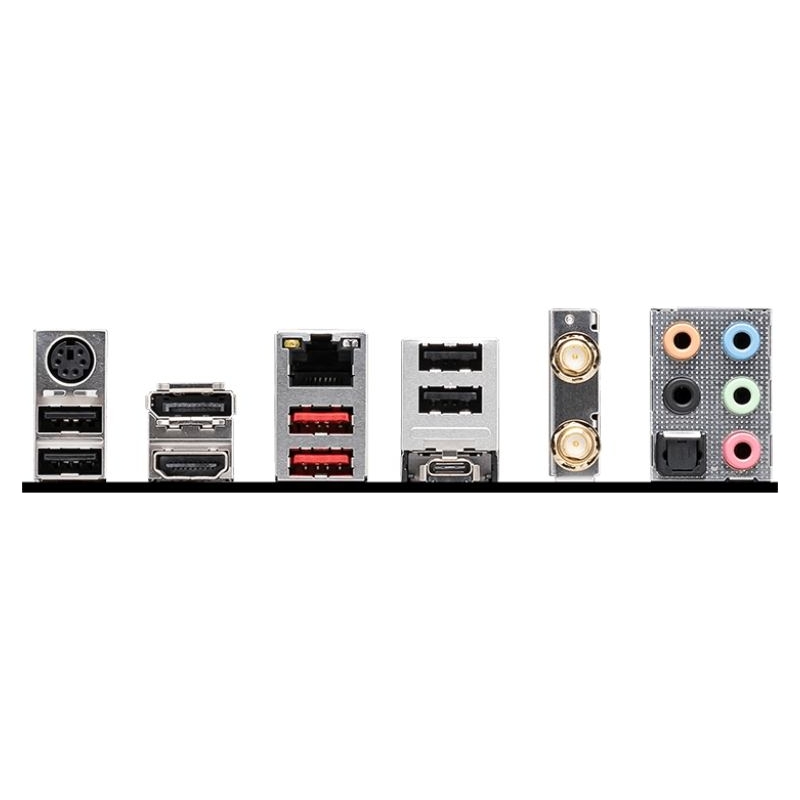

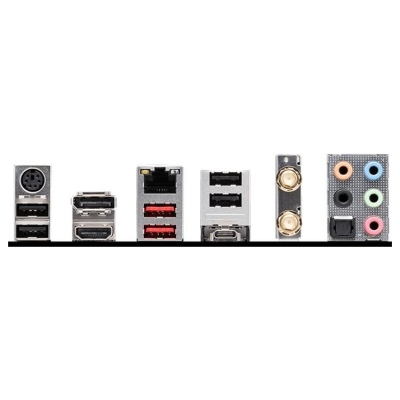

- External connectors
- 2 x USB 3.1
- External connectors
- 1 x HDMI
- External connectors
- 1 x Central Speaker / Subwoofer
- External connectors
- 1 x Rear Speaker
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 1 x USB 3.1 Type-C
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 2 x SMA
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x Serial port header
- Onboard connectors
- 2 x System panel header
- Onboard connectors
- 1 x TPM header
- Form factor
- ATX
- Dimensions
- 243.84 x 304.8 mm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Designation
- CE+WEEE
B760 GAMING PLUS WIFI
39 Items
Specific References
- EAN13
- 4711377086561
- MPN
- B760 GAMING PLUS WIFI
