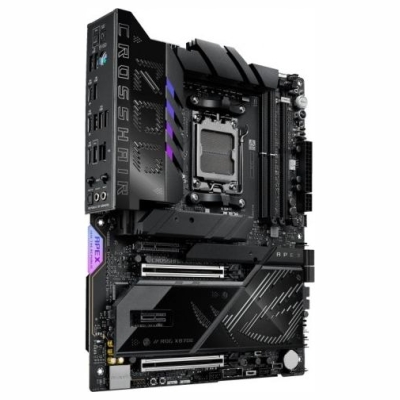

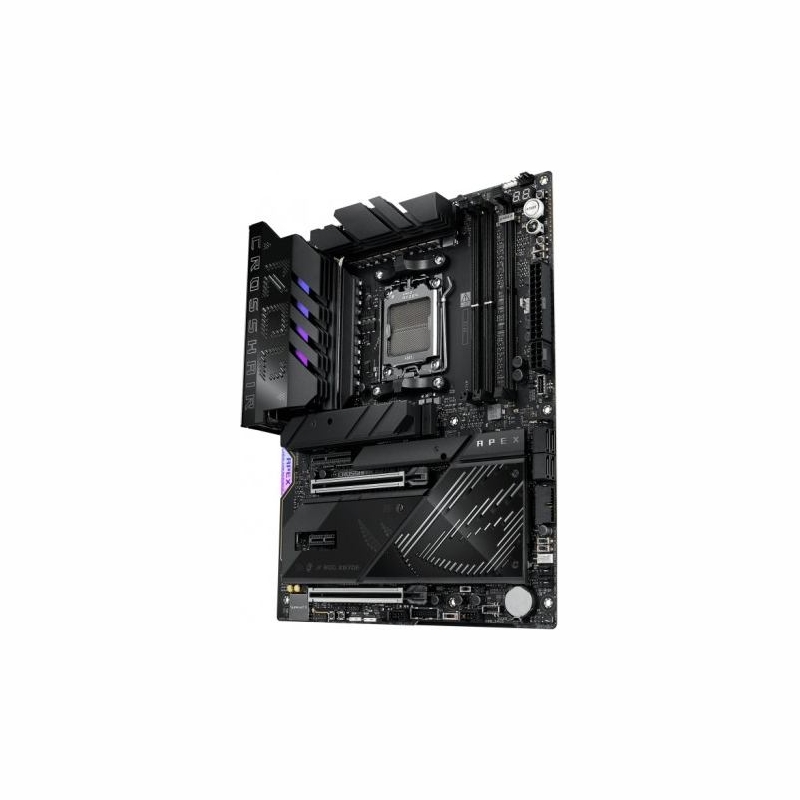

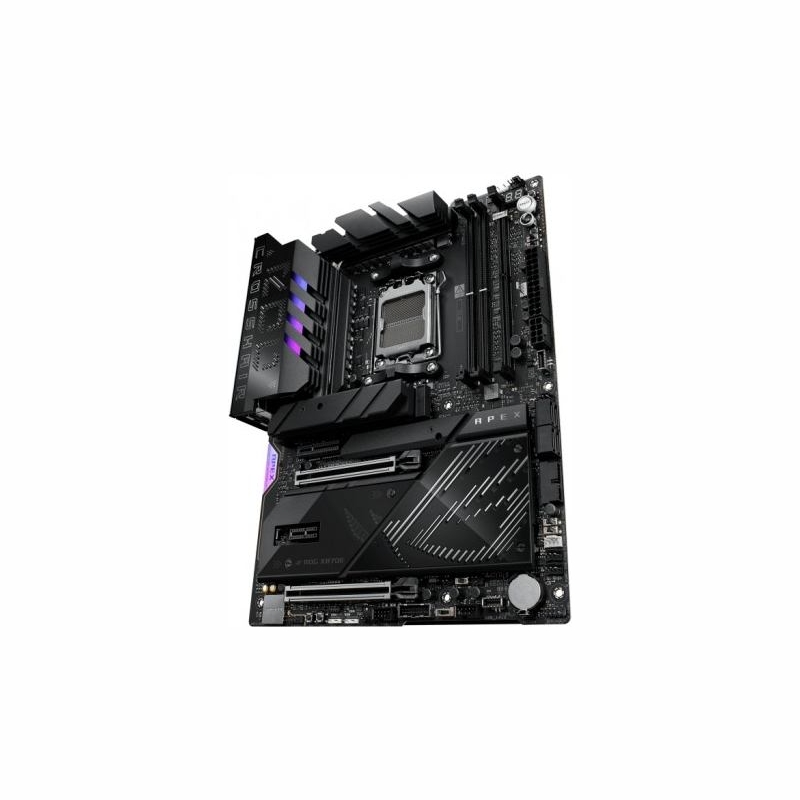

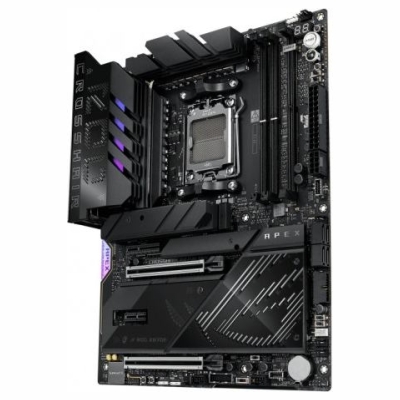

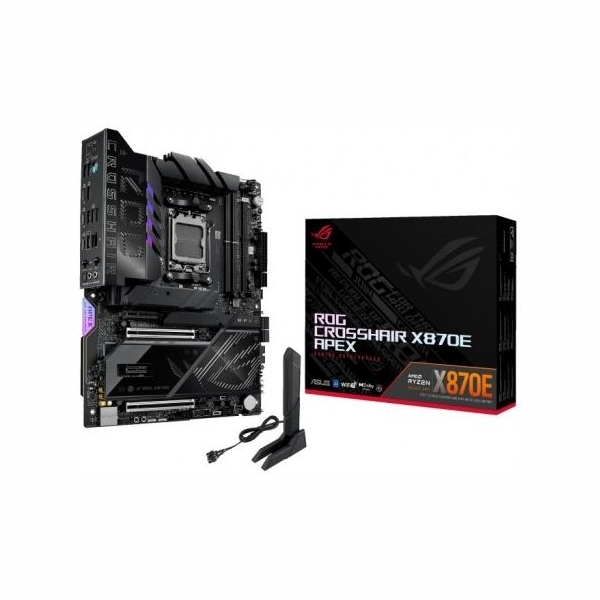

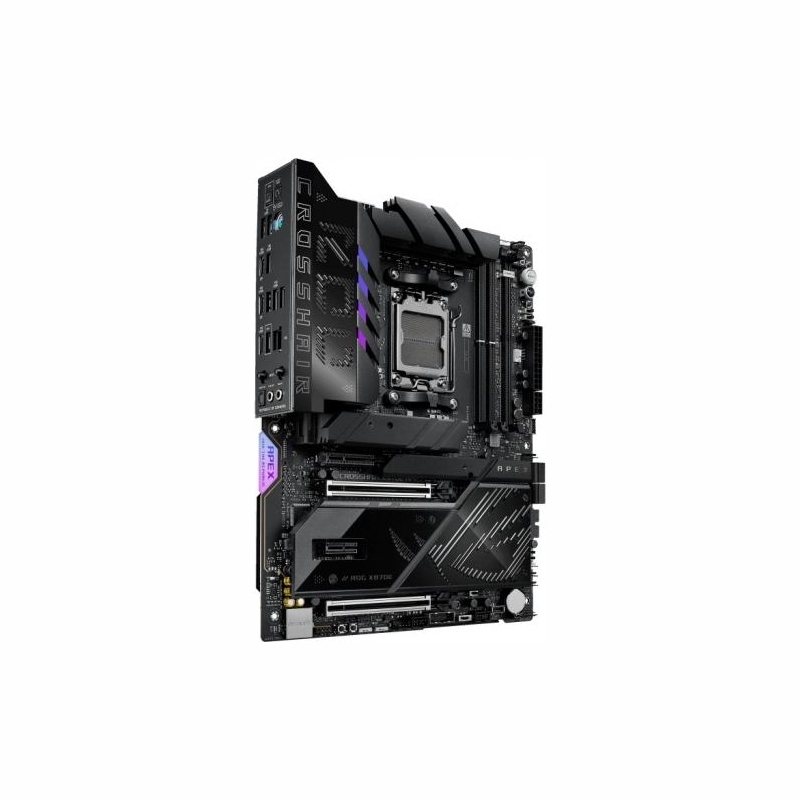

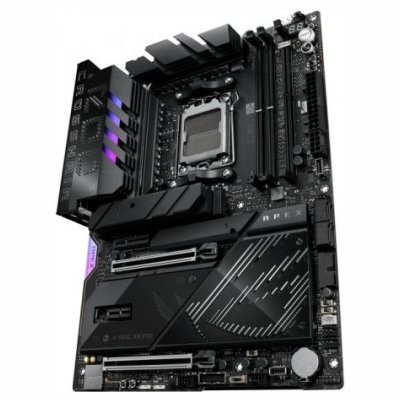

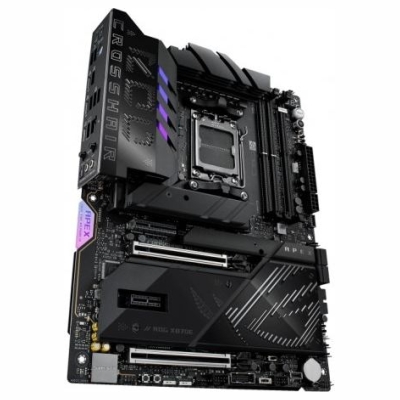

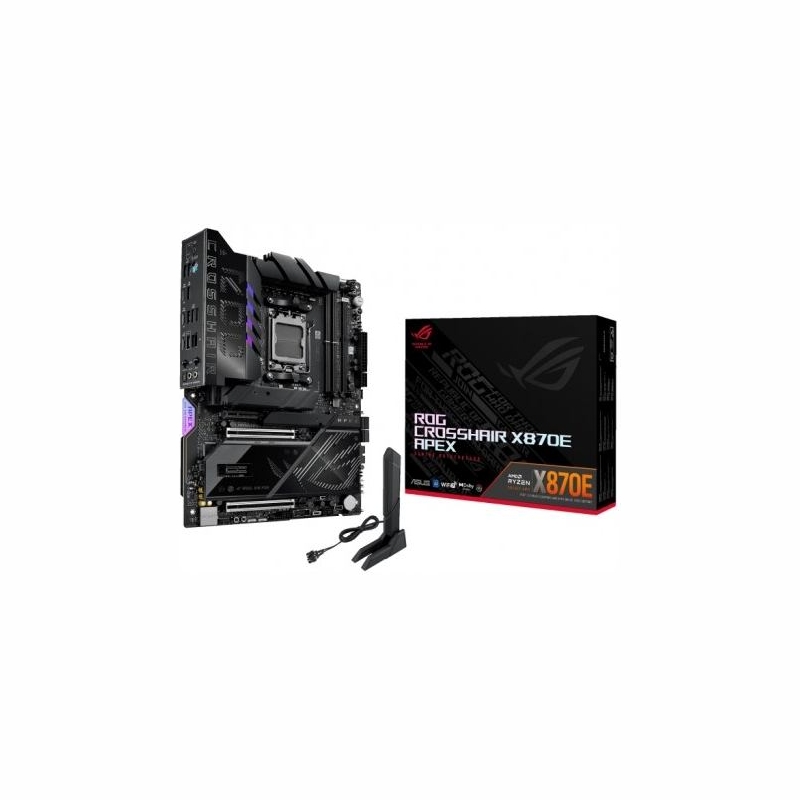

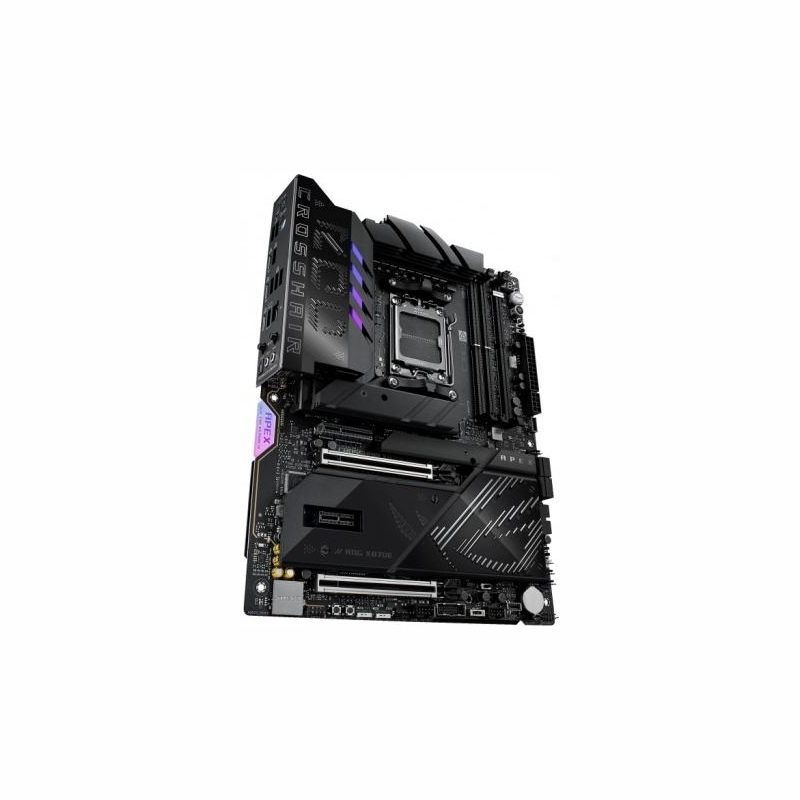

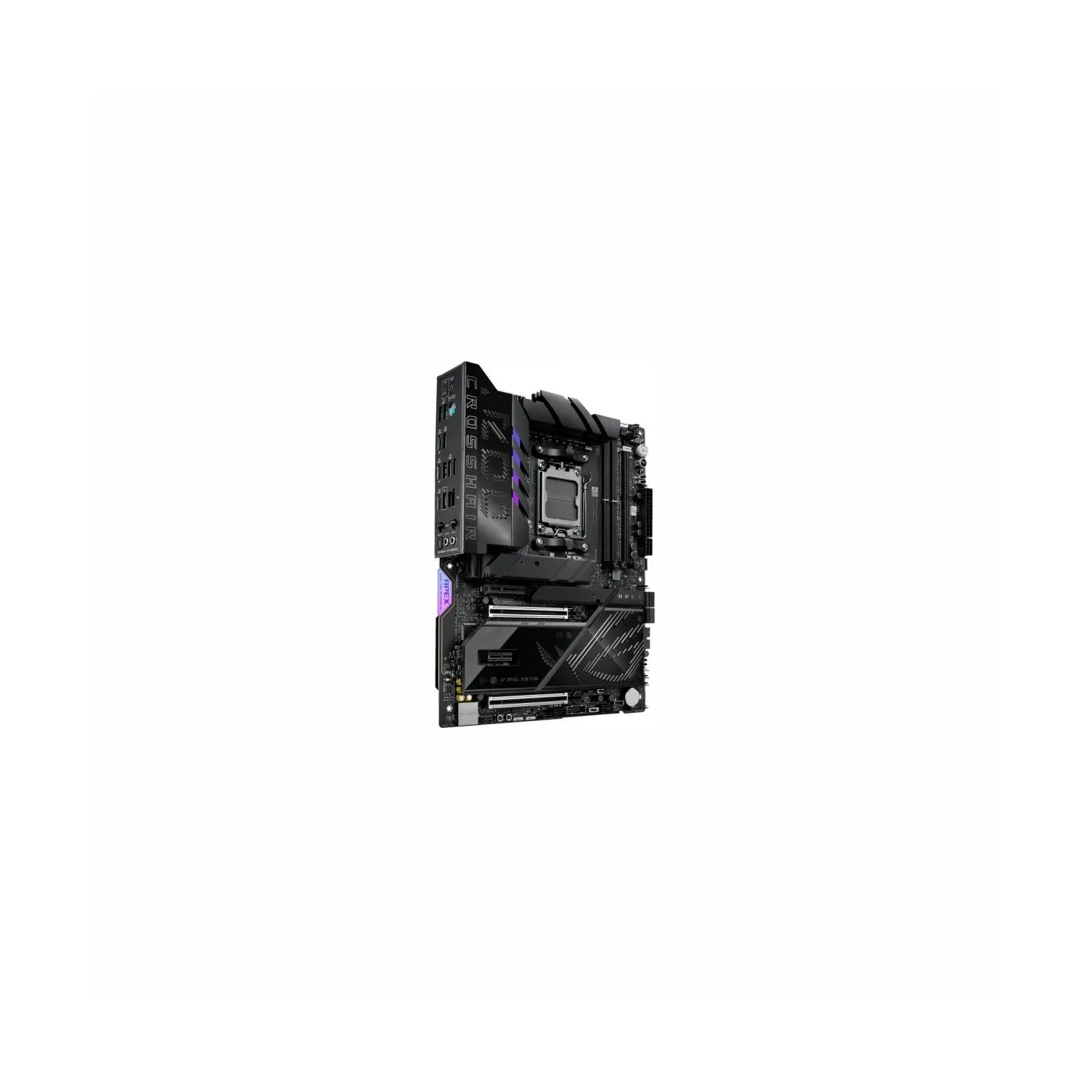

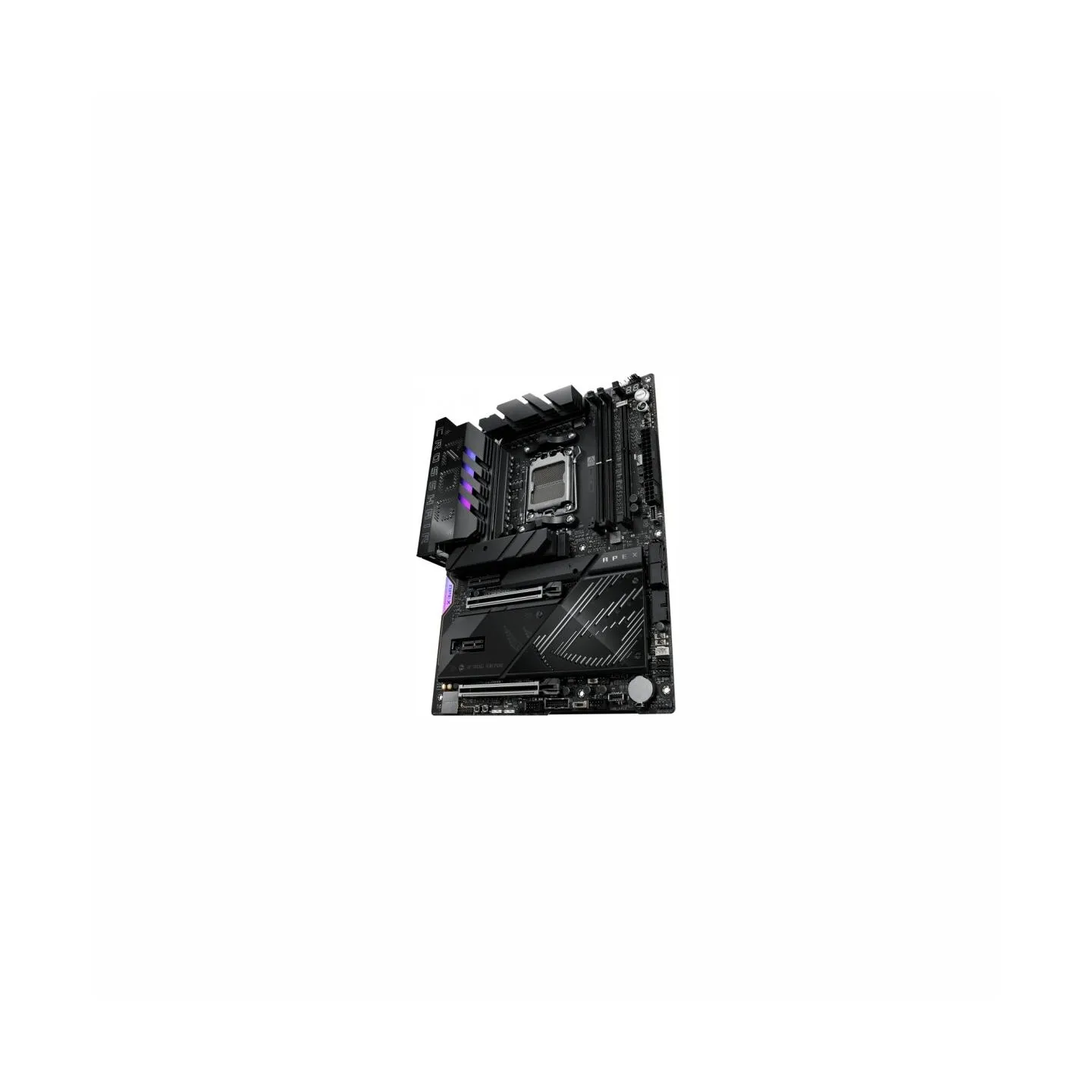

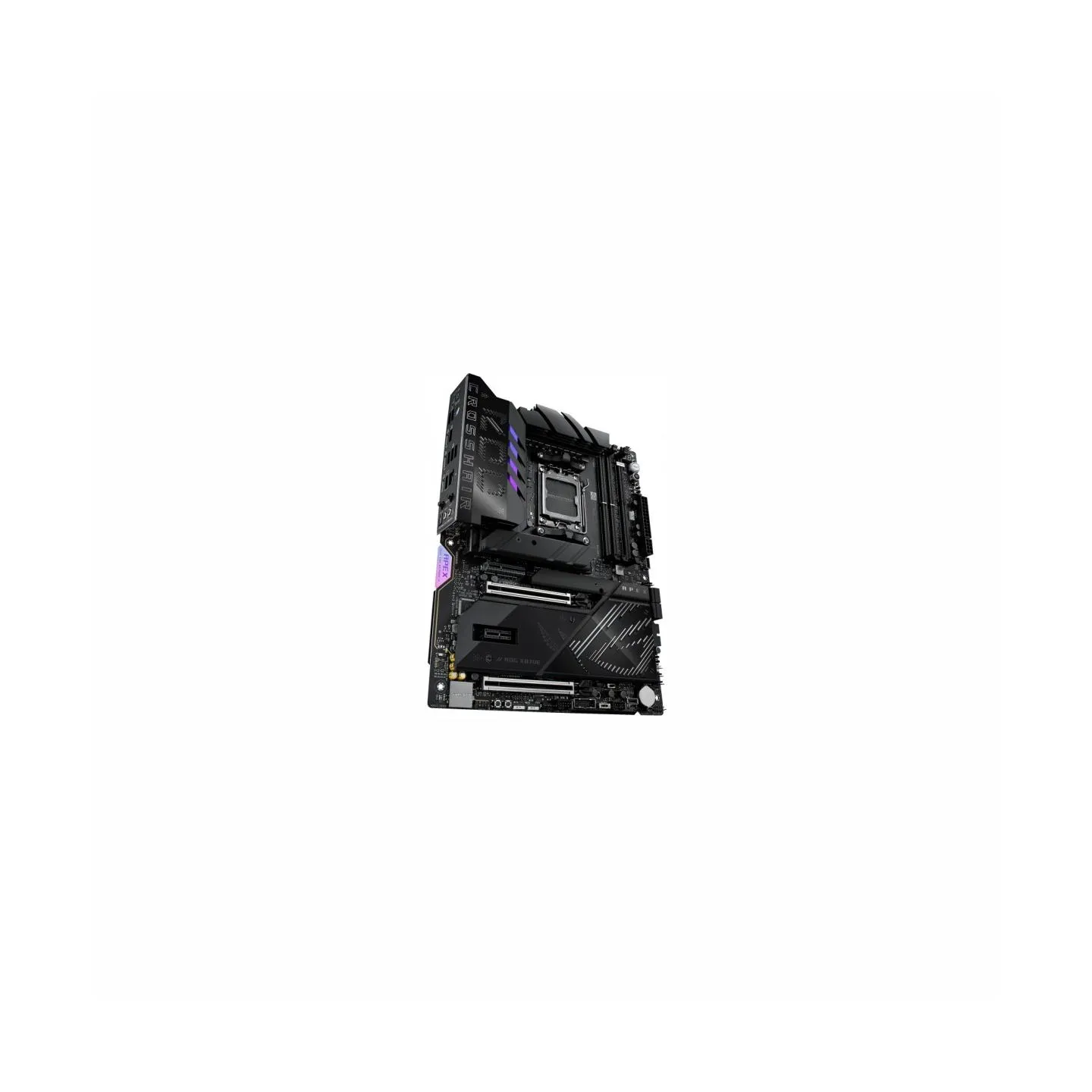

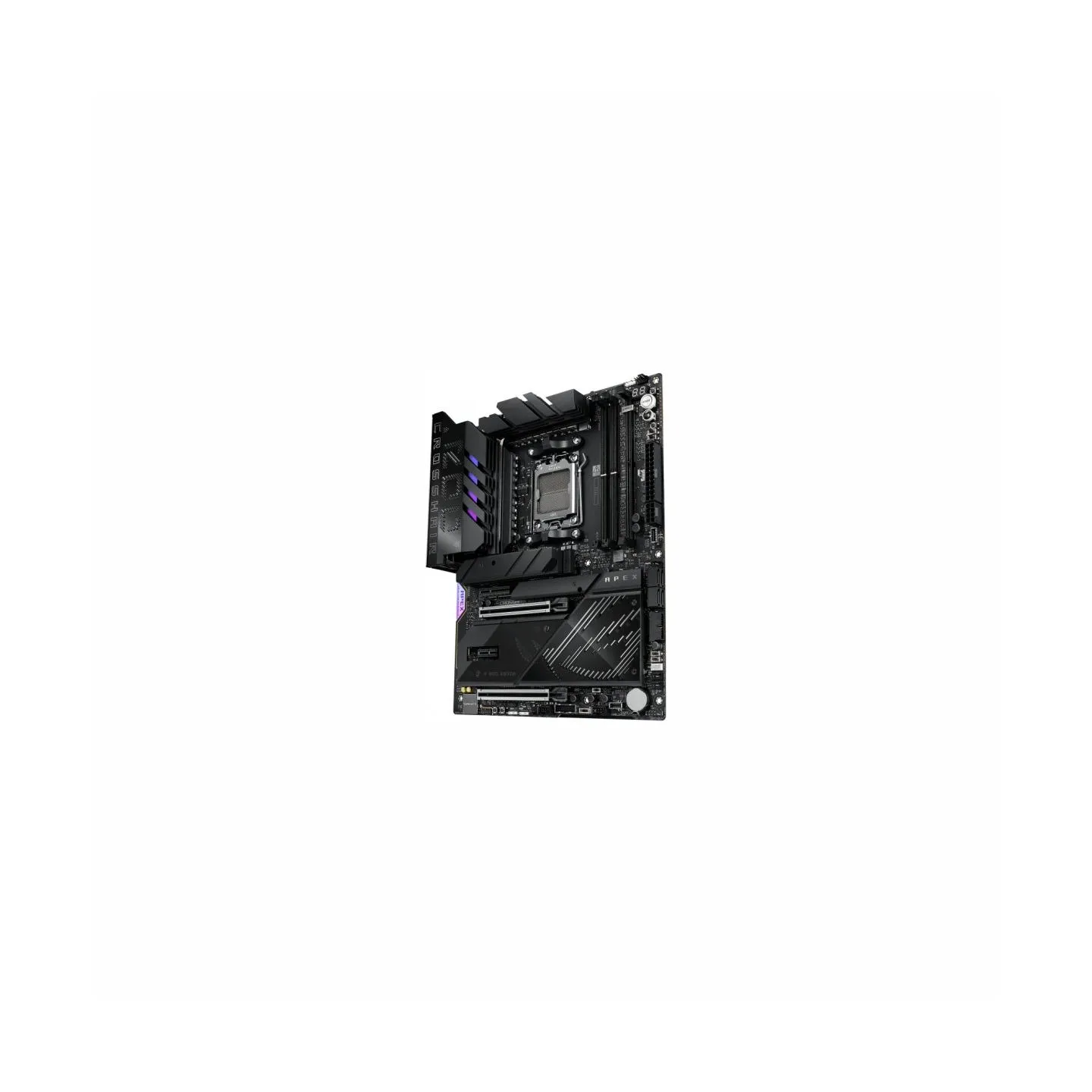

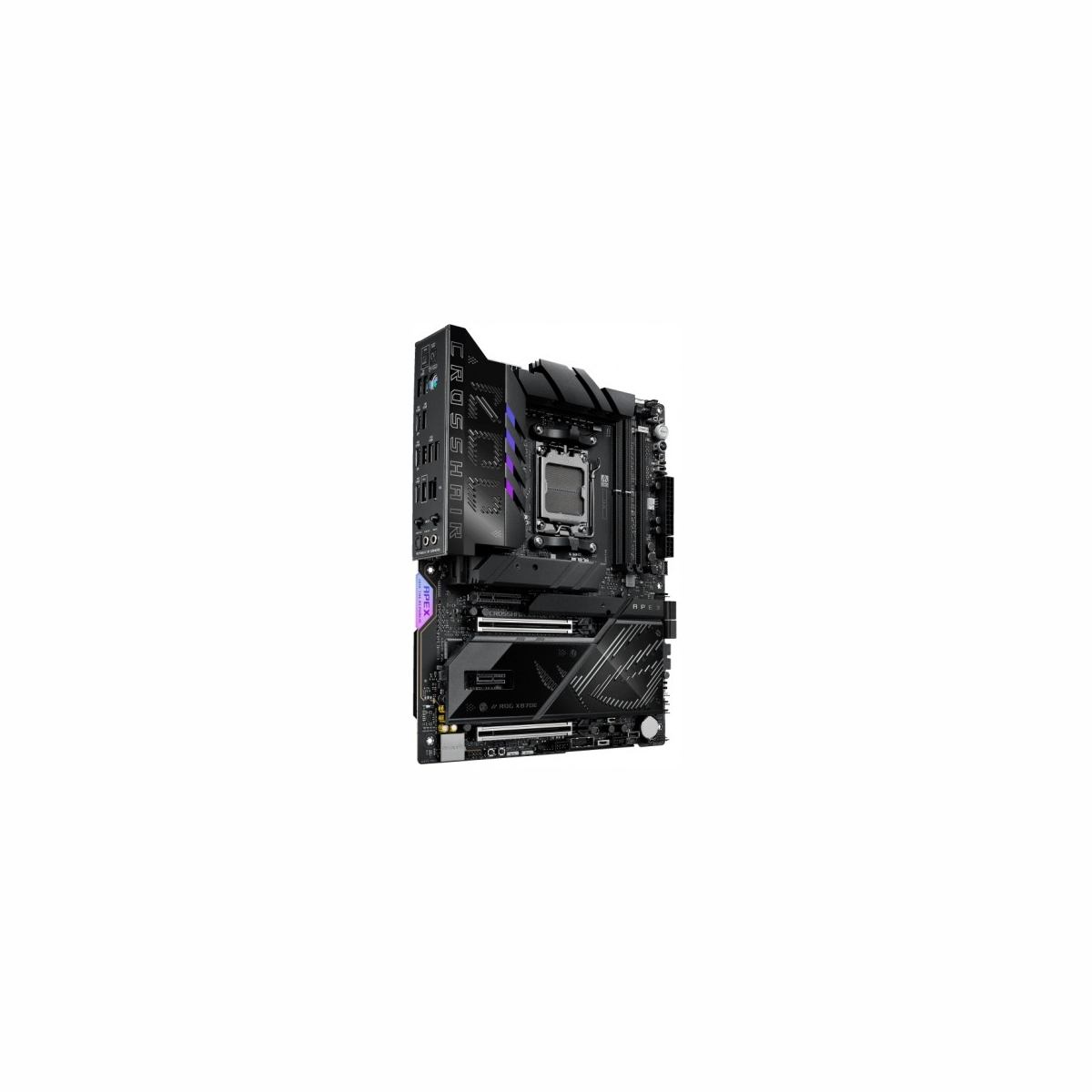

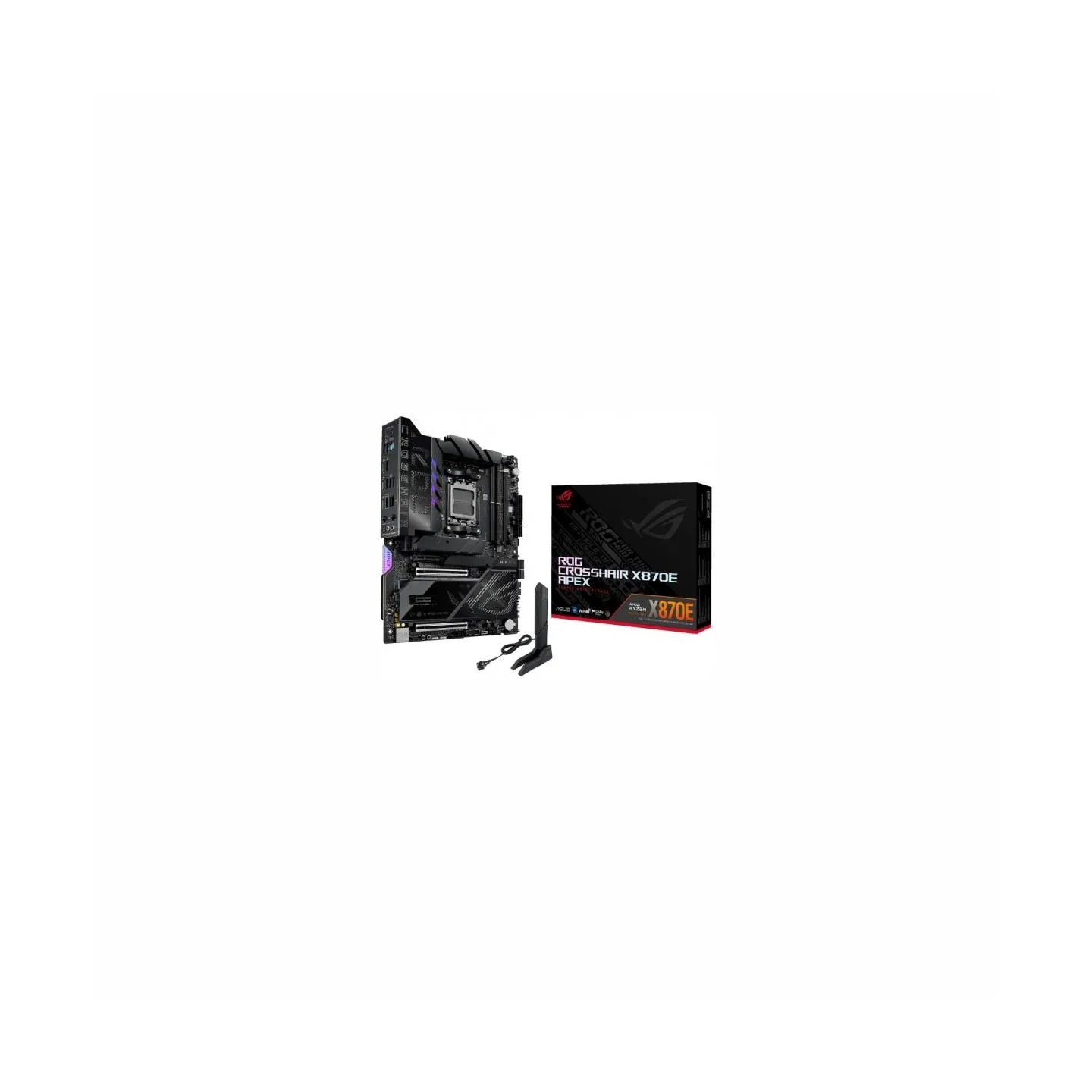

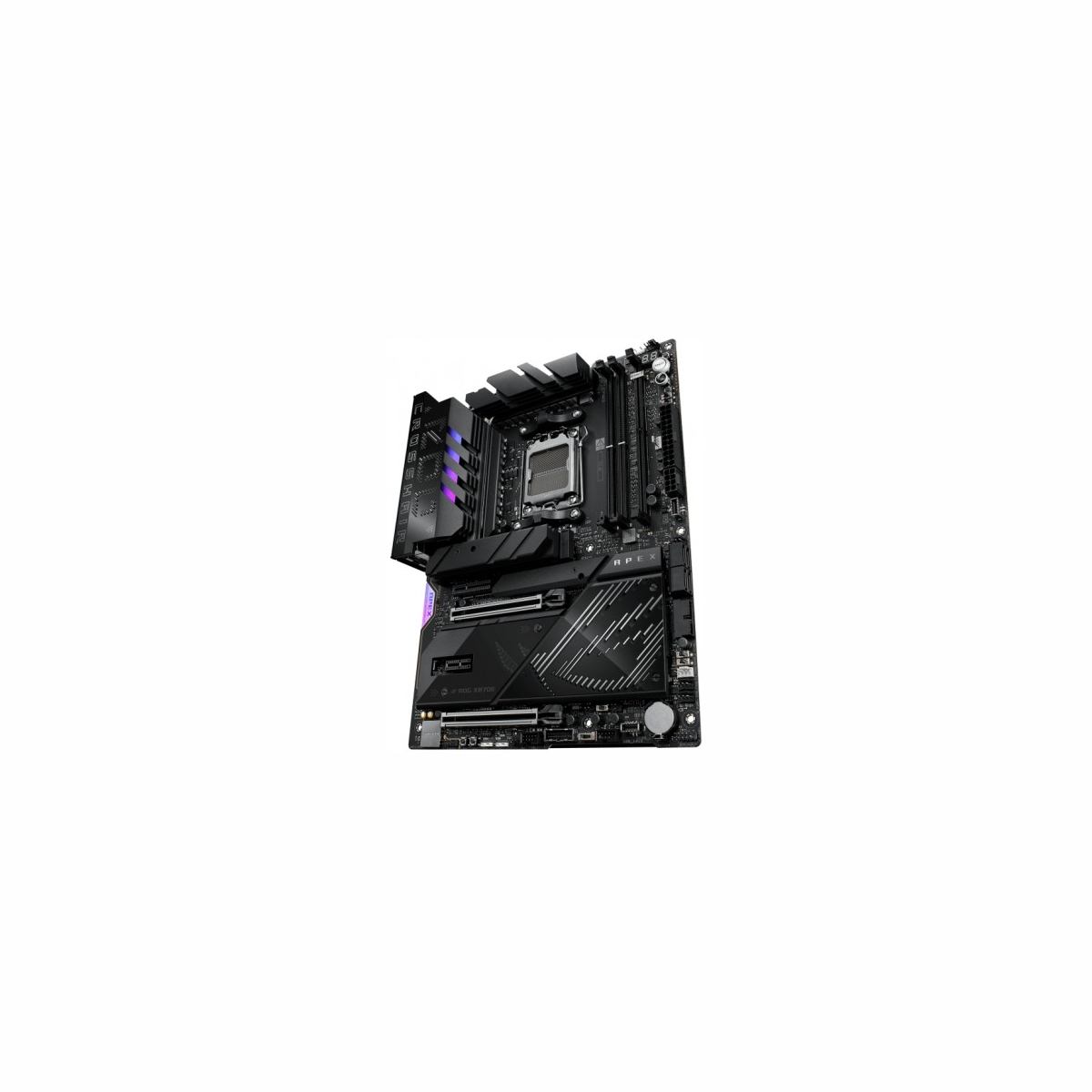

Asus Motherboard ROG CROSSHAIR X870E APEX
- Write a review
€993.13
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUAA8X870A09
- Barcode
- 4711387890240
- Model
- ROG CROSSHAIR X870E APEX
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870E
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 9600 MHz
- Max memory size
- 128
- Expansion slots
- 2 x PCIe 5.0 x16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 2 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M), type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
- Graphics
- 2 x USB4 (40Gbps) ports support USB Type-C display outputs
- Sound card
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording input Supports up to 32-Bit/384 kHz playback on front panel" Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Gold-plated audio jacks Rear optical S/PDIF out port Premium audio capacitors Audio cover
- Network interface
- 1 x 10/100/1000/2500/5000 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- LAN: Realtek 5Gb Ethernet ASUS LANGuard Wireless: Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927) 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth Bluetooth v5.4
- USB ports at back panel
- 10
- USB ports on motherboard
- 10
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 6
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Wi-Fi Module
- External connectors
- 2 x USB4 Type-C
- External connectors
- 1 x Flash BIOS Button
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 5 x USB 3.2 Gen 2 Type-A
- Onboard connectors
- 1 x Thermal sensor connector
- Onboard connectors
- 4 x SATA II 3Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 4 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 2 x USB 3.2 Gen 2x2 Type-C
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin Extra Flow Fan header
- Onboard connectors
- 2 x 4-pin Full Speed Fan headers
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 8-pin PCIe
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- BIOS
- 2 x 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- ROG DIMM.2 with Heatsink ROG DIMM.2 with heatsink M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit ROG Memory Fan Kit Miscellaneous ASUS WiFi Q-Antenna Q-connector 3 x M.2 Q-Slide package 3 x M.2 rubber package ROG stickers ROG thank you card ROG Bottle Opener Installation Media USB drive with utilities and drivers Documentation Quick start guide
- Supported operating systems
- Windows 11
- Software
- ROG Exclusive Software ROG CPU-Z Dolby Atmos Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate AIDA64 Extreme (1 year full version) Aura Creator Aura Sync Fan Xpert 4 (with AI Cooling II) GameFirst HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash ASUS UEFI BIOS EZ Mode ASUS MyHotkey FlexKey
- Designation
- CE+WEEE
ROG CROSSHAIR X870E APEX
2 Items
Specific References
- EAN13
- 4711387890240
- MPN
- ROG CROSSHAIR X870E APEX
