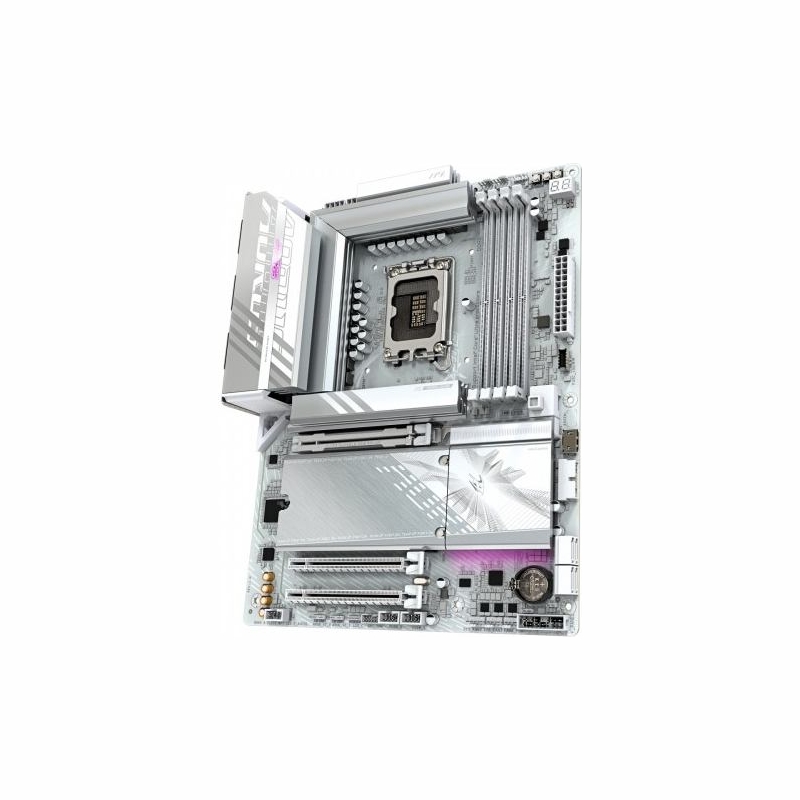

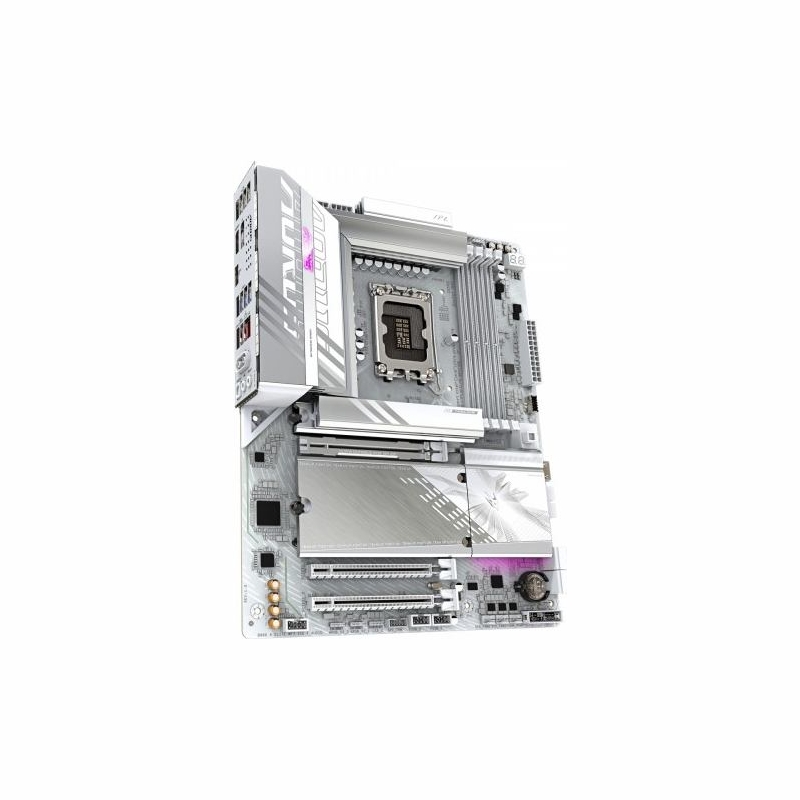

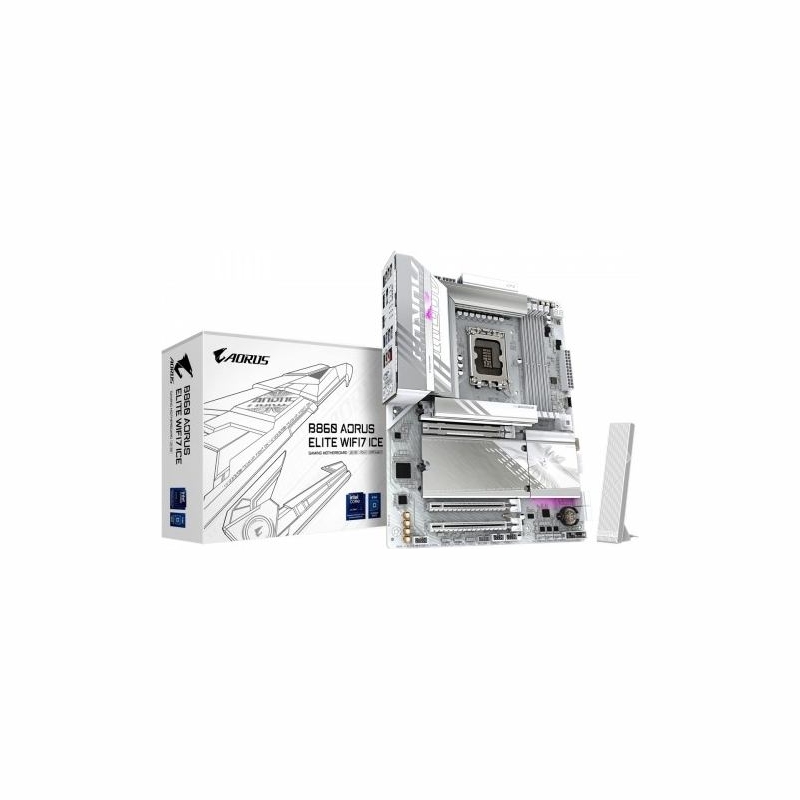

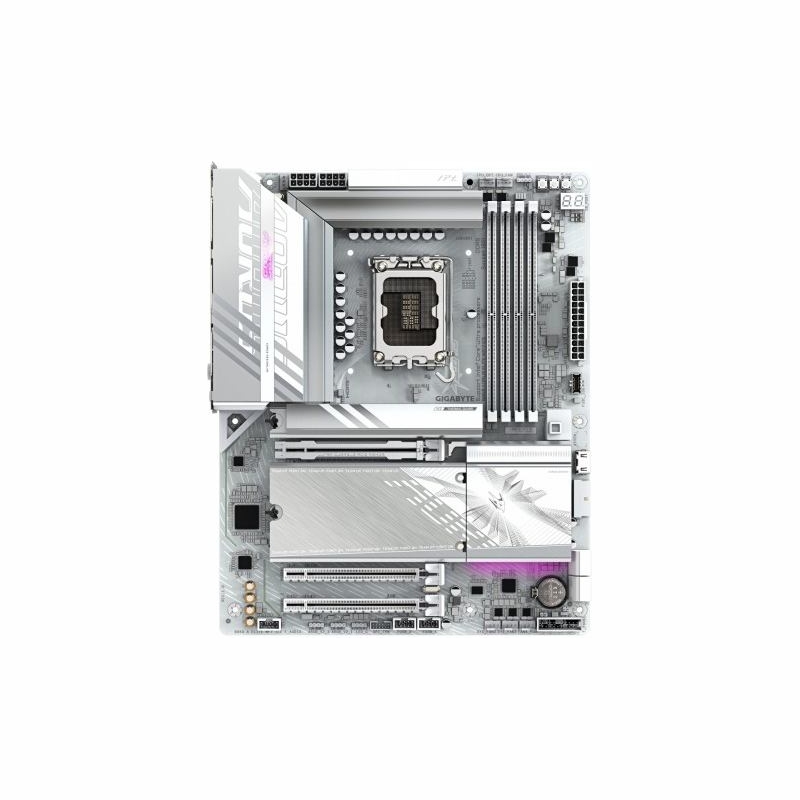

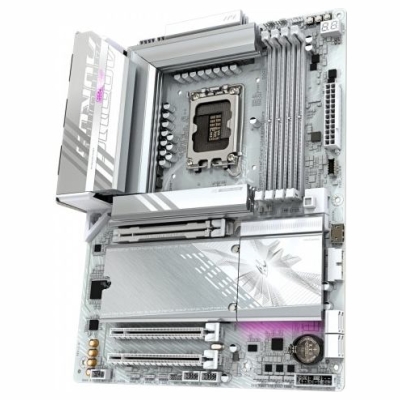

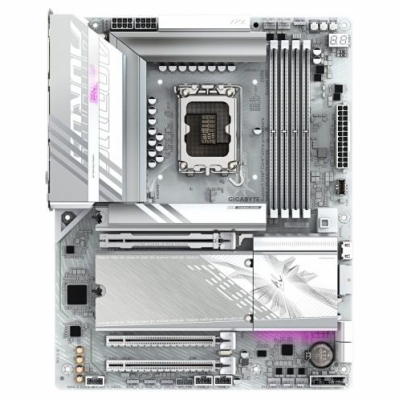

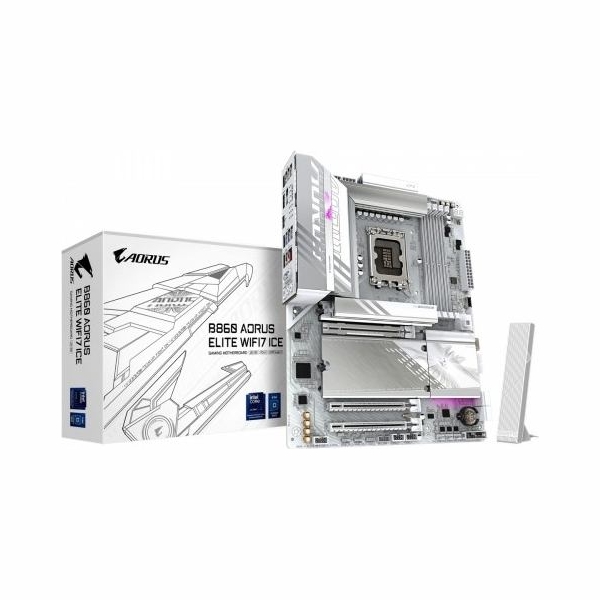

Gigabyte Motherboard B860 A ELITE WF7 ICE
- Write a review
€281.38
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAIIFB860A00
- Barcode
- 4719331866846
- Model
- B860 A ELITE WF7 ICE
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 8800 MHz
- Memory bus frequency
- 8400 MHz
- Memory bus frequency
- 8266 MHz
- Memory bus frequency
- 8200 MHz
- Memory bus frequency
- 7950 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 7900 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 9200 MHz
- Memory bus frequency
- 8600 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 7200 MHz
- Max memory size
- 256
- Expansion slots
- 2 x PCIe 4.0 x 1
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Expansion connectorsCPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)*The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1(PCIEX1_1, PCIEX1_2)SATA connectorsCPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0x4/x2 SSD support) (M2A_CPU)Chipset:- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Graphics
- Integrated graphics processor - Intel HD Graphics support: 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x DisplayPort port, supporting a maximum resolution of 3840x2160@144 Hz *Supports DisplayPort 2.1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz *Supports HDMI 2.1 and HDCP 2.3. 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz *Supports HDMI 1.4 (graphics specifications may vary depending on processor support). Supports up to four displays simultaneously
- Sound card
- Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless communication module Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.0) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports the 11be 160MHz wireless standard MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.1) 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Supports the 11be 160MHz wireless standard
- USB ports at back panel
- 11
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 4
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

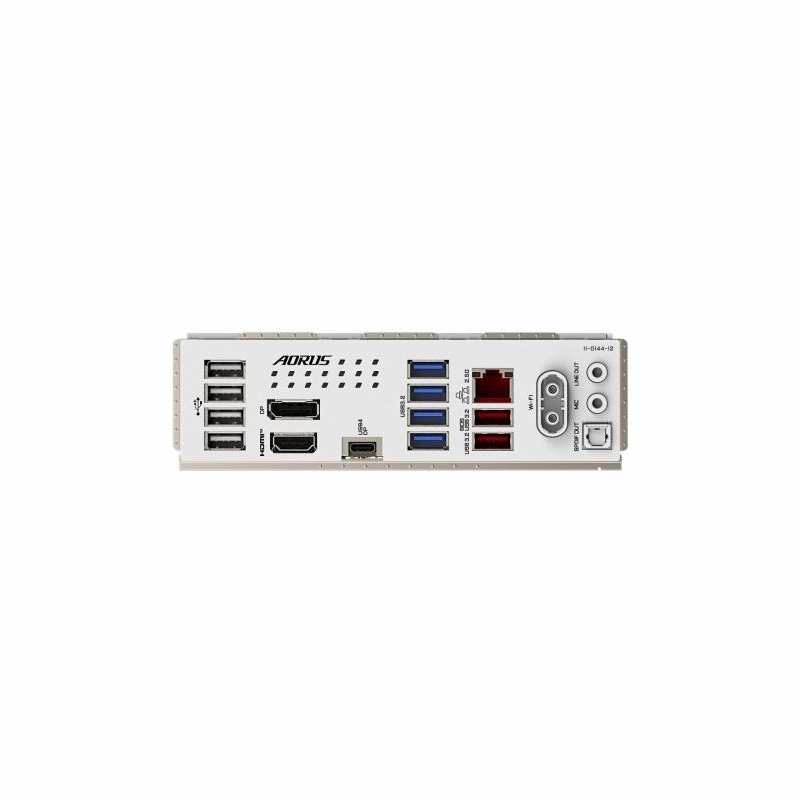

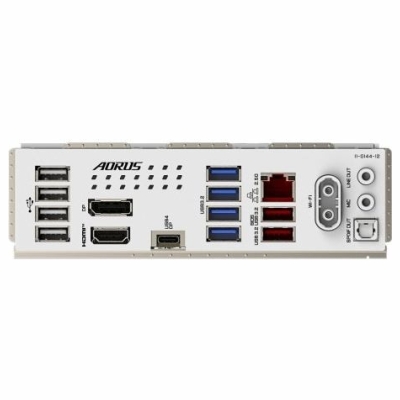

- External connectors
- 1 x DisplayPort
- External connectors
- 2 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB4 Type-C
- External connectors
- 2 x SMA
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 4 x USB 2.0
- External connectors
- 4 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x HDMI
- External connectors
- 1 x MIC
- External connectors
- 1 x Line Out
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x Power button
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x 4pin Chassis fan
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x HDMI
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- ATX
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
B860 A ELITE WF7 ICE
22 Items
Specific References
- EAN13
- 4719331866846
- MPN
- B860 A ELITE WF7 ICE
