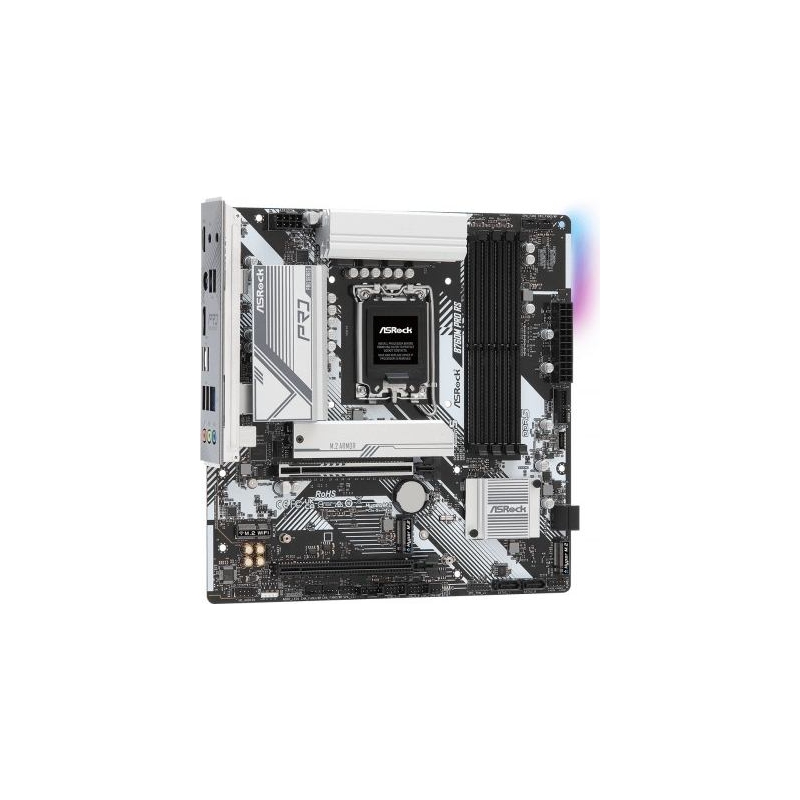

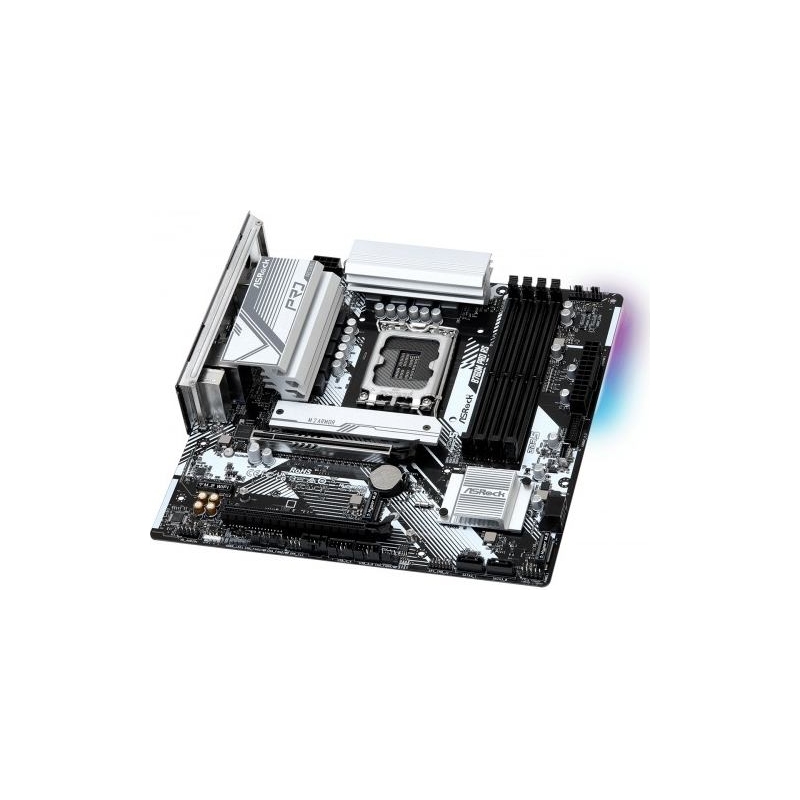

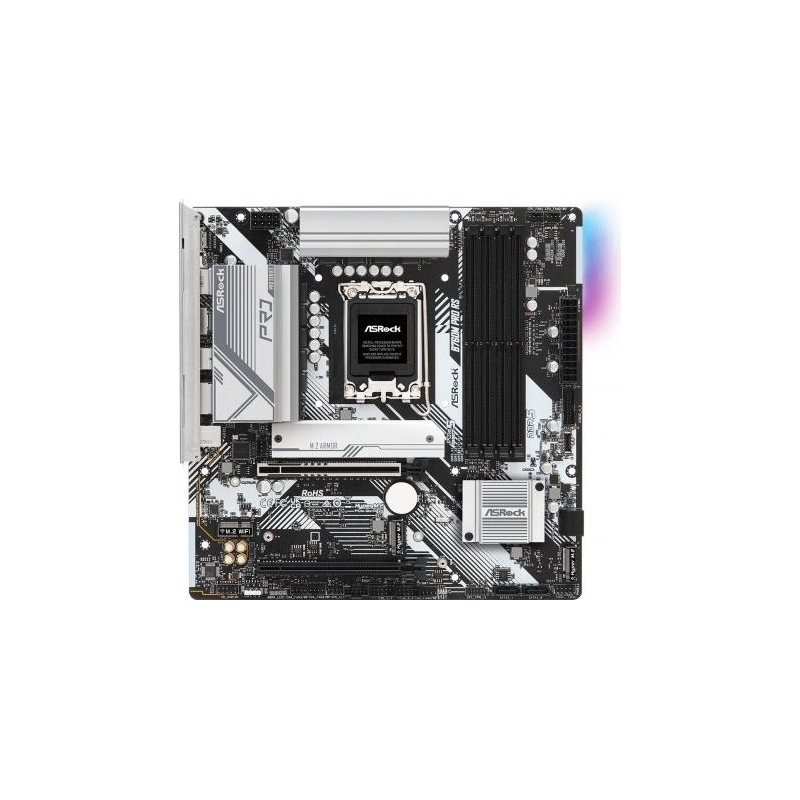

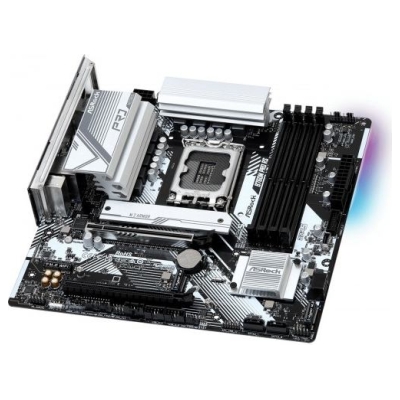

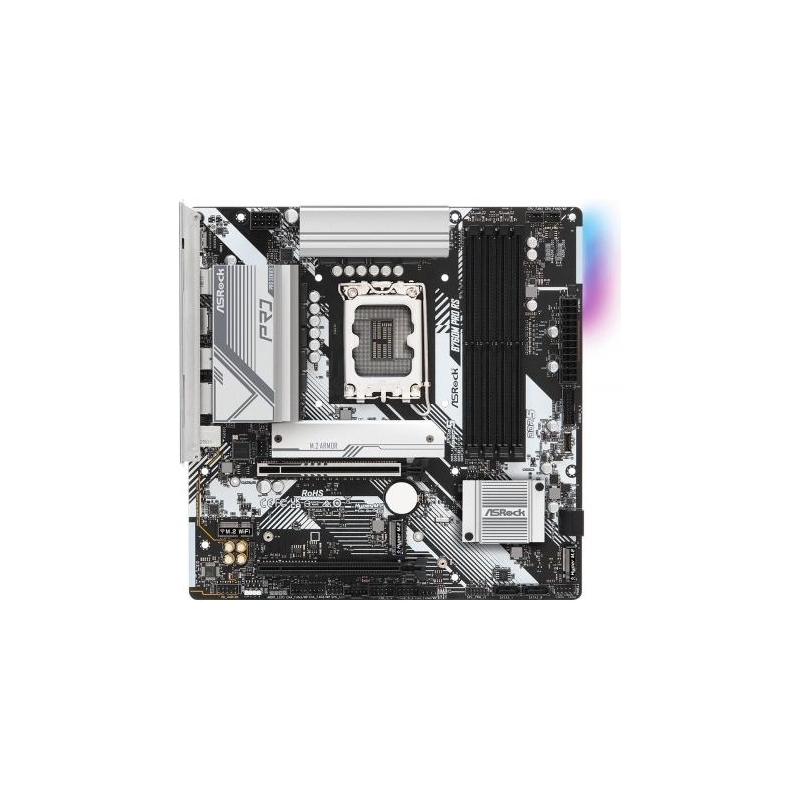

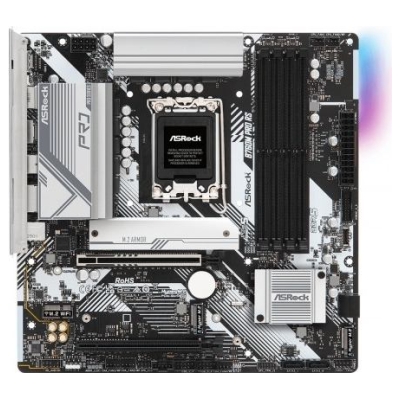

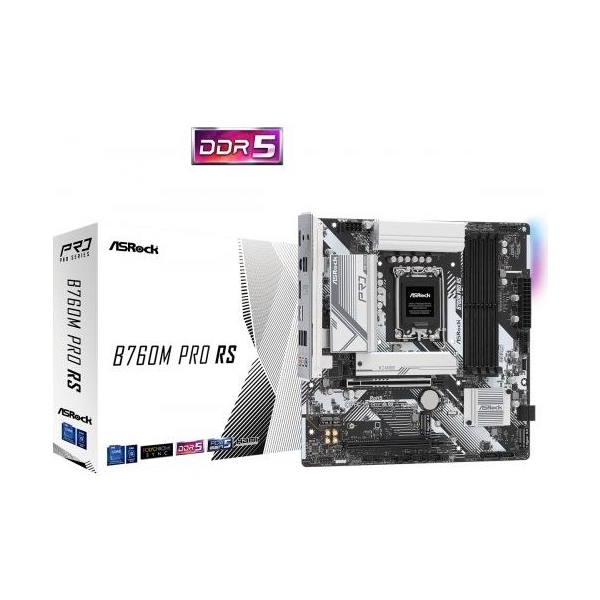

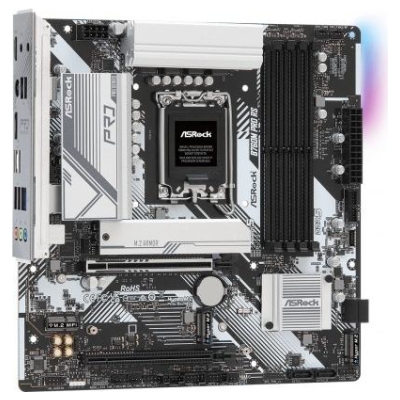

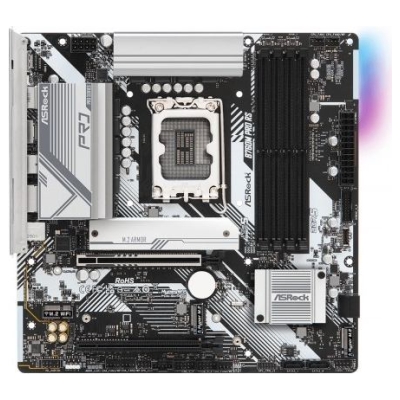

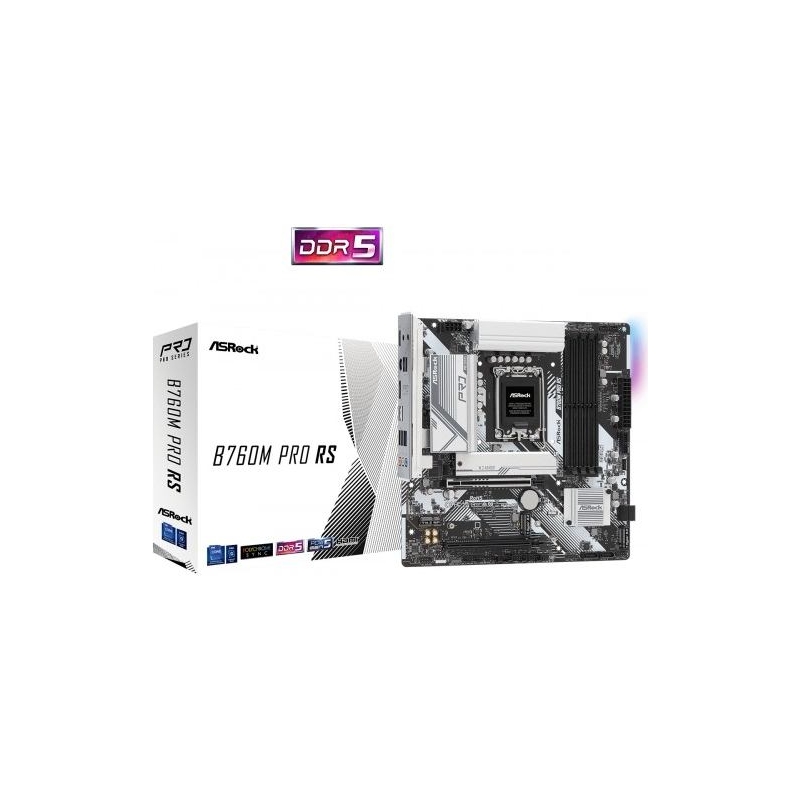

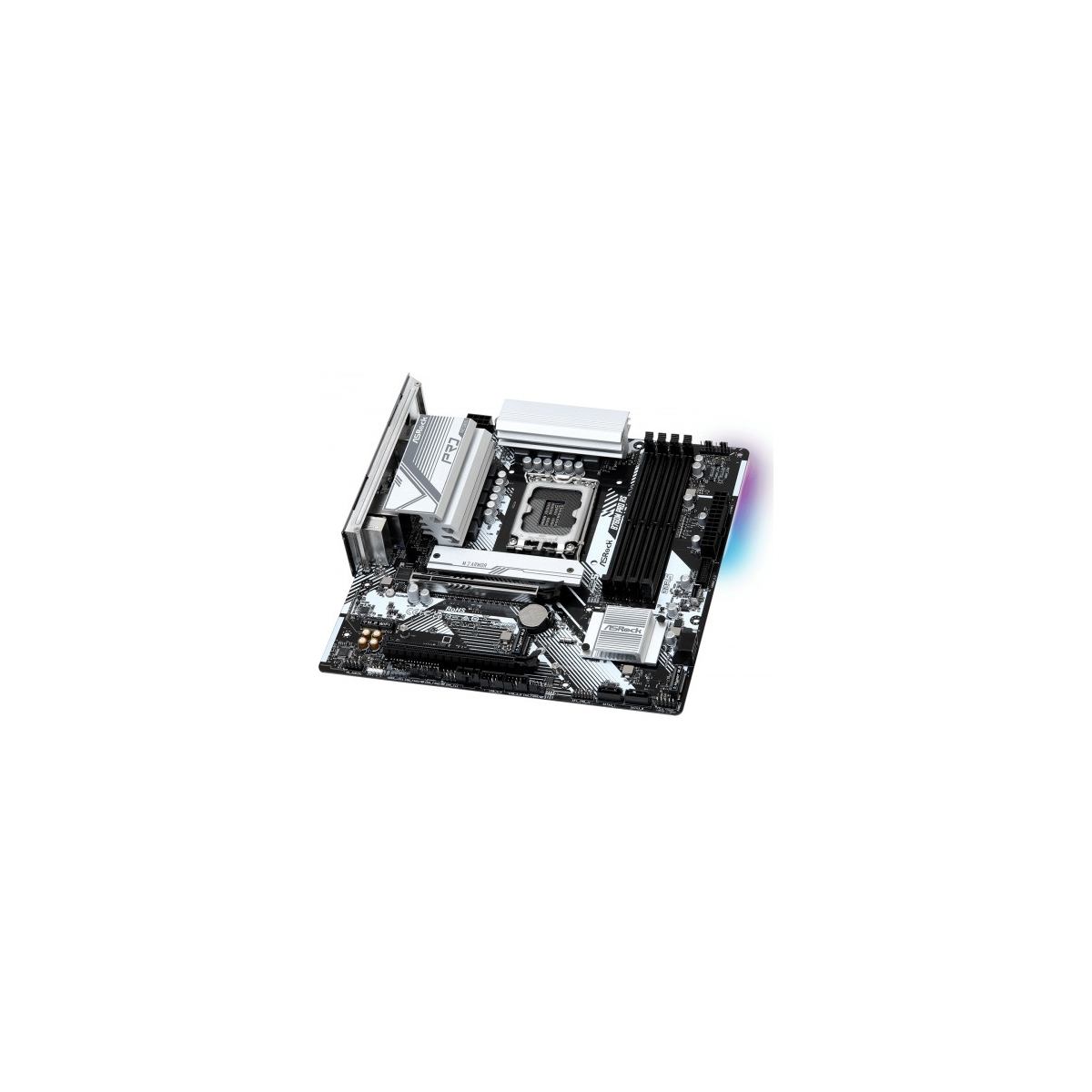

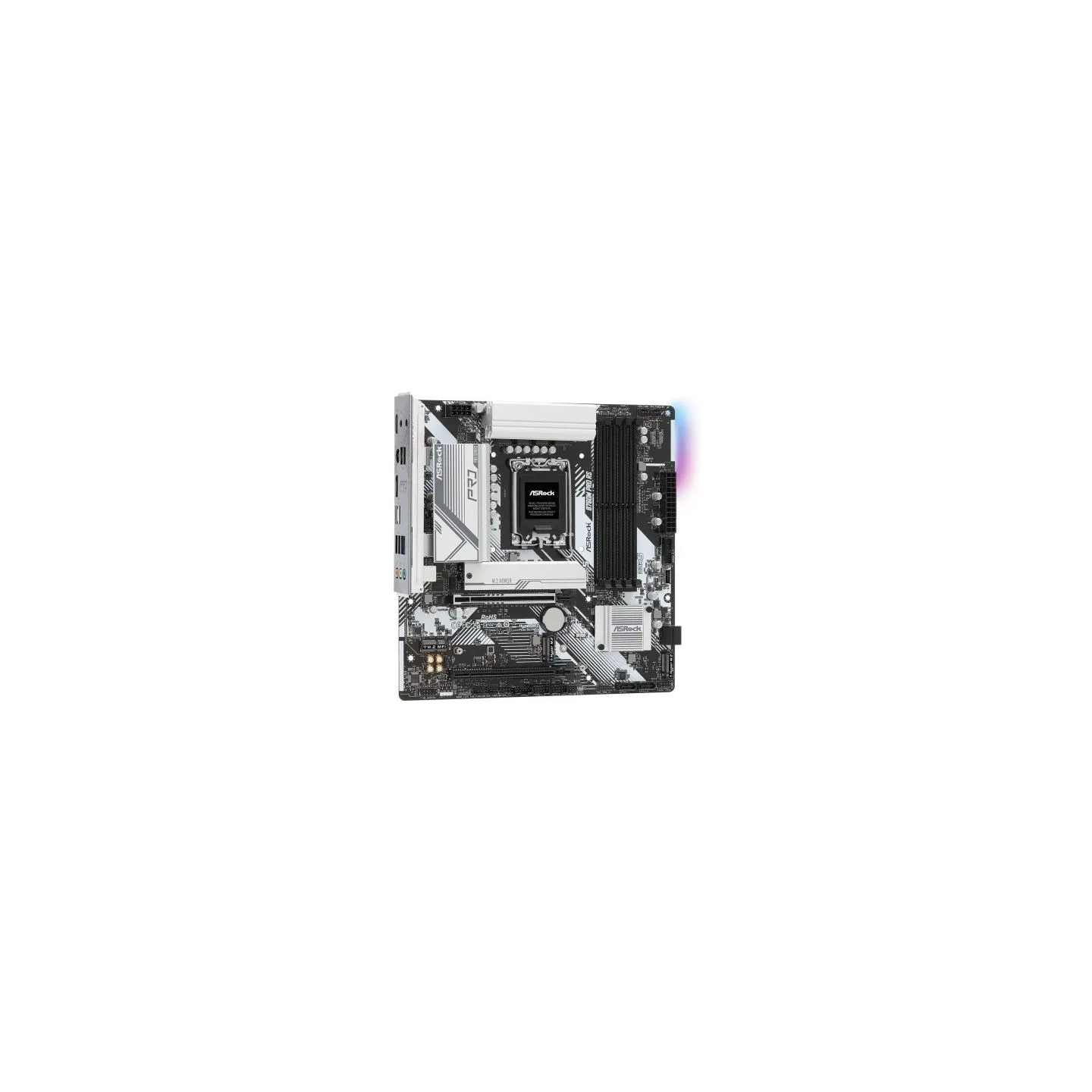

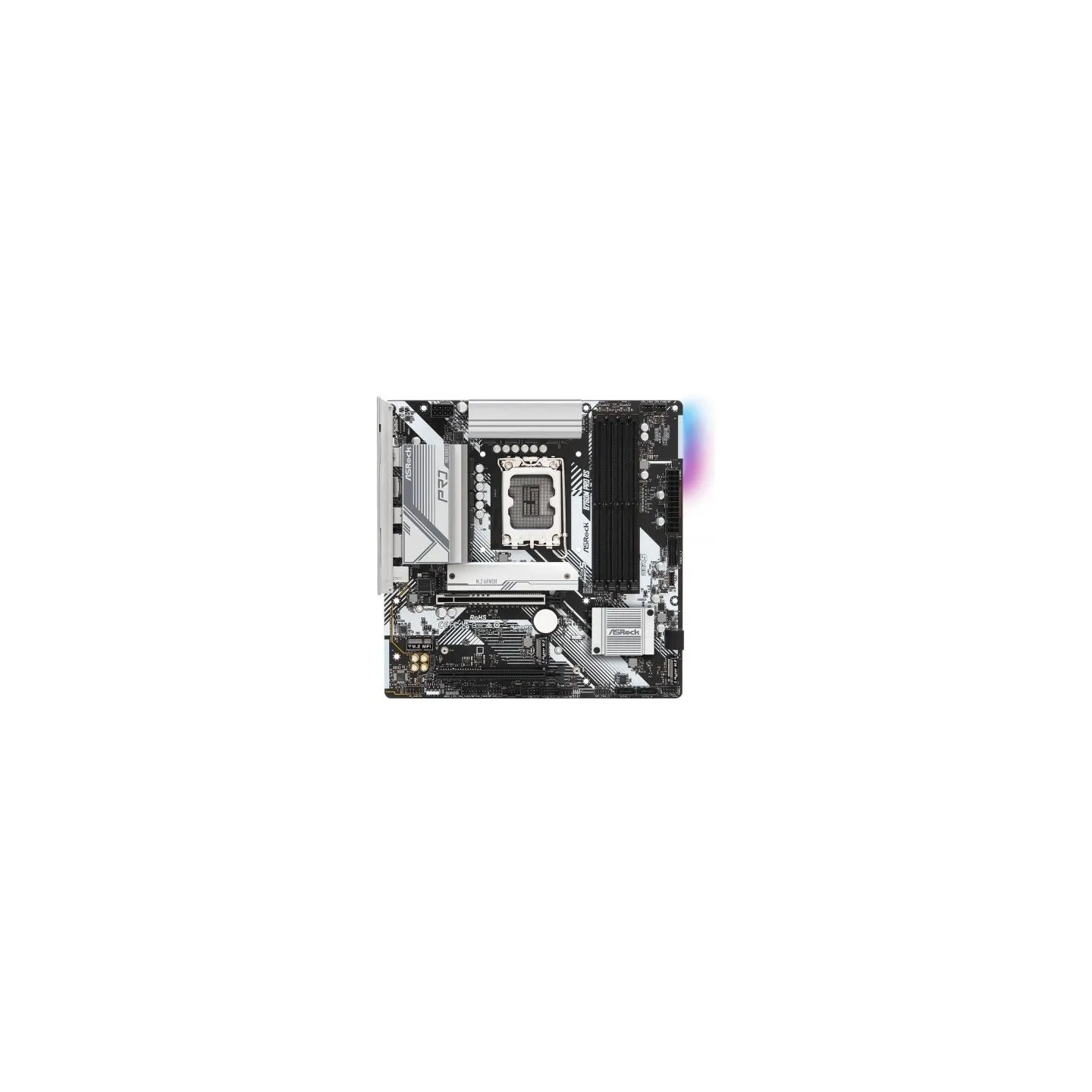

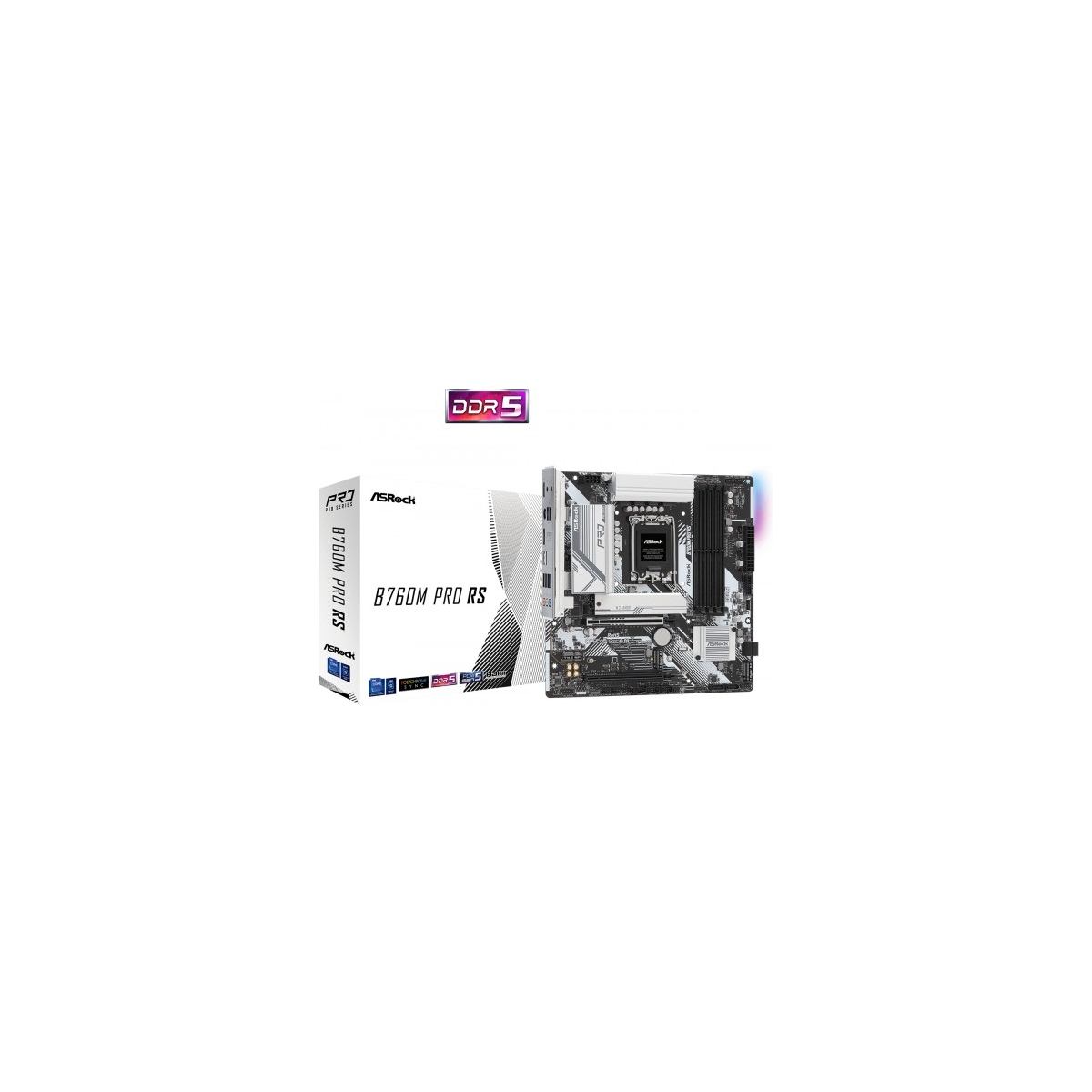

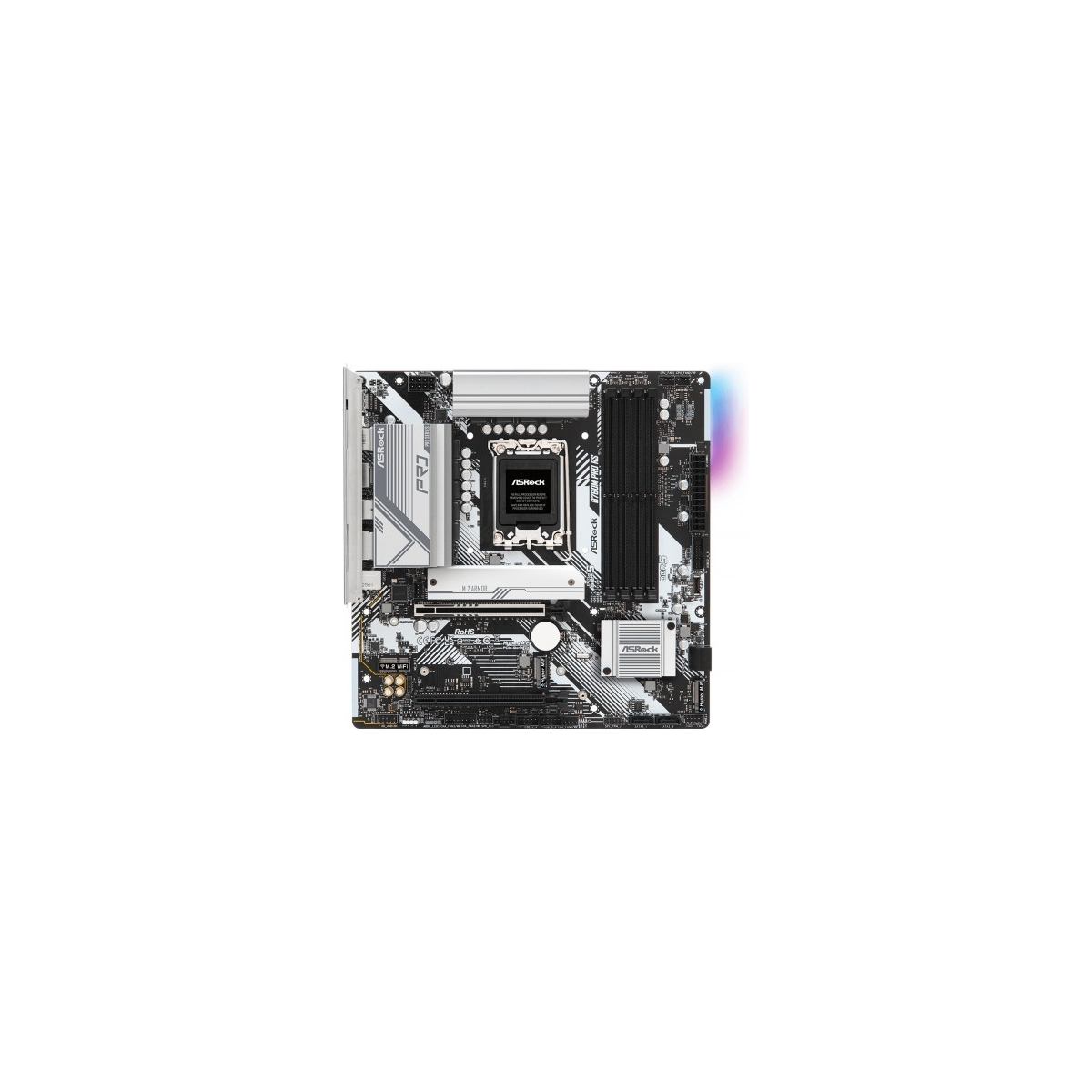

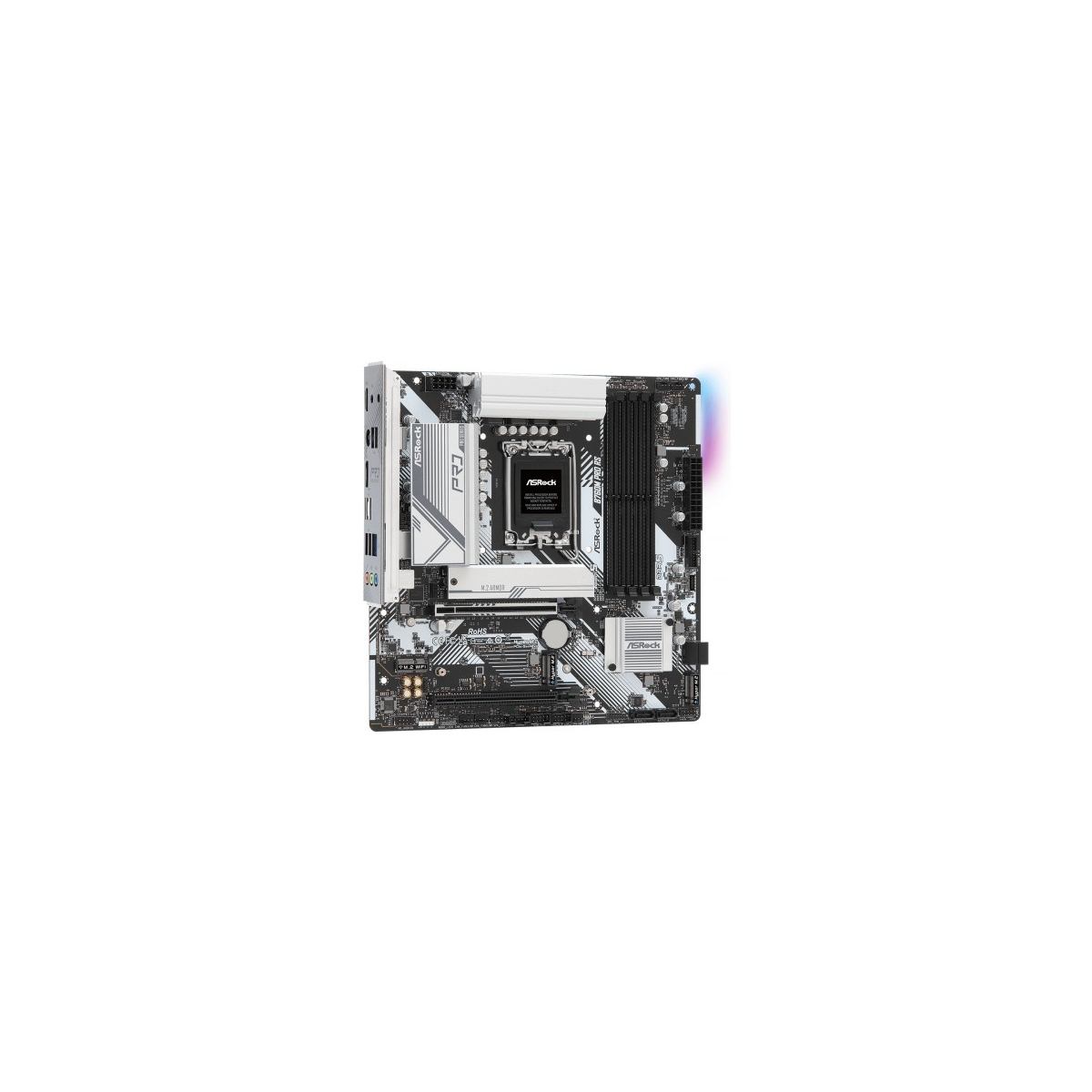

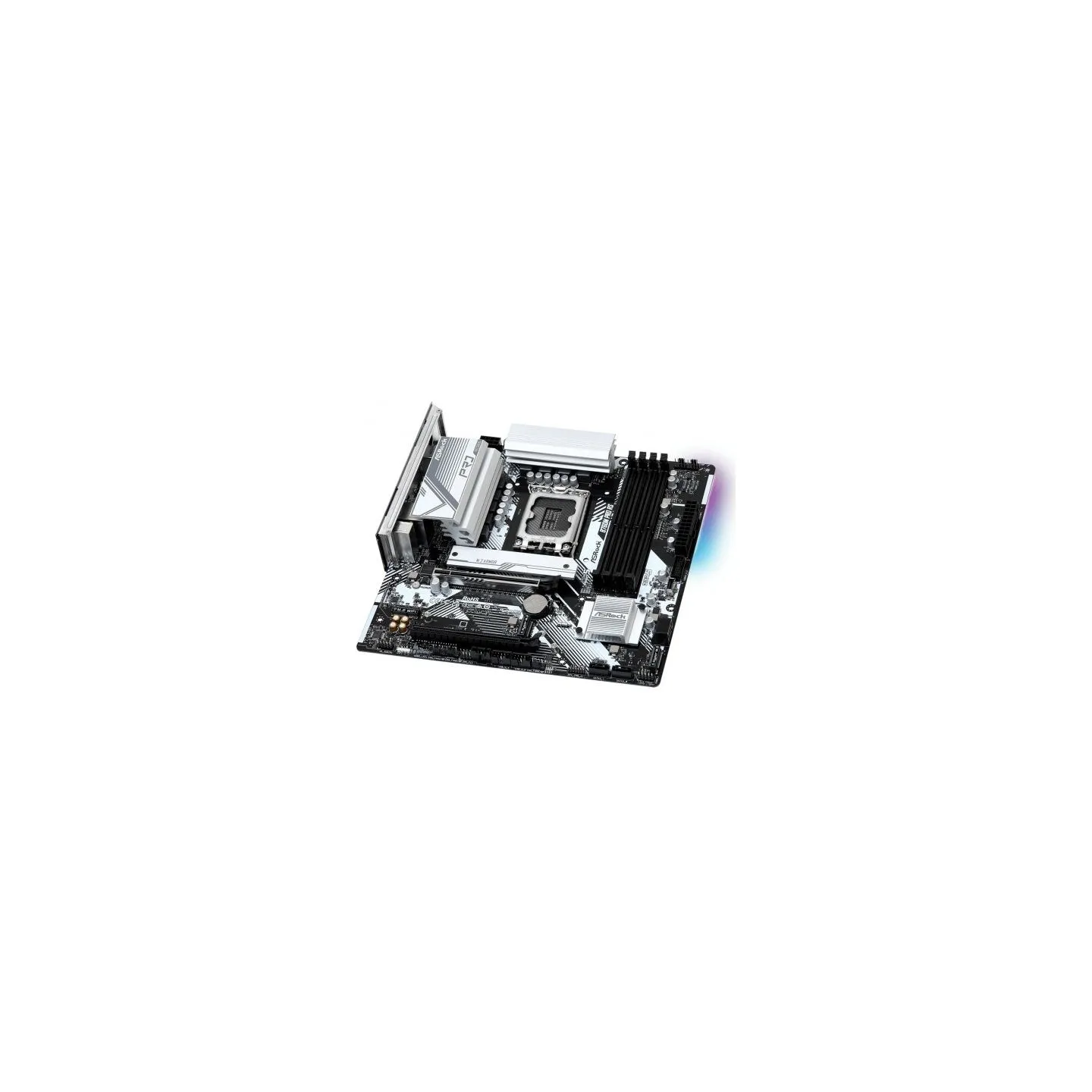

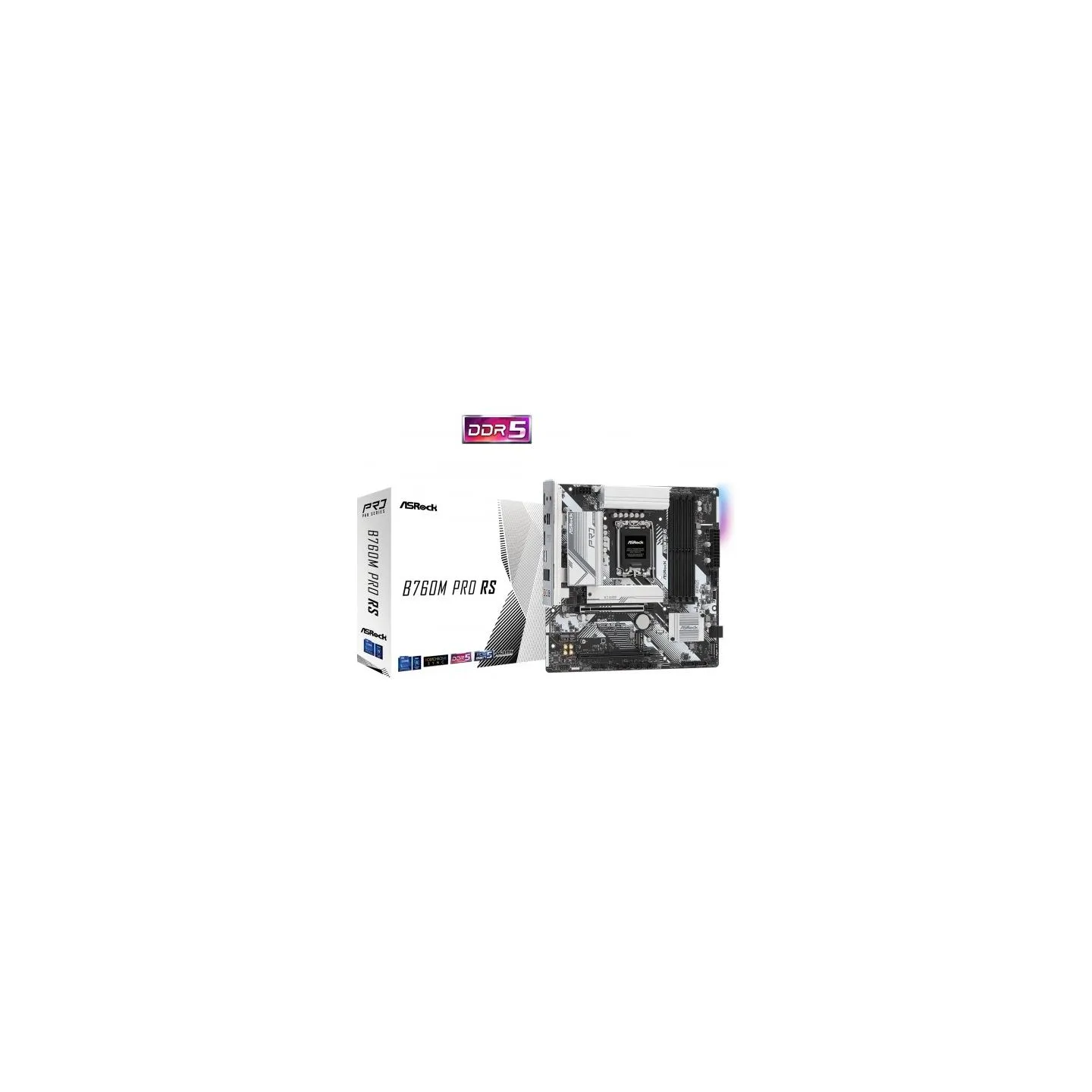

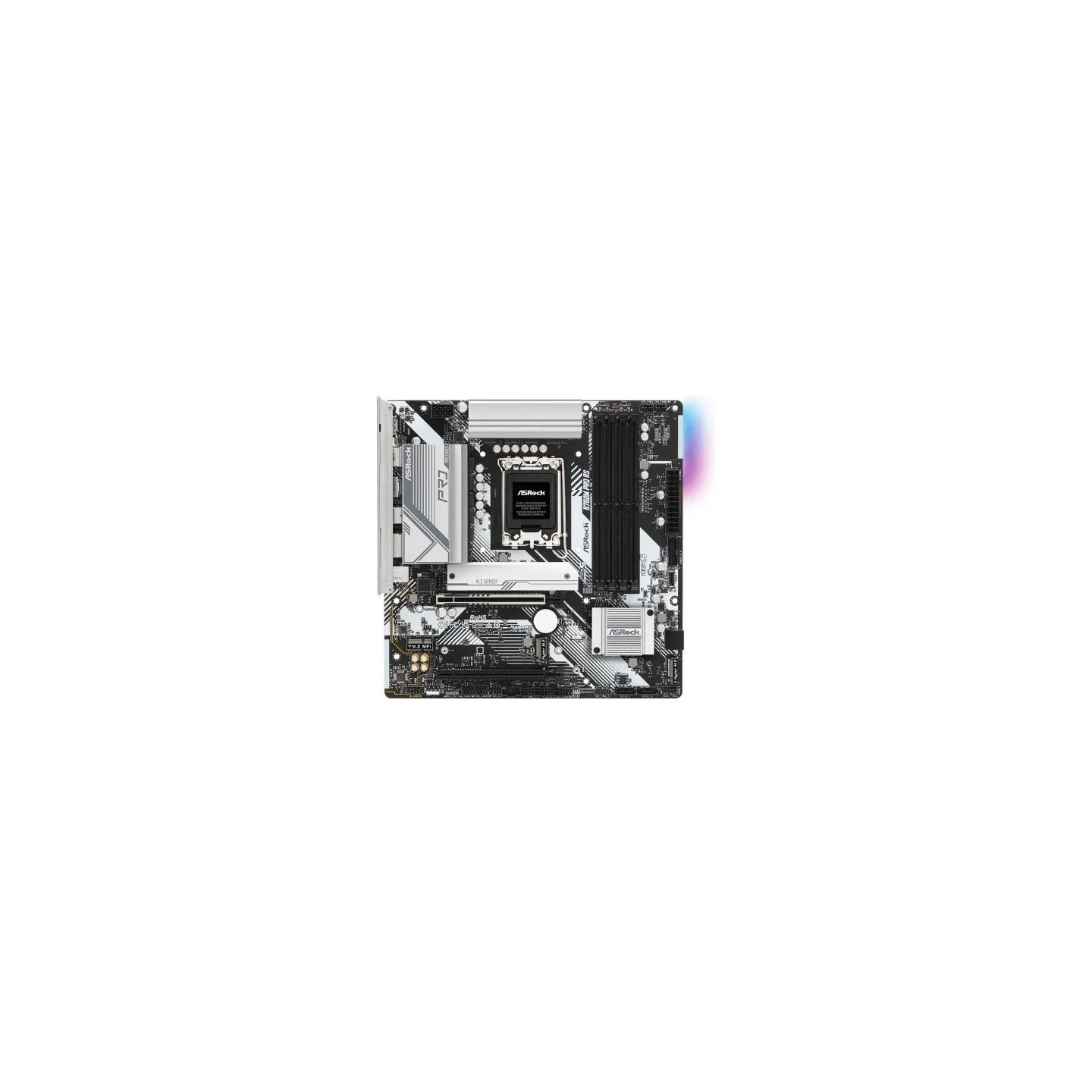

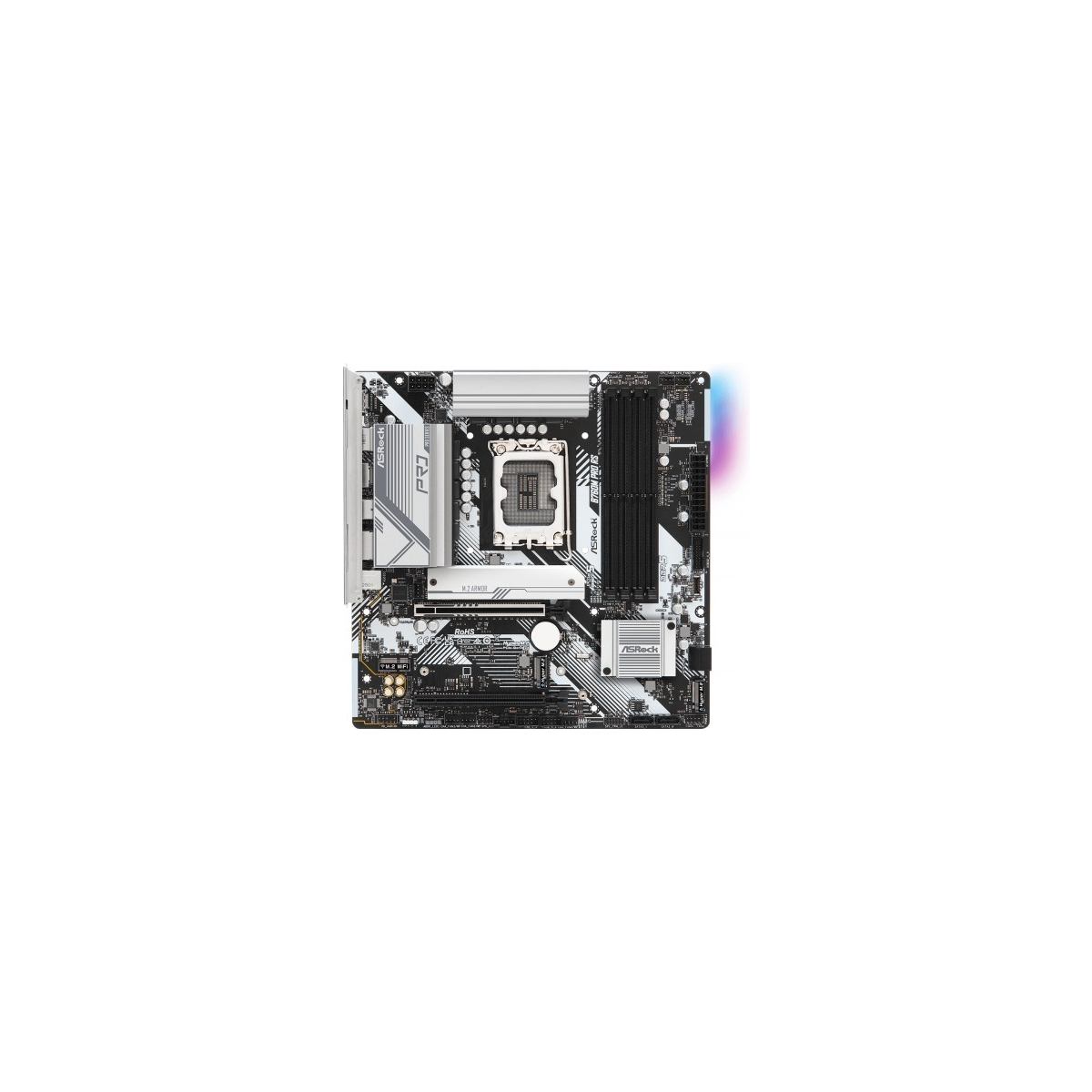

Asrock Motherboard B760M Pro RS s1700 4DDR5 DP/HDMI mATX
- Write a review
€145.37
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRIIEB760U07
- Barcode
- 4710483942723
- Model
- B760M PRO RS
- CPU socket
- LGA1700
- Processor family
- Intel Core
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 3600 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4000 MHz
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 3
- RAID
- Yes
- Detailed data on disk/drive interfaces
- CPU:- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*- 4 x SATA3 6.0 Gb/s Connectors*Supports Intel Volume Management Device (VMD)Supports NVMe SSD as boot disksRAID- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Graphics
- Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
- USB ports at back panel
- 6
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 7
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 2 x SMA
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 2 x USB 2.0
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 1 Type-C
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 4 x 4pin Chassis fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB C
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x Thunderbolt header
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Dimensions
- 24.4 cm x 24.4 cm
- Accessories included
- 1 x User Manual 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC* UEFI ASRock EZ Mode ASRock Full HD UEFI ASRock My Favorites in UEFI ASRock Auto Driver Installer ASRock Instant Flash ASRock Easy RAID Installer
- Designation
- CE+WEEE
B760M PRO RS
30 Items
Specific References
- EAN13
- 4710483942723
- MPN
- B760M PRO RS
