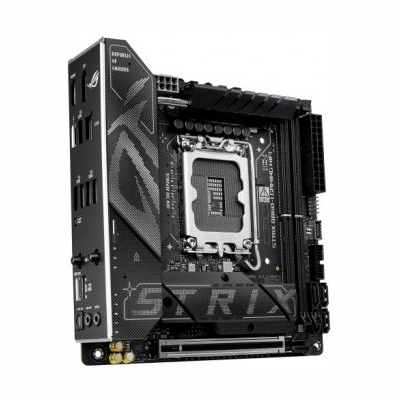

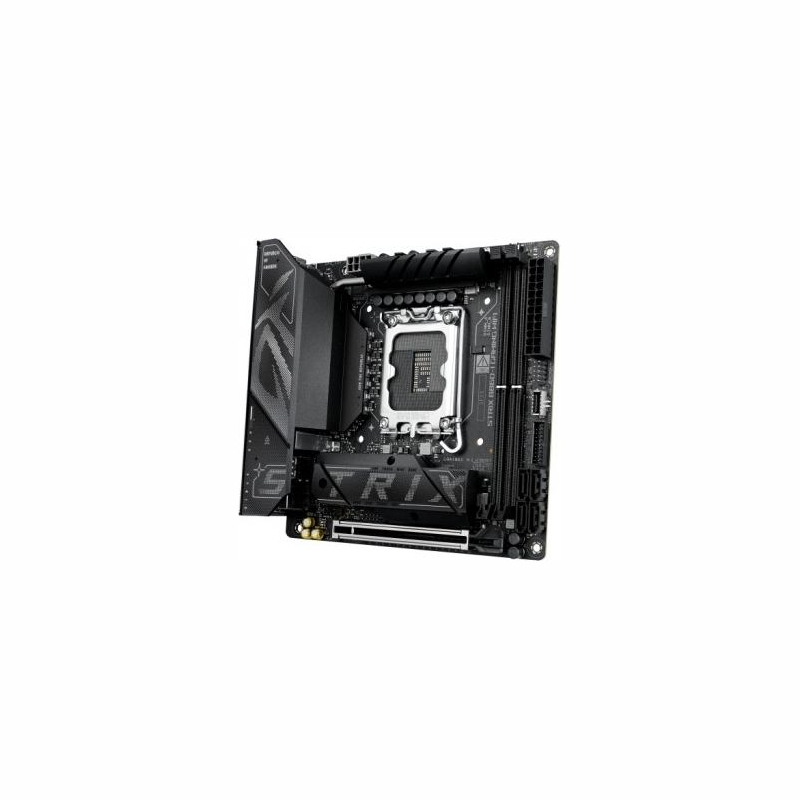

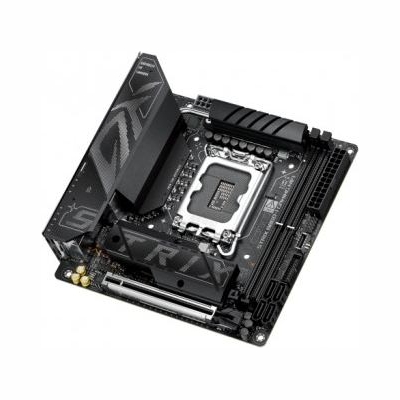

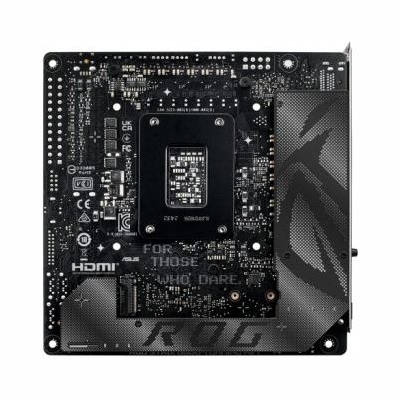

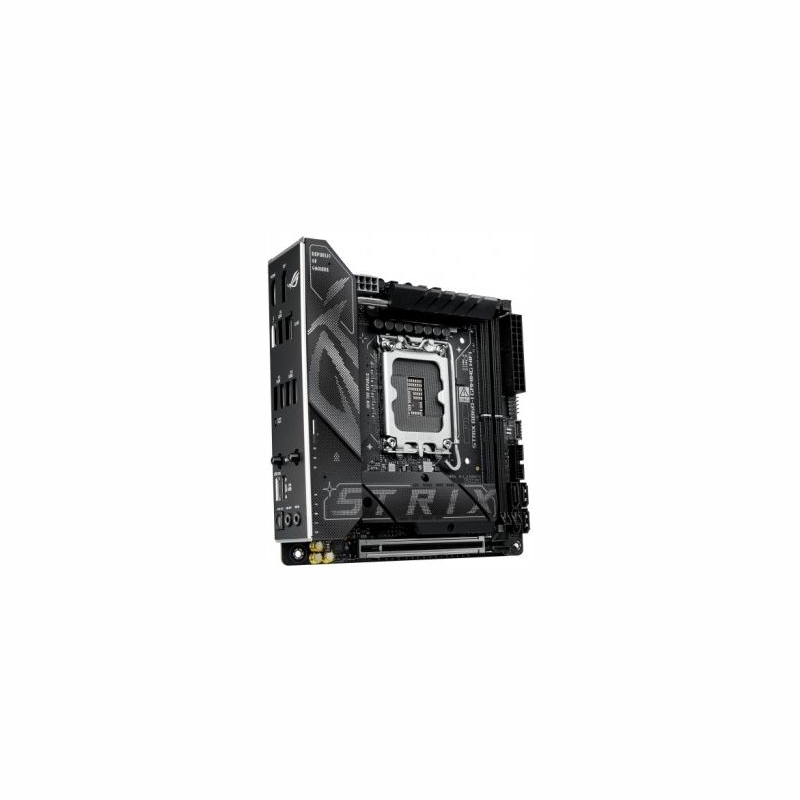

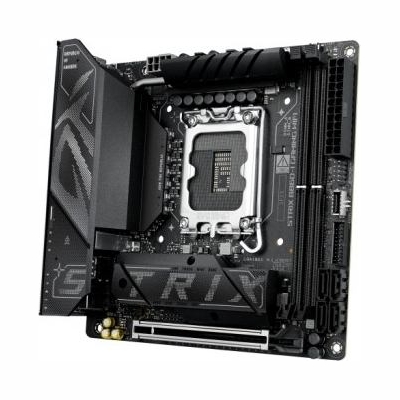

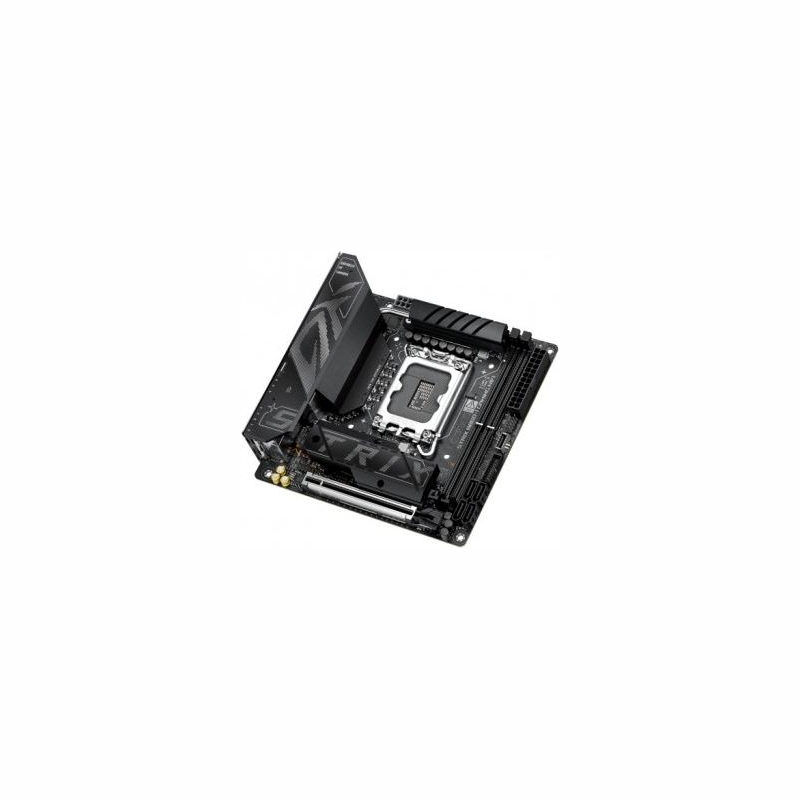

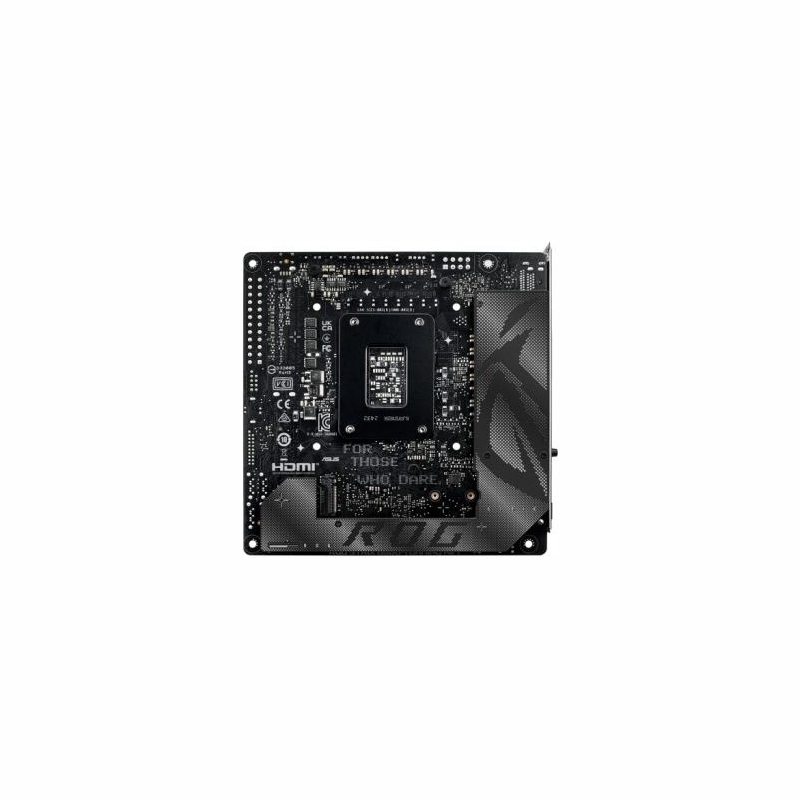

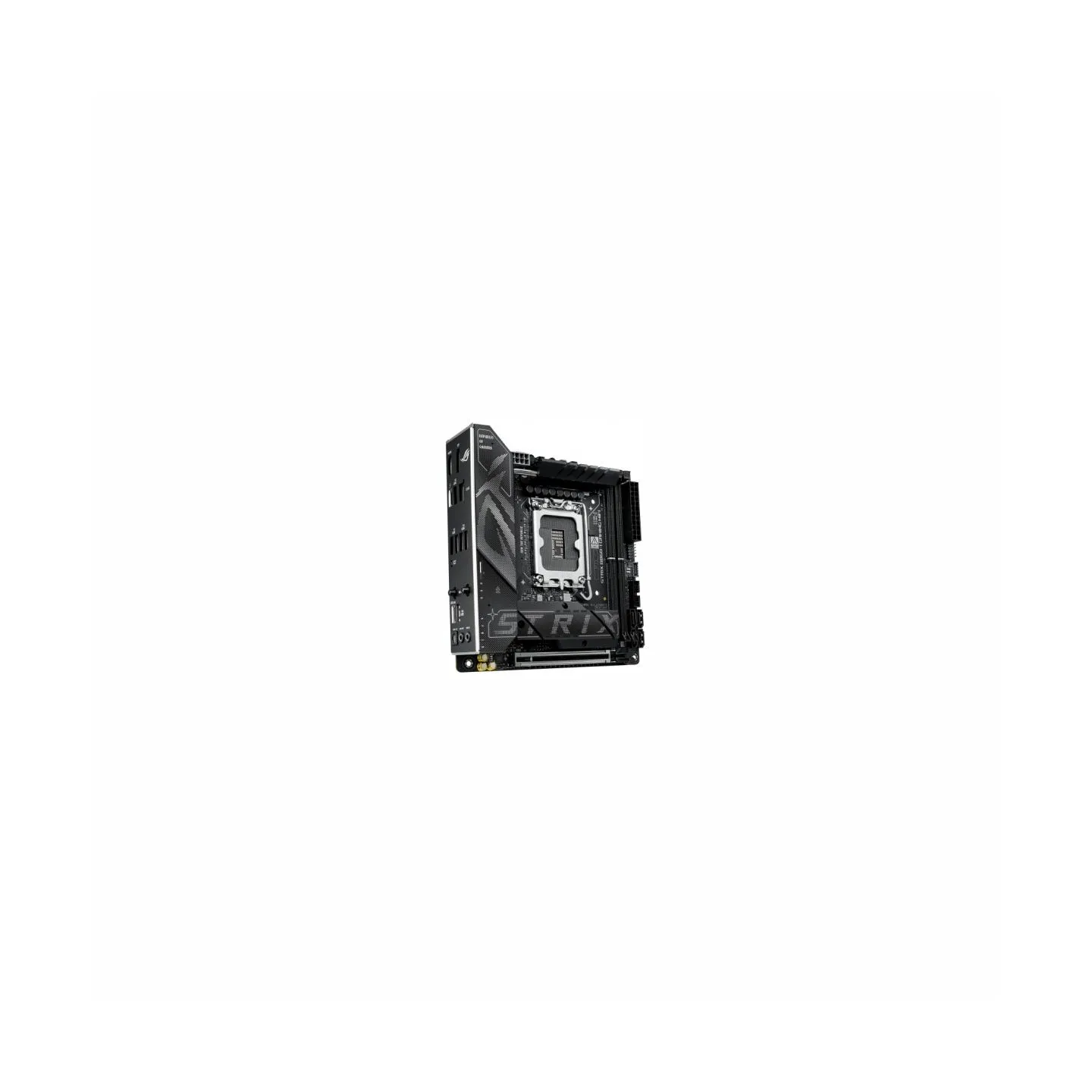

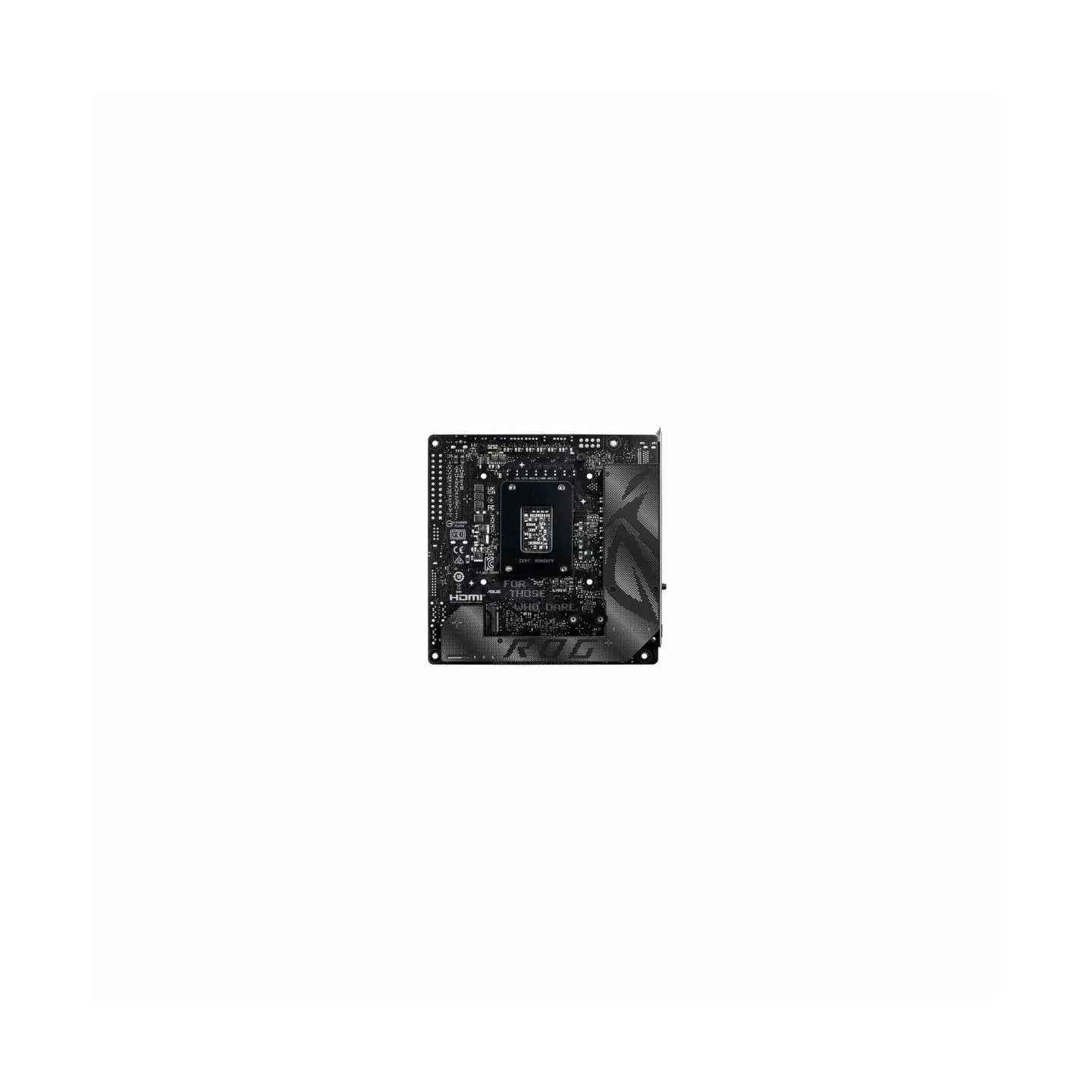

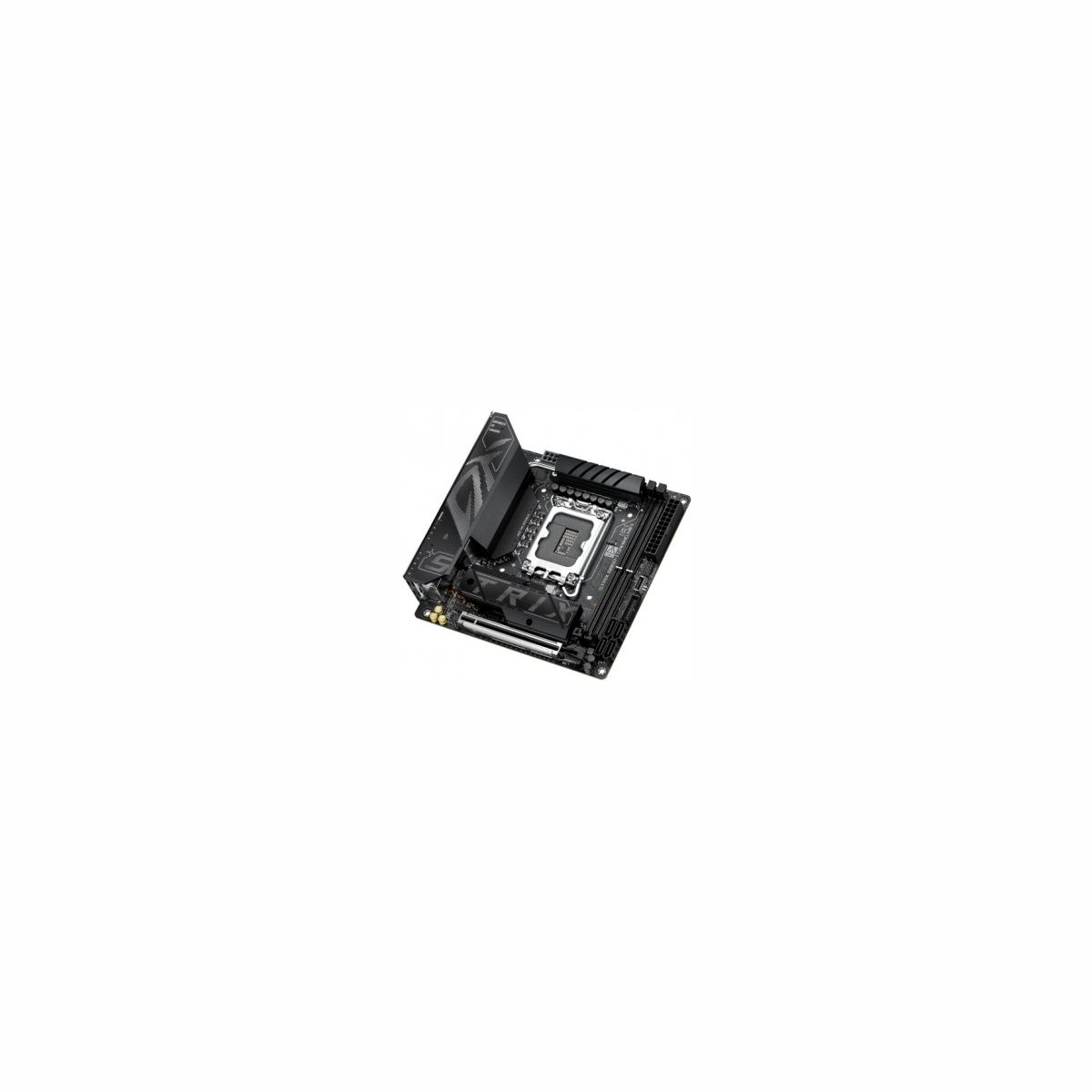

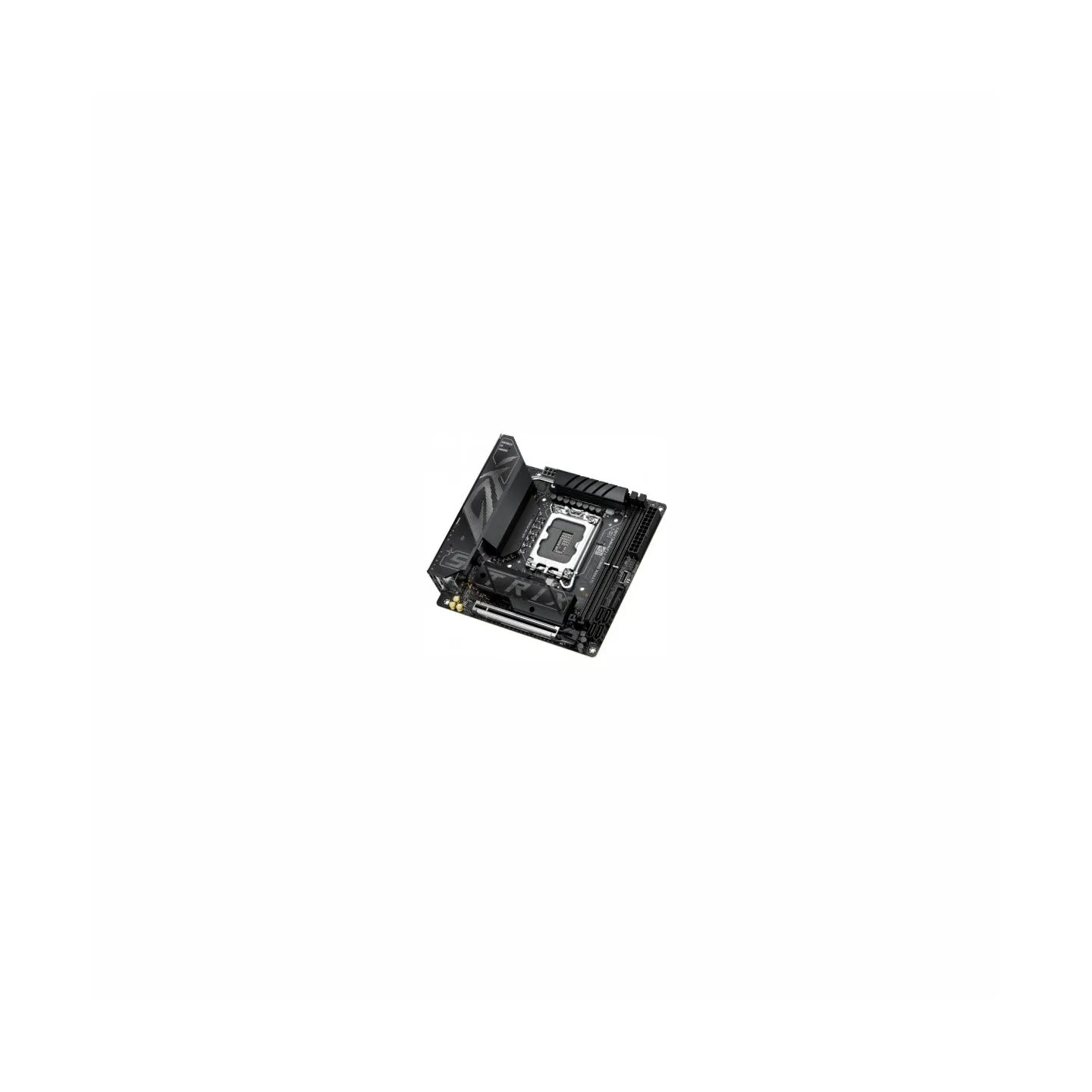

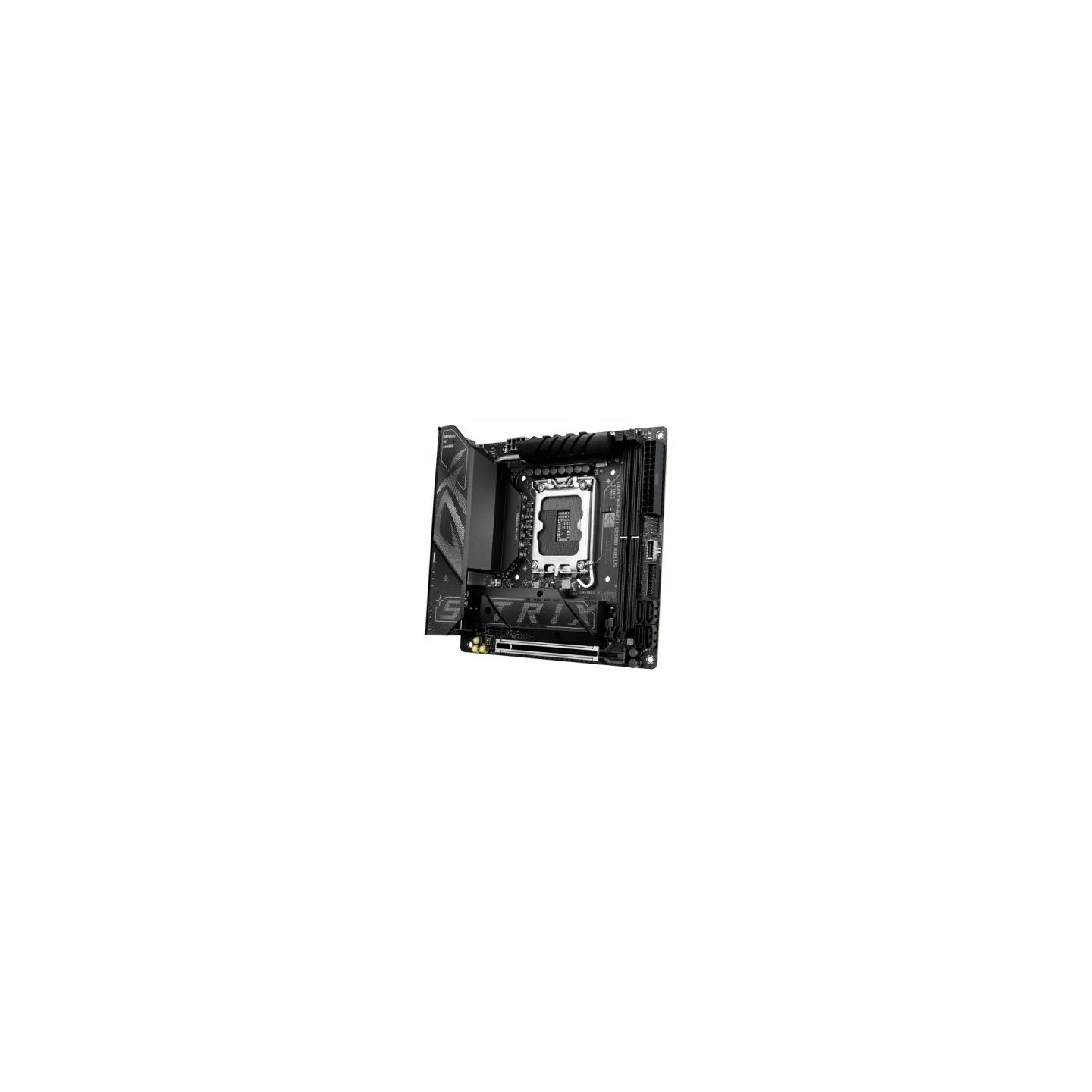

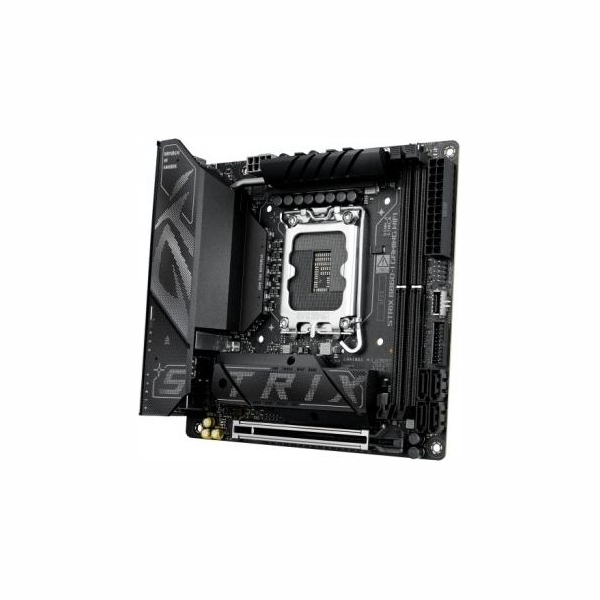

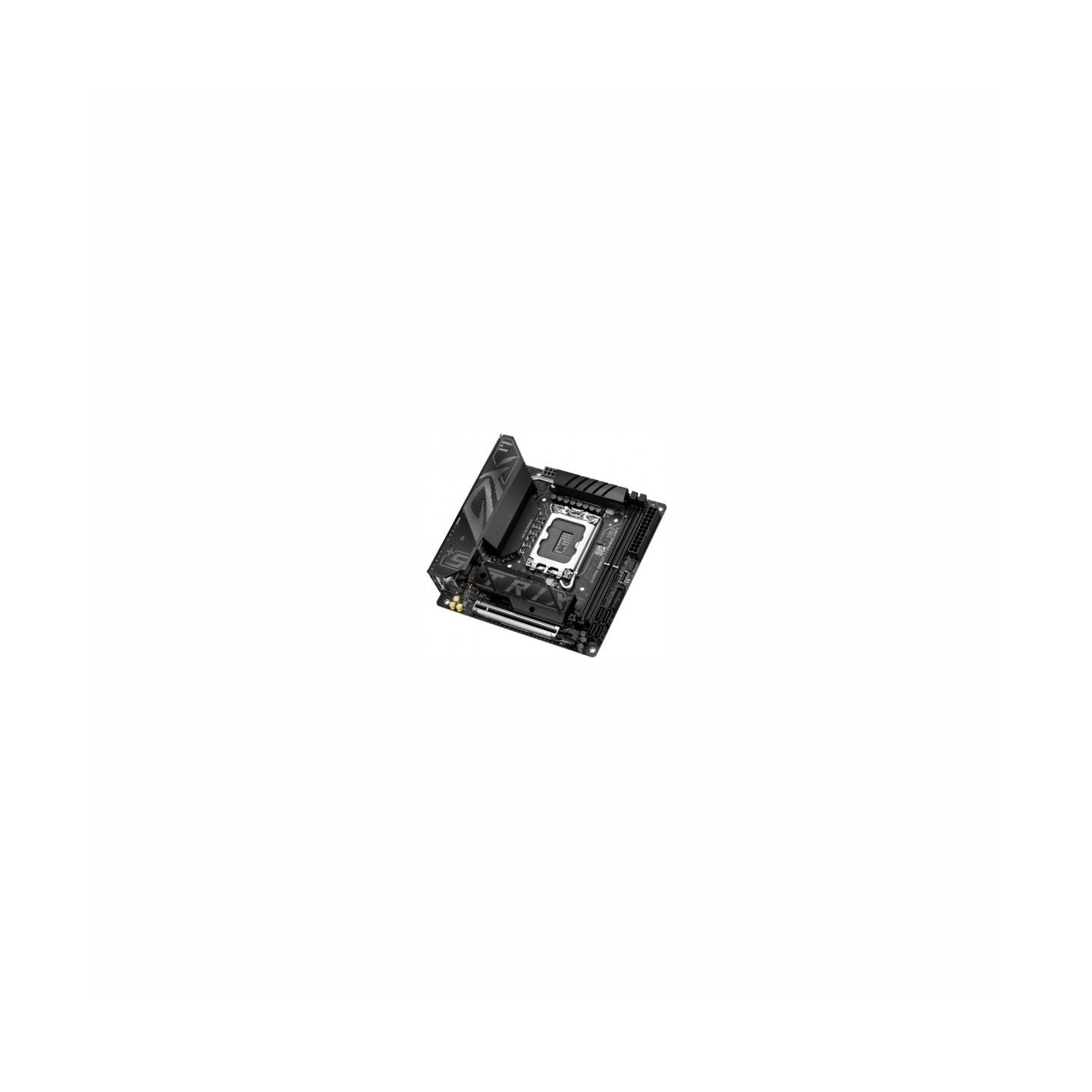

Asus Motherboard ROG STRIX B860-I GAMING WIFI s1851 4DDR5 TB ITX
- Write a review
€331.18
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUIIFB860M00
- Barcode
- 4711387815991
- Model
- ROG STRIX B860-I GAMING WIFI
- CPU socket
- LGA1851
- Processor family
- Intel Core Ultra
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B860 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 9066 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel Core Ultra Processors (Series 2) M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Graphics
- 1 x DisplayPort 1 x HDMI 1 x Intel Thunderbolt 4
- Sound card
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* Impedance sense for front and rear headphone outputs Internal audio Amplifier to enhance the highest quality sound for headphone and speakers Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) Supports up to 32-Bit/192 kHz playback* Audio Features SupremeFX Shielding Technology Savitech SV3H712 AMP Rear optical S/PDIF out port Premium audio capacitors Dedicated audio PCB layers * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- Bluetooth
- Network interface
- Ethernet: 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless & Bluetooth: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
- USB ports at back panel
- 8
- USB ports on motherboard
- 5
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 2
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No
- External connectors
- 1 x Thunderbolt 4
- External connectors
- 1 x Line Out
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 1 x S/PDIF
- External connectors
- 2 x USB 2.0
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x DisplayPort
- External connectors
- 1 x HDMI
- External connectors
- 1 x USB 3.2 Gen 2x2 Type-C
- External connectors
- 1 x Przycisk Clear CMOS
- External connectors
- 1 x Wi-Fi Module
- Onboard connectors
- 1 x Thermal sensor connector
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 2 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x 4pin Chassis fan
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 2 x Addressable LED
- BIOS
- 256Mb Flash ROM, UEFI AMI BIOS
- Form factor
- mini ITX
- Dimensions
- 17 x 17 cm
- Accessories included

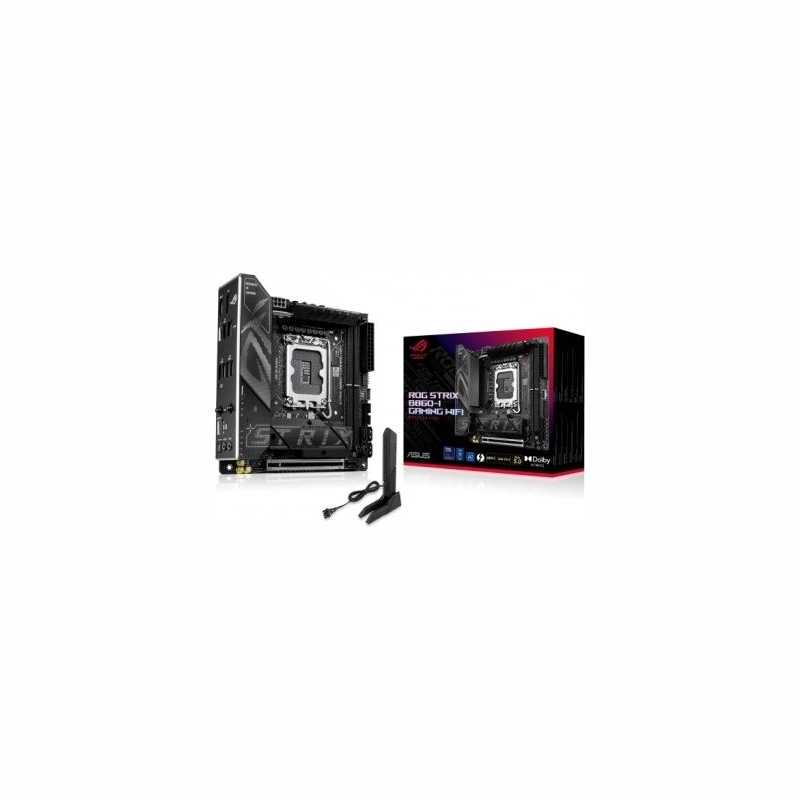

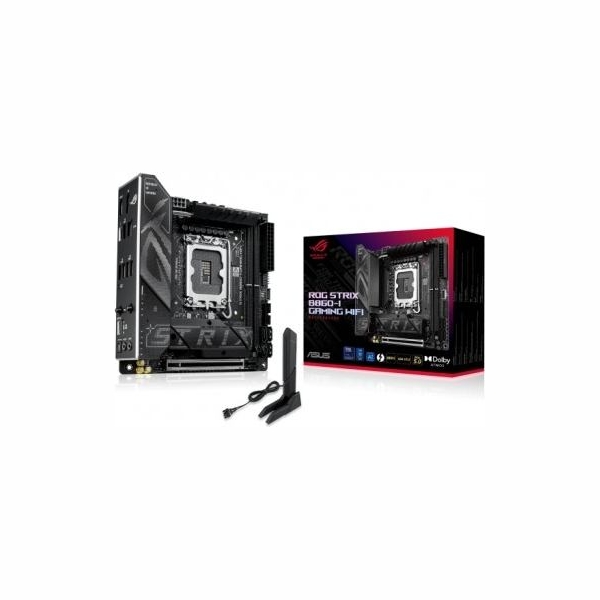

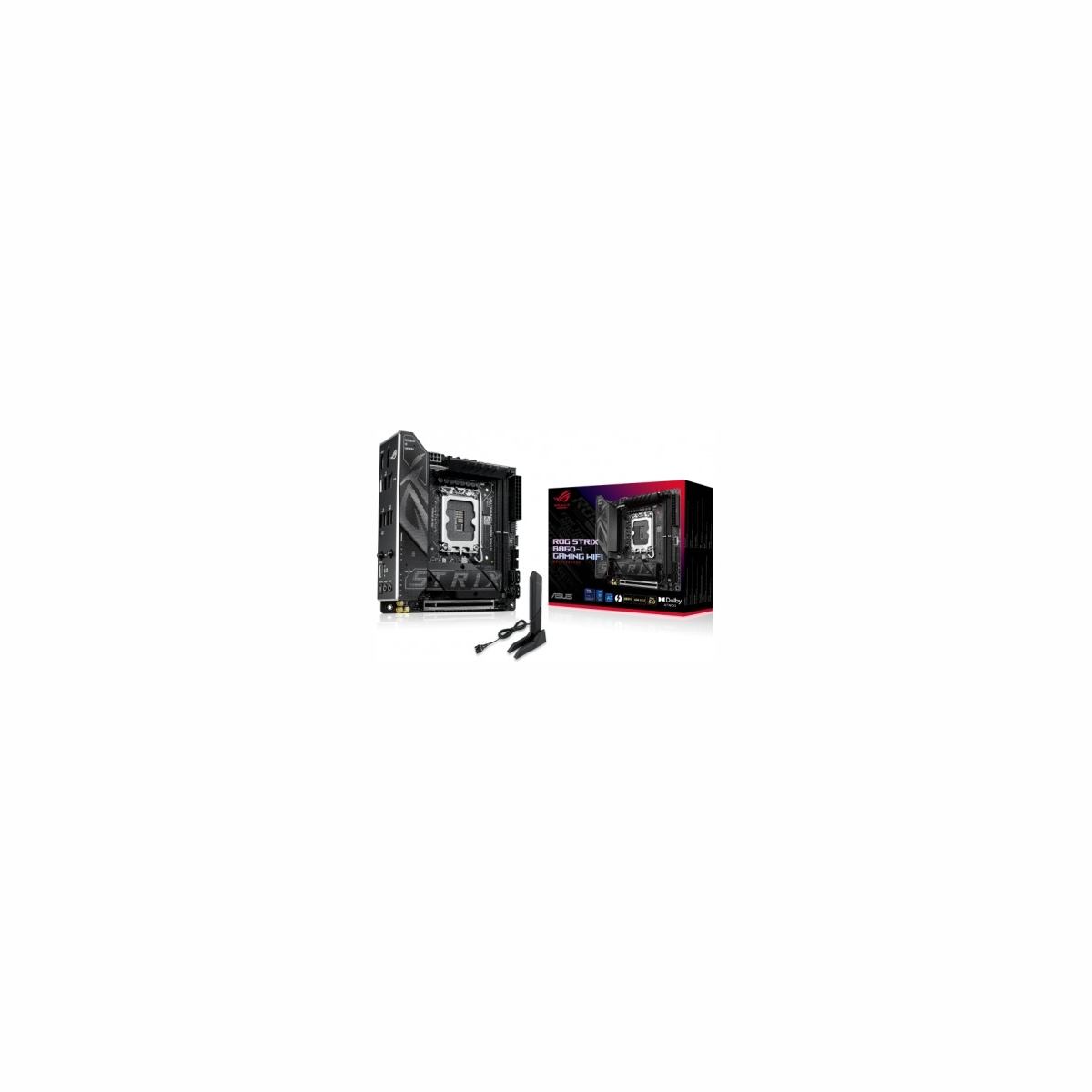

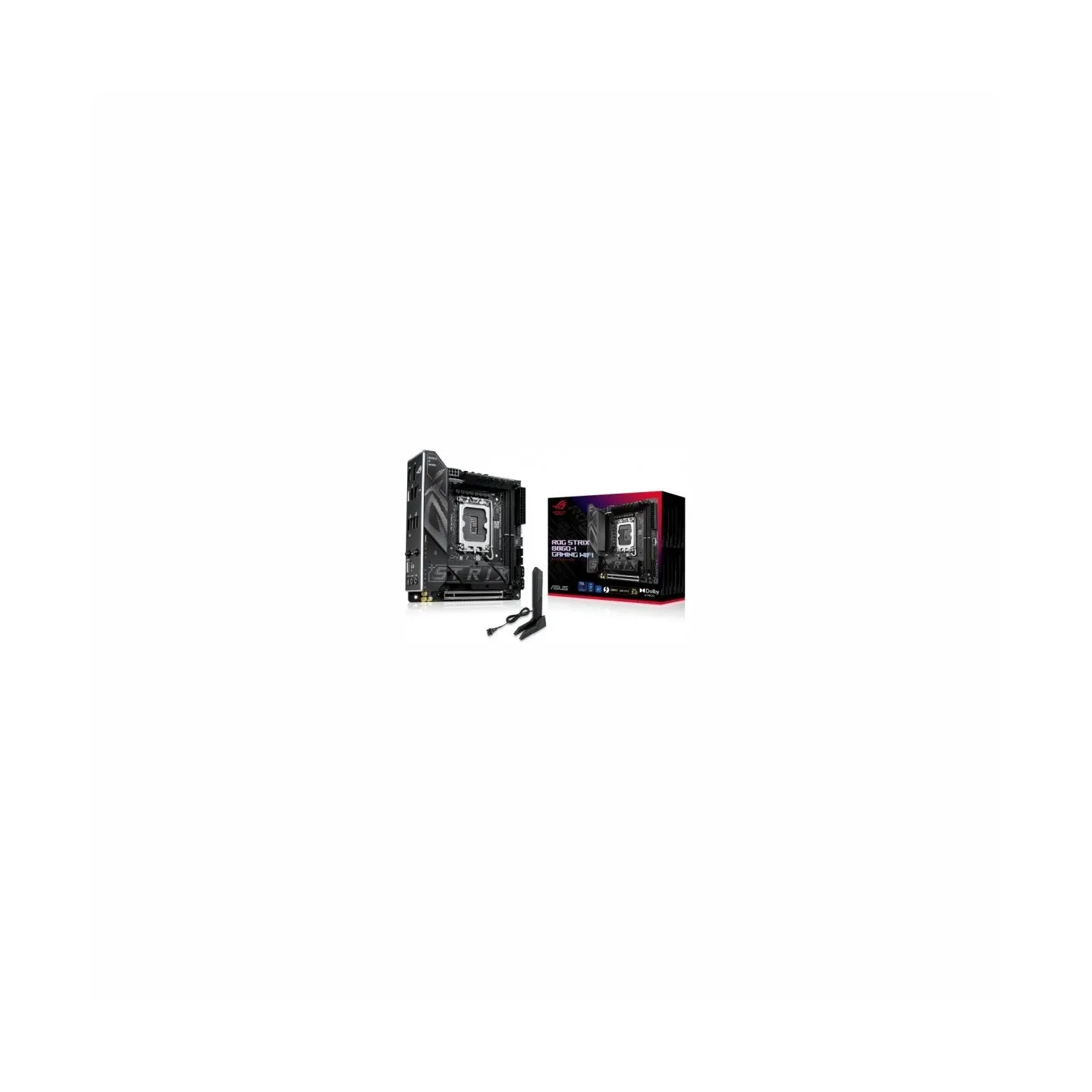

- 2 x SATA 6Gb/s cables ROG USB2.0 splitter cable Panel cable ASUS WiFi Q-Antenna Cable ties package M.2 Q-Latch package Screw package for M.2 SSD M.2 Bracket ROG key chain ROG Strix stickers Quick start guide
- Supported operating systems
- Windows 11
- Software
- WOL by PME, UEFI PXE
- Designation
- CE+WEEE
ROG STRIX B860-I GAMING WIFI
3 Items
Specific References
- EAN13
- 4711387815991
- MPN
- ROG STRIX B860-I GAMING WIFI
