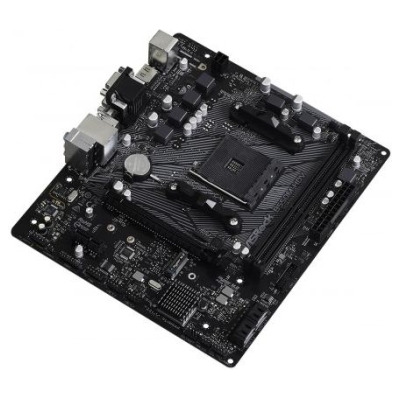

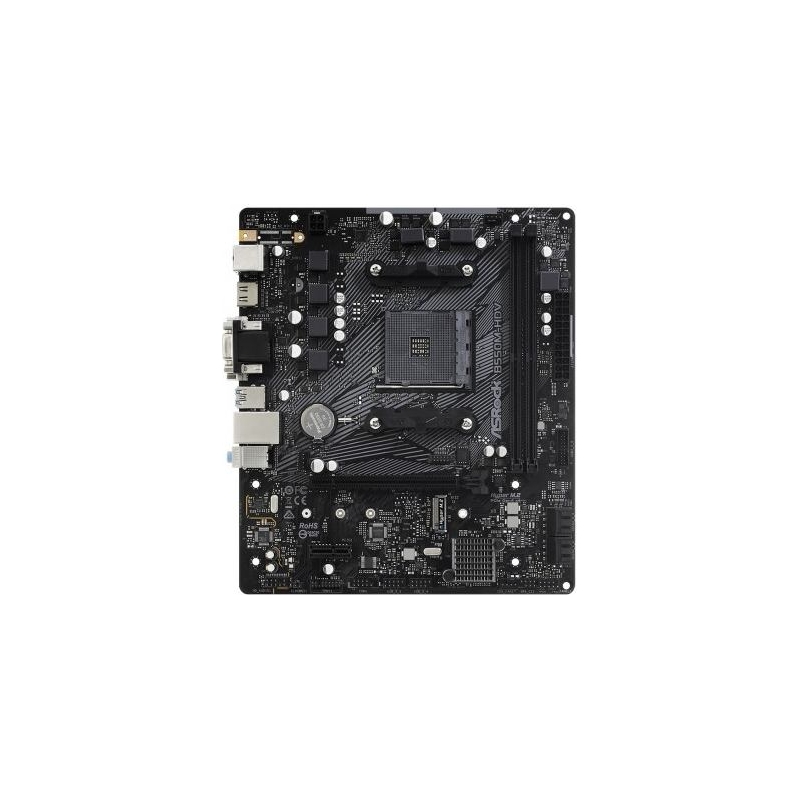

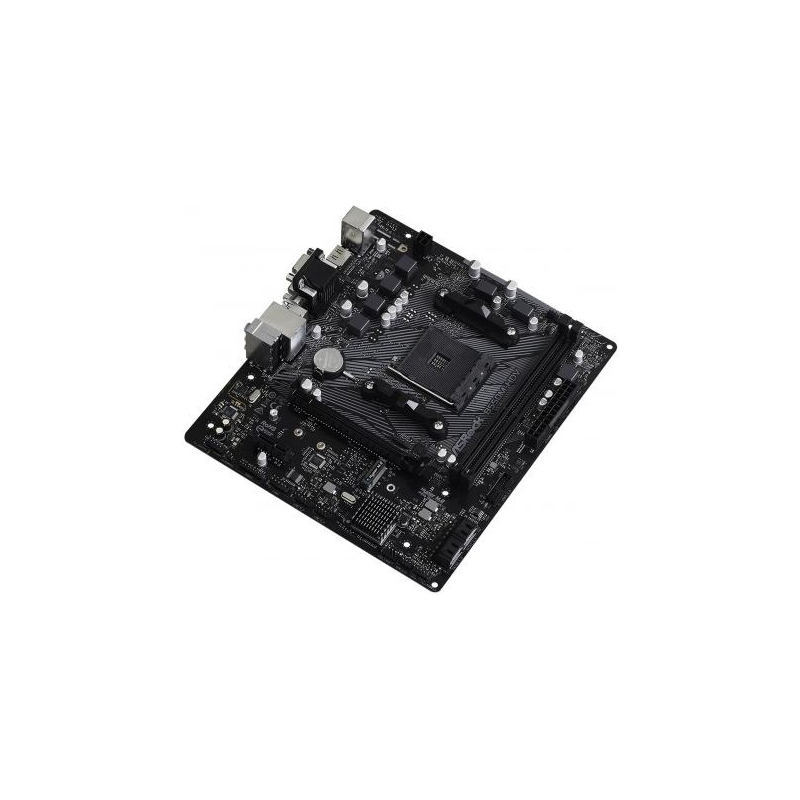

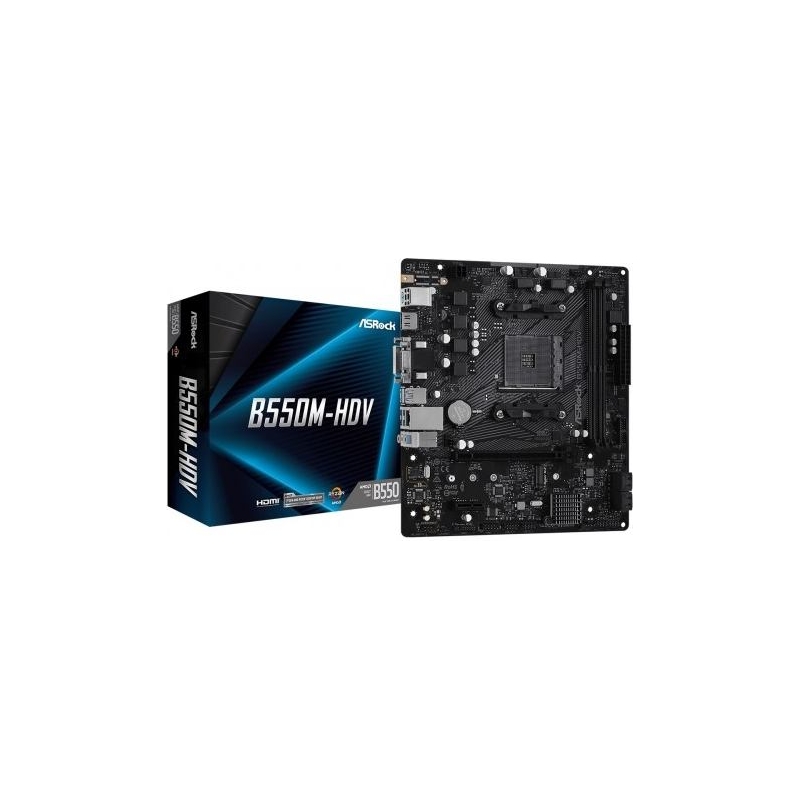

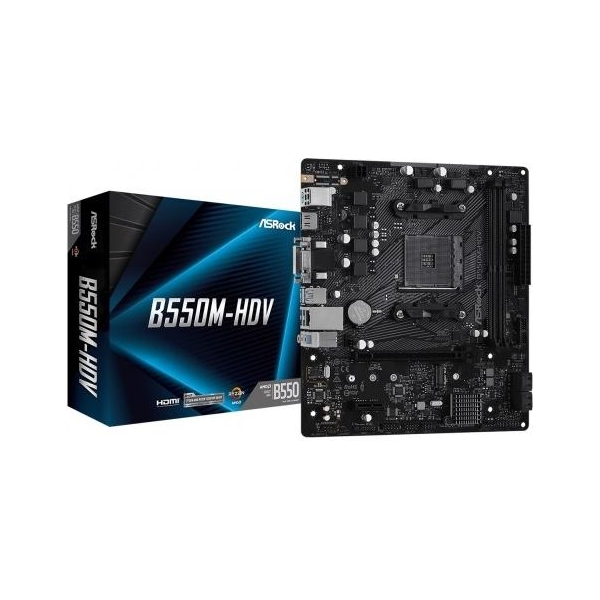

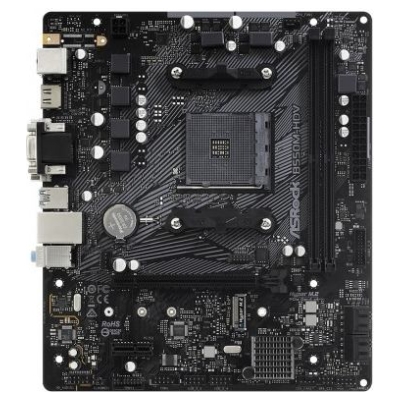

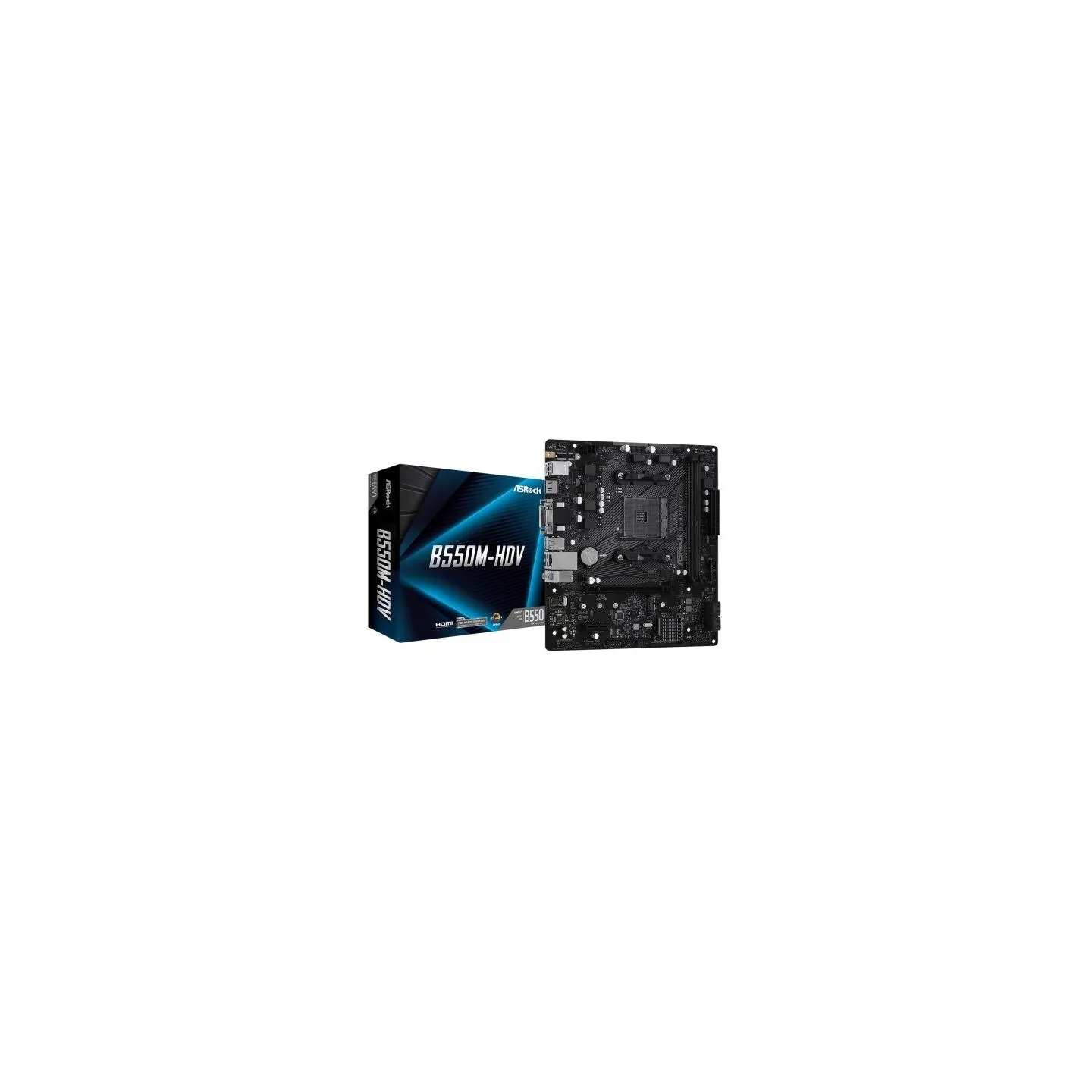

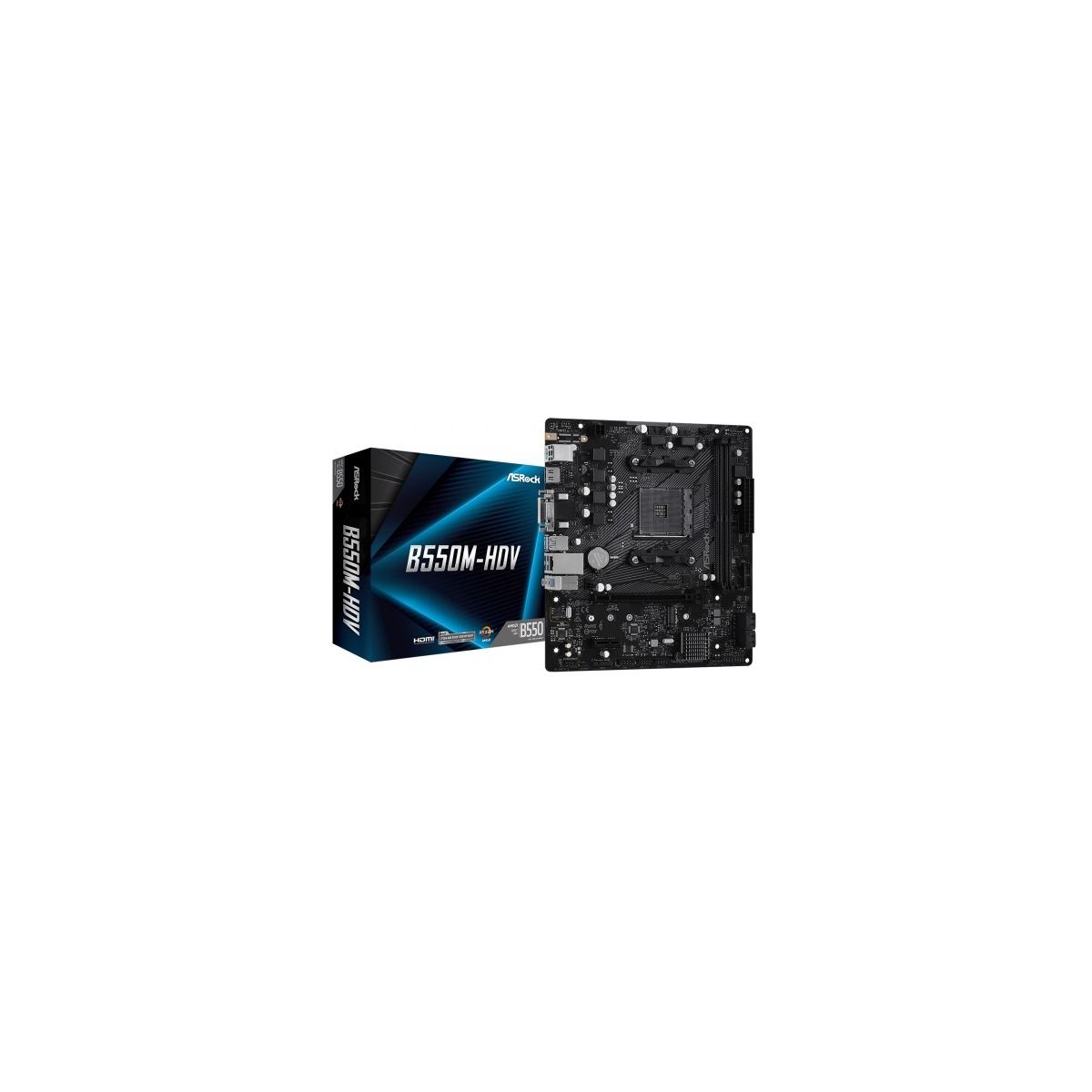

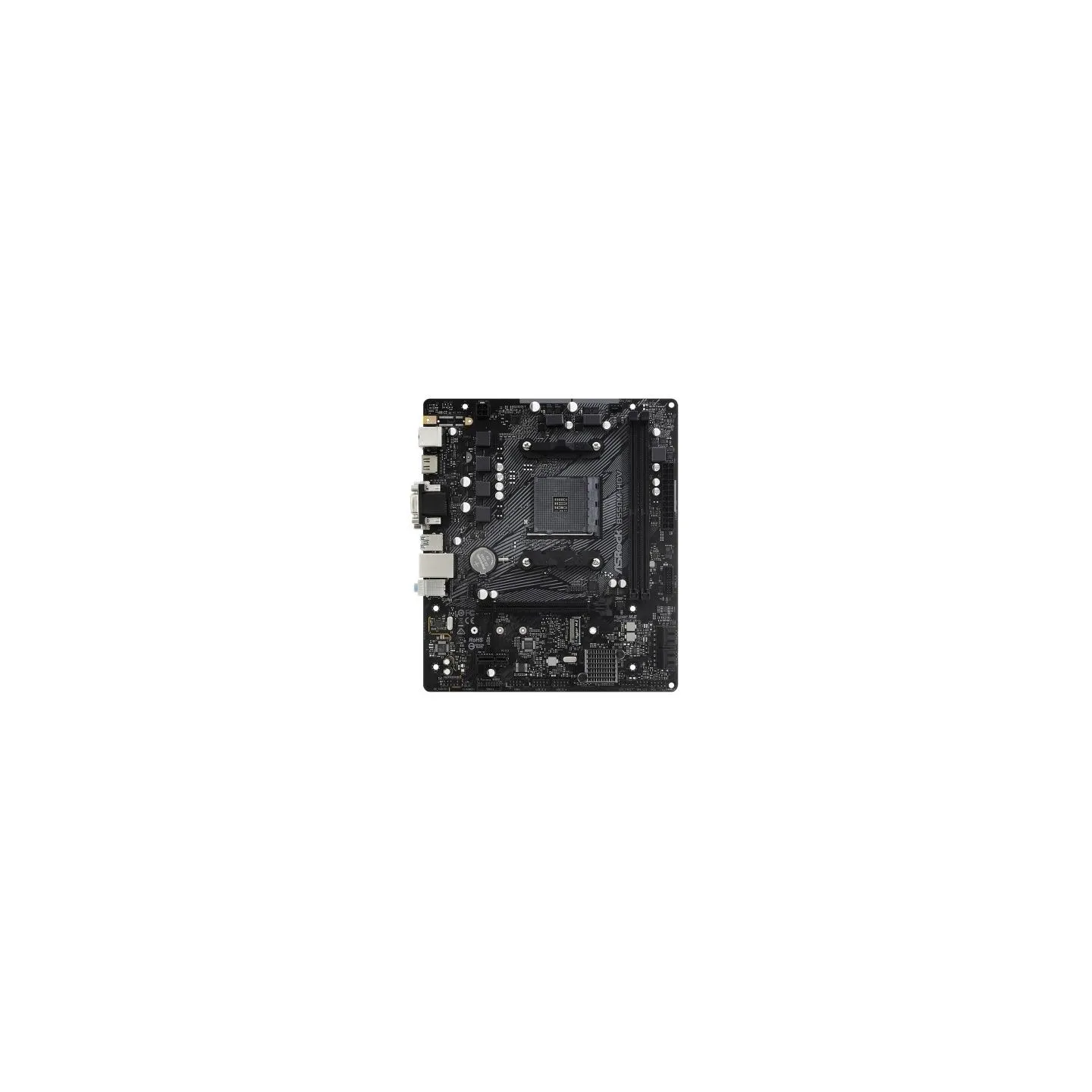

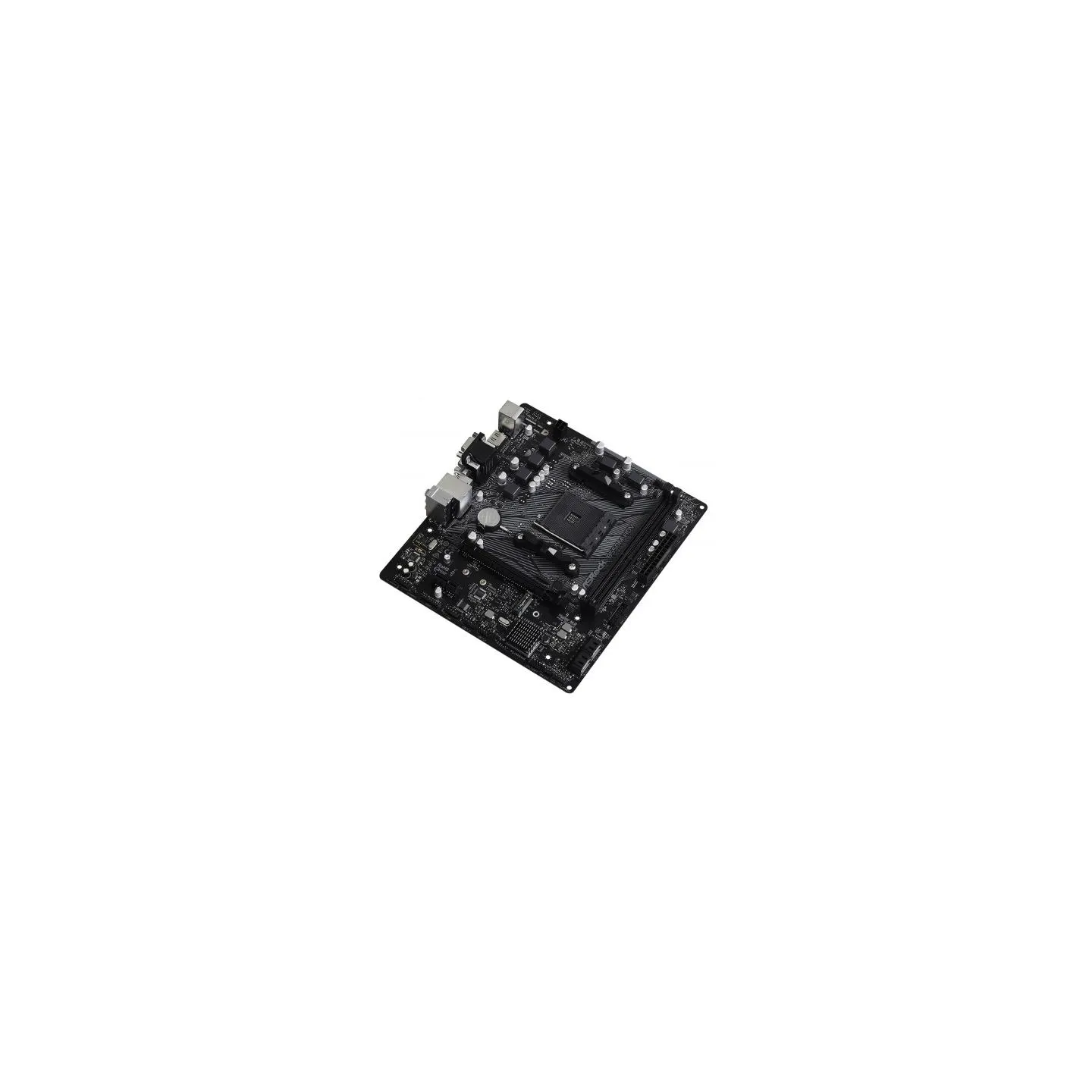

Asrock Motherboard B550M-HDV AM4 2DDR4 HDMI/DVI/D-SUB M.2 mATX
- SKU
- KBASRAA7B550U02
- Barcode
- 4710483931635
- CPU socket
- Socket AM4
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B550
- Memory type
- DDR4
- Number of DDR4 slots
- 2
- Memory bus frequency
- 3466 MHz
- Memory bus frequency
- 4333 MHz
- Memory bus frequency
- 2133 MHz
- Memory bus frequency
- 4266 MHz
- Memory bus frequency
- 4400 MHz
- Memory bus frequency
- 4200 MHz
- Memory bus frequency
- 4133 MHz
- Memory bus frequency
- 2400 MHz
- Memory bus frequency
- 2667 MHz
- Memory bus frequency
- 4600 MHz
- Memory bus frequency
- 3733 MHz
- Memory bus frequency
- 3200 MHz
- Memory bus frequency
- 4000 MHz
- Memory bus frequency
- 2933 MHz
- Memory bus frequency
- 3800 MHz
- Max memory size
- 64
- Expansion slots
- 1 x PCIe 4.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Max. number of SATA devices
- 4
- RAID
- Yes
- Network interface
- 1 x 10/100/1000 Mbit/s
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- COM connector / port
- Yes

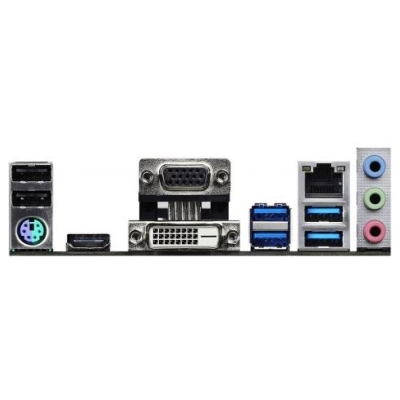

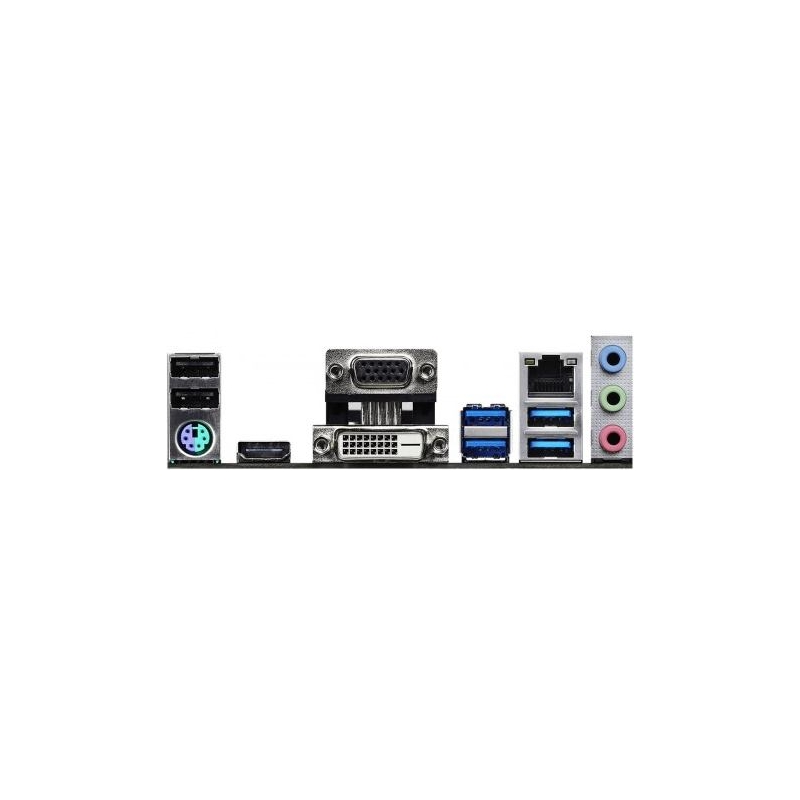

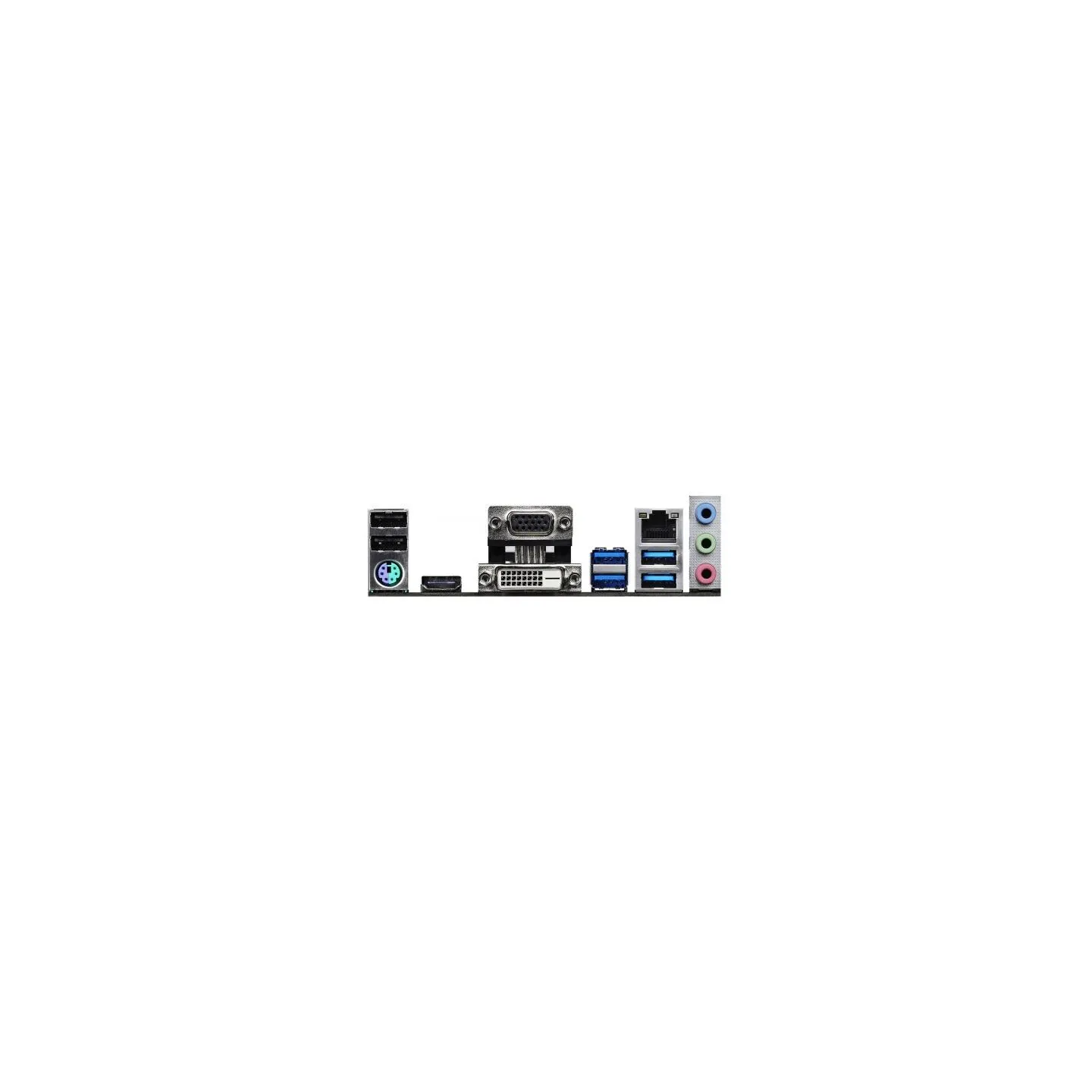

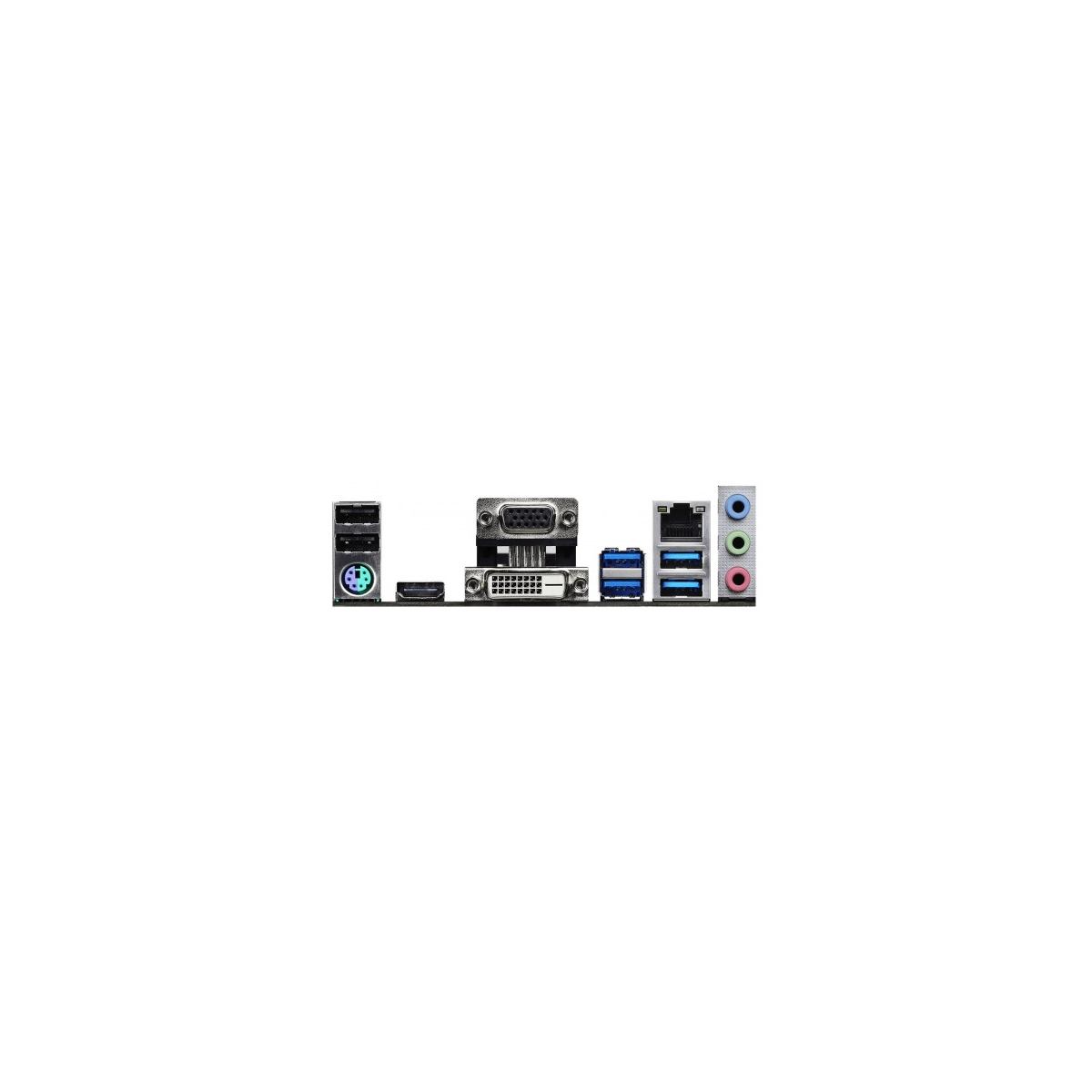

- External connectors
- 4 x USB 3.0
- External connectors
- 1 x RJ-45
- External connectors
- 1 x MIC
- External connectors
- 1 x Line Out
- External connectors
- 1 x D-Sub
- External connectors
- 1 x DVI-D
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 2 x USB 2.0
- Onboard connectors
- 2 x USB 3.0 header
- Onboard connectors
- 2 x 4pin Chassis fan
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 4 x USB 2.0/1.1
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x 4pin 12V power
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x USB 3.1
- Onboard connectors
- 1 x Serial port header
- Form factor
- micro ATX
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Designation
- CE+WEEE
B550M-HDV
30 Items
Specific References
- EAN13
- 4710483931635
- MPN
- B550M-HDV
