1 x Blazing M.2 slot (M2_1, M key), supports 2280 PCIe Gen5x4 mode (128Gb/s)* Chipset: 1 x Hyper M.2 slot (M2_2, M key), supports 2260/2280 PCIe Gen4x4 mode (64Gb/s)* 4 SATA3 6.0 Gb/s connectors Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
Graphics
Integrated AMD RDNA 2 graphics (Actual support may vary by processor) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120 Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120 Hz
Sound card
HD 7.1 CH audio (Realtek ALC897 audio codec) Nahimic Audio
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Supports Dragon 2.5G LAN software Intelligent automatic bandwidth adjustment Visual, user-friendly user interface Visual network usage statistics Optimized defaults for game, browser and streaming modes User-customized priority control
USB ports at back panel
7
USB ports on motherboard
10
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
7
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
1
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

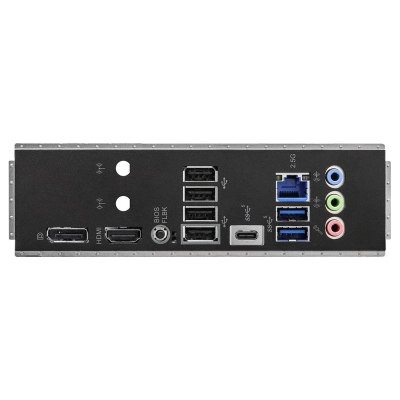

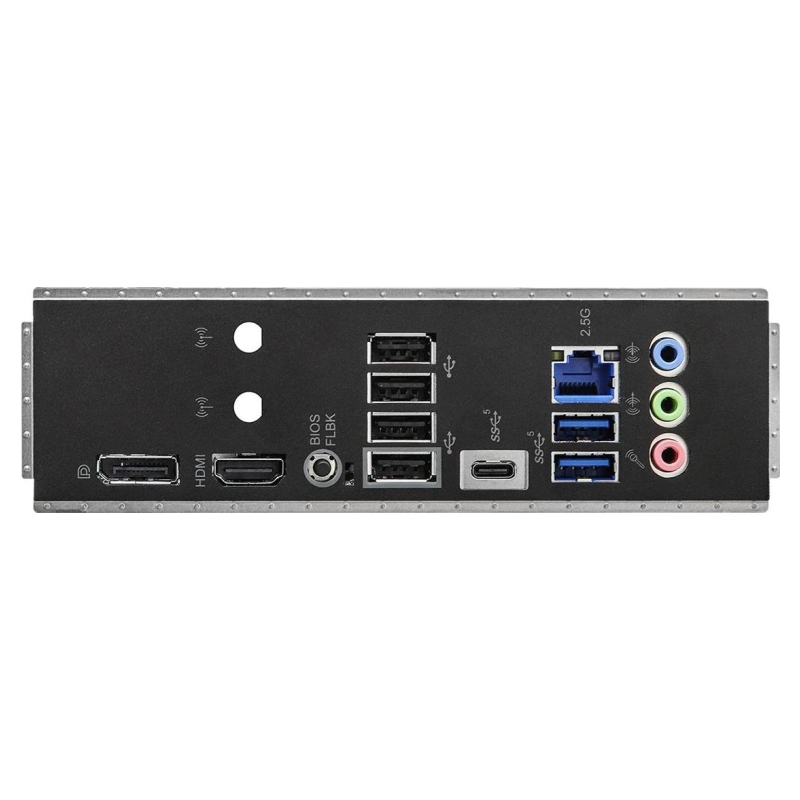

External connectors
1 x USB BIOS Flashback button
External connectors
1 x USB 3.1 Type-C
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
4 x USB 2.0
External connectors
2 x SMA
External connectors
2 x USB 3.0
Onboard connectors
1 x TPM header
Onboard connectors
1 x USB C
Onboard connectors
1 x Thunderbolt header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.0 header
Onboard connectors
1 x Front panel audio header
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Form factor
ATX
Dimensions
24.4 x 22.6 cm
Accessories included
User manual2 x SATA data cables2 x M.2 screws
Supported operating systems
Windows 10
Supported operating systems
Windows 11
Software
Software ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software* UEFI ASRock Full HD UEFI ASRock automatic driver installer ASRock Instant Flash
Other information
Certificates FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required)
