CPU: 1 x M.2 connector (Socket 3, M key, supports 2280 PCIe 5.0 x4/x2 SSD) (M2A_CPU) Chipset: 1 x M.2 connector on the back of the motherboard (Socket 3, M key, supports 2280 PCIe 4.0 x4/x2 SSD) (M2Q_SB) 2 x SATA 6Gb/s connectors Supports RAID 0, RAID 1, RAID 5 and RAID 10 for NVMe SSD storage devices.Supports RAID 0 and RAID 1 for SATA storage devices.
Graphics
Integrated graphics processor - Intel HD Graphics support 1 Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting DisplayPort and Thunderbolt video outputs. 1 DisplayPort connector, supporting a maximum resolution of 4096x2304@60 Hz. Support for DisplayPort 2.1 and HDCP 2.3. 1 HDMI connector, supporting a maximum resolution of 4096x2160@60 Hz. Support for HDMI 2.1 and HDCP 2.3.
Sound card
Realtek audio codec High Definition Audio Support S/PDIF Out Support
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
Bluetooth
Network interface
LAN: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Wireless communication: Intel Wi-Fi 7 BE202 (BE200NGW M) 802.11a, b, g, n, ac, ax, be, support for 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.4 Support for wireless standard 11be 160MHz
USB ports at back panel
5
USB ports on motherboard
5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
4
FireWire (IEEE 1394)
No
COM connector / port
No
LPT connector / port
No

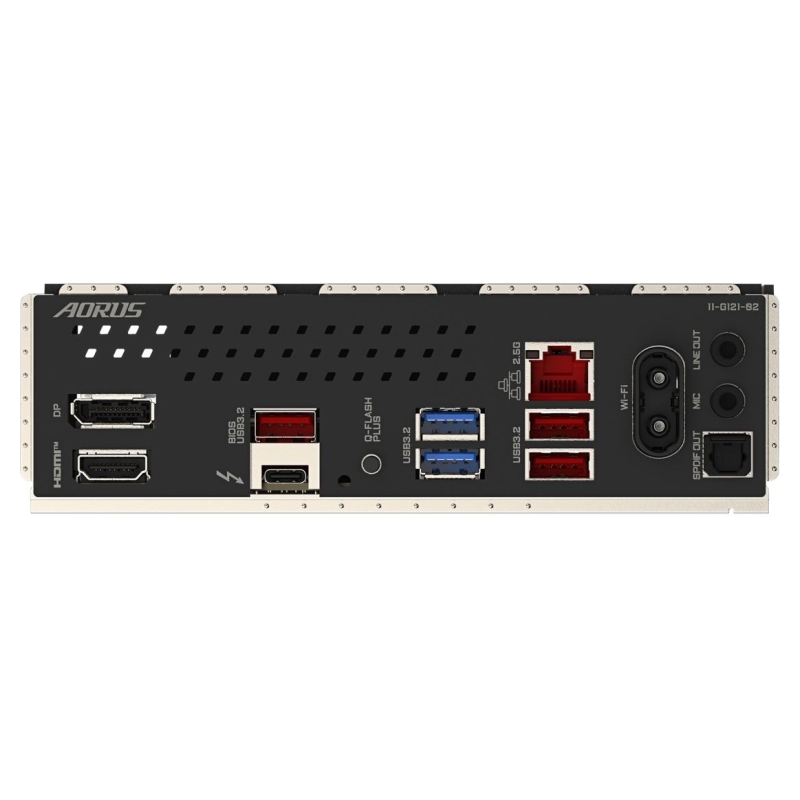

External connectors
1 x Line Out
External connectors
1 x Thunderbolt 4
External connectors
1 x MIC
External connectors
1 x RJ-45
External connectors
1 x S/PDIF
External connectors
2 x USB 3.2 Gen 1 Type-A
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
3 x USB 3.2 Gen 2 Type-A
External connectors
2 x SMA
External connectors
1 x Q-Flash Plus button
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x Clear CMOS jumper
Onboard connectors
2 x M.2
Onboard connectors
2 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x USB 3.2 Gen 2 Type-C
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x System panel header
Onboard connectors
1 x Reset jumper
Onboard connectors
1 x Speaker header
Onboard connectors
2 x Addressable LED
BIOS
1 x 256 Mbit flash Using licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form factor
mini ITX
Dimensions
17.0 x 17.0 cm
Supported operating systems
Windows 11
Software
Norton Internet Security (OEM version) LAN bandwidth management software
