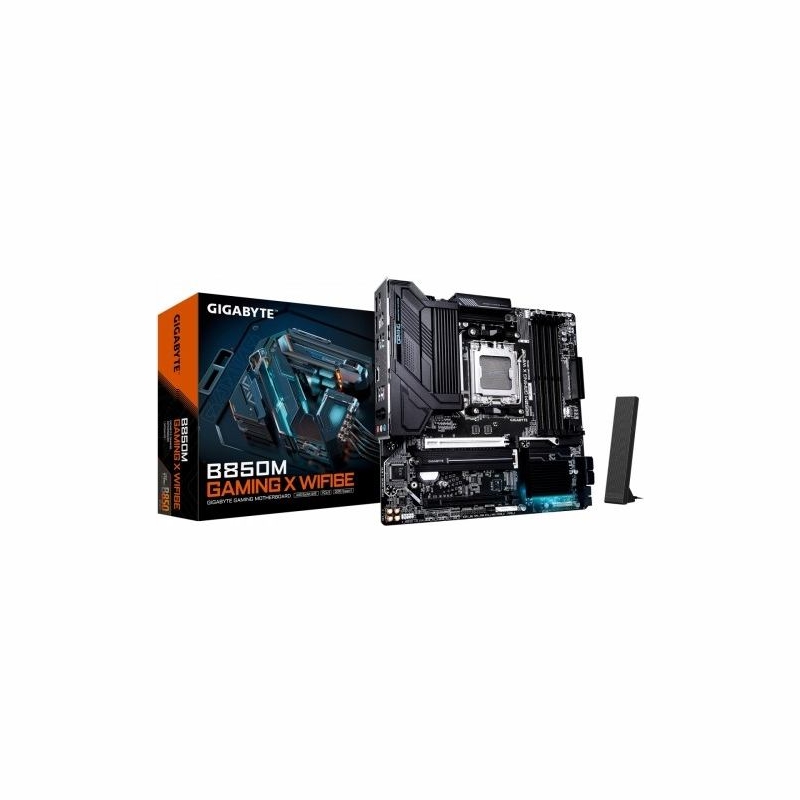

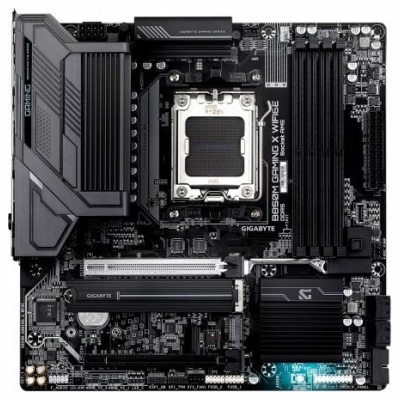

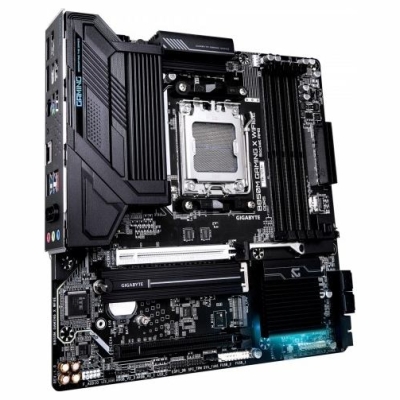

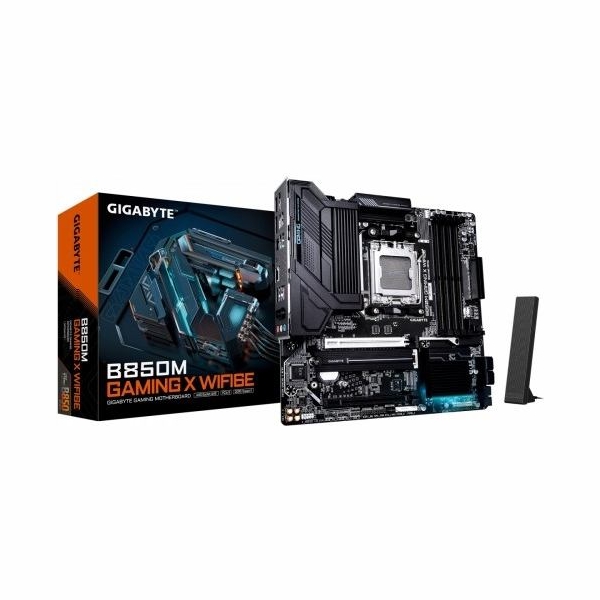

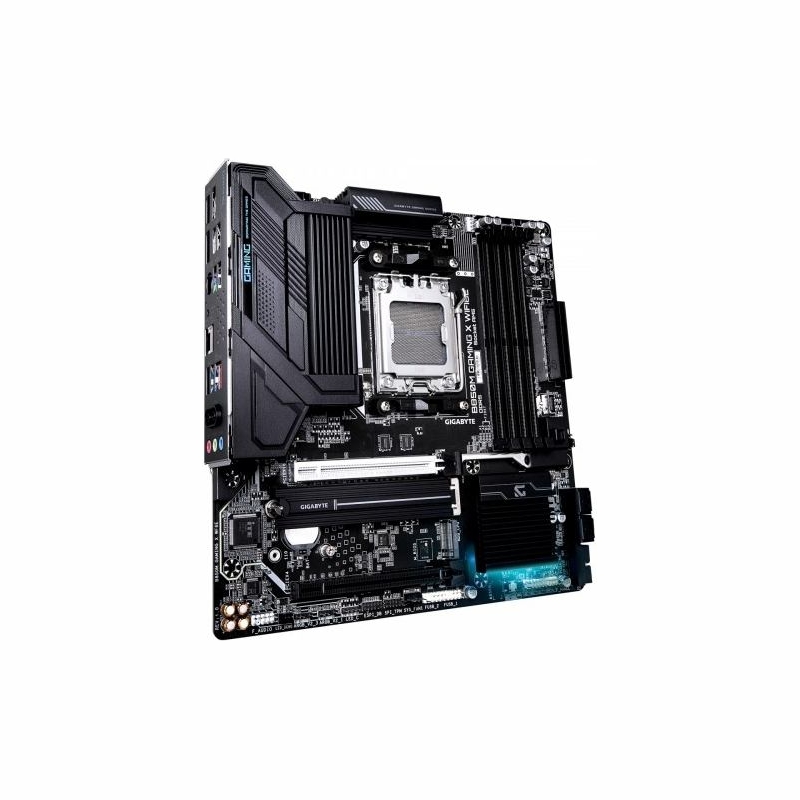

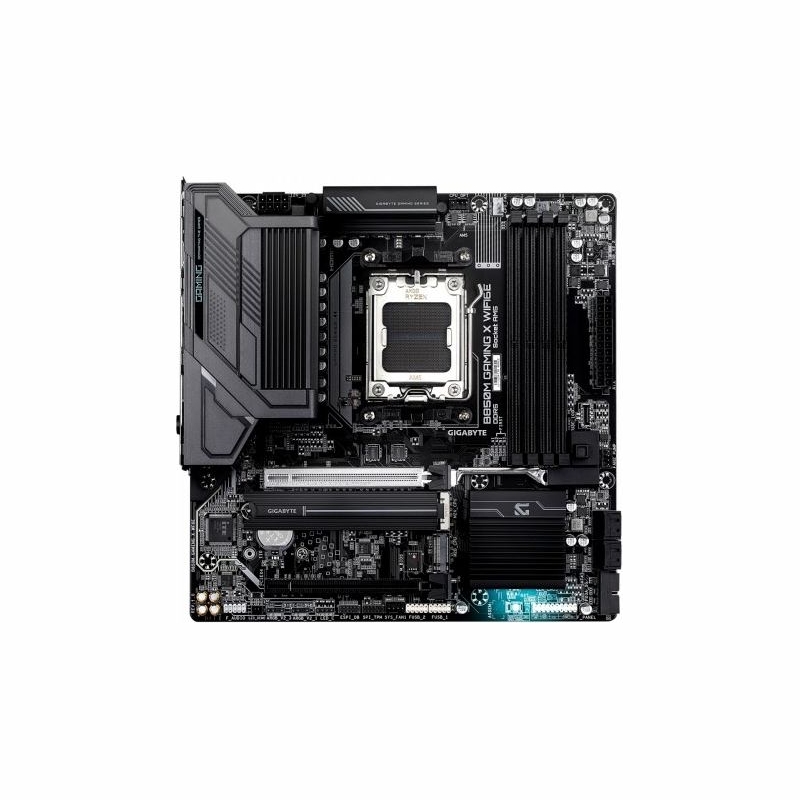

Gigabyte Motherboard B850M GAMING X WIFI6E
- Write a review
€228.28
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBGBAAA8B850U00
- Barcode
- 4719331866433
- Model
- B850M GAMING X WIFI6E
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen 5
- Processor family
- AMD Ryzen 7
- Processor family
- AMD Ryzen 9
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD B850
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Memory bus frequency
- 4800 MHz
- Memory bus frequency
- 5200 MHz
- Memory bus frequency
- 8200 MHz
- Memory bus frequency
- 8000 MHz
- Memory bus frequency
- 5800 MHz
- Memory bus frequency
- 5600 MHz
- Memory bus frequency
- 7900 MHz
- Memory bus frequency
- 7950 MHz
- Memory bus frequency
- 7800 MHz
- Memory bus frequency
- 7600 MHz
- Memory bus frequency
- 7000 MHz
- Memory bus frequency
- 7200 MHz
- Memory bus frequency
- 7400 MHz
- Memory bus frequency
- 6800 MHz
- Memory bus frequency
- 6600 MHz
- Memory bus frequency
- 6400 MHz
- Memory bus frequency
- 6200 MHz
- Memory bus frequency
- 6000 MHz
- Memory bus frequency
- 4400 MHz
- Max memory size
- 256
- Expansion slots
- 2 x M.2
- Expansion slots
- 1 x PCIe 3.0 x 4
- Expansion slots
- 1 x PCIe 4.0 x 4
- Expansion slots
- 1 x PCIe 4.0 x 8
- Expansion slots
- 1 x PCIe 5.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated with the processor: AMD Ryzen 9000/7000 Series processors support PCIe 5.0 x16 mode. AMD Ryzen 8000-Phoenix 1 Series processors support PCIe 4.0 x8 mode. AMD Ryzen 8000-Phoenix 2 Series processors support PCIe 4.0 x4 mode. *The PCIEX16 slot can only support a graphics card or NVMe SSD. If only one graphics card is installed, it must be installed in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 speed (PCIEX4) Storage Interface 1 x M.2 connector (M2A_CPU), integrated with the processor, supporting Socket 3, M Key, Type 25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 1 Series processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 2 Series processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated with the processor, supporting Socket 3, M Key, Type 25110/22110/2580/2280 SSDs 25110/22110/2580/2280: AMD Ryzen 9000/7000 Series processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 1 Series processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000-Phoenix 2 Series processors support PCIe 4.0 x2 SSDs 4 SATA 6 Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage *RAID 5 is only available on AMD Ryzen 9000 Series processors. RAID 0, RAID 1, and RAID 10 support for SATA storage
- Graphics
- Integrated graphics processor with AMD Radeon graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160 @ 60 Hz * Supports HDMI 2.1, HDCP 2.3, and HDR. ** Supports native HDMI 2.1 TMDS-compliant ports. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160 @ 144 Hz * Supports DisplayPort 1.4. (Graphics specifications may vary depending on processor support.) Supports up to three simultaneous displays
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Bluetooth
- USB ports at back panel
- 8
- USB ports on motherboard
- 7
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 4
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 3
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

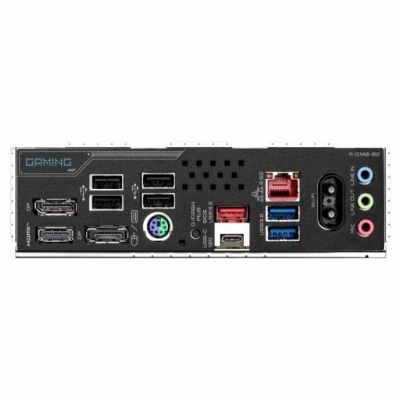

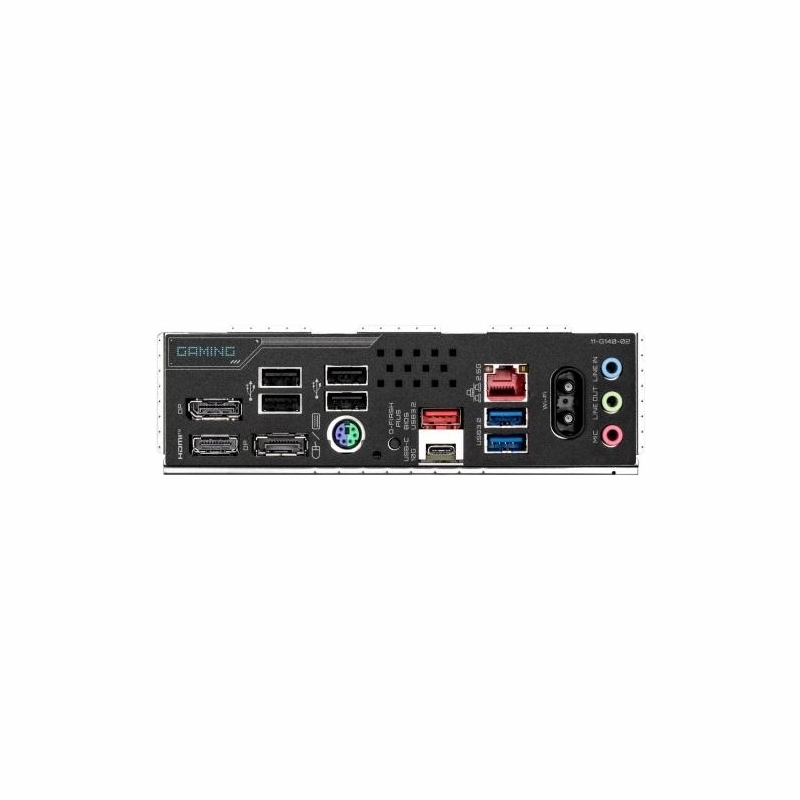

- External connectors
- 2 x SMA
- External connectors
- 1 x USB 3.2 Gen 2 Type-A
- External connectors
- 1 x USB 3.2 Gen 2 Type-C
- External connectors
- 1 x Line Out
- External connectors
- 1 x PS/2 Keyboard/MouseCombo
- External connectors
- 2 x DisplayPort
- External connectors
- 1 x MIC
- External connectors
- 1 x RJ-45
- External connectors
- 4 x USB 2.0
- External connectors
- 2 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x HDMI
- External connectors
- 1 x Line In
- External connectors
- 1 x Q-Flash Plus button
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 2 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x 4-pin water-pump-fan
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x 4pin Chassis fan
- Onboard connectors
- 1 x Reset jumper
- Onboard connectors
- 1 x Reset button
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x System panel header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 1 x 24pin ATX zasilanie
- BIOS
- 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Form factor
- micro ATX
- Dimensions
- 24.4 cm x 24.4 cm
- Supported operating systems
- Windows 10
- Supported operating systems
- Windows 11
- Software
- Norton Internet Security (OEM version) LAN bandwidth management software
- Designation
- CE+WEEE
B850M GAMING X WF6E
30 Items
Specific References
- EAN13
- 4719331866433
- MPN
- B850M GAMING X WF6E
