Supports a total of 5 x M.2 slots and 4 x SATA 6 Gb/s ports* Intel Core Ultra (2-Series) Processors* M.2_1 (M-Key) Socket, Type 2242/2260/2280/22110 (Supports PCIe 5.0 x4 mode) M.2_2 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) Intel Z890 Chipset M.2_3 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) M.2_4 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) Socket M.2_5 (M Key), Type 2242/2260/2280 (supports PCIe 4.0 x4 and SATA modes)** 4 x SATA 6 Gb/s ports
Graphics
1 x HDMI port 2 x Intel Thunderbolt 5 (USB Type-C) ports supporting DisplayPort and Thunderbolt video output 1 x Intel Thunderbolt 4 (USB Type-C) ports supporting DisplayPort and Thunderbolt video output
Sound card
Realtek ALC1220P high-resolution audio codec with 7.1 multi-channel audio Impedance sensing on front and rear headphone outputs Internal audio amplifier for superior sound quality on headphones and speakers Supports: Jack detection, multi-streaming, and front panel port remapping High-quality stereo playback output with 120 dB SNR and recording input with 113 dB SNR (line-in) Supports playback up to 32-bit/192 kHz Gold-plated audio jacks High-quality audio capacitors Dedicated audio PCB layers
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Bluetooth
Network interface
Wi-Fi 802.11a/b/g/n/ac/ax/be
Network interface
1 x 10/100/1000/2500 Mbit/s
Network interface
1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard Wireless and Bluetooth Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency bands Supports 320 MHz Wi-Fi 7 bandwidth, maximum transfer speeds up to 5.8 Gbps. Bluetooth v5.4
USB ports at back panel
10
USB ports on motherboard
5
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
1
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
10
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

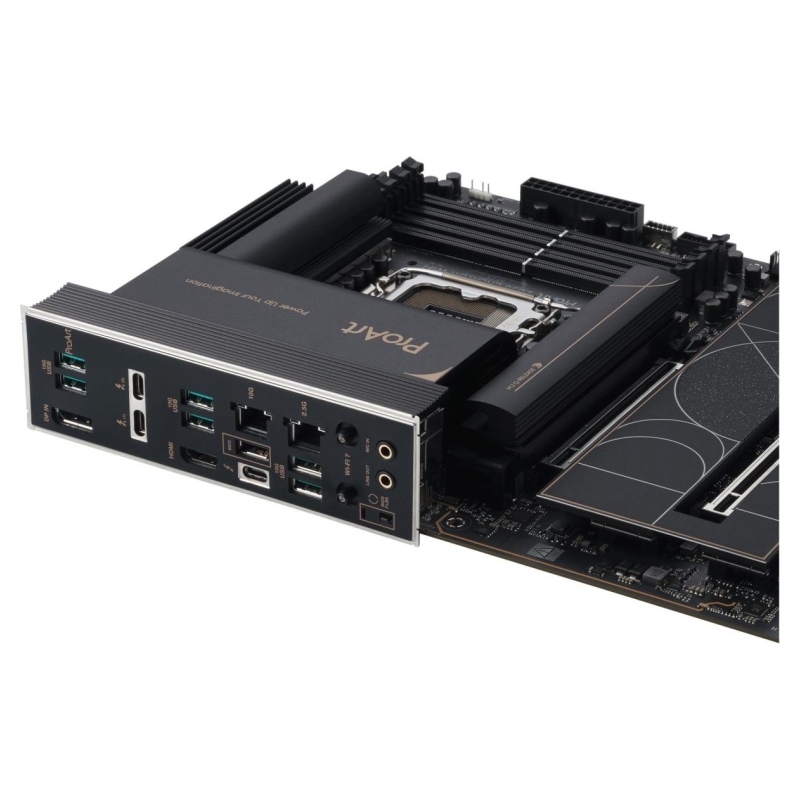

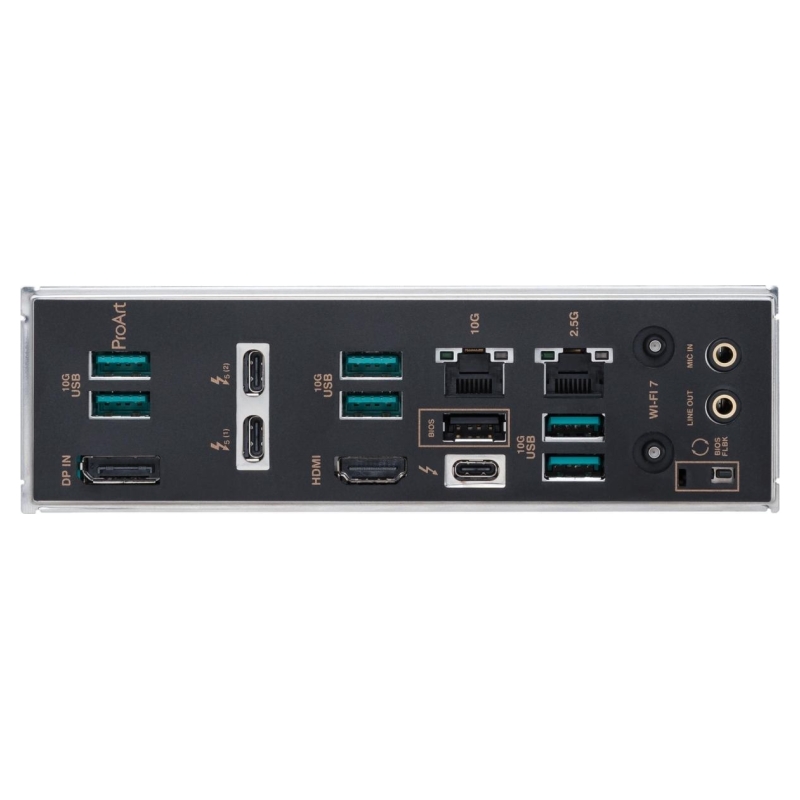

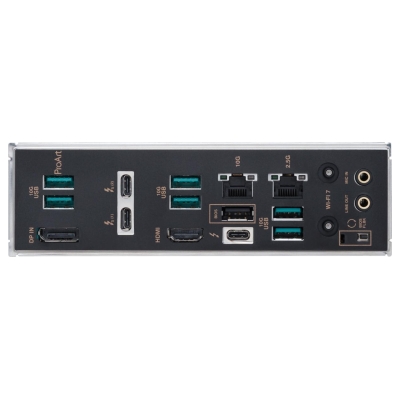

External connectors
6 x USB 3.2 Gen 2 Type-A
External connectors
1 x HDMI
External connectors
1 x DisplayPort
External connectors
1 x Flash BIOS Button
External connectors
1 x Line Out (front)
External connectors
1 x MIC (front)
External connectors
1 x Wi-Fi Module
External connectors
2 x RJ-45
External connectors
1 x USB 2.0
External connectors
2 x USB 3.2 Gen 1 Type-C
External connectors
1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors
1x CPU/DRAM overvoltage jumper
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Front panel audio header
Onboard connectors
1 x TPM header
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors
3 x Addressable LED
Onboard connectors
1 x Serial port header
Onboard connectors
1 x System panel header
Onboard connectors
1 x USB 3.2 Gen 1 Type-A
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x 8pin 12V
Onboard connectors
1 x USB 2.0/1.1 header
Onboard connectors
1 x USB 3.2 Gen 2x2 Type-C
Onboard connectors
1 x 4pin wentylator OPT CPU
Onboard connectors
5 x 4pin Chassis fan
Onboard connectors
5 x M.2
Onboard connectors
1 x Clear CMOS button
Onboard connectors
1 x Thermal sensor connector
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Form factor
ATX
Dimensions
30.5 cm x 24.4 cm
Accessories included

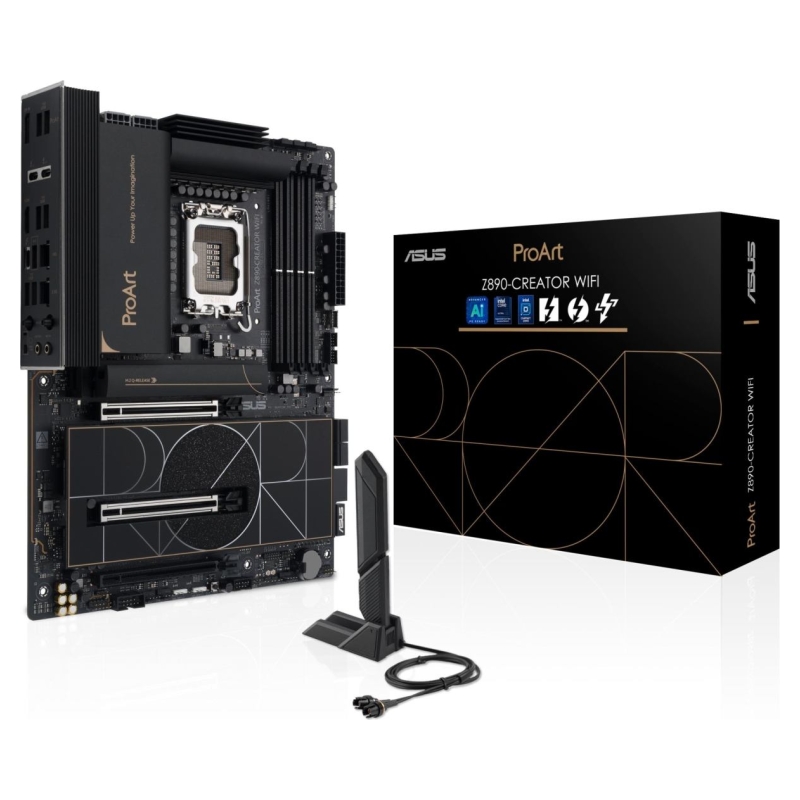

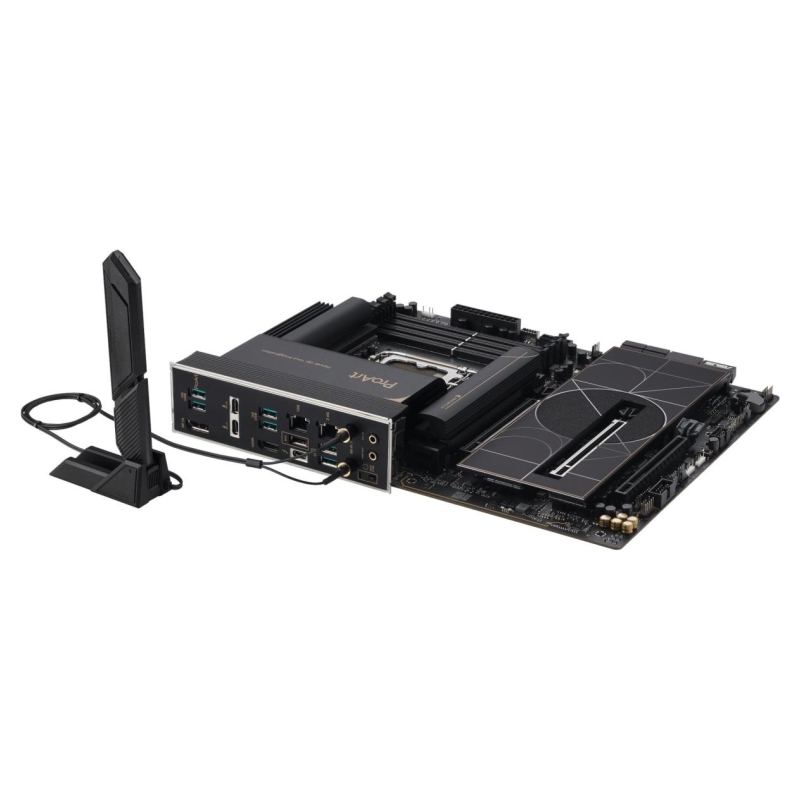

2 x SATA 6 Gb/s cables ASUS WiFi Q-Antenna Q-connector 2 x M.2 Q-Latch kit 2 x M.2 rubber grommets ProArt accessory bag ACC Express activation key card Quick start guide
