1 x M.2 - M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4 x SATA 6G * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
Graphics
1 x HDMI - Support HDMI 2.1, maximum resolution of 4K 60Hz* 1 x DisplayPort - Support DP 1.4, maximum resolution of 4K 60Hz* 1 x D-Sub - Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Sound card
Realtek ALC897 Codec 7.1-Channel High Definition Audio
Network interface
1 x 10/100/1000 Mbit/s
Network interface
Intel I219V 1Gbps LAN controller
USB ports at back panel
6
USB ports on motherboard
4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
4
FireWire (IEEE 1394)
No
COM connector / port
Yes
LPT connector / port
No

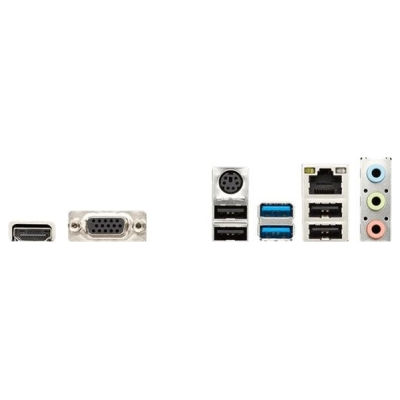

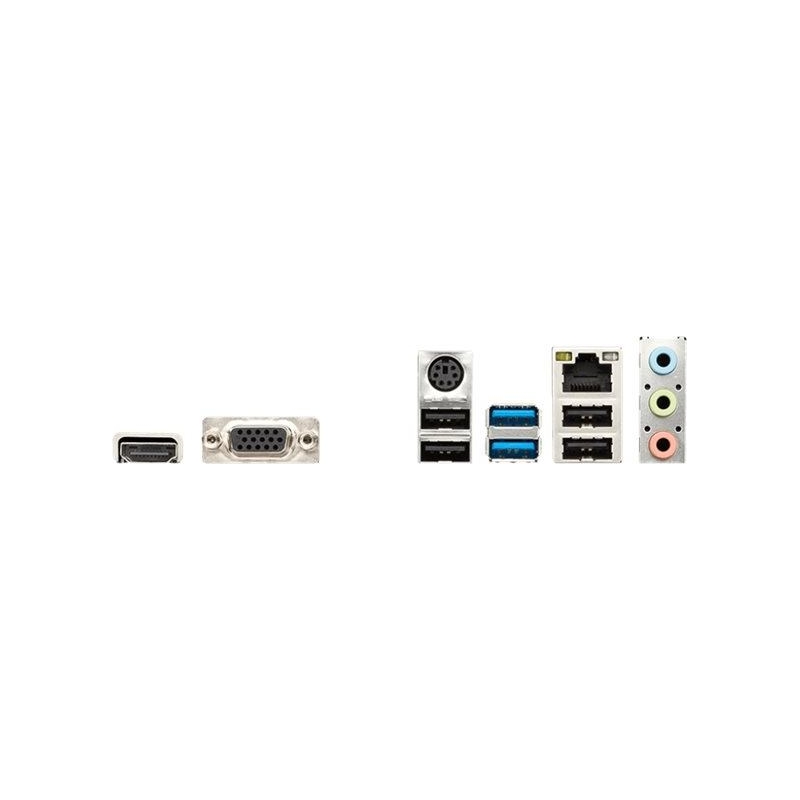

External connectors
1 x RJ-45
External connectors
1 x PS/2 Keyboard/MouseCombo
External connectors
1 x D-Sub
External connectors
1 x DisplayPort
External connectors
1 x HDMI
External connectors
1 x Line In
External connectors
1 x Line Out
External connectors
1 x MIC
External connectors
4 x USB 2.0
External connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
2 x Addressable LED
Onboard connectors
1 x RGB LED strip header
Onboard connectors
4 x SATA III 6Gb/s
Onboard connectors
2 x USB 2.0/1.1 header
Onboard connectors
2 x USB 3.2 Gen 1 Type-A
Onboard connectors
1 x Serial port header
Onboard connectors
1 x TPM header
Onboard connectors
2 x System panel header
Onboard connectors
1 x Front panel audio header
Onboard connectors
4 x EZ Debug LED
Onboard connectors
1 x 4pin CPU fan
Onboard connectors
1 x 4pin Chassis fan
Onboard connectors
1 x 8pin 12V power
Onboard connectors
1 x 24pin ATX zasilanie
Onboard connectors
1 x Chassis intrusion header
Onboard connectors
1 x M.2
BIOS
1 x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4
