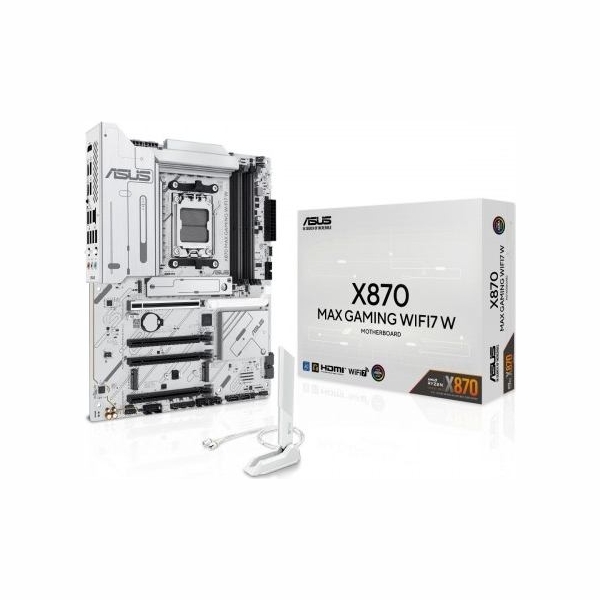

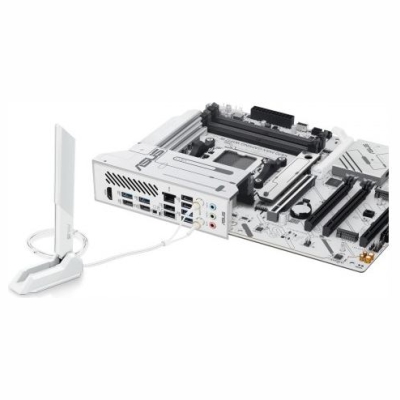

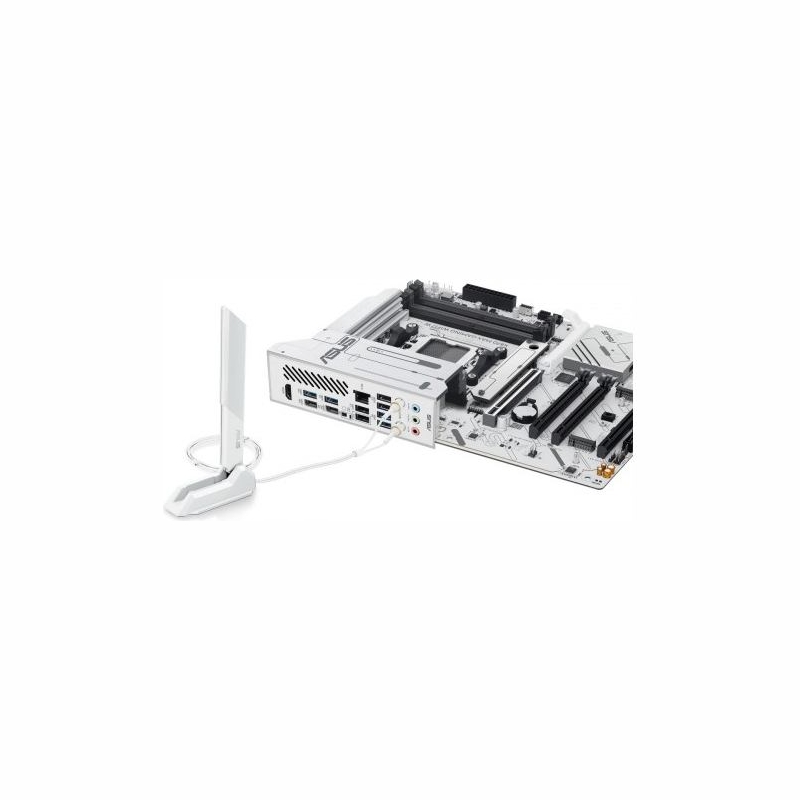

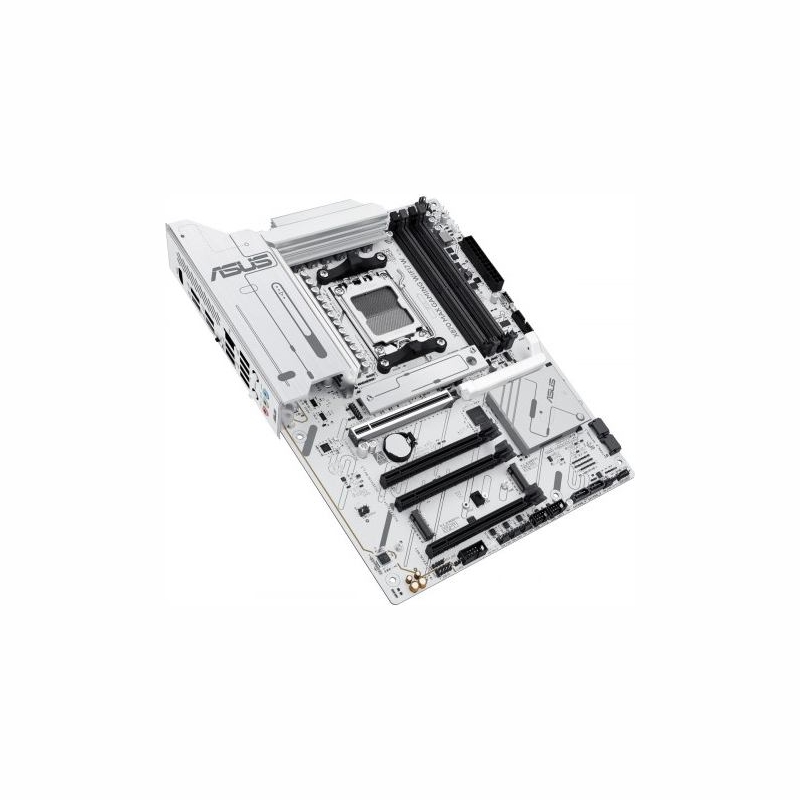

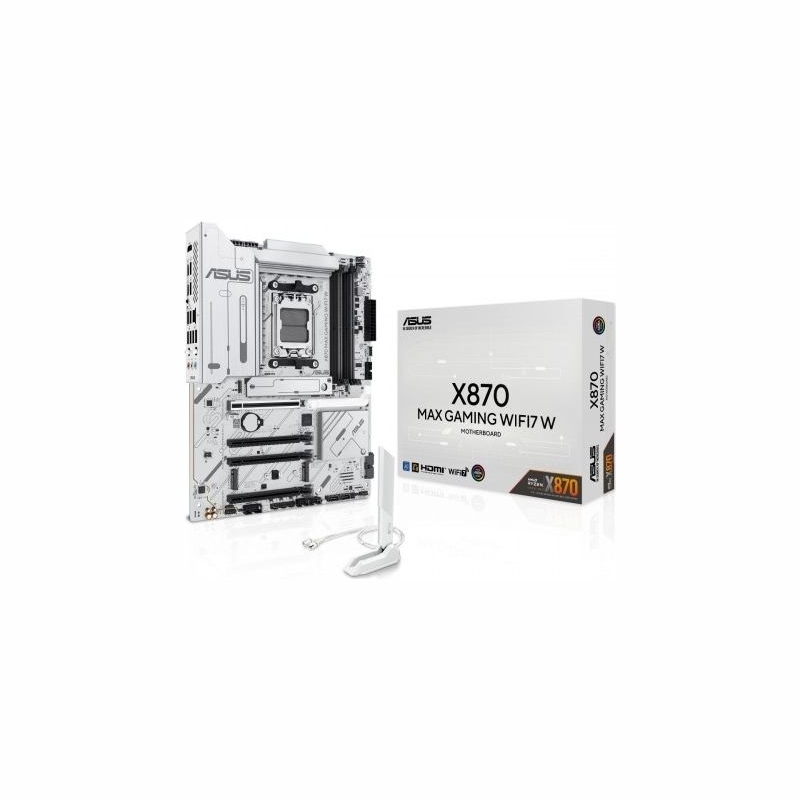

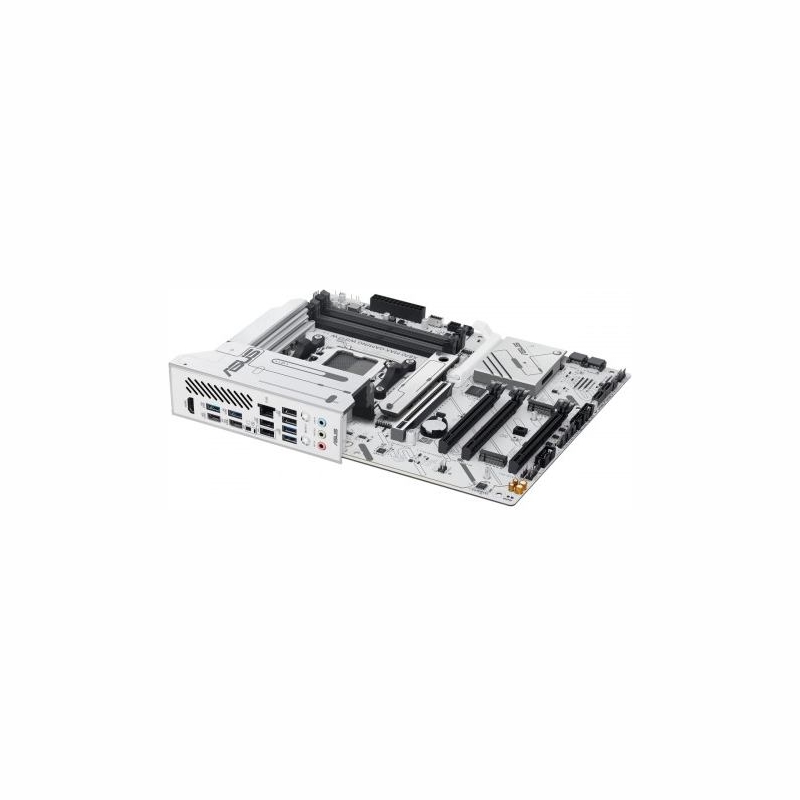

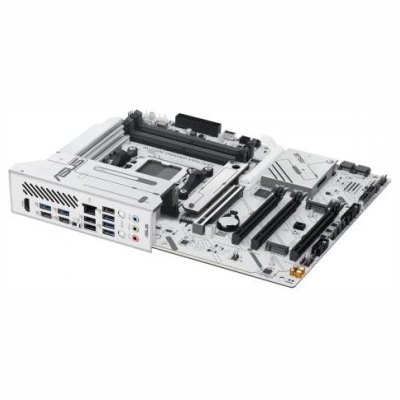

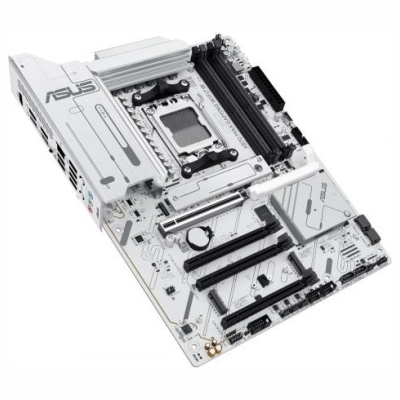

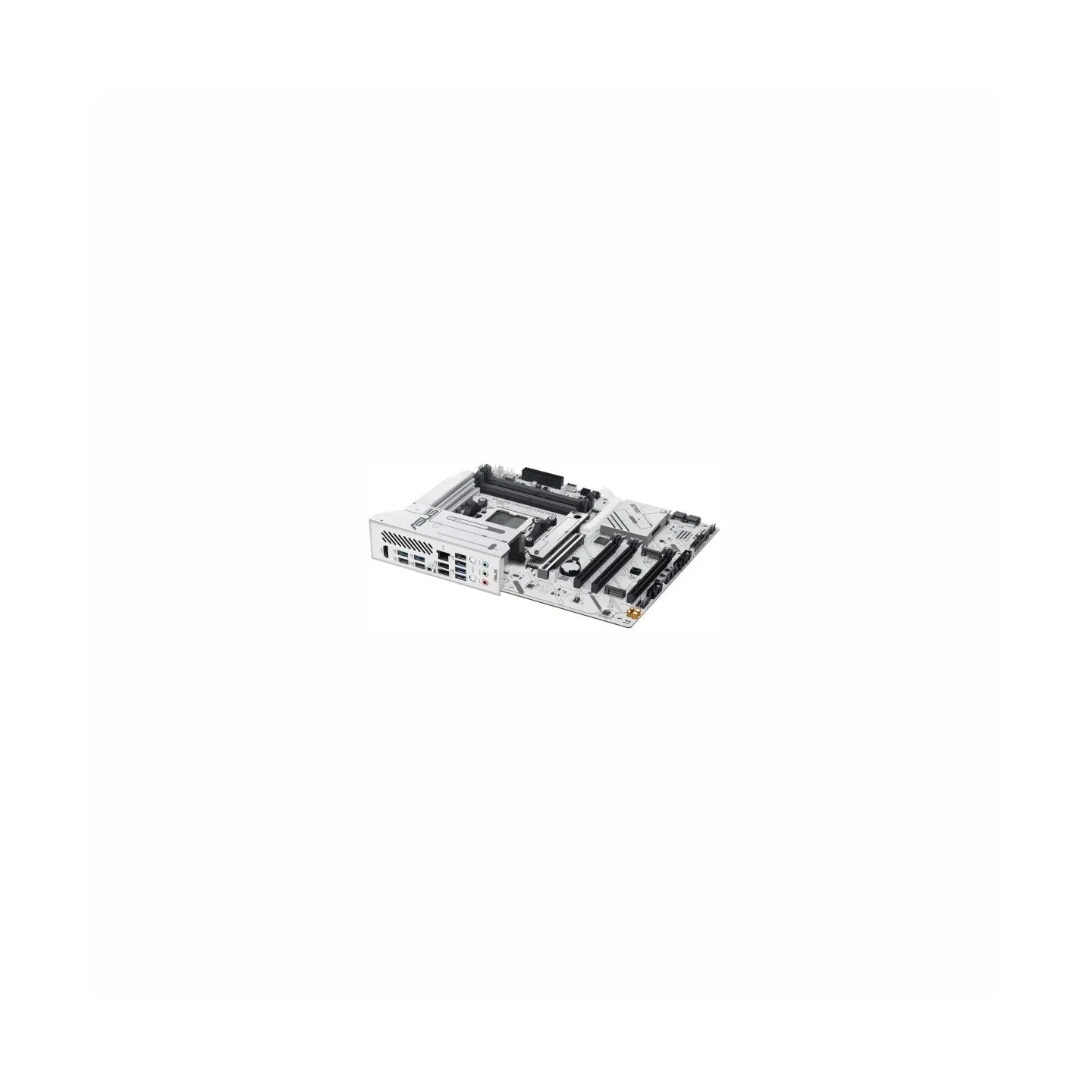

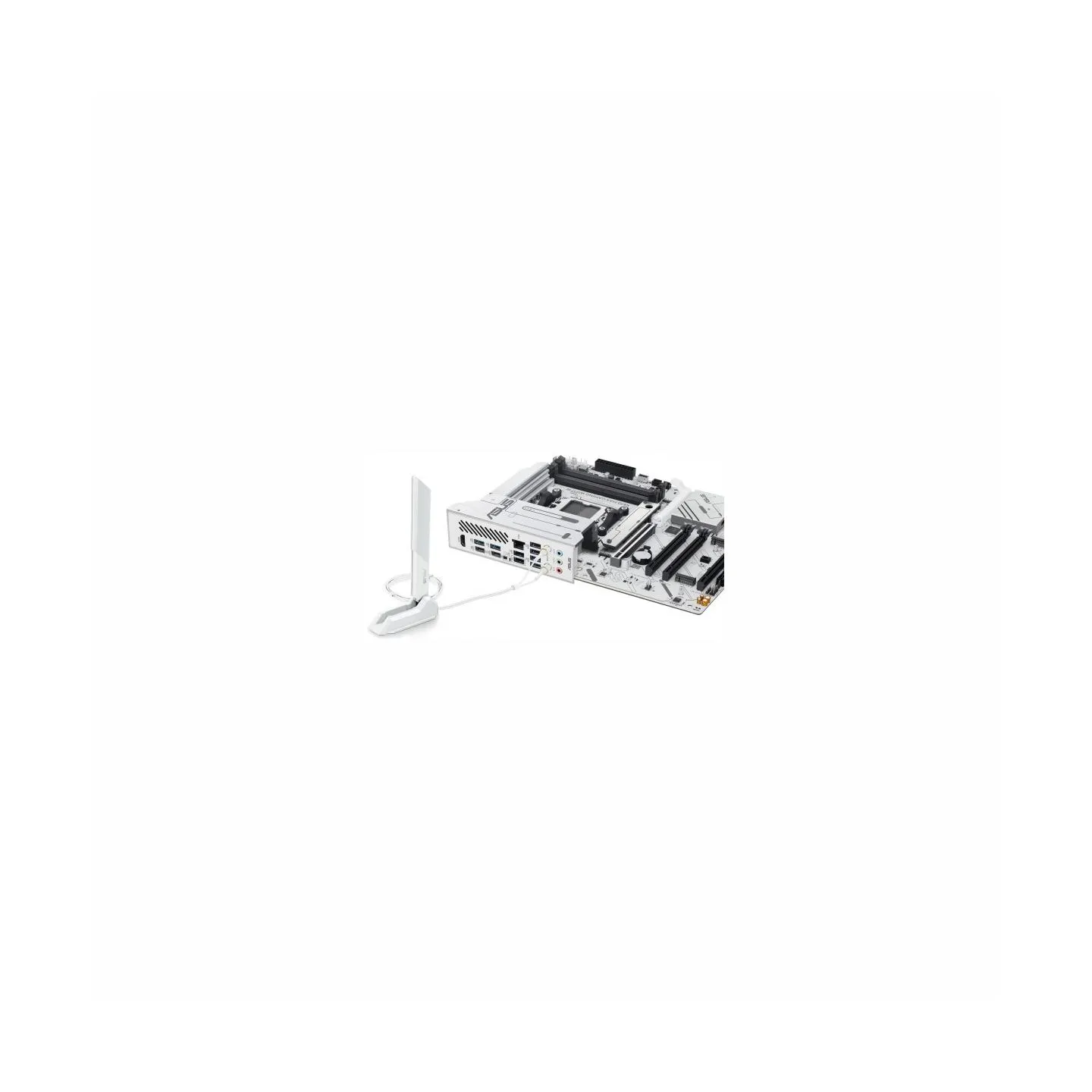

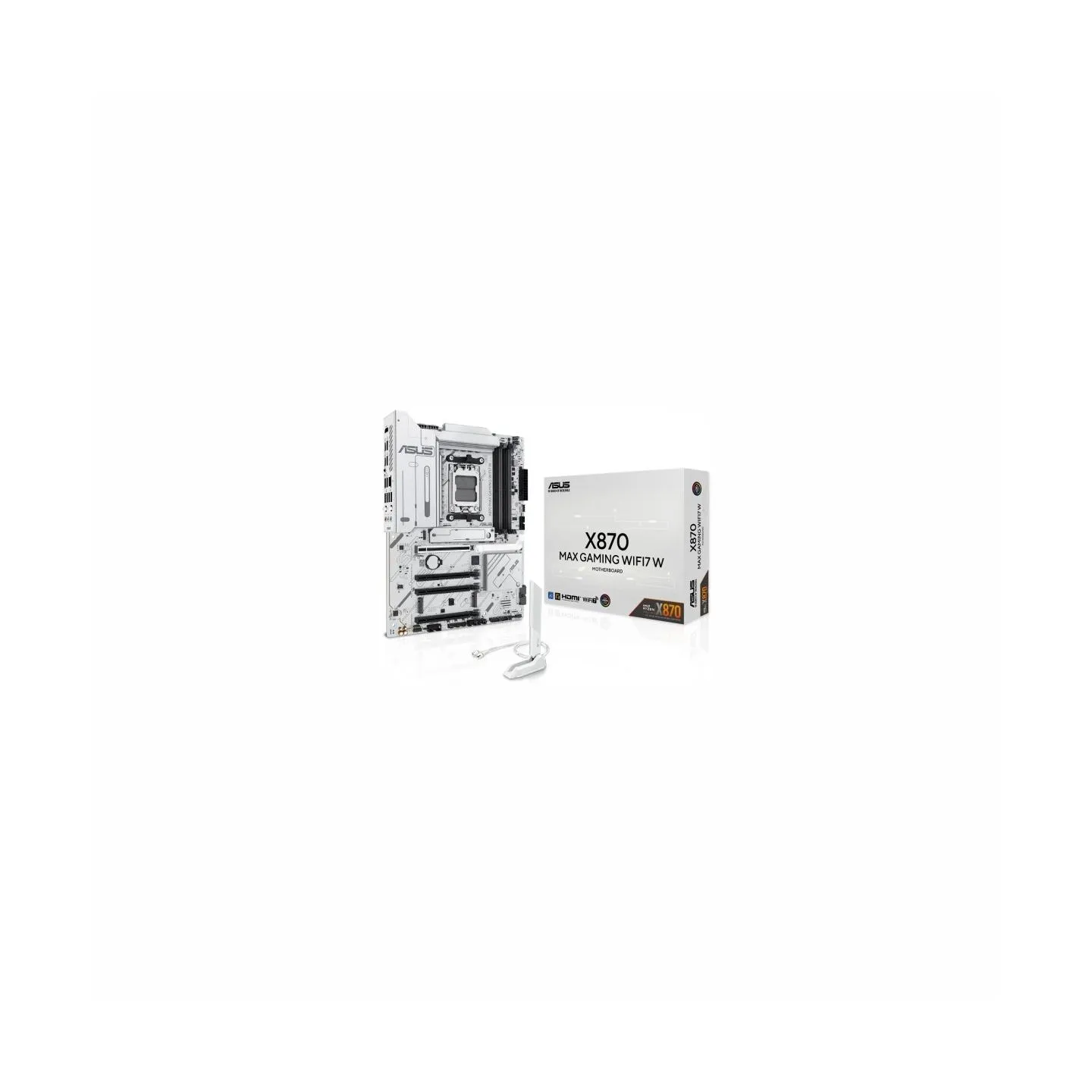

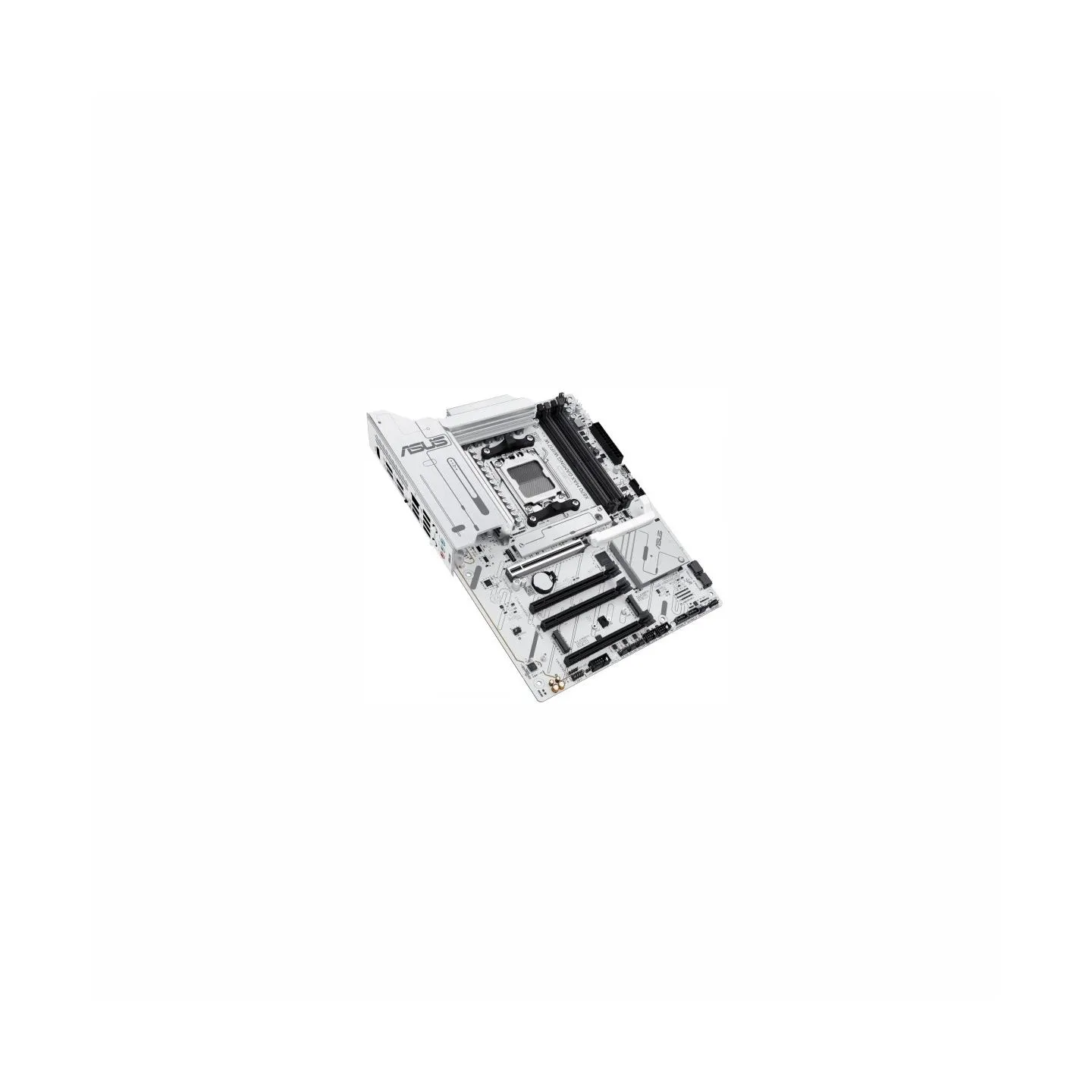

Asus X870 MAX GAMING WIFI7 W AM5 4DDR5 HDMI/USB-C
- Write a review
€434.50
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASUAA8X870A11
- Barcode
- 4711636007856
- Model
- X870 Max Gaming
- CPU socket
- Socket AM5
- Processor family
- AMD Ryzen
- Integrated CPU
- No
- Chipset manufacturer
- AMD
- Chipset type
- AMD X870 Chipset
- Memory type
- DDR5
- Number of DDR5 slots
- 4
- Max memory size
- 256
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 16
- Expansion slots
- 2 x PCIe 4.0 x 16
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- Supports a total of 3 M.2 slots and 4 SATA 6Gb/s ports AMD Ryzen Desktop Processors - 9000 and 7000 Series M.2_1 slot (M key), type 2280 supports PCIe 5.0 x4 M.2_2 slot (M key), types 2242/2260/2280 supports PCIe 4.0 x4 AMD Ryzen Desktop Processors 8000 Series M.2_1 slot (M key), type 2280 supports PCIe 4.0 x4 M.2_2 slot (M key), types 2242/2260/2280 supports PCIe 4.0 x4/x2 AMD X870 Chipset M.2_3 slot (M key), type 2280 supports PCIe 4.0 x4 4x SATA 6Gb/s ports
- Graphics
- 1 × HDMI port 2 × USB4 ports (40Gb/s) support USB Type-C display output*** **Supports 4K at 60Hz according to the HDMI 2.1 specification. ***Supports up to 4K at 60Hz according to the DisplayPort 1.4a specification.
- Sound card
- Realtek 7.1 Surround Sound High Definition Audio Codec* Supports: jack detection, multi-streaming, front panel jack reassignment Supports playback up to: 24-bit / 192kHz Audio Features: Audio shielding High-quality audio capacitors Dedicated audio PCB layers
- Network interface
- Bluetooth
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- Wi-Fi 802.11a/b/g/n/ac/ax/be
- Network interface
- 1 × Realtek 2.5Gb Ethernet ASUS LANGuard Wi-Fi 7 Wi-Fi 2×2 7 (802.11be) Supports 2.4 / 5 / 6GHz bands Supports Wi-Fi 7 160MHz bandwidth, with transfer speeds up to 2.9Gb/s Bluetooth v5.4
- USB ports at back panel
- 10
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 5
- Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports
- 1
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

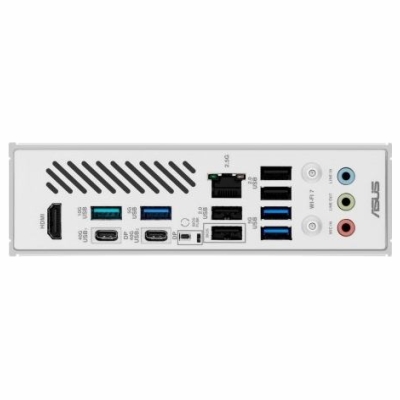

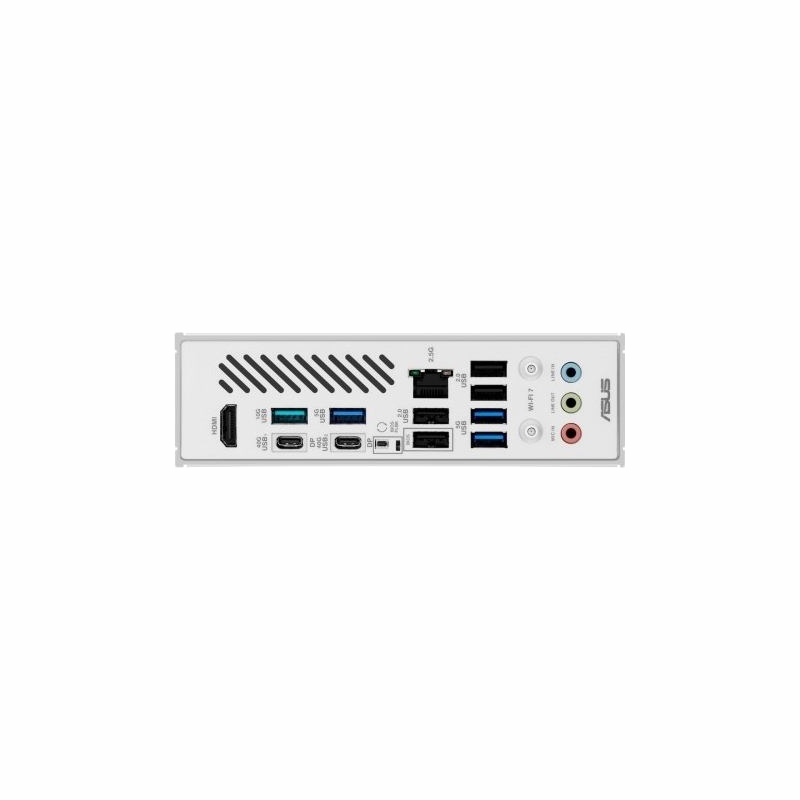

- External connectors
- 1 x HDMI
- External connectors
- 2 x SMA
- External connectors
- 1 x MIC
- External connectors
- 1 x USB BIOS Flashback button
- External connectors
- 1 x Line Out
- External connectors
- 4 x USB 2.0
- External connectors
- 3 x USB 3.0
- External connectors
- 1 x USB 3.1
- External connectors
- 1 x RJ-45
- External connectors
- 1 x Line In
- External connectors
- 2 x USB4 Type-C
- Onboard connectors
- 1 x USB 3.2 Gen 2 Type-C
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x TPM header
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 1 x S/PDIF Out header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x 4pin wentylator OPT CPU
- Onboard connectors
- 2 x 8pin 12V
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 3 x M.2
- Onboard connectors
- 4 x SATA III 6Gb/s
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x Clear CMOS jumper
- Onboard connectors
- 1 x USB 3.0 header
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Form factor
- ATX
- Dimensions
- 30.5 x 24.4 cm
- Accessories included
- Cables 2 × SATA 6Gb/s cables Others 1 × ASUS WiFi Q antenna 1 × M.2 rubber package 1 × M.2 SSD screw kit Documentation 1 × Quick Start Guide
- Supported operating systems
- Windows 11
- Software
- ASUS Exclusive SoftwareArmoury Crate Aura Creator Aura Sync Fan Xpert 4 with AI Cooling II ASUS AI AdvisorASUS DriverHubASUS GlideXTurboV CoreASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ Mode ASUS MyHotkey
- Designation
- CE+WEEE
X870 MAX GAMING WIFI7 W
16 Items
Specific References
- EAN13
- 4711636007856
- MPN
- X870 MAX GAMING WIFI7 W
