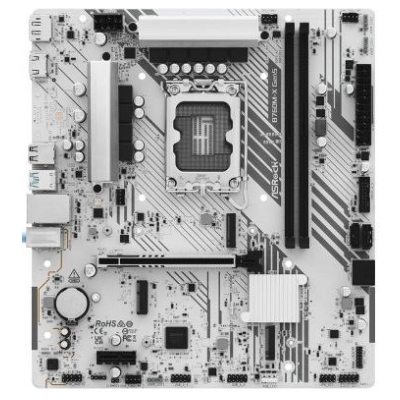

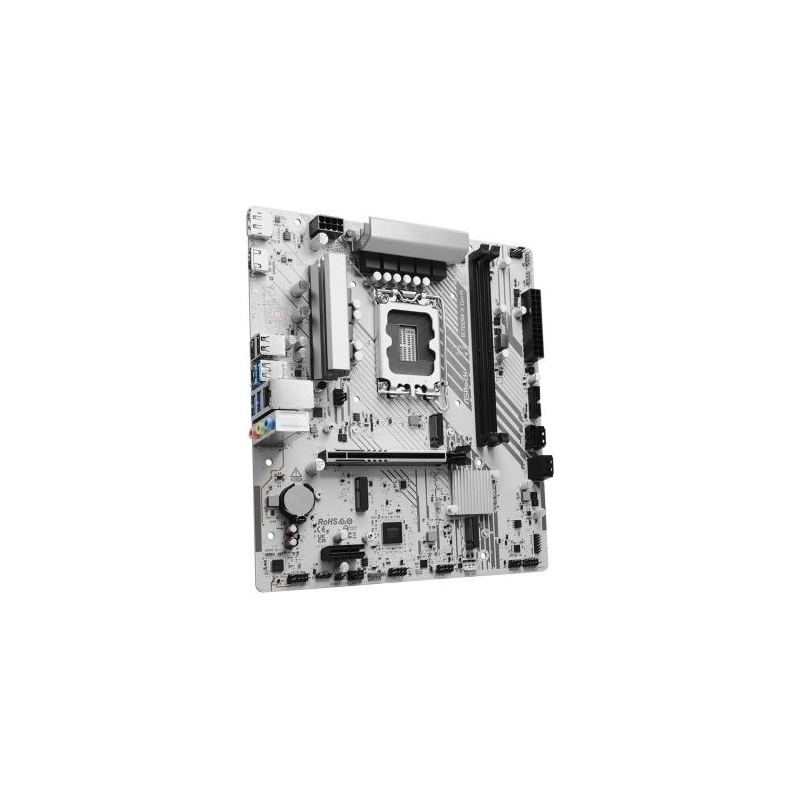

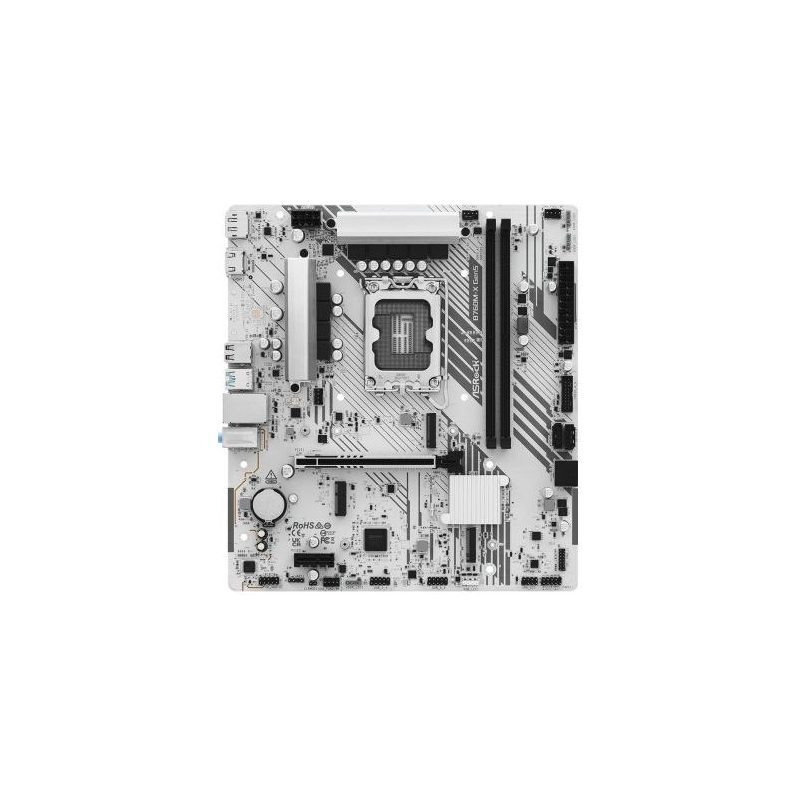

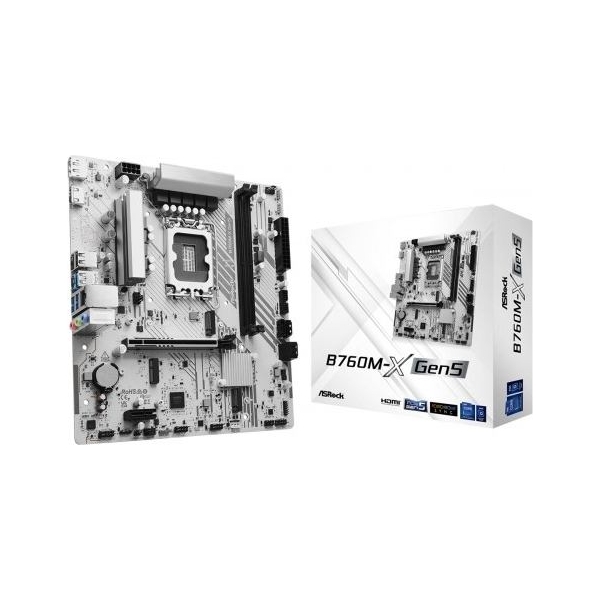

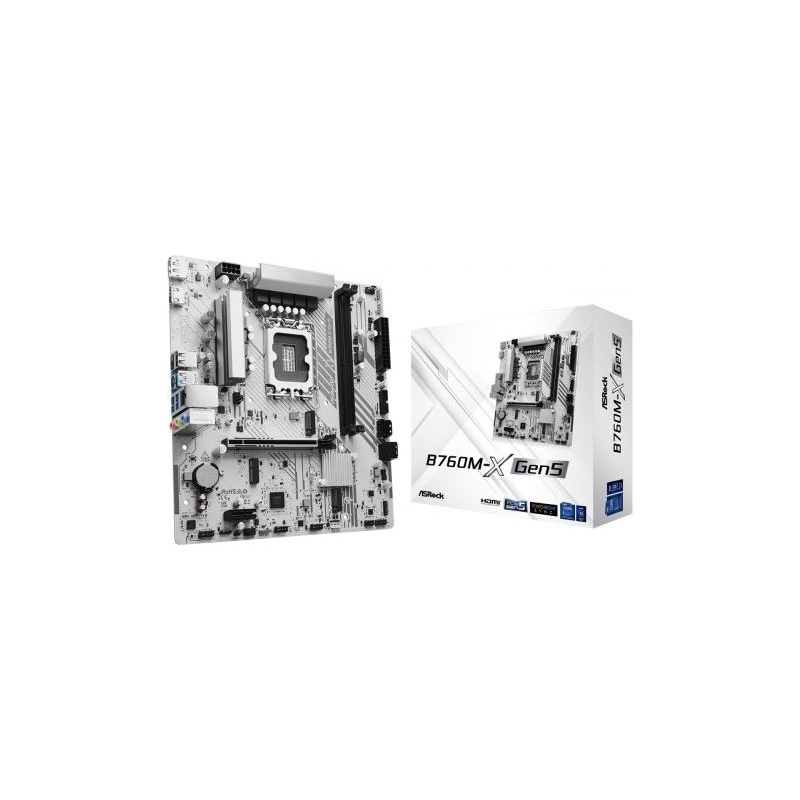

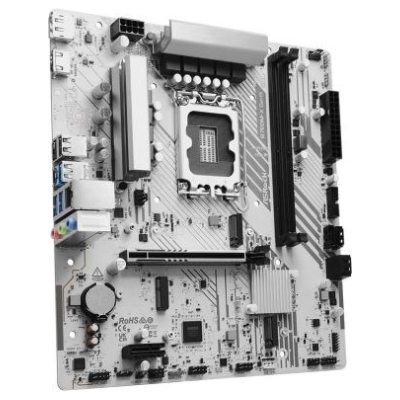

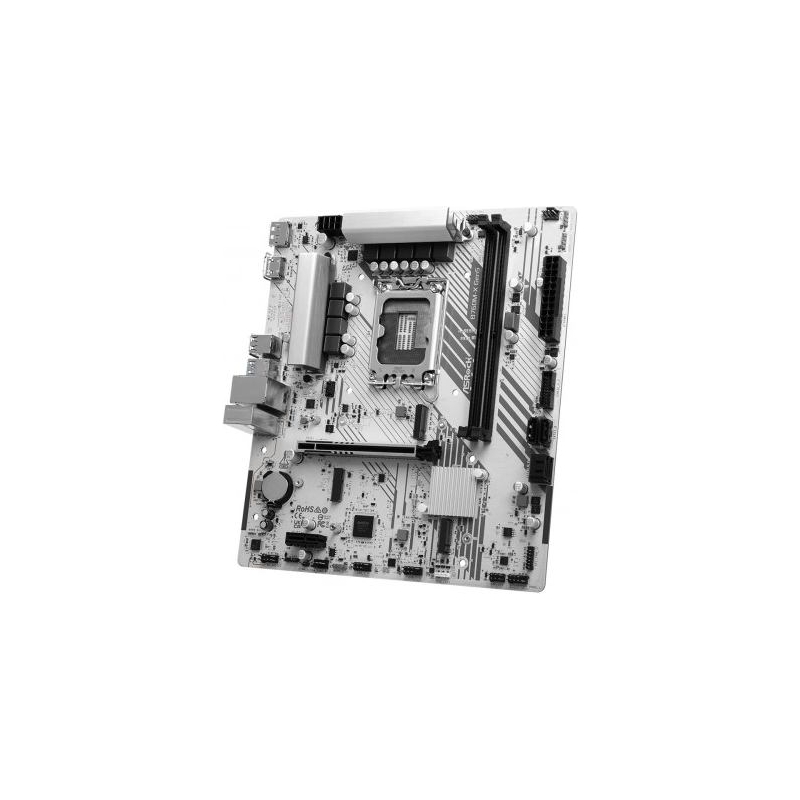

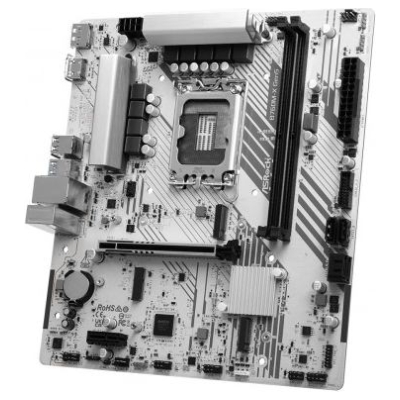

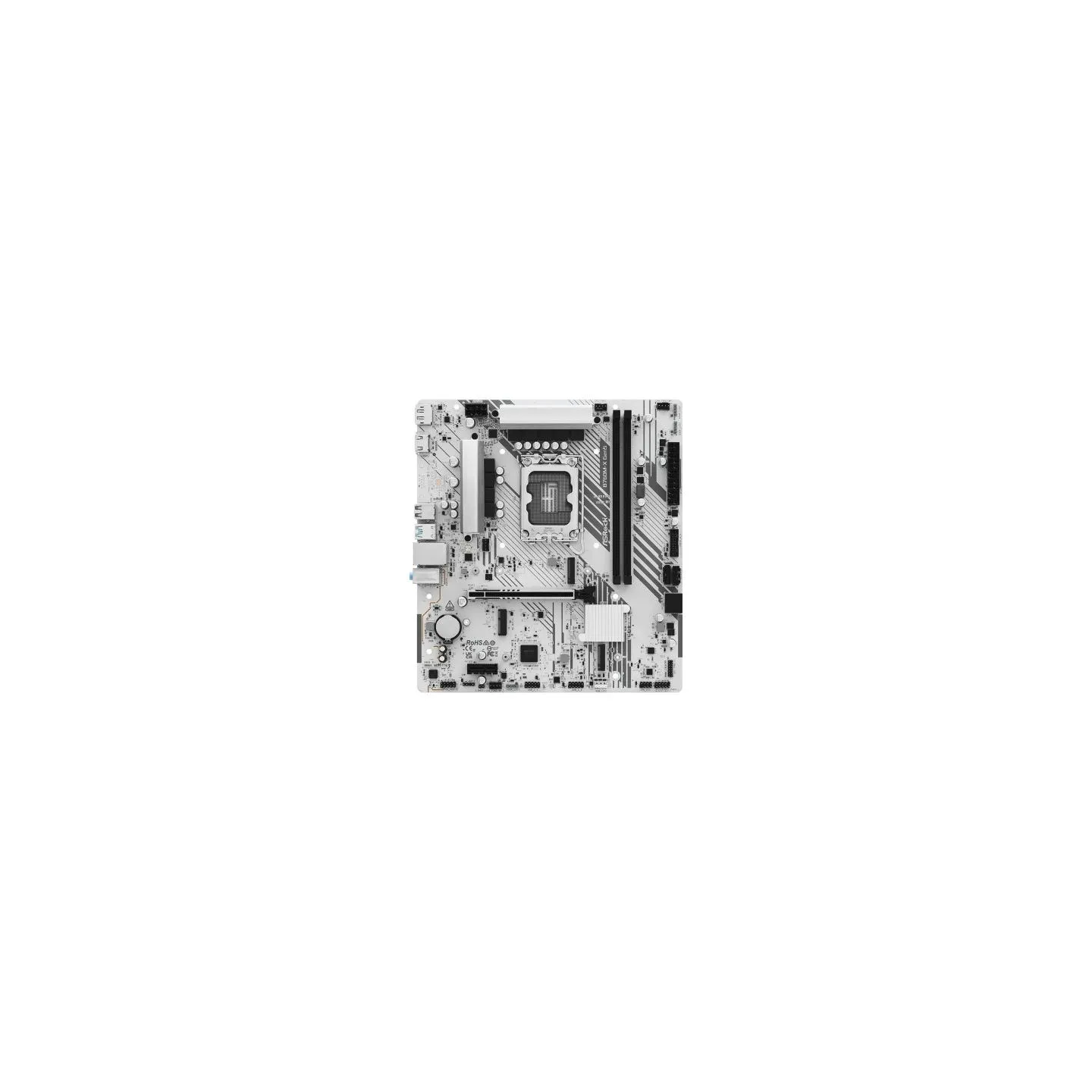

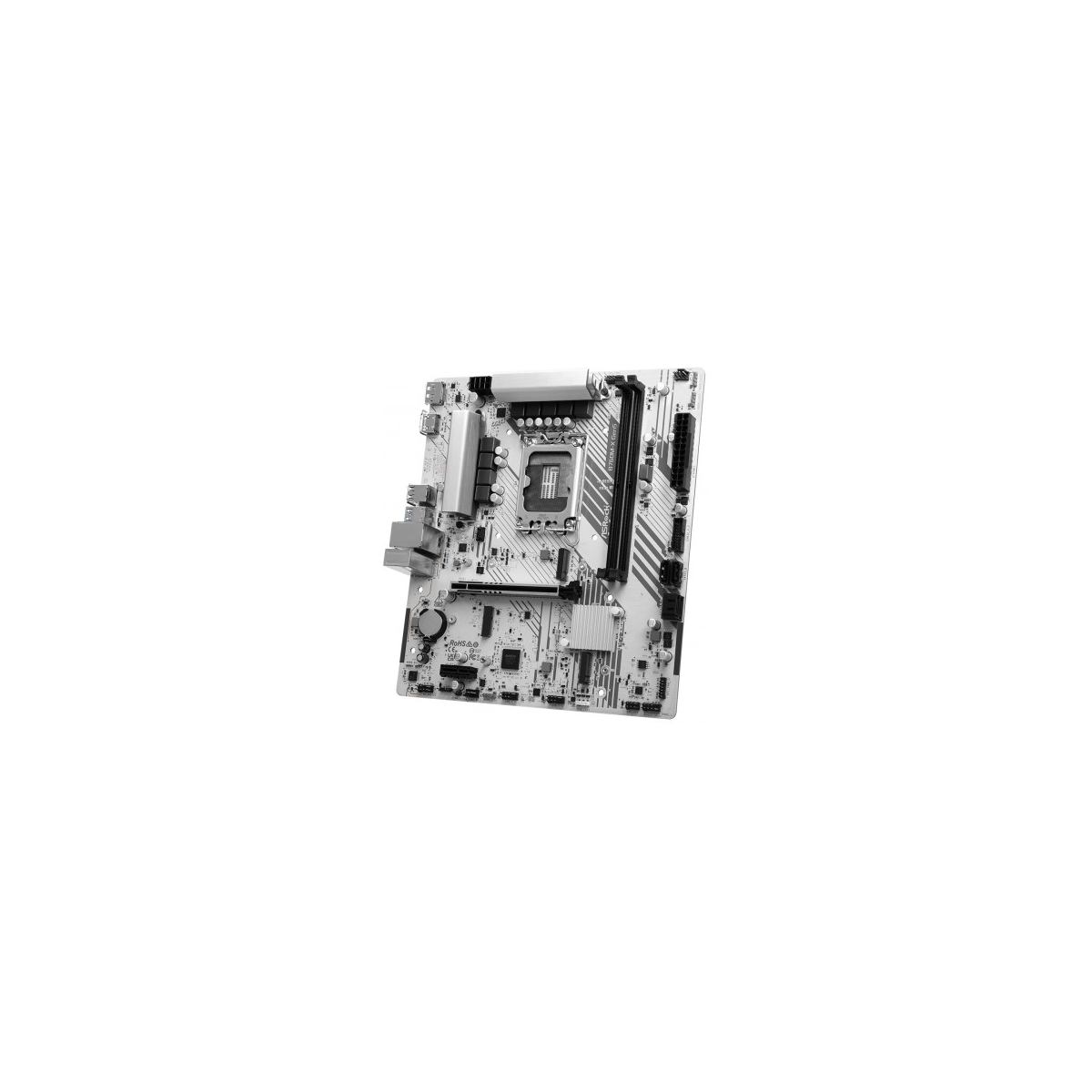

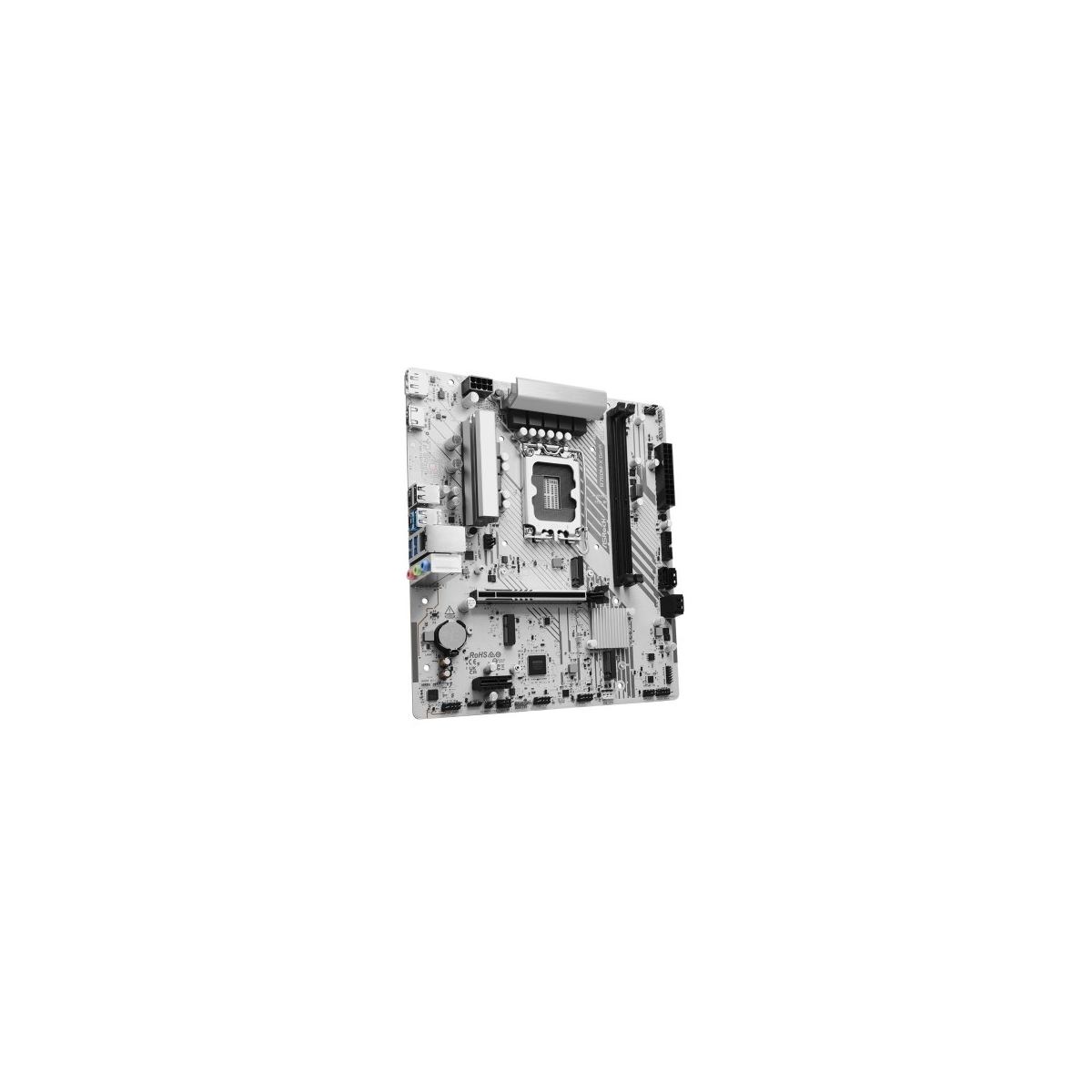

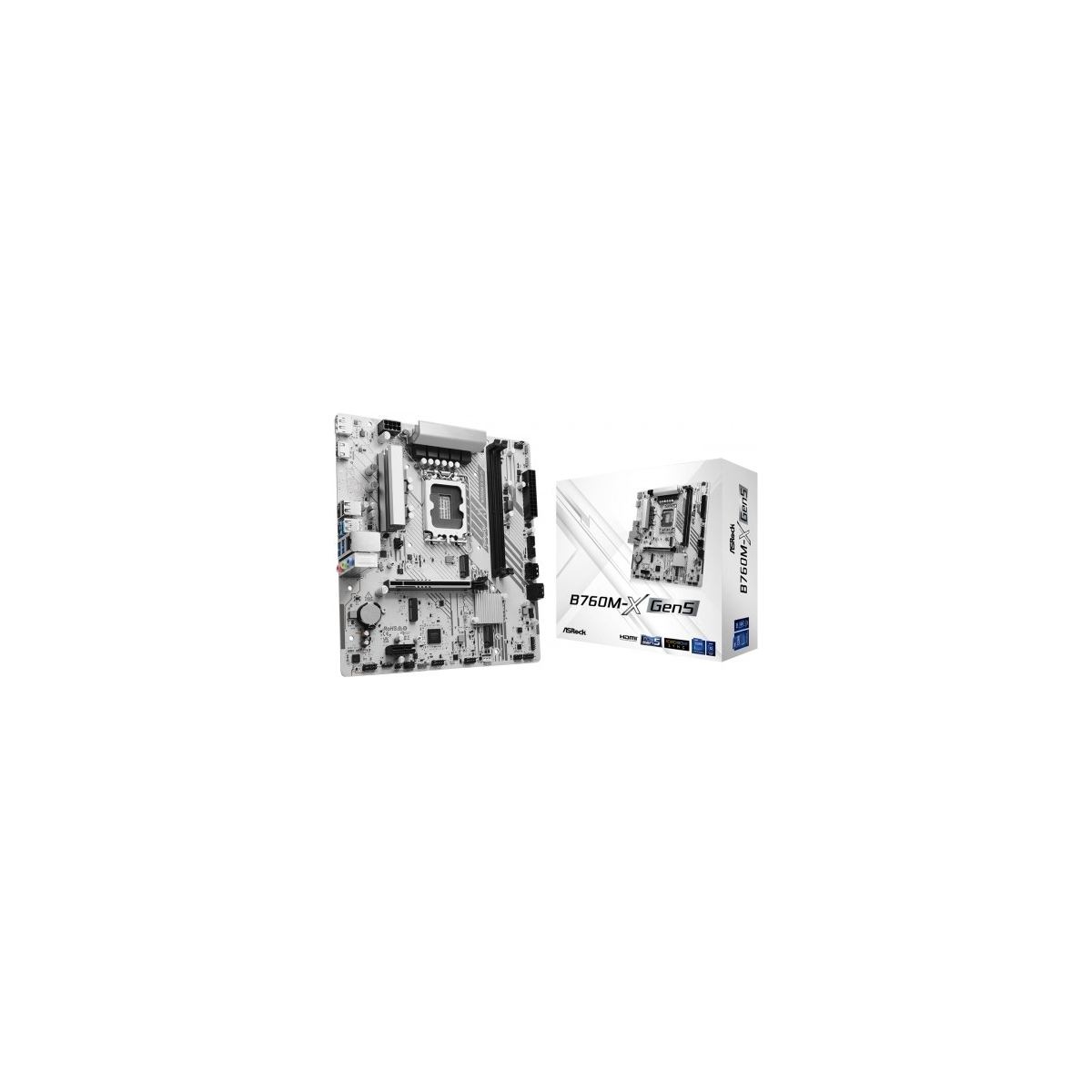

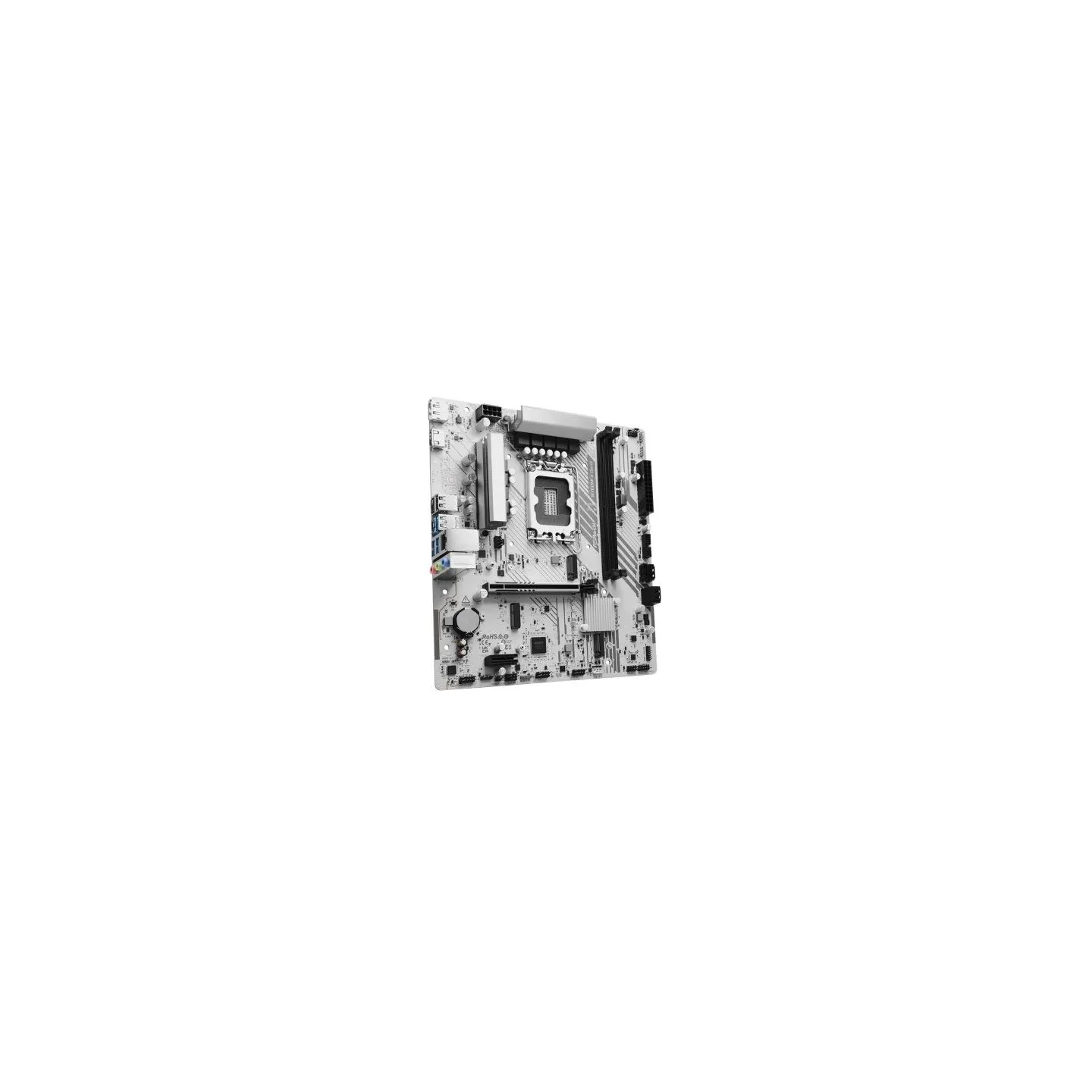

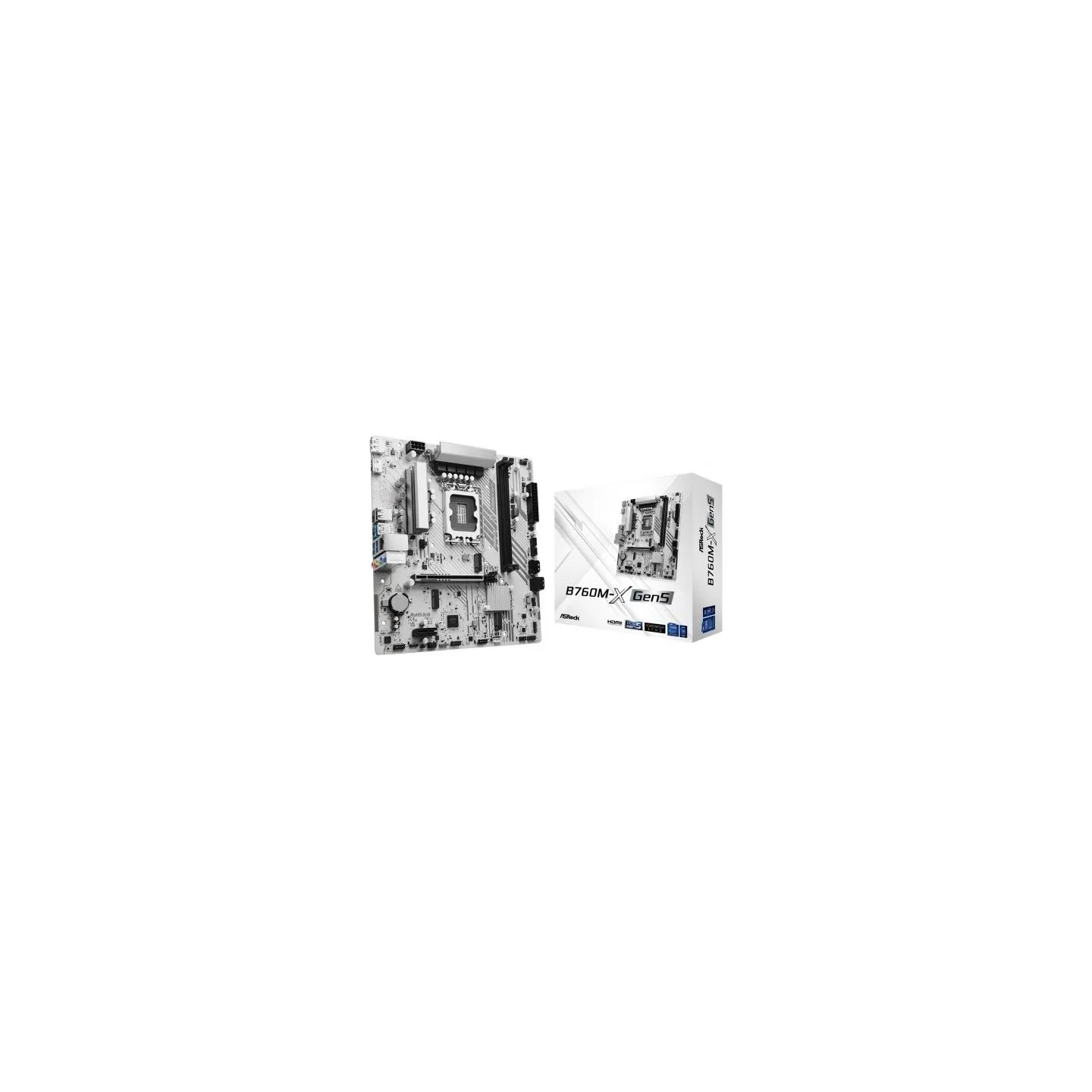

Asrock Motherboard B760M-X GEN5 s1700 2DDR5 DP/HDMI mATX
- Write a review
€111.27
Tax included
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Guarantee safe & secure checkout
- SKU
- KBASRIIEB760U09
- Barcode
- 4711581492356
- Model
- B760M-X GEN5
- CPU socket
- LGA1700
- Processor family
- Intel Core
- Generation
- Twelve
- Generation
- Thirteenth
- Generation
- Fourteenth
- Integrated CPU
- No
- Chipset manufacturer
- Intel
- Chipset type
- Intel B760
- Memory type
- DDR5
- Number of DDR5 slots
- 2
- Memory bus frequency
- 7200 MHz
- Max memory size
- 128
- Expansion slots
- 1 x PCIe 5.0 x 16
- Expansion slots
- 1 x PCIe 3.0 x 1
- Expansion slots
- 1 x M.2
- Max. number of SATA devices
- 4
- RAID
- Yes
- Detailed data on disk/drive interfaces
- SlotsCPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x PCIe 3.0 x1 Slots (PCIE2)* 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module StorageChipset: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes* 4 x SATA3 6.0 Gb/s Connectors RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Graphics
- Intel Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- Sound card
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Network interface
- 1 x 10/100/1000/2500 Mbit/s
- Network interface
- 2.5 Gigabit LAN 10/100/1000/2500 Mbps Dragon RTL8125BG Dragon 2.5G LAN software support Intelligent, automatic bandwidth adjustment User-friendly graphical interface Visual network usage statistics Optimized default settings for game, browser, and streaming modes User-customizable priority control
- USB ports at back panel
- 6
- USB ports on motherboard
- 6
- Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports
- 6
- FireWire (IEEE 1394)
- No
- COM connector / port
- No
- LPT connector / port
- No

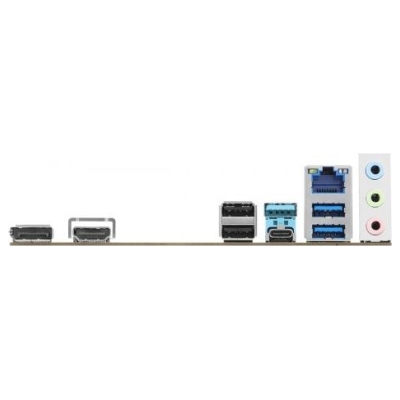

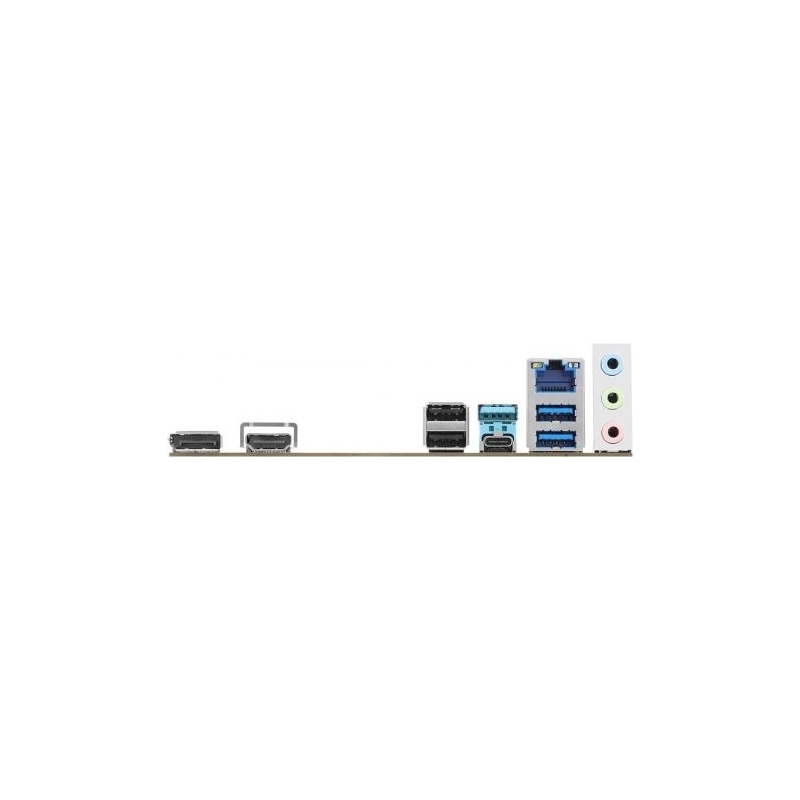

- External connectors
- 1 x HDMI
- External connectors
- 2 x USB 2.0
- External connectors
- 1 x USB 3.2 Gen 1 Type-C
- External connectors
- 2 x SMA
- External connectors
- 1 x Line Out
- External connectors
- 1 x DisplayPort
- External connectors
- 3 x USB 3.2 Gen 1 Type-A
- External connectors
- 1 x RJ-45
- External connectors
- 1 x MIC
- External connectors
- 1 x Line In
- Onboard connectors
- 3 x Addressable LED
- Onboard connectors
- 1 x Chassis intrusion header
- Onboard connectors
- 1 x 4pin CPU/Water Pump Fan Connector
- Onboard connectors
- 1 x RGB LED strip header
- Onboard connectors
- 1 x USB 3.2 Gen 1 Type-A
- Onboard connectors
- 1 x 24pin ATX zasilanie
- Onboard connectors
- 1 x Front panel audio header
- Onboard connectors
- 2 x 4pin case fan liquid cooling
- Onboard connectors
- 1 x 8pin 12V power
- Onboard connectors
- 2 x USB 2.0/1.1 header
- Onboard connectors
- 1 x 4pin CPU fan
- Onboard connectors
- 1 x TPM header
- BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Form factor
- micro ATX
- Dimensions
- 24.4 cm x 22.1 cm
- Accessories included
- 1 x I/O shield 2 x SATA data cables 3 x M.2 screws
- Supported operating systems
- Windows 11
- Supported operating systems
- Windows 10
- Software
- ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software ASRock Polychrome SYNC
- Designation
- CE+WEEE
B760M-X GEN5
2 Items
Specific References
- EAN13
- 4711581492356
- MPN
- B760M-X GEN5
